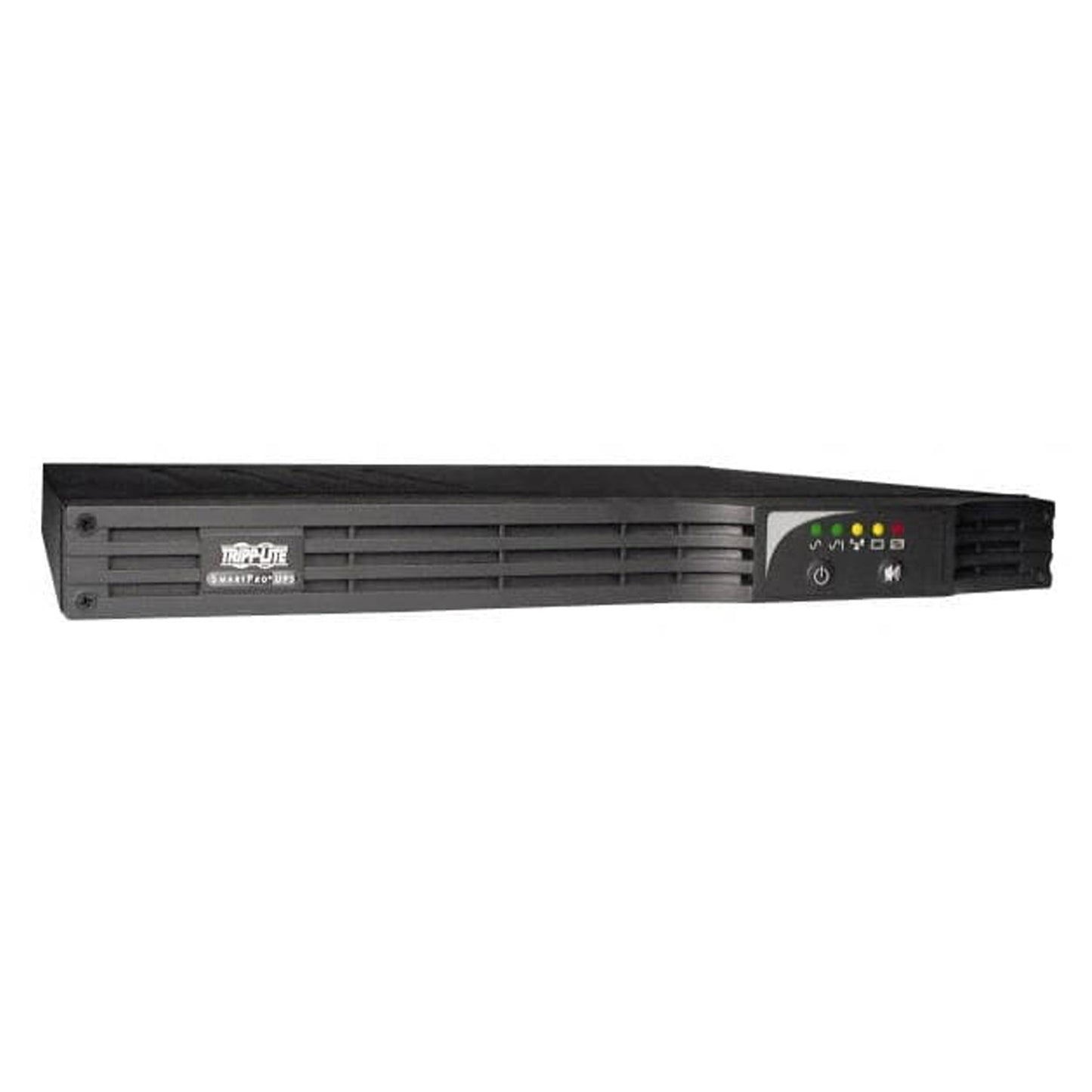

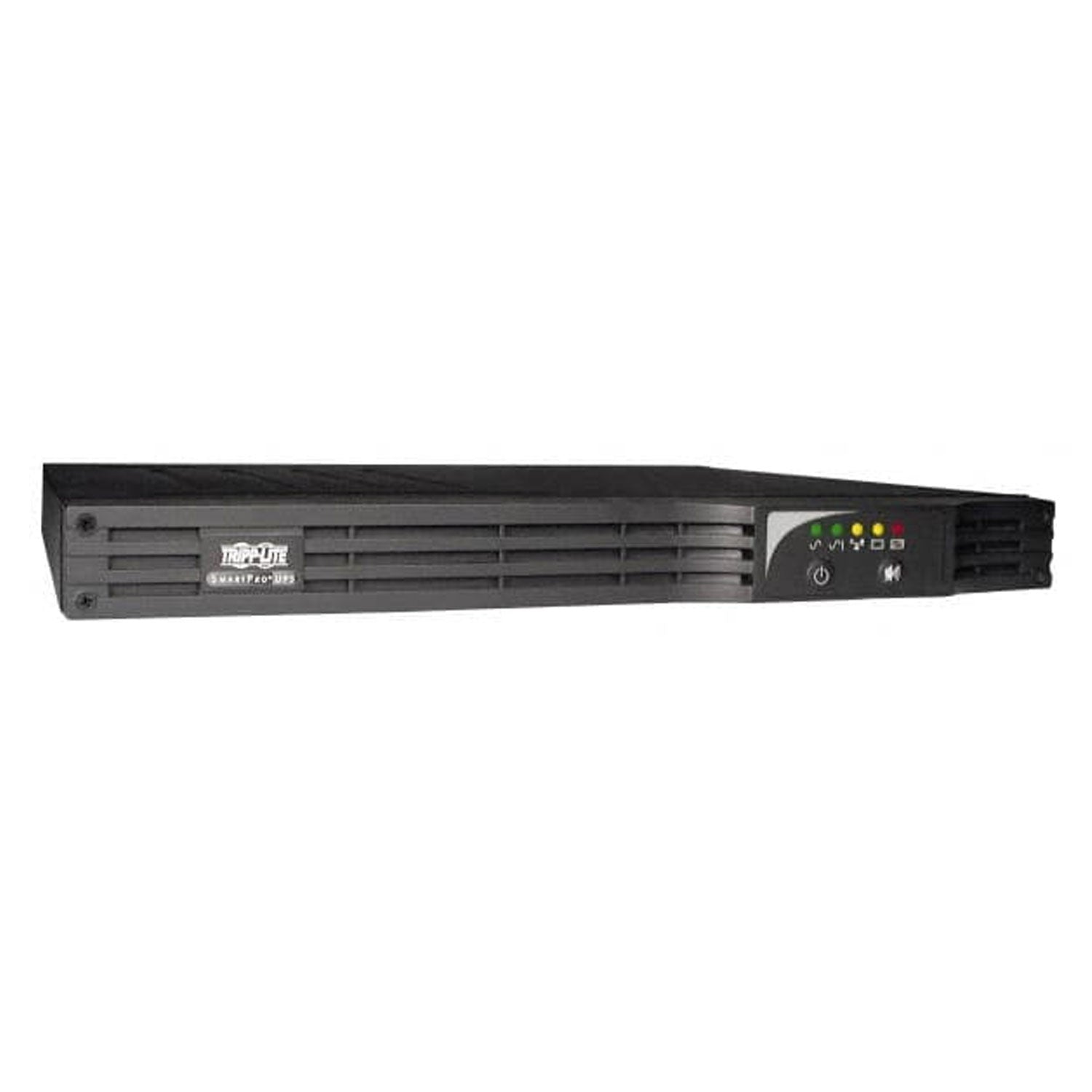

Tripp Lite SMART1000RM1U Smart Pro 1000 VA 800W1U Rackmount 6 Outlets Line Interactive UPS

Tripp Lite SMART1000RM1U Smart Pro 1000 VA 800W 1U Rackmount 6 Outlets Line Interactive UPS

The success of any organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and unavoidable hazards lurking inside your own walls, your servers and network hardware are under constant attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.

When operating from battery power, a UPS system generates the waveform of its AC output. Many UPS systems generate PWM sine wave power, an approximation of the pure sine wave power you receive from your electrical utility. Although PWM sine wave power is compatible with most equipment, pure sine wave power is required by some devices -- such as computers with active PFC power supplies -- and prevents others from overheating, malfunctioning or failing prematurely. This UPS system generates pure sine wave power for superior compatibility with active PFC power supplies and other sensitive equipment.

Reliable Battery Backup

• Half-Load Runtime: This UPS system will support a 50% load (400 W) for up to 14 minutes.
• Hot-Swappable Batteries: The internal batteries can be replaced without turning off the UPS system and disrupting the operation of connected equipment.

In locations with chronic voltage problems, frequent switching to battery drains reserve power and shortens battery life. This UPS system has a feature called automatic voltage regulation (AVR) that solves the problem. The UPS detects when input voltage is out of bounds and corrects it without using the battery.

Features:

• Load Capacity: 1 kVA (800 kW)
• Power Factor: 0.8
• Nominal AC Input: 120V, 60 Hz
• Nominal AC Output: 120V, 60 Hz

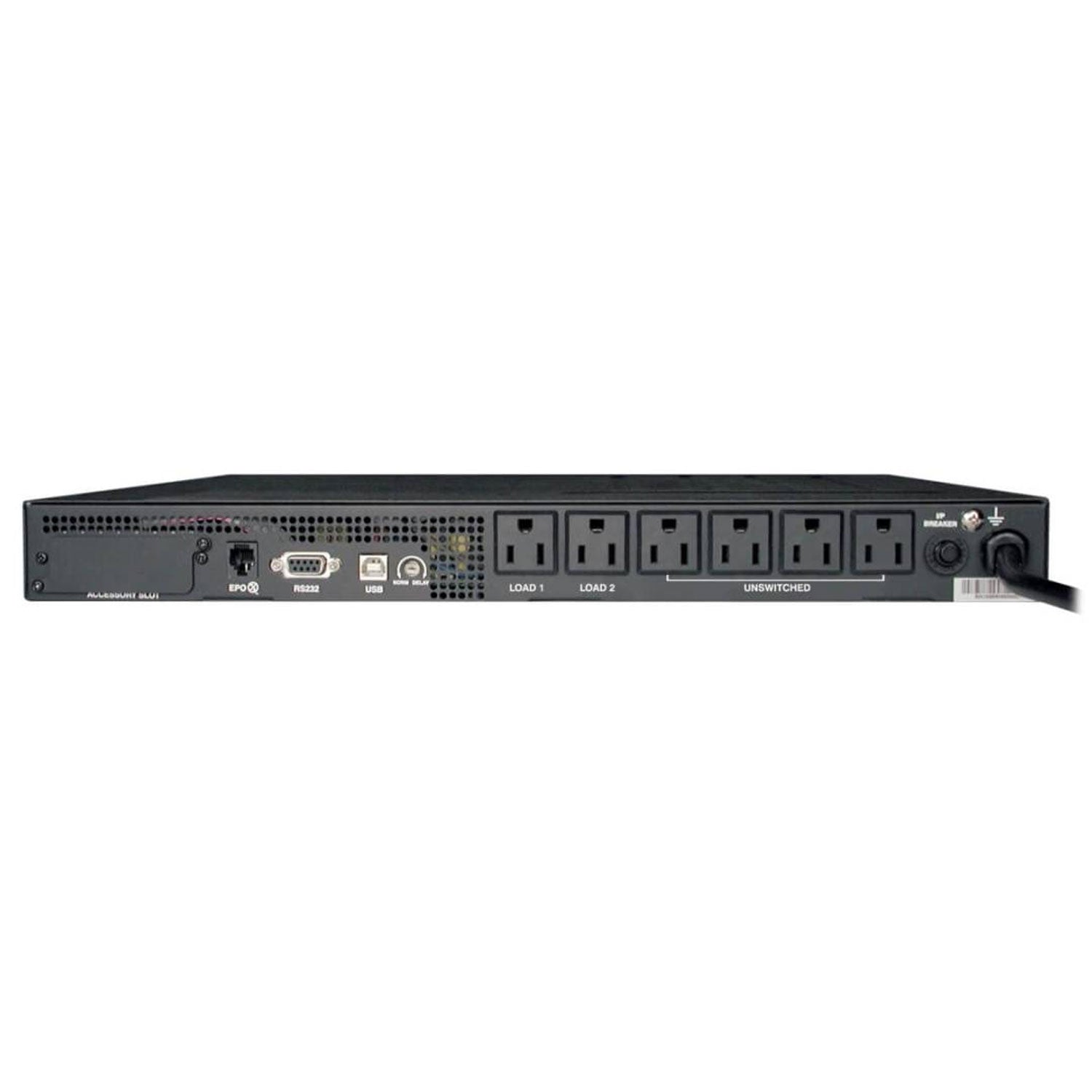

• AC Outlets: 6 x 5-15R
• Switched Outlet Banks: Two switchable single-outlet 5-15R load banks
• Output Waveform (AC Mode): Pure Sine Wave
• Output Waveform (Battery Mode): Pure Sine Wave
• Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
• Half-Load Runtime: 14 min. (400 W Load)
• Communications: USB Port (HID-Compliant); Serial Port (DB9); Network Card Slot; EPO
• User-Replaceable Battery: Yes (RBC69-1U)
• Primary Form Factor: 1U Rack (Supports 2- or 4-post rack installation with included kit. Add 4POSTRAILKIT1U for extra support in a 4-post rack.)
• Standards: UL 1778 (USA); CSA (Canada); NOM (Mexico); FCC (EMI); ENERGY STAR; RoHS
