Hollyland Mars Video Transmission & Monitoring Kit (5")
HLLND-MARSVIDEO-KIT-US
Hollyland Mars 4K wireless HDMI/SDI transmitter/receiver kit with 5.5" HollyOS monitor, 450ft range & 0.06s latency.
Free Shipping
On all orders
1 Year Warranty
Full coverage
30 Day Returns
Hassle-free
Shop Safely
Secure your shopping experiences with various safe and trusted payment methods.

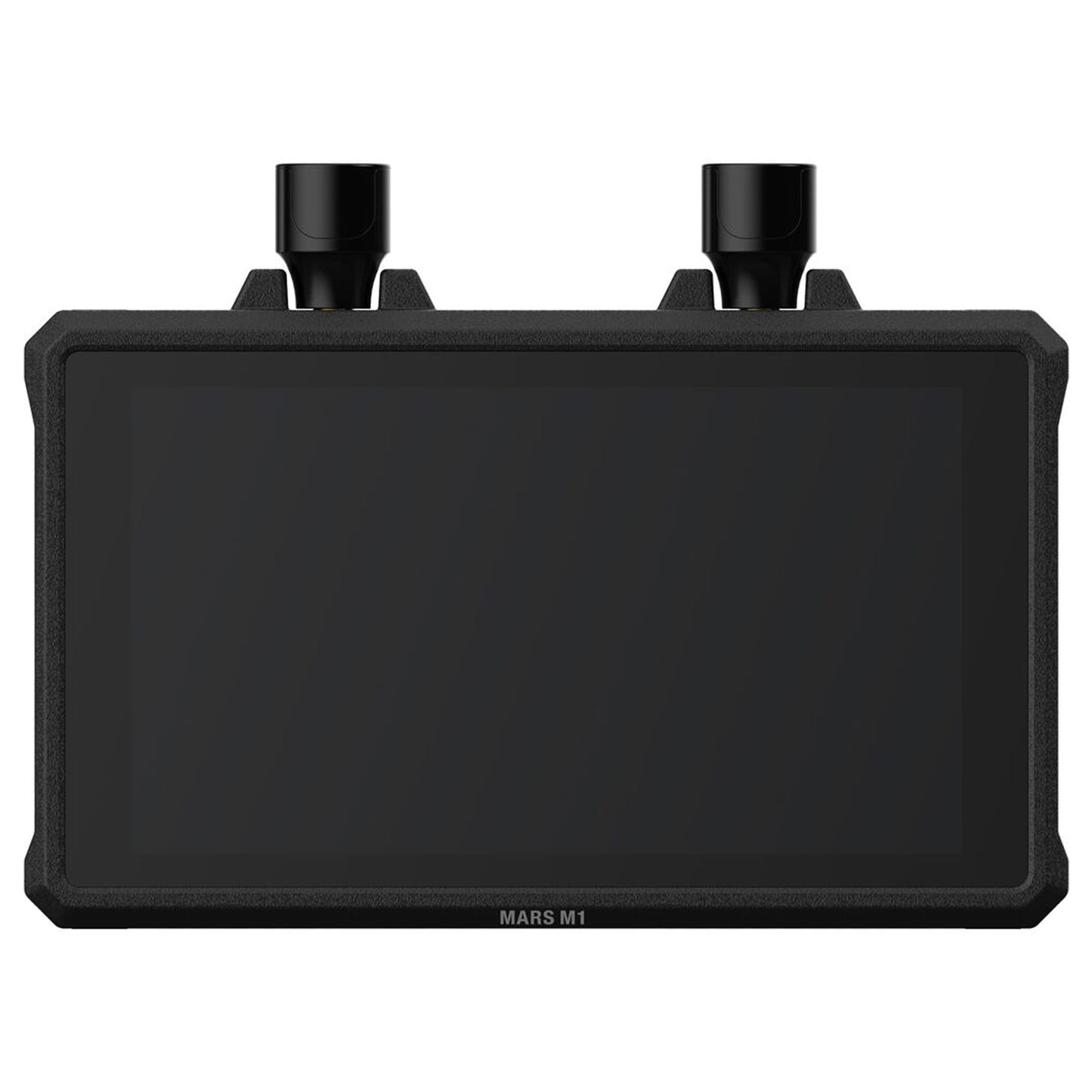

Hollyland Mars Video Transmission & Monitoring Kit (5")
Wirelessly monitor your camera feed with the Mars Video Transmission & Monitoring Kit from Hollyland. This kit includes a Mars M1 Enhanced 5.5" wireless transceiver monitor, a Mars 4K HDMI/SDI wireless transmitter/receiver kit, antennas, a wood handle, a monitor hood, a shoe mount, a shoulder strap, and a screen protector.
Key Features
- Mars 4K Wireless Video Transmission: Adds UHD 4K30 wireless video transmission to your gimbal, mirrorless, or DSLR rig with extremely low 0.06s latency and a line-of-sight range up to 450'.

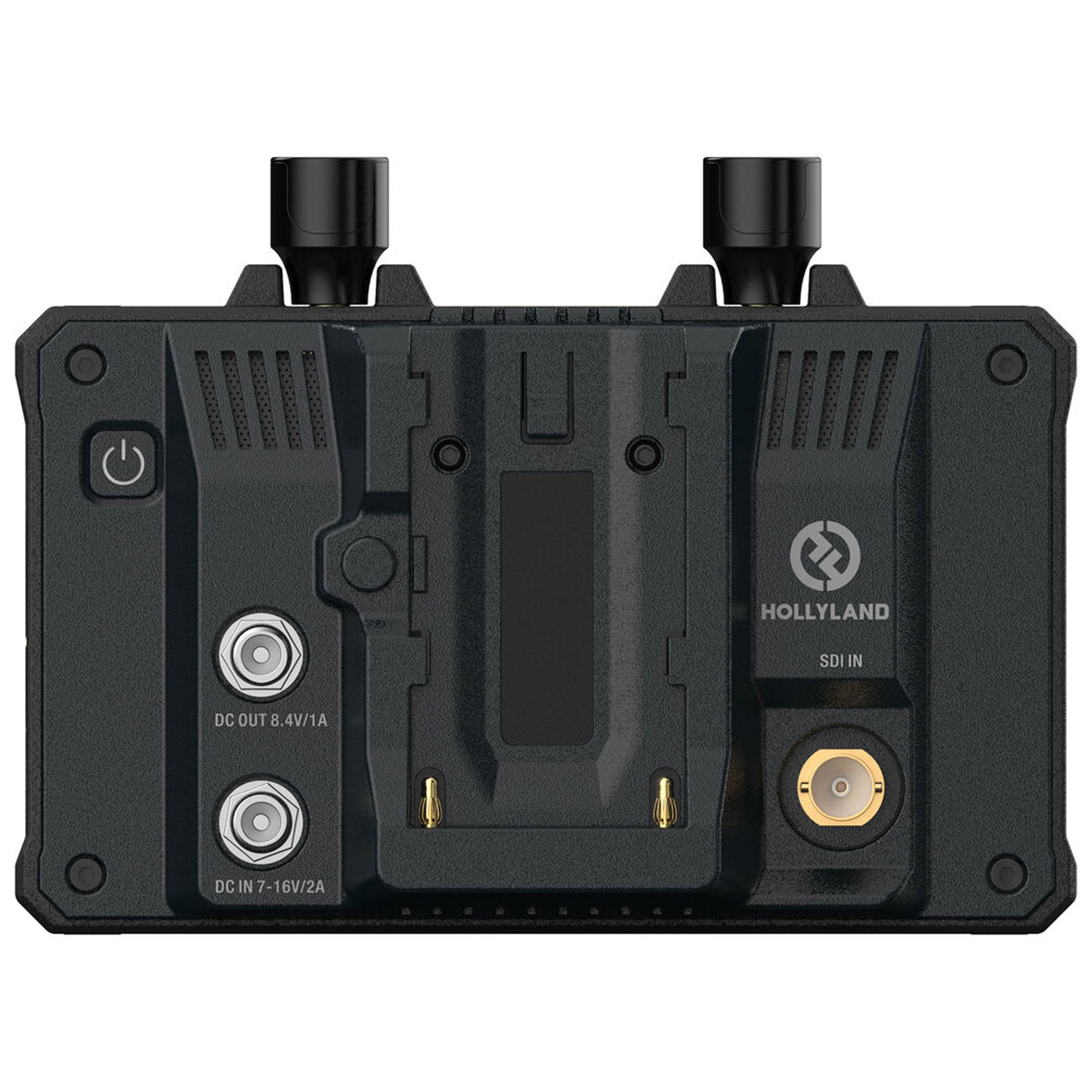

- Mars M1 Enhanced 5.5" Transceiver Monitor: All-in-one transmitter, receiver, and monitor with a 1920x1080 touchscreen, 1000 cd/m² brightness, and professional color calibration (Rec. 709).

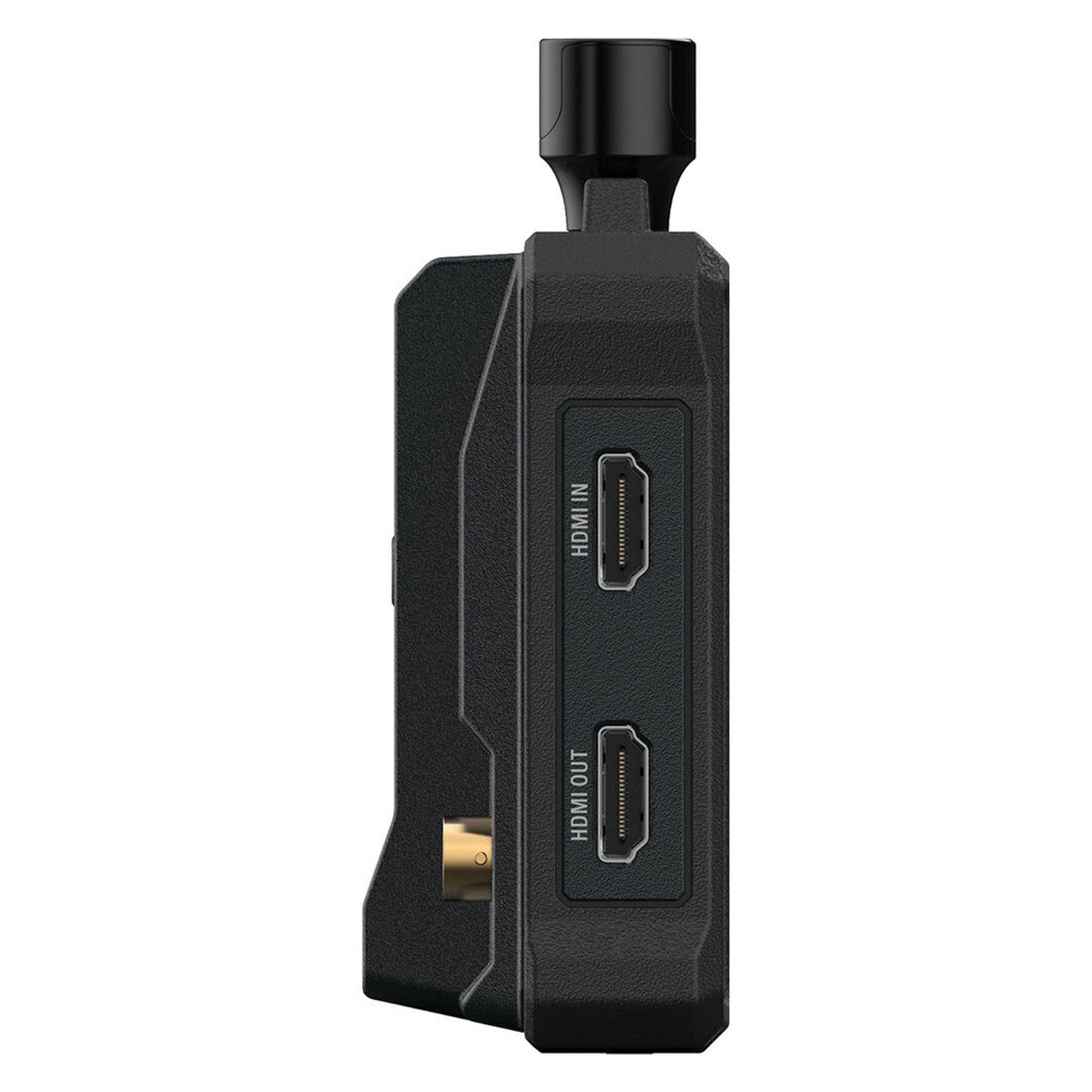

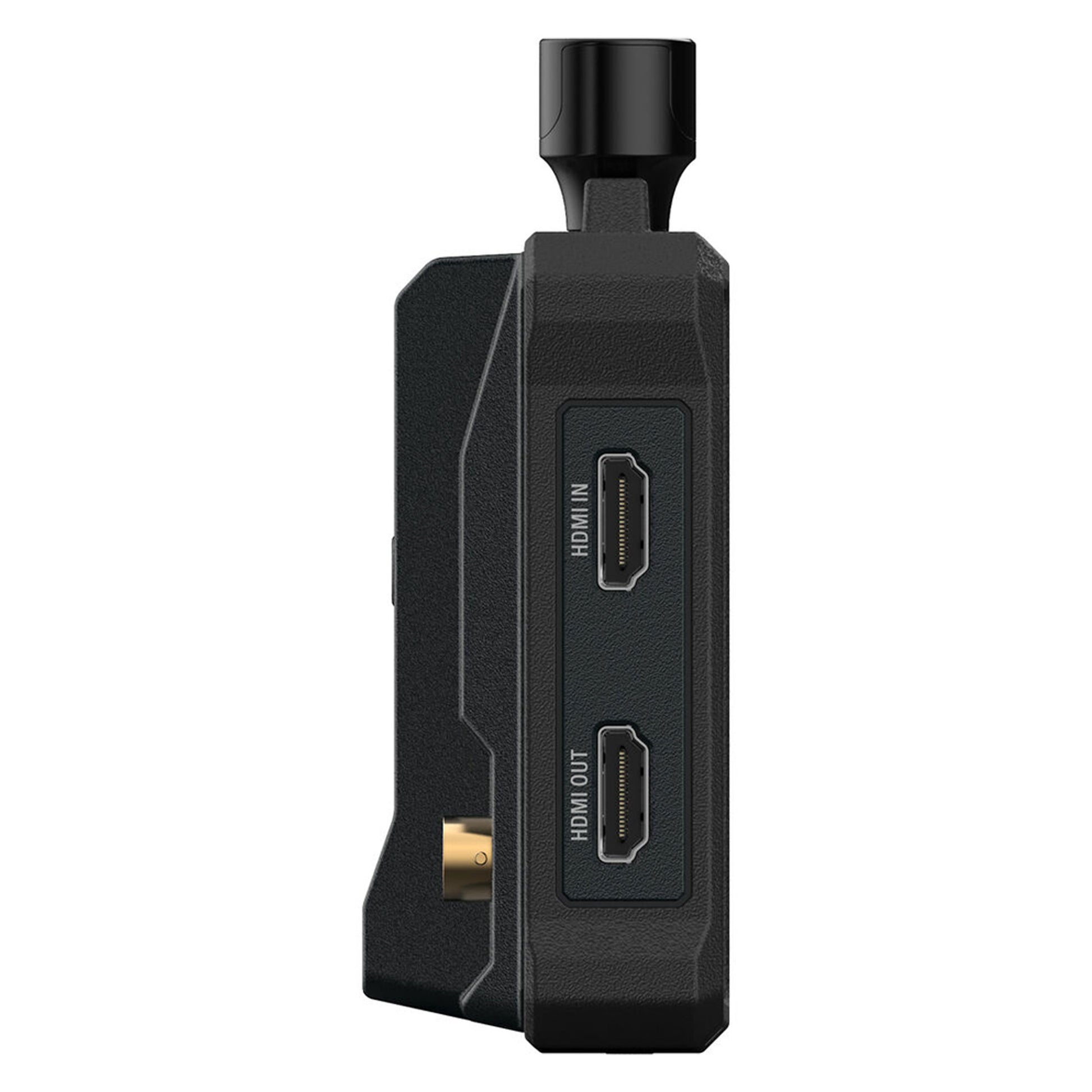

- HDMI & SDI Connectivity: The Mars 4K transmitter accepts HDMI 1.4b and 3G-SDI inputs; the receiver mirrors output simultaneously across both for broadcast and production frame rate flexibility.
- HollyView App Monitoring: Monitor your video transmission in real time on a smartphone or tablet (Android & iOS) via Wi-Fi, supporting multiple TX-to-app and TX-to-RX configurations.
- Built-In Recording & Playback: The Mars M1 Enhanced features trigger recording and instant playback review of up to 2 minutes of footage.
- Smart Channel Scanning: Both the Mars 4K and Mars M1 Enhanced automatically scan for interference-free channels upon startup for a stable connection.
- HollyOS Monitoring Tools: The Mars M1 Enhanced includes waveform, vectorscope, zebra pattern, aspect mark, anamorphic de-squeeze, crosshatch, and 3D LUT support.

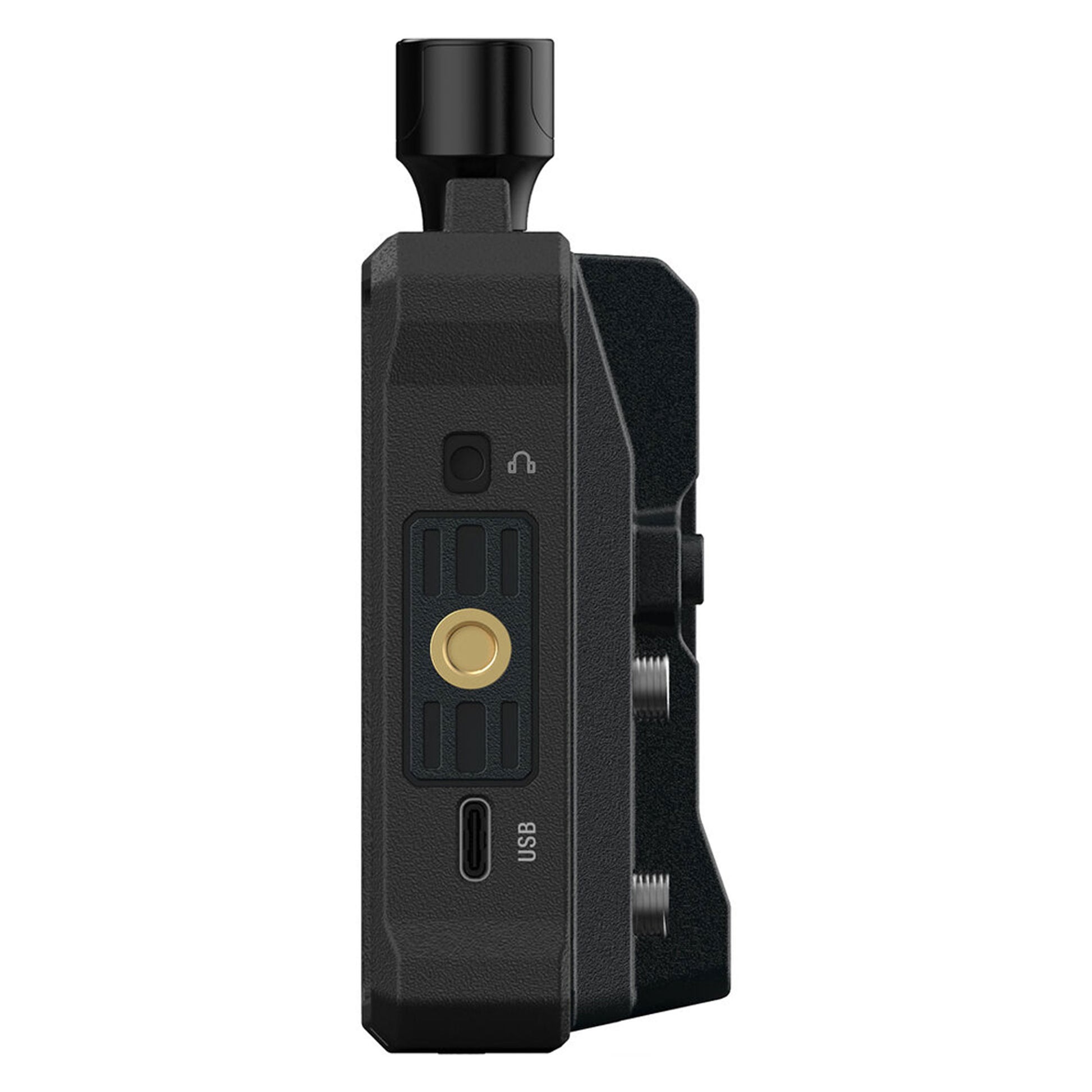

- Flexible Power Options: Mars 4K supports 6-16 VDC coax input, L-series/NP-F batteries, and USB-C charging; Mars M1 Enhanced supports 7-16 VDC, L-series batteries, and D-Tap power.
- Durable, Corrosion-Resistant Build: Compact form factor with wiggle-free bullet-styled antennas for fast configuration in the field.

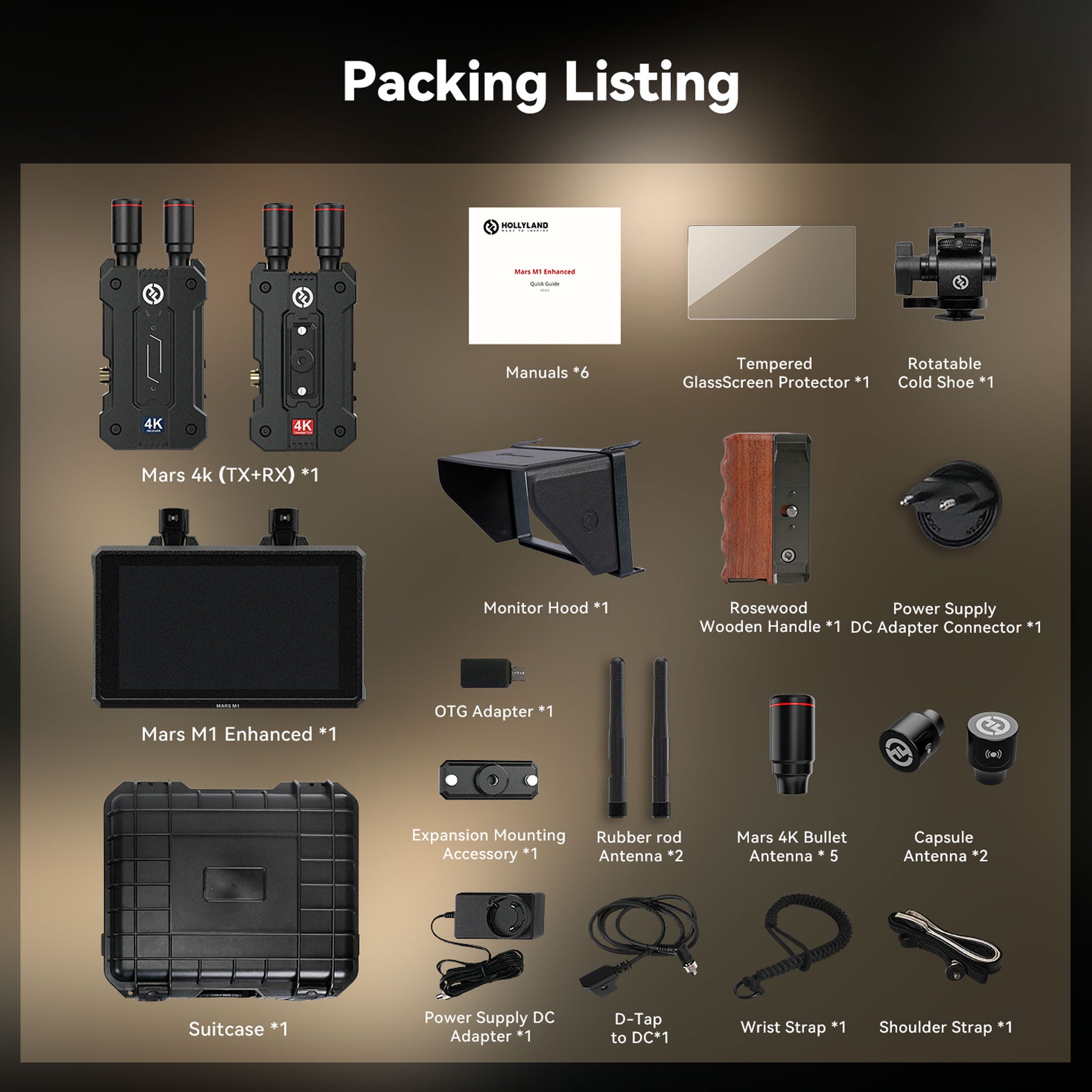

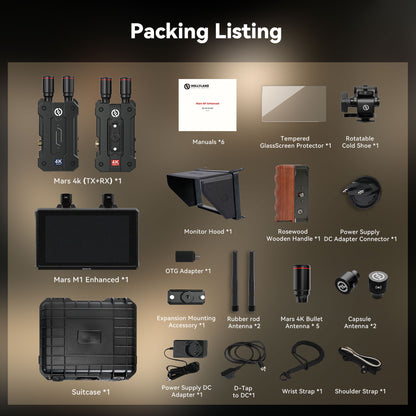

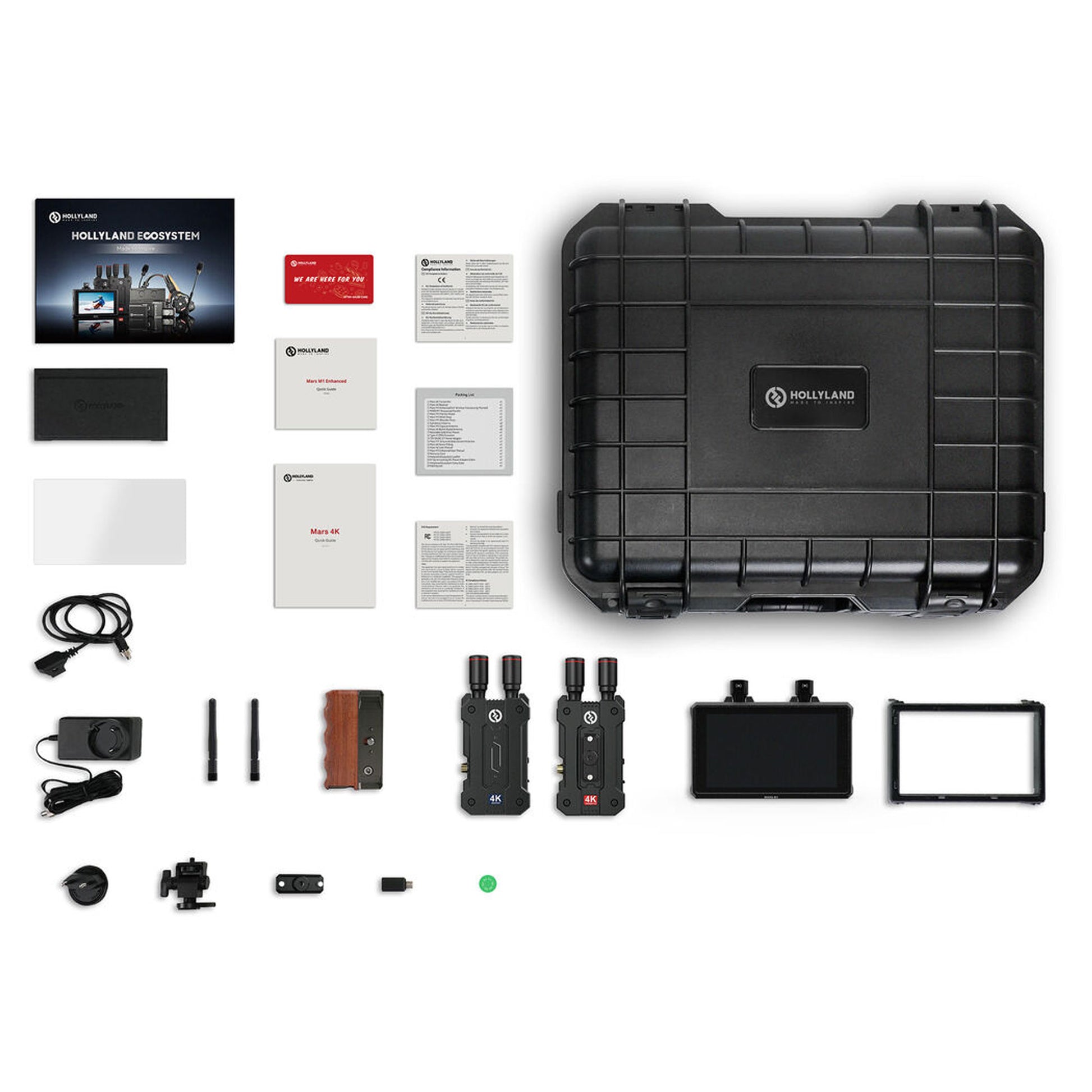

In the Box
- Mars 4K Transmitter
- Mars 4K Receiver
- Mars M1 Enhanced
- 5.5" Wireless Transceiving Monitor
- MARS M1 Rosewood Handle
- Mars M1 Monitor Hood
- Mars M1 Wrist Strap
- Mars M1 Shoulder Strap
- 2 Cylindrical Antenna
- 2 Mars M1 Capsule Antenna
- 5 Mars 4K Bullet-Styled Antenna
- Rotatable Cold Shoe Mount
- Type-C OTG Converter
- 12V 2A DC 2.1 Power Adapter
- Mars M1 Tempered Glass Screen Protector
- Mars 4K Screw Fitting
- Mars 4K User Manual
- Mars M1 Enhanced User Manual
- Hollyland Ecosystem Leaflet
- D-Tap to Locking DC Power Adapter Cable
- Hollyland Ecosystem Carry Case
| Brand | Hollyland | Model | HLLND-MARSVIDEO-KIT-US |
|---|---|---|---|
| UPC | 191460004230 | MPN | HLLND-MARSVIDEO-KIT |
| Kit Configuration | Mars 4K Transmitter + Receiver with Mars M1 Enhanced Monitor | Monitor Display Size | 5.5" touchscreen |
| Monitor Resolution | 1920x1080 (403 PPI) | Monitor Brightness | 1000 cd/m² (nits) |
| Monitor Contrast Ratio | 1000:1 | Monitor Aspect Ratio | 16:9 |
| Transmission Range (LOS) | Up to 450' (150m) | Transmission Latency | 0.06s (Mars 4K) / 0.08s (M1 Enhanced) |
| Mars 4K Video Format | Up to 4K30 (3840x2160) via HDMI, 1080p60 via SDI | Mars 4K Operating Frequency | 5.1GHz–5.8GHz |
| Mars 4K TX/RX Weight | 223g (7.9oz) each, excluding antennas | Mars 4K TX/RX Dimensions | 4.5 x 2.5 x 1.3" (115x65x32mm) |
| Mars 4K Power Consumption | TX <8.5W, RX <5W (typical) | Mars 4K Power Supply | DC 6-16V, USB-C 5V/2.5A, or NP-F battery |
| M1 Enhanced Weight | Approx. 400g (14.1oz), excluding antennas | M1 Enhanced Dimensions | 5.98 x 3.78 x 1.57" (152x96x40mm) |
| M1 Enhanced Power Consumption | <16W | M1 Enhanced Power Input | DC 7-16V or NP-F battery (6.8-8.4V) |
| Video I/O | HDMI 1.4b, 3G-SDI, HDMI loop-out | Antenna Connectors | RP-SMA male (x2 per unit) |
| Companion App | HollyView (iOS/Android) | Operating System | HollyOS |
| Mobile Device Monitoring | Up to 4 devices | Max Receivers per Transmitter | Up to 2 |
| Included Accessories | Wood handle, monitor hood, straps, carry case | Screen Protection | Tempered glass screen protector |
| Headphone Jack | 3.5mm | Warranty | 12-month limited warranty |
4K Wireless Video Transmission
The Mars 4K transmitter and receiver send UHD 4K30 HDMI/SDI video wirelessly up to 450 feet away.

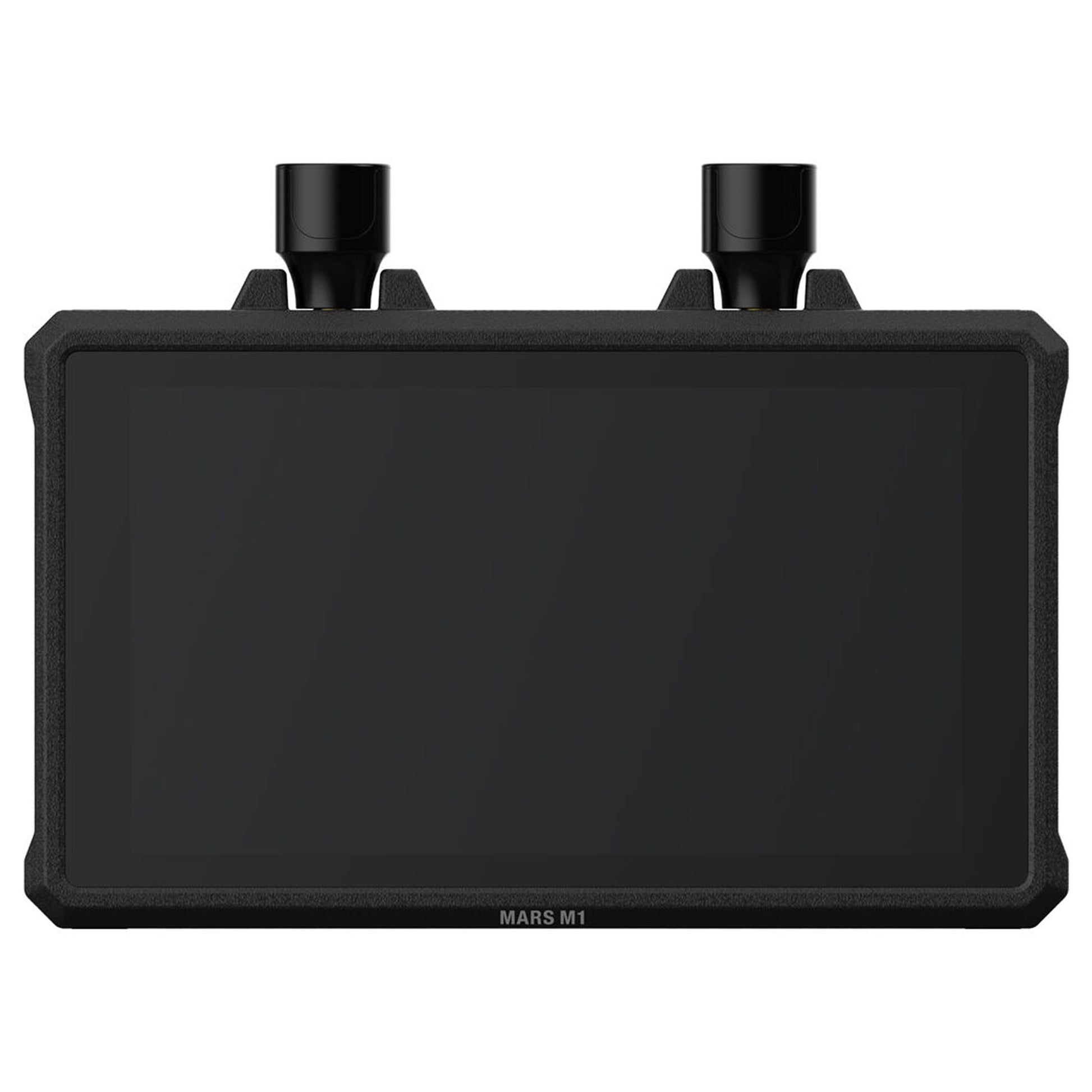

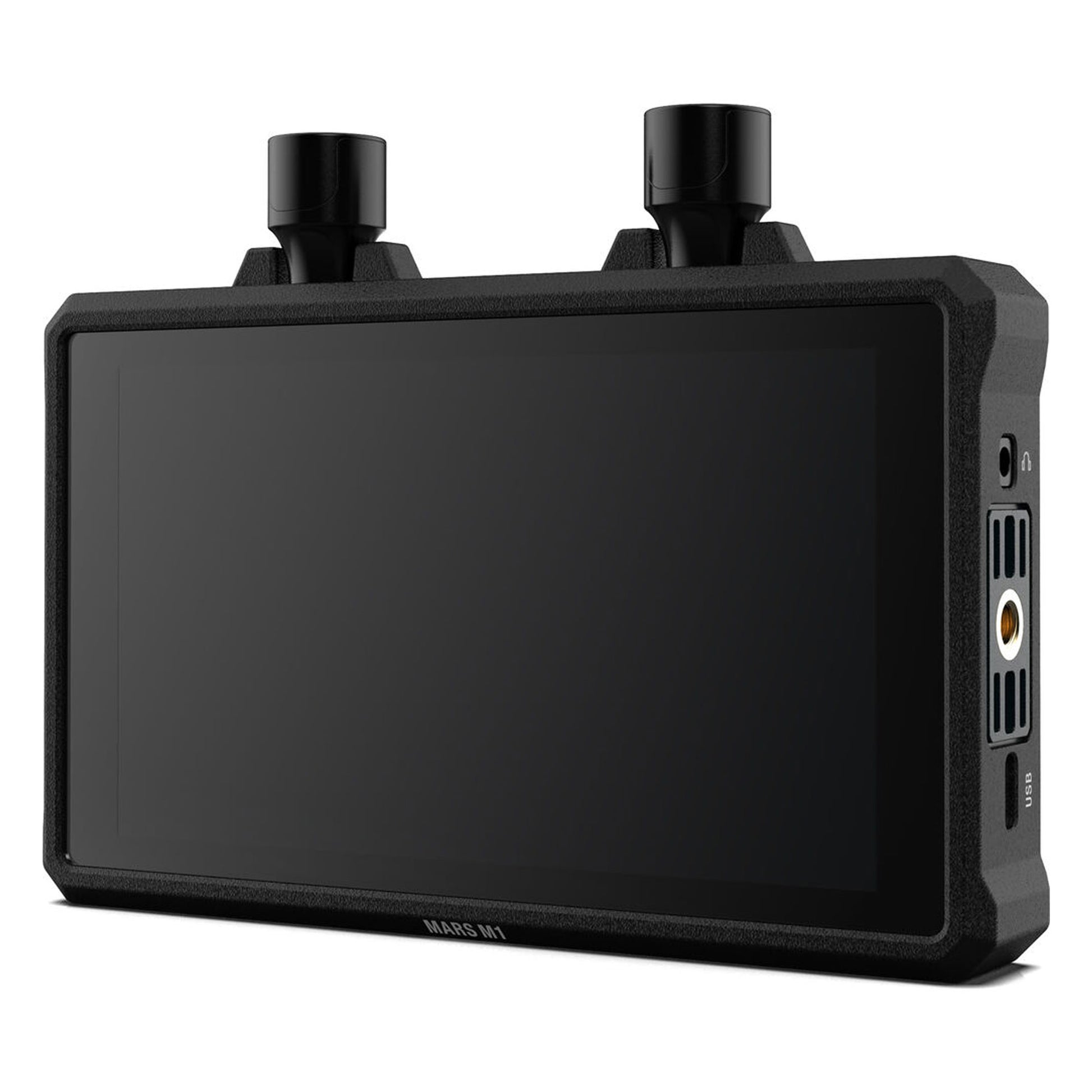

5.5" HollyOS Touchscreen Monitor
The Mars M1 Enhanced offers a 1920x1080 touchscreen with 1000-nit brightness and professional color tools.
Ultra-Low Latency Performance
Video transmits with just 0.06 seconds of latency for real-time, lag-free on-set monitoring.
Complete Production-Ready Kit
Includes a wood handle, monitor hood, straps, antennas, and a carry case for immediate field use.
