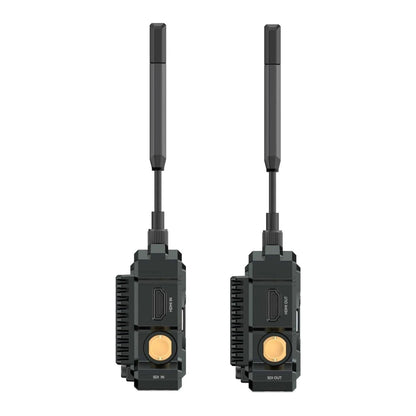

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

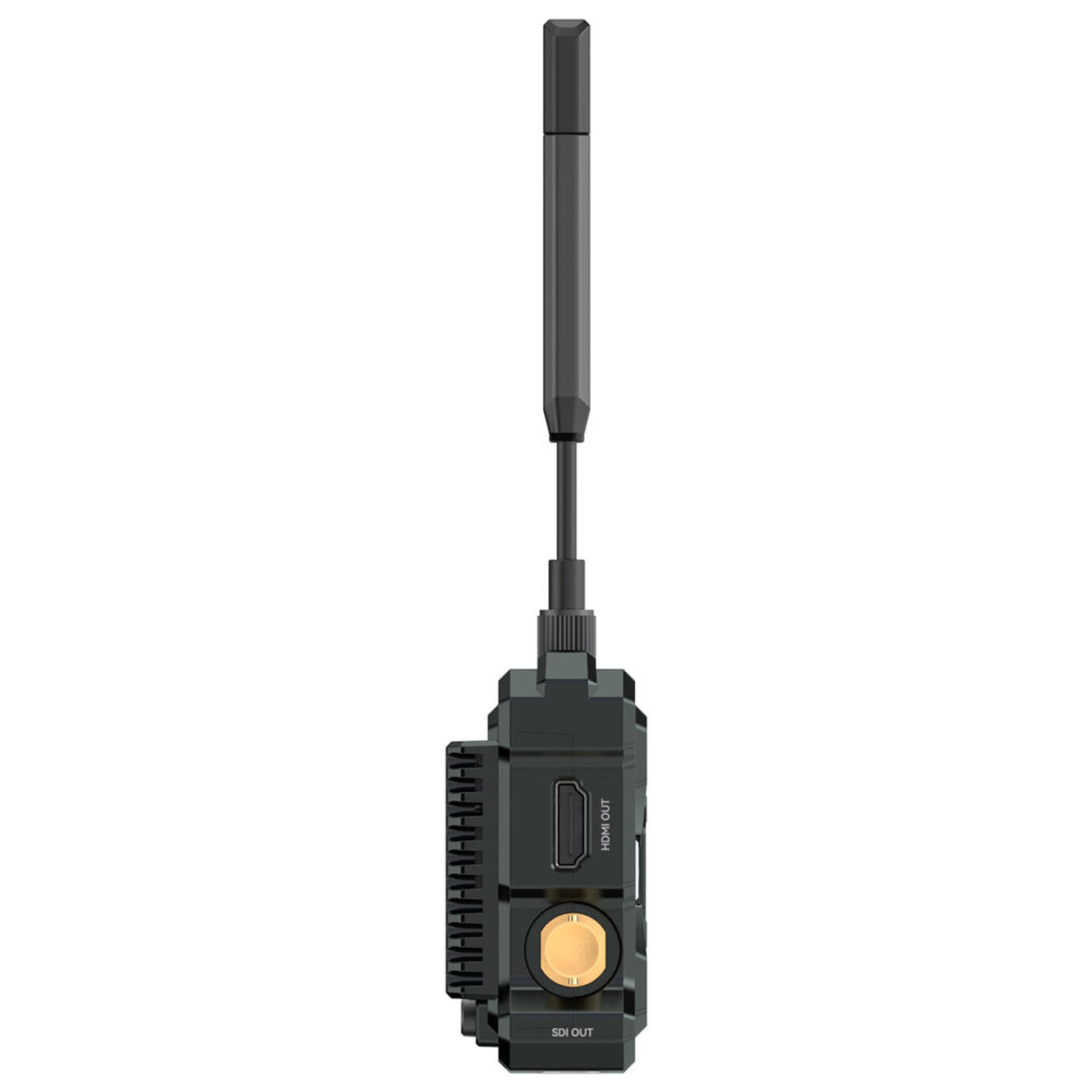

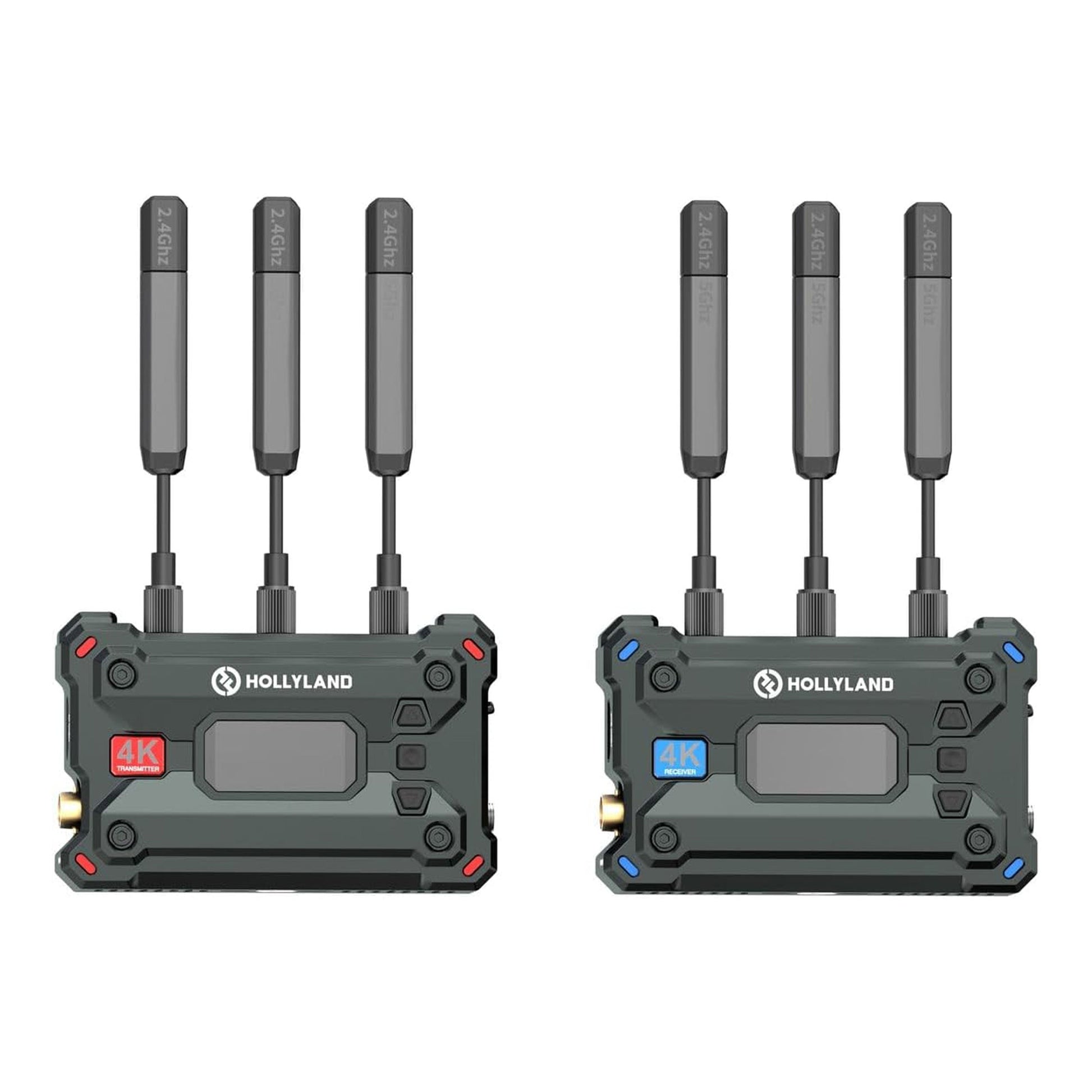

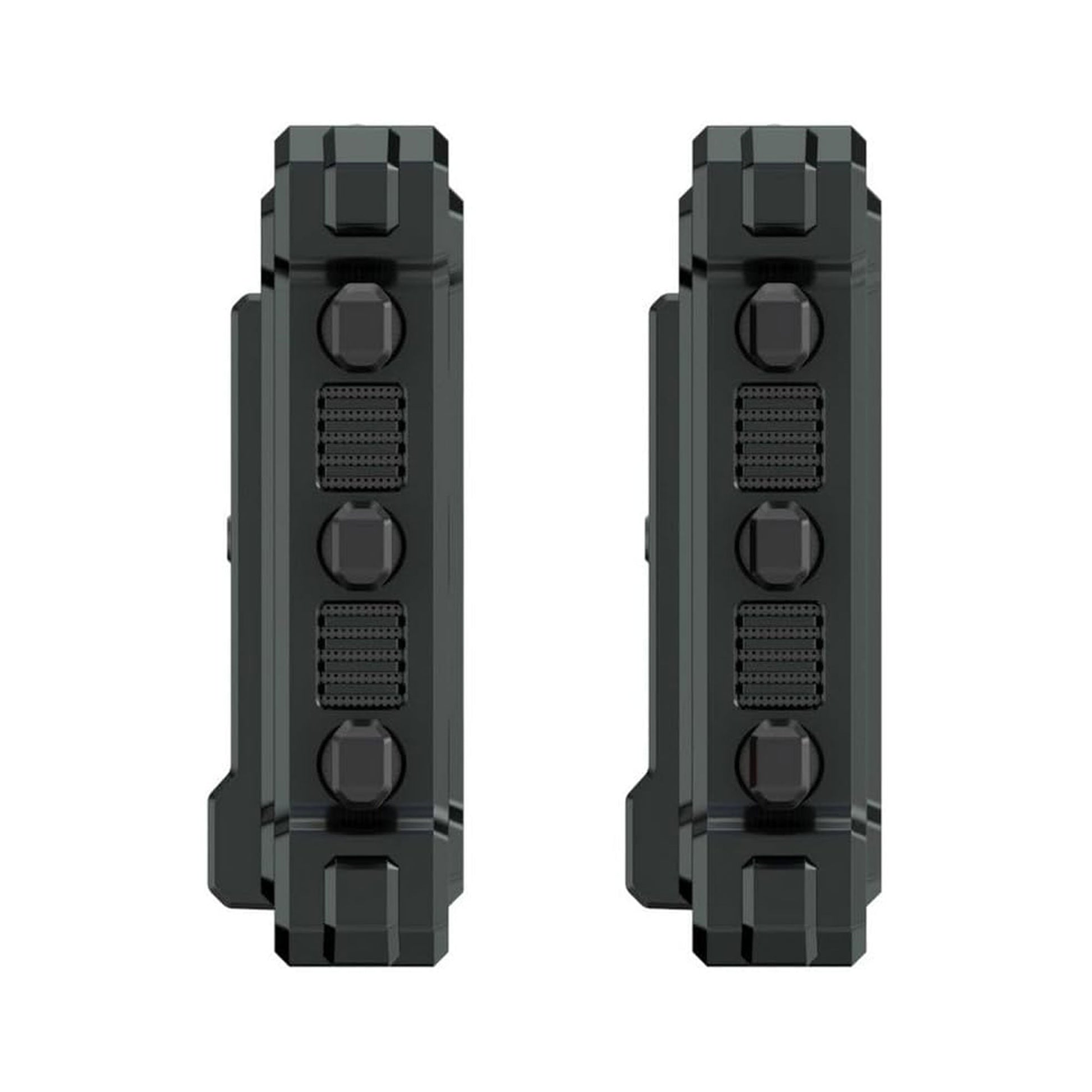

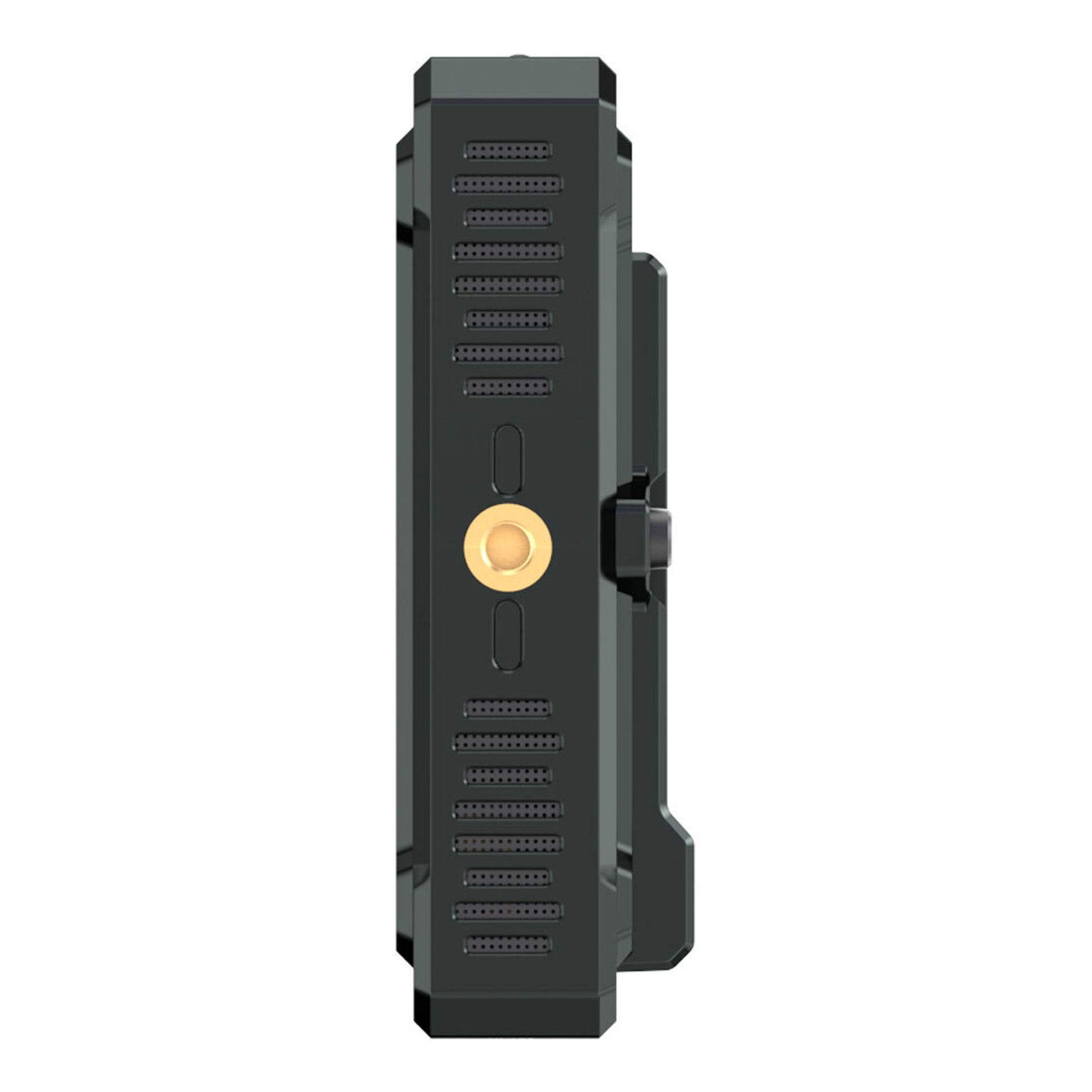

Add 4K30 wireless video transmission to your production using the versatile Pyro S 4K HDMI/SDI Wireless Video Transmission System from Hollyland. The system includes a wireless transmitter, a wireless receiver, seven antennas, a USB-C adapter, a DC power adapter, and an adjustable shoe adapter mount. The transmitter provides HDMI and SDI inputs and features extremely low 50 ms latency that sends line-of-sight transmission from up to 1300' away to the included receiver. When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away. The receiver outputs to HDMI and SDI.

Each Pyro S unit is equipped with a USB-C port that supports plug-and-play UVC operation, so it can seamlessly plug into a computer and utilize the wireless video for streaming and conferencing applications. A built-in frequency scanner allows you to select the clearest frequency for your transmission and features a bright LCD for configuration. Each unit can be powered using a separately available locking DC power adapter or an L-series type battery using an optional battery plate.

• Long Distance, High Quality
  The Pyro S Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.
• Strong Signal Strength
  At a stable transmission range of up to 1300', the Pyro S features latency as low as 50ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro S excels with increased transmission distance while preserving video quality and minimizing latency. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate up to 12 Mb/s and Smooth mode for a dynamic change in latency.
• Crisp and Sharp Images
  With up to 4K30 transmission capabilities via HDMI and 1080p60 via SDI, the Pyro S transmits images with superior clarity, detail, and realism, making it ideal for professional applications like broadcast and filmmaking.
• USB Video Class
  UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for live streaming, video conferencing, and other scenarios.
• RTMP
  Input your wireless key and connect a network card to stream video directly to live platforms like Zoom, YouTube, Twitch, and TikTok.
• Smart Channel Scan
  Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Users can also activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, ensuring an uninterrupted and reliable experience.
• Easy Setup
  The Pyro S supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.

In the box:

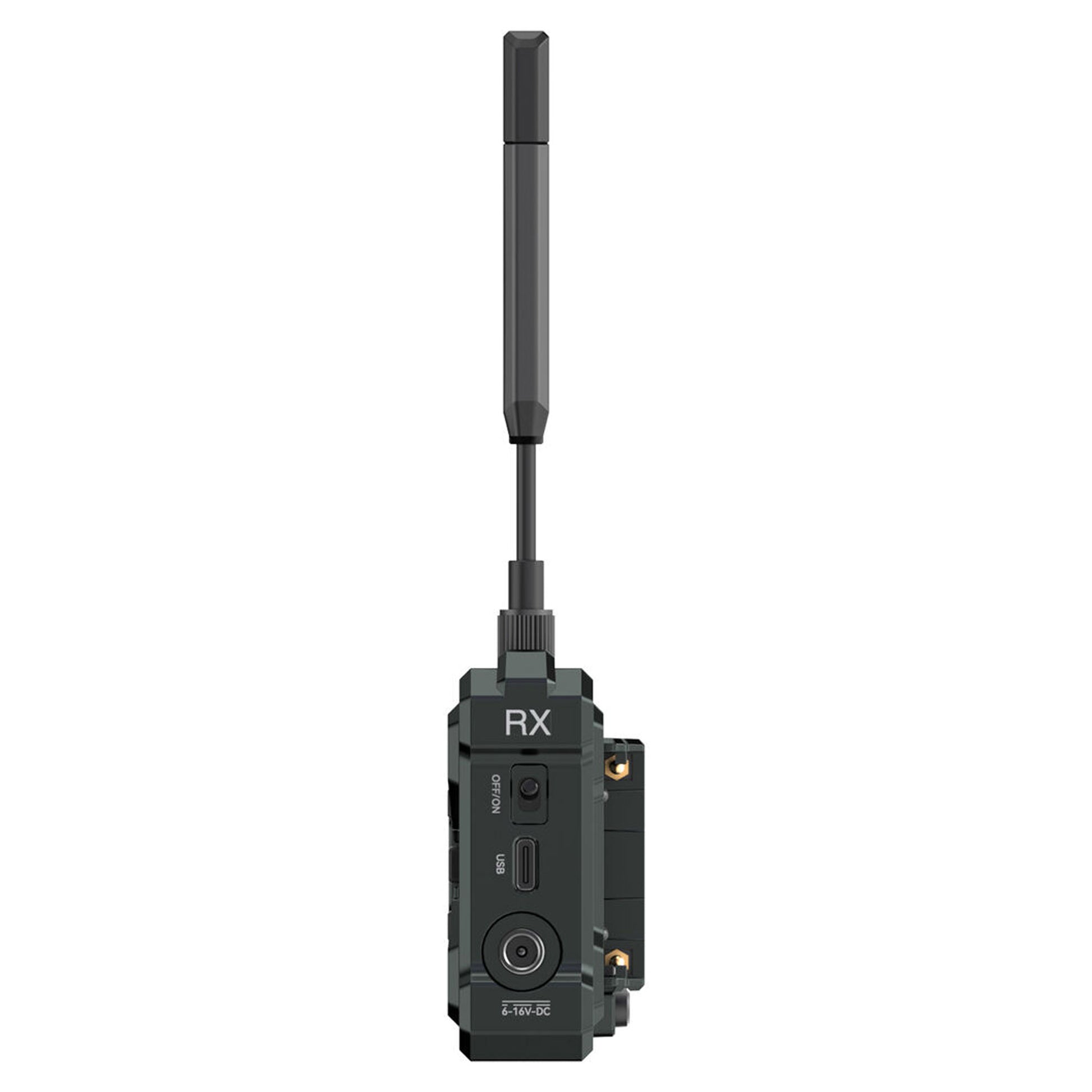

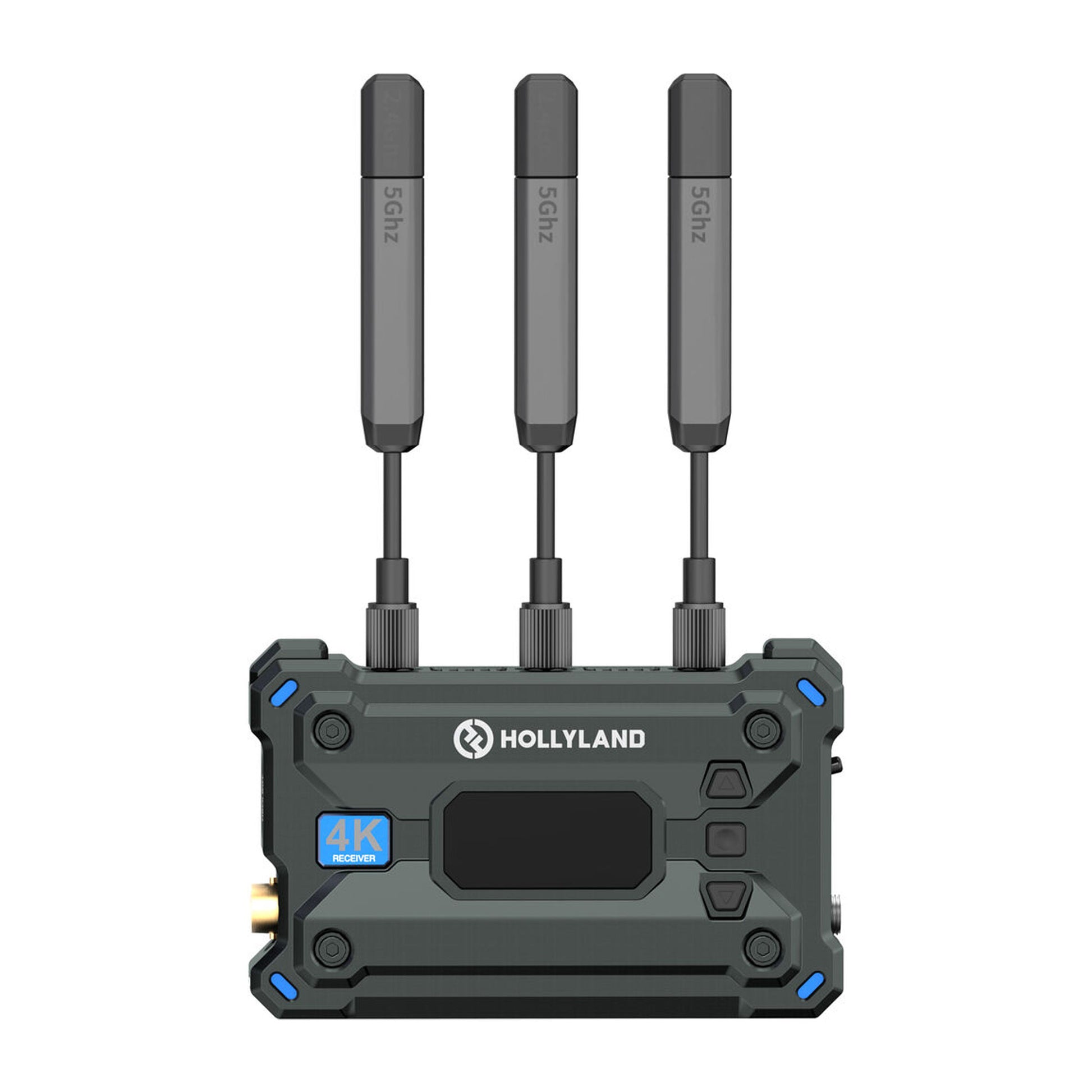

• Hollyland Pyro S 4K HDMI/SDI Wireless Video Receiver
• Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmitter
• 7 x Hollyland Paddle Antenna for Pyro Series (2.4/5 GHz)
• Hollyland Rotatable Cold Shoe Adapter Mount for Wireless Unit
• USB-C OTG Adapter
• Hollyland DC Power Adapter for Pyro S (12 VDC, 2A)

UPC: 191460006081
MPN: PYRO_S
