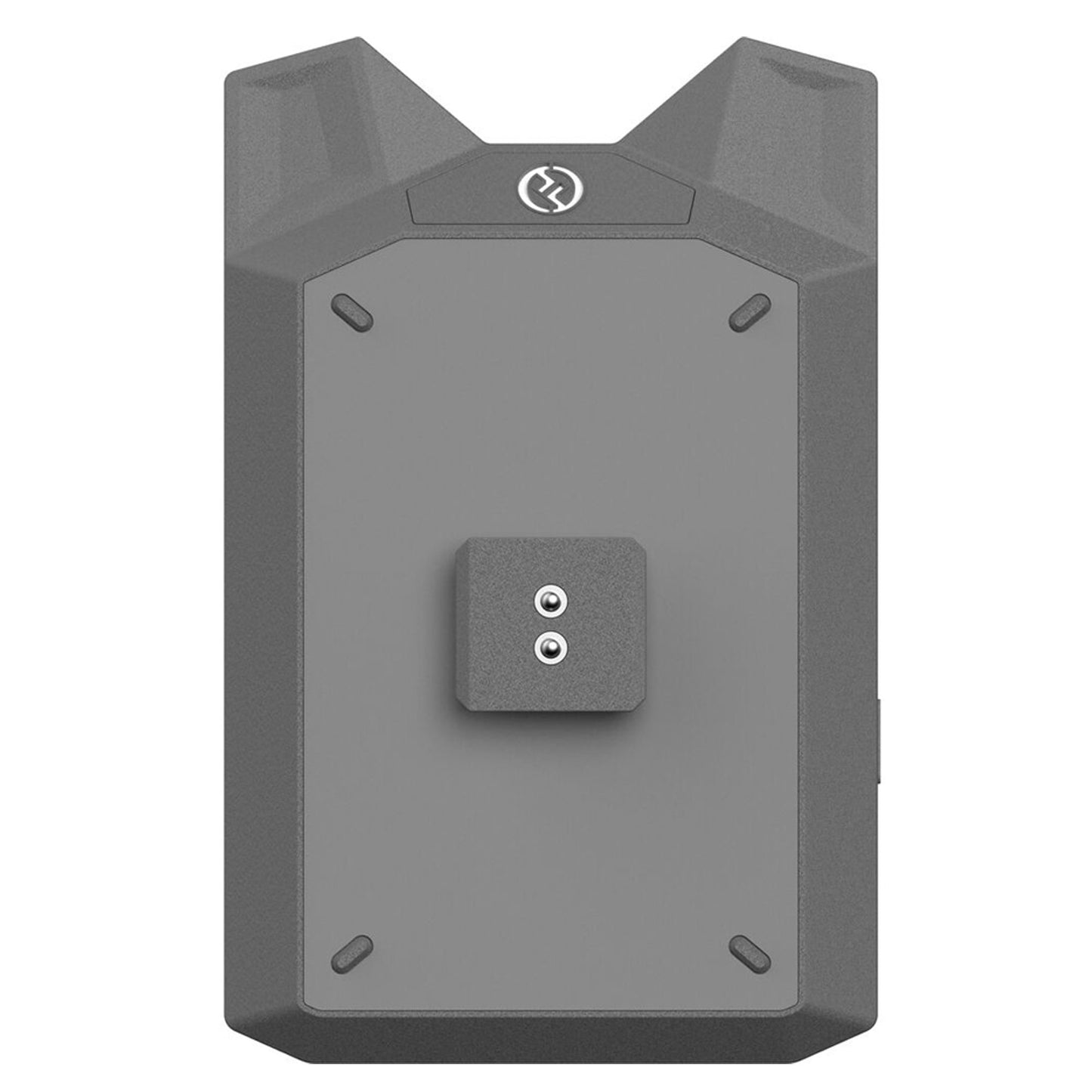

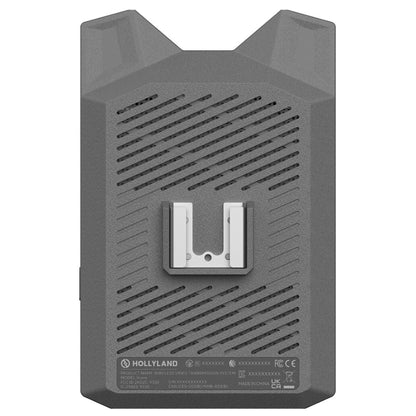

Hollyland Vcore Wireless Video Transmission System

Hollyland Vcore Wireless Video Transmission System

Add 4K30 wireless video monitoring and live streaming to your production using the versatile Vcore Wireless Video Transmission System from Hollyland. The compact transmitter installs easily onto your camera for remote monitoring using up to four tablet/smartphone app devices or the optional Pyro wireless receiver/monitor. Features include HDMI and USB-C camera input, built-in battery, internal SD card recording, 4K30 video transmission, H.264/ProRes recording, and HollyView app control.

Key Features

• Camera-to-App Wireless Monitoring: Connect via HDMI to your camera and monitor in real time on your phone through the HollyView app, supporting resolutions up to 4K30.
• Flexible Multi-Device Transmission: Transmits over the free 5 GHz band up to 350' line-of-sight with ~65ms latency, supporting up to 4 apps, 2 apps + 1 Pyro receiver, or 2 Pyro receivers simultaneously.
• Simultaneous Internal Recording: Records a proxy file in MP4 (H.264) with embedded timecode to the internal SD card for reliable backup, while a linked mobile device records synchronously via HollyView.
• ProRes Support on iOS: Unlock professional-grade ProRes recording by bridging your camera and iPhone/iPad.
• High-Resolution Image Transfer: Connects to your camera via USB to capture and wirelessly transfer raw, JPEG, and other high-resolution image files in real time via HollyView or HollyLink (Capture One plug-in).
• Wireless Camera Control: Start and stop camera recording remotely through the HollyView app without touching the camera.
• Live Streaming Support: Stream via RTMP or go live instantly through HollyView's built-in SDK, compatible with platforms like YouTube and Twitch.
• Built-In Battery: Powered by a 5150mAh internal battery charged via USB-C, eliminating the need for external battery packs.
• Broad Camera & Device Compatibility: Works with Sony, Canon, and Nikon cameras, plus Apple, Samsung, Google, Huawei, and other major smartphone brands.

Specifications

• Model: VCORE
• UPC: 191460008924

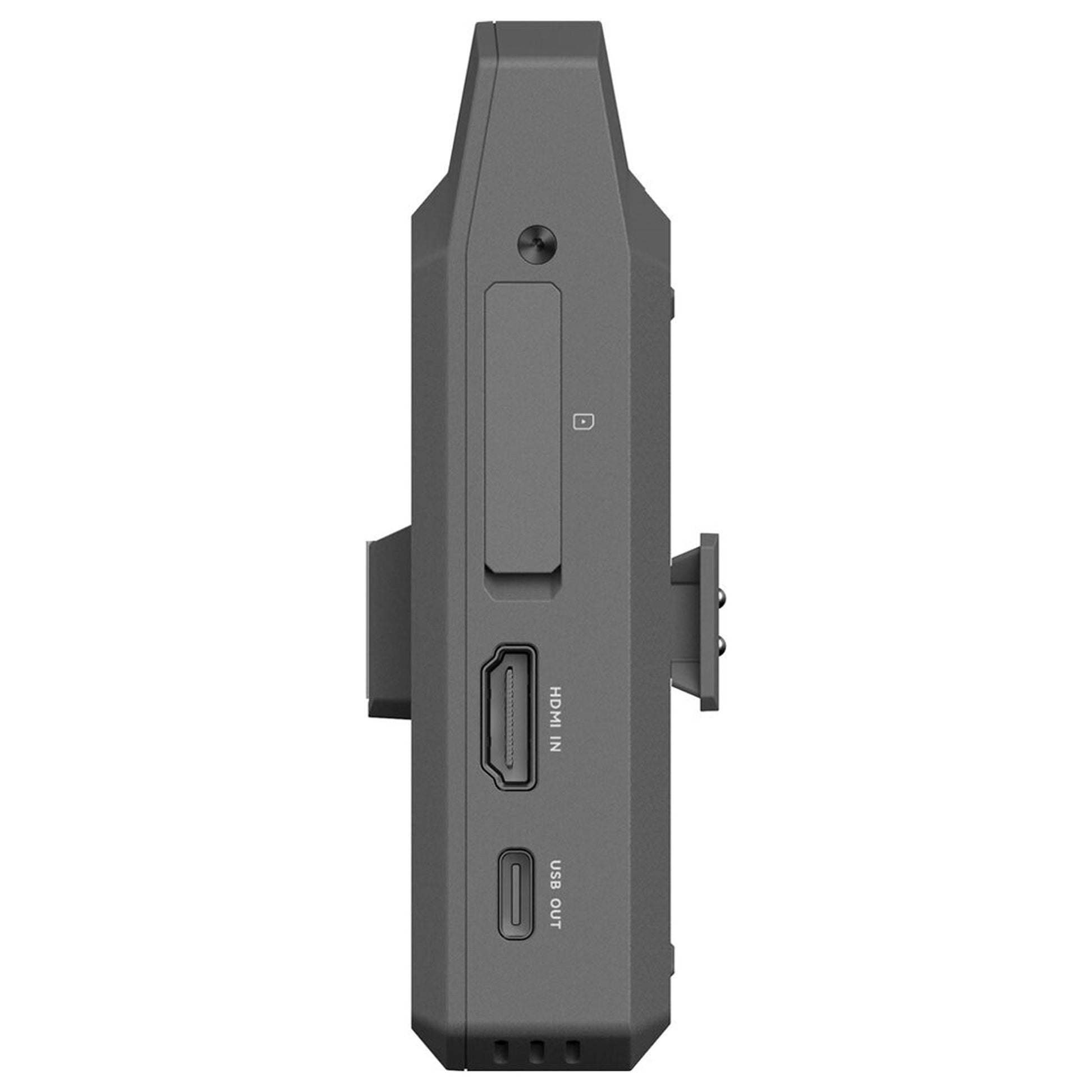

• Video I/O: 1x HDMI 1.4b Input, 1x USB-C Output
• Memory Card Slot: Single SD slot (Record/LUT/Firmware)
• Latency: Less than 80 ms
• Video Format (HDMI): UHD 4K 30/29.97/25/24/23.98; 1080p up to 60fps; 720p up to 60fps
• Wireless Range: 350' / 106.7 m (Line-of-Sight)
• Frequency Range: 5.15 to 5.85 GHz
• RF Power: 21.5 dBm
• Battery: Built-In 5150 mAh
• Power Consumption: 4.5 W
• Input Power: 5 to 13 VDC
• Mounting: 1/4"-20 Female (Bottom)
• Operating Conditions: 14 to 113°F / -10 to 45°C
• Storage Conditions: -40 to 140°F / -40 to 60°C
• Dimensions: 4.3 x 2.8 x 1.1" / 110 x 70 x 27.2 mm
• Weight: 7.8 oz / 220 g

In the Box

• Hollyland Vcore Wireless Video Transmission System
• USB-C to USB-C Cable
• Magnetic Mount
• Smartphone Holder
• Cold Shoe Mount
• Limited 1-Year Manufacturer Warranty
