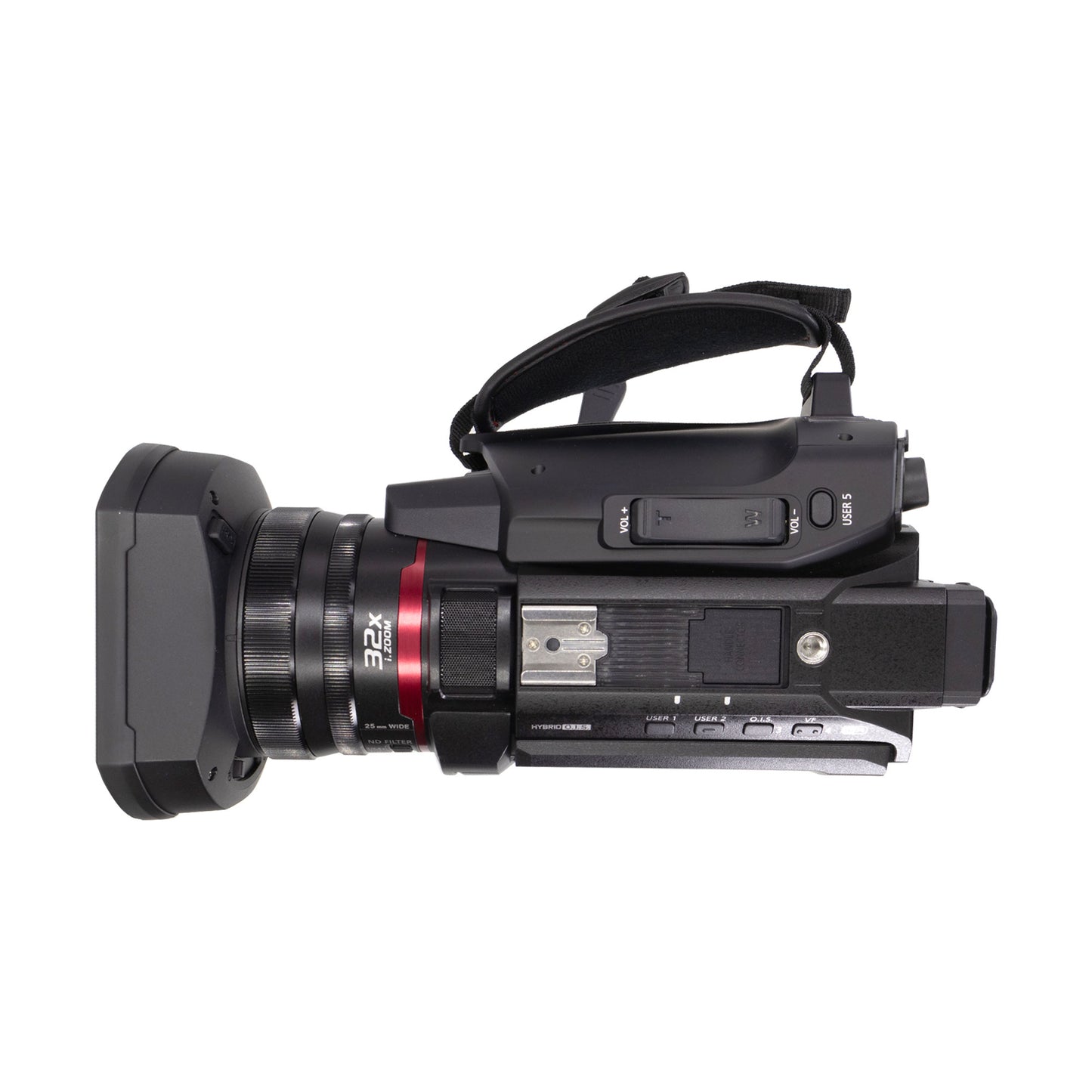

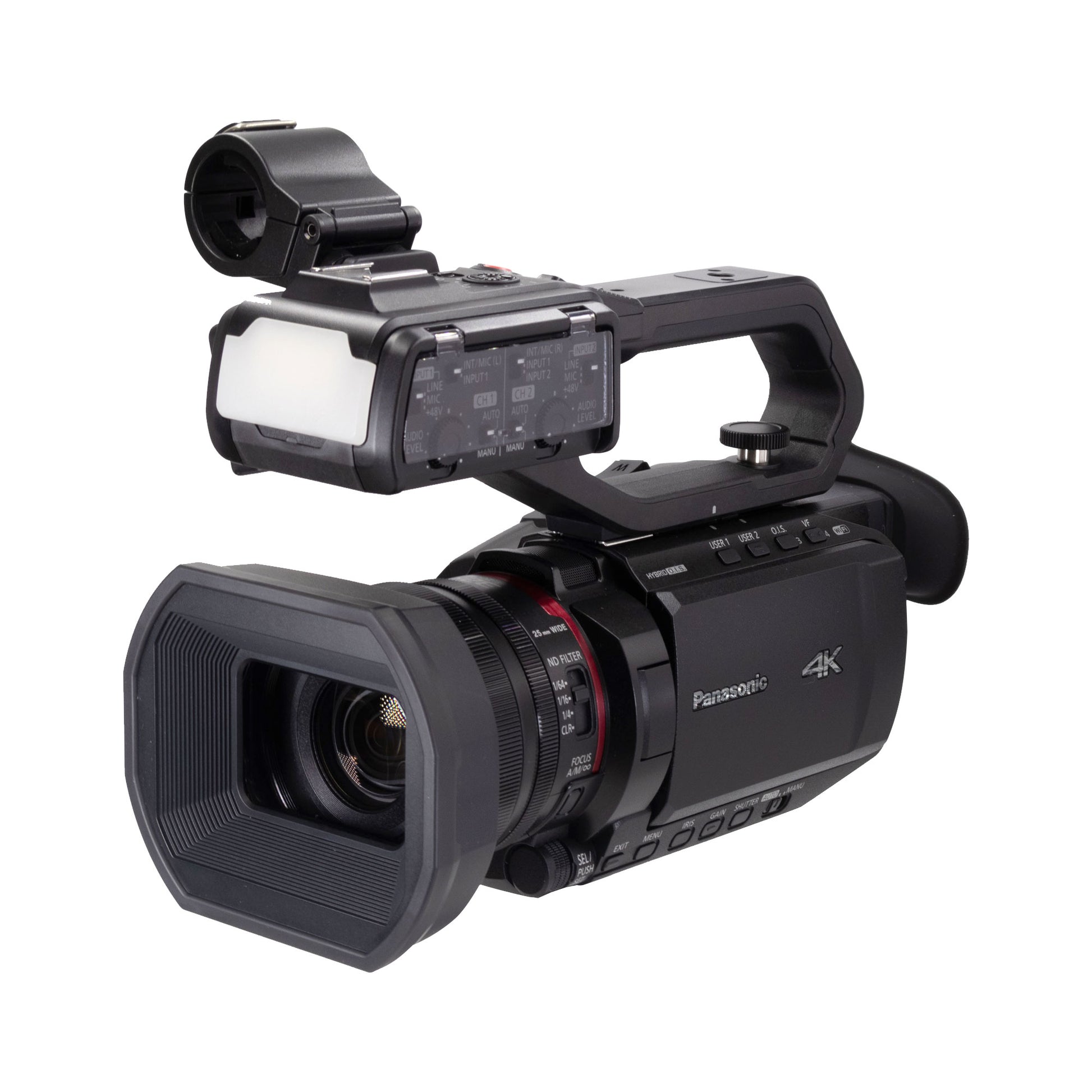

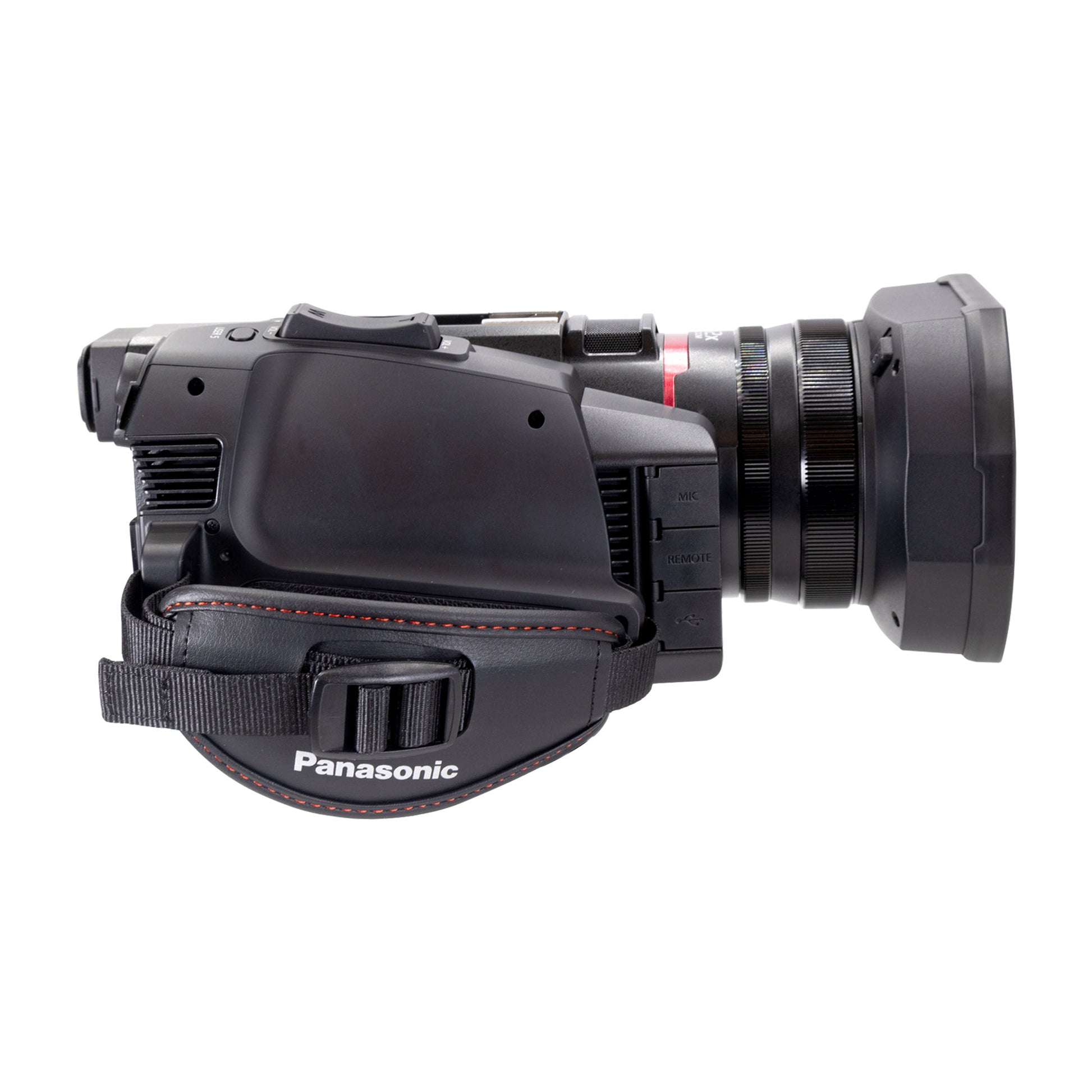

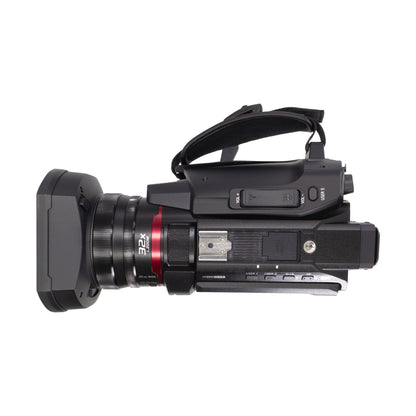

Panasonic CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity - International Model

$2,254.99
Panasonic CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity
Easily capture and stream your production with the next-generation CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity from Panasonic. The CX20 is a professional auto-tracking camcorder with numerous features, including dual XLR inputs, wired and Wi-Fi IP streaming and control capability, dual SD card slots, a 24x optical zoom lens with up to 48x digital HD zoom, image stabilization, and high-resolution 4K video capture.

Features:
  • High-Sensitivity MOS Sensor and Venus Engine
    The 1/2.5" MOS sensor handles 4K data at 60/50 fps with high-speed readout, minimizing rolling shutter distortion when capturing moving subjects.
    The Venus Engine features a new image processing system capable of rapidly handling large 4K60 datasets for exceptional image quality. It also offers advanced image correction features to enhance creative video production. Internal recording supports resolutions up to 4K29.97 and 1080p59.94 in 4:2:2 10-bit.

  • Wide-Angle 25mm Lens with 24x Optical Zoom
    The 4-drive lens system supports 24x optical zoom, ranging from a wide-angle 25mm (35mm film equivalent) to a telephoto 600mm. i.ZOOM technology enables up to 32x zoom in 4K and 48x in 1080p, providing flexibility for shooting in confined spaces.

  • 4K High-Precision Autofocus
    Optimized for dynamic shooting conditions on location, the autofocus system prioritizes speed and tracking accuracy. The micro-drive focus unit ensures precise lens control for fast, smooth focusing. Sharp focus is reliably maintained even when subjects move from background to foreground.

  • Face Detection and Tracking AE/AF
    Advanced Face Detection AE/AF automatically identifies and tracks human faces. Also, specific colors can be selected on the 3.5" touchscreen LCD to enable Tracking AE/AF to follow people and other moving objects with increased accuracy.

  • 5-Axis Hybrid Stabilization and O.I.S.
    Five-axis Hybrid Stabilization corrects for camera shake in five axes: vertical, horizontal, and rotational. Using a gyro sensor that detects motion at 4000 times per second, the stabilization engine delivers fast corrections. Combining optical (O.I.S.) and electronic stabilization, it ensures stable video when zooming in at high magnification and when walking or shooting in low light.
    A ball-bearing optical image stabilization mechanism reduces friction when the lens system drive unit operates. The lens moves smoothly when zooming and delicately compensates for shake caused by small vibrations.

  • Built-In ND Filter
    The built-in ND filter (1/4, 1/16, 1/64, Clear) adjusts incoming light levels to suit the shooting environment. The filter can be used to prevent resolution loss caused by excessive aperture reduction (diffraction) and supports a wide aperture for sharp images with a shallow depth of field.

  • Efficient Heat Dissipation
    The image sensor typically heats up significantly as it collects external light through the lens, and its temperature rises further during high-speed 4K60 signal processing, so an advanced, efficient heat dissipation design is employed to maintain stable performance under such conditions.

  • Recording Features
    Using the highly efficient new HEVC codec, the camcorder supports high bit rate recording.
    Internal recording on SD cards supports 4:2:2 10-bit LongGOP UHD 4K29.97/25 (150 Mb/s) and 1080p59.94/50 (100 Mb/s). Enabling 10-bit recording activates 4K60 4:2:2 10-bit HDMI output, which is ideal for capturing high-quality video from external recorders.
    The camcorder uses compact SD cards with two available slots. For 4K recording, it enables relay and backup recording. For 1080p recording, slot 1 records specific scenes while slot 2 records continuously.
    Other recording features include pre-recording, interval recording, and embedded timestamps.

  • Proxy and Multi-Format Support
    The camcorder supports a variety of formats and bit rates, including MOV and MP4 for streamlined editing workflows, as well as 720p AVCHD 8 Mb/s (PM mode). Proxy recording is possible with the AVC-Proxy G6 codec.

  • Super Slow Motion and IR Modes
    Capture slow-motion video in 1080p mode at 120 fps or 100 fps. The system supports 10-bit recording and delivers full-frame images without cropping, even at high frame rates. Autofocus remains active during super slow-motion shooting.
    The IR cut filter can be toggled on/off and assigned to a user button. Disabling the filter allows shooting in low-light conditions using commercially available IR illuminators (recommended: 850nm IR illuminator).

  • Color and Effects Features
    16-axis color correction
    Enhanced skin tones
    Edge enhancement
    Flexible gamma
    Customizable scenes/presets: Standard, Fluorescent Lighting, Spark, Still-like, Cinema-like with contrast, and Cinema-like with dynamic range

  • Additional Shooting Assistance
    Flash band compensation (FBC)
    Shockless auto white balance
    Customizable matrix tables, including CINE-LIKE mode
    V-detail and detail coring
    Chroma level/phase, color temperature, and master pedestal controls
    Knee point configuration

  • Outputs
    The camera features a 3G-SDI output for up to 1080p60 video output over distances up to 328' for switchers or recorders, and there is an HDMI output that supports up to 4K60 4:2:2 video for recorders or displays.

  • Network and Control Features
    Built-in 5/2.4 GHz Wi-Fi module
    Wireless control via mobile Android/iOS devices
    Wired REMOTE support via 2.5mm mini jack for focus, zoom, and record start/stop
    1080p streaming and recording via SRT, RTSP/RTP, RTMP or RTMPS
    NDI|HX2 support compatible with the Panasonic AV-UHS500 live switcher
    Ethernet LAN connection for streaming output and control

  • Physical Features
    High-definition 3.5" LCD
    Bright 0.39" OLED EVF
    The LCD monitor rotates 180° and displays touch icons for convenient operation, making it easy to check framing and expressions while shooting.
    The monitor rotates for selfie mode
    Dual manual focus/iris rings
    Detachable top handle
    13 user-assignable buttons
    USB-C PD power option

  • PCM Audio Recording
    The camcorder supports professional audio recording with +48V phantom power, as well as mic and line inputs. It has two XLR inputs with volume control and 24-bit linear PCM audio recording with a professional microphone.

  • Built-In 70 Lux LED Light
    The built-in LED light provides 70 lux at a distance of 3.2' for effective illumination in low-light environments. Brightness can be adjusted from 30 to 100% using the dimmer dial on the handle.
Camcorder Specifications:
  • Imaging
    Image Sensor: 1/2.5"-Type MOS
    Effective Sensor Resolution: 8.29 Megapixel
    Image Stabilization: Optical in Integrated Lens
    Built-In ND Filter: Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), Clear ND Filters
    Capture Type: Stills & Video

  • Exposure Control
    Shutter Type: Electronic Rolling Shutter
    Shutter Speed: 1/8000 to 1/24 Second
    ISO/Gain Sensitivity: Gain: 0 to 30 dB
    Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed and f/1.8 Aperture
    White Balance: Range: 2000 to 15,000K
    Presets: ATW, VAR

  • Lens
    Focal Length: 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
    Zoom: 24x Optical
    Maximum Aperture: f/1.8
    Minimum Focus Distance: From Front of Lens: 3.9" / 10 cm
    Filter Size: 62 mm
    Control Rings: Iris
    Zoom
    Focus

  • Focus
    Focus Mode: Automatic, Manual Focus

  • Video Capture
    Internal Recording: H.264 Long GOP/MOV 4:2:0 10-Bit
    3840 x 2160 at 25/29.97/50/59.94/23.98 fps (100 to 200 Mb/s)
    H.265 Long GOP/MP4 4:2:0 10-Bit
    3840 x 2160 at 25/29.97/50/59.94/23.98 fps (72 to 100 Mb/s)
    H.265 Long GOP/MP4 4:2:0 8-Bit
    3840 x 2160 at 25/29.97/50/59.94/23.98 fps (72 Mb/s)
    1920 x 1080p at 23.98/50/25/29.97/59.94 fps (50 Mb/s)
    MOV 4:2:2 10-Bit
    3840 x 2160 at 25/29.97/50/59.94/23.98 fps (200 Mb/s)
    1920 x 1080p at 23.98/50/25/29.97/59.94 fps (50 to 200 Mb/s)
    MOV 4:2:0 8-Bit
    3840 x 2160 at 25/29.97/50/59.94/23.98 fps (100 to 150 Mb/s)
    AVCHD 4:2:0 8-Bit
    1920 x 1080p at 25/29.97/50/59.94/23.98 fps (17 to 25 Mb/s)
    1280 x 720 at 50/59.94 fps (8 Mb/s)
    P2 4:2:2/4:2:0 8/10-Bit
    1920 x 1080p at 50/59.94 fps (24 to 50 Mb/s)
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps (12 to 25 Mb/s)

  • Video Output
    4:2:2 10-Bit via HDMI
    3840 x 2160 at 25/29.97/50/59.94/23.98 fps
    1920 x 1080p at 59.94/23.98/25/29.97/50 fps
    1920 x 1080i at 59.94/50 fps
    1280 x 720 at 59.94/50 fps
    720 x 576p at 50 fps
    720 x 480p at 59.94 fps
    4:2:2 10-Bit via SDI/BNC
    1920 x 1080p at 25/29.97/12.50/59.94/23.98 fps
    1920 x 1080i at 59.94/50 fps
    1920 x 1080PsF at 23.98/25/29.97 fps
    1280 x 720 at 59.94/50 fps

  • Broadcast Output
    NTSC
    PAL

  • Fast-/Slow-Motion Support
    Yes

  • Built-In Microphone
    Stereo

  • Audio Recording
    MOV: 2-Channel, 24-Bit at 48 kHz via LPCM Audio
    MP4: 2-Channel, 16-Bit at 48 kHz via AAC Audio
    AVCHD: 2-Channel, 16-Bit at 48 kHz via AC-3 Audio
    P2: 2-Channel, 24-Bit at 48 kHz via LPCM Audio
    P2: 2-Channel, 16-Bit at 48 kHz via LPCM Audio

  • IP Streaming
    H.264, RTSP, RTMP, RTP, RTMPS
    320 x 180 to 1920 x 1080 (0.5 to 24.00 Mb/s)
    H.264, NDI|HX2
    1280 x 720 to 1920 x 1080 at 50p, 60p, 30p, 25p (2.0 to 24.00 Mb/s)

  • Interface
    Media/Memory Card Slot: Dual Slot: SD/SDHC/SDXC/microP2 Hybrid
    Internal Storage: No
    Video I/O: 1x HDMI 2.0 Output
    1x BNC (3G-SDI) Output
    Audio I/O: 2x XLR 3-Pin Input on Included Handle
    1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
    1x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
    Power I/O: 1x USB-C (9VDC at 3 A) Input
    Other I/O: 1x 2.5 mm Sub-Mini (Remote)
    1x USB-C (USB 2.0)
    Wireless: Wi-Fi
    Mobile App Compatible: Yes: Android & iOS
    Global Positioning (GPS, GLONASS, etc.): No

  • Monitor
    Display Type: Primary Monitor: Articulating 3.5" Touchscreen LCD

  • Viewfinder
    Type: Electronic (OLED)
    Resolution: 2,360,000 Dot

  • Power
    Battery: Panasonic AG-VBR Series
    Power Consumption: =19.5 W

  • Environmental
    Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 80% Humidity

  • General
    Shoe Mount: 1x Cold Shoe on Included Handle
    1x Cold Shoe
    Tripod Mount: 1/4"-20 Female
    Accessory Mounting Thread: 1x 1/4"-20 on Included Handle
    Built-In Video Light: Yes
In the box:
  • Panasonic CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity
  • Panasonic 7.28V 43Wh Lithium-Ion Battery for DVX200 and CX10 (5900mAh)
  • Top Handle Unit
  • Lens Hood
  • Eye Cup
  • Microphone Holder
  • Microphone Holder Screw Set
UPC: 5025232979912
MPN: AG-CX20PJ
