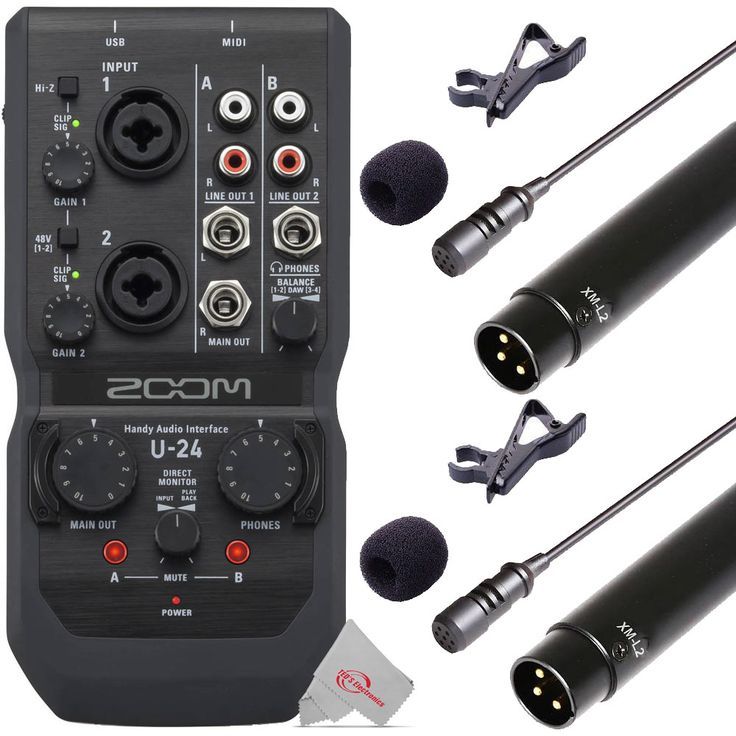

Zoom U-24 Portable 2x4 USB Handy Audio / MIDI Interface + Two Vidpro Professional Wired XLR Lavalier Microphone XM-L2

15 reviews
5 Stars
100% (15)
4 Stars
0% (0)
3 Stars
0% (0)
2 Stars
0% (0)
1 Star
0% (0)

see all 15 reviews

$259.99 $187.99

Condition: New

Armed with the Zoom U-24 portable 2x4 USB essential audio/MIDI interface, it's easy for musicians, songwriters, and producers to record two sources simultaneously to their computer, iPhone, or iPad, and integrate...

Out of stock

Vendor: Zoom SKU: Z-ZU24-NK-4
Description
Armed with the Zoom U-24 portable 2x4 USB essential audio/MIDI interface, it's easy for musicians, songwriters, and producers to record two sources simultaneously to their computer, iPhone, or iPad, and integrate MIDI gear, too. At home, outside, or while traveling, the U-24's tactile controls and high-resolution 24-bit / 96 kHz converters help you capture your creativity with quality. Plus, it comes with Ableton Live Lite and the Steinberg Cubasis LE iPad app to provide the software you need to take your music from inspiration to a finished production.

The U-24 features two low-noise microphone preamps with switchable phantom power and XLR-1/4" combo jacks. Both preamps can handle mic or line inputs, and input 1 sports a Hi-Z switch for when you need to track an electric guitar or bass. Thanks to mix-adjustable zero-latency direct monitoring, stereo 1/4" main outs, four RCA line outputs, and a 1/4" headphone port, the U-24 can simultaneously feed speakers and headphones with independent volume control. The headphone output features its own balance knob, which lets you blend computer playback signals 1-2 and 3-4 for customizable cue mixes.

The Go-Everywhere Interface

The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPhone/iPad compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.

Proper connectivity and operation with an iPhone or iPad requires separately available accessories—two AA batteries or the Zoom AD-17 AC adapter for power, plus an Apple iPad Camera Connection Kit or a Lightning-to-USB Camera Adapter. A USB Type-B to Type-A cable is included for hookup to your Mac/Windows computer.

Pristine Recording and Playback

Inspired by the popular Zoom H-series recorders, the U-24 is equipped with high-performance low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit / 96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.

Get Connected
The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two XLR/TRS combo inputs with independent gain knobs and multicolor level indicators allow you to connect mics, keyboards, mixers, and more. The 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.

Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring. Each output (1-2 and 3-4) also has its own mute button.

Your Mix, Your Way
The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you're DJing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.

In the Box
  • Zoom U-24 Portable 2x4 USB Handy Audio/MIDI Interface
  • USB Cable
  • Ableton Live 9 Lite DAW Software (Download)
  • Steinberg Cubasis LE iPad App (Download)
This Kit includes:
  • Zoom U-24 Portable 2x4 USB Handy Audio / MIDI Interface
  • Two Vidpro Professional Wired XLR Lavalier Microphone XM-L2
Additional Information

Zoom U-24 Specs

Form FactorMobile
DisplayNone
Channels of I/OAnalog:
2 Inputs / 4 Outputs
Max Sample Rate/Resolution96 kHz / 24-Bit
Number of Mic Preamps2
Input Level Adjustment2 x Knob
Solo/MuteMute per Master
PadNone
High-Pass FilterNone
Expansion SlotsNone

Connectivity

Analog Audio I/O1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
2 x 1/4" TRS Balanced Monitor Output
2 x Stereo RCA Coaxial Unbalanced Line Output
1 x 1/4" TRS Unbalanced Headphone Output
Phantom Power+48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/ONone
Host Connection / USB1 x USB Type-B (Class-Compliant USB 2.0)
USB (Non-Host)1 x Micro-USB (Power Input)
Sync I/ONone
Network I/ONone
MIDI I/O1 x DIN 5-Pin Input
1 x DIN 5-Pin Output
Wireless ConnectivityNone
Memory Card SlotNone

Performance

Frequency ResponseSystem:
20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz)
20 Hz to 40 kHz +0/-3.5 dB (at 96 kHz)
Gain/Trim RangeInputs:
0 to 43 dB
Max Input LevelLine Inputs:
+20.7 dBu
Mic Inputs:
+2.7 dBu
Max Output LevelMonitor Outputs:
+10 dBu at 0 dBFS
Line Outputs:
+8 dBu at 0 dBFS
Headphone Outputs:
+10 dBu at 0 dBFS
Headphone Output Power30 mW per Channel into 32 Ohms
ImpedanceMic Inputs:
2.6 Kilohms
Hi-Z Inputs:
1.1 Megohms
Monitor Outputs:
1 Kilohm
Line Outputs:
330 Ohms
Headphone Outputs:
33 Ohms
EINInputs:
-119.5 dBA (150-Ohm Source)

Digital Audio

Sample Rates44.1 / 48 / 88.2 / 96 kHz
Sample Rate ConversionNone
Bit Depths24-Bit
LatencyZero-Latency Direct Monitoring
Sync SourcesInternal

Compatibility

OS CompatibilitymacOS 10.9.5 or Later
Windows 7 or Later (32-Bit, 64-Bit)
iOS 7.1 or Later
Included SoftwareAbleton Live Lite
Compatible Software (Not Included)Any Core Audio (Mac) Compliant Software
Supported Drivers/API & Plug-InsmacOS Class-Compliant (No Driver Needed)
Windows Driver Downloadable from Manufacturer
Processor RequirementIntel Core i3
Mobile Device CompatibilityiPhone
iPad
Required HardwareAvailable USB 2.0 Port or USB 3.0 / 3.1 Gen 1 Port
USB Cable (Included)
Internet ConnectionRequired for Registration, Software/Driver Download

Power

Power RequirementsAC/DC Power Adapter (Not Included), Battery, or USB Bus Power
AC/DC Power Adapter5 VDC (Not Included)
Power Consumption5 W (Maximum)
Battery Type2 x AA
Approximate Battery Life4 Hours (Phantom Off)

Physical

Dimensions7.55 x 3.63 x 1.68" / 19.18 x 9.23 x 4.27 cm
Weight10.1 oz / 285.0 g

Packaging Info

Package Weight1.35 lb
Box Dimensions (LxWxH)9.291 x 6.772 x 2.284"
