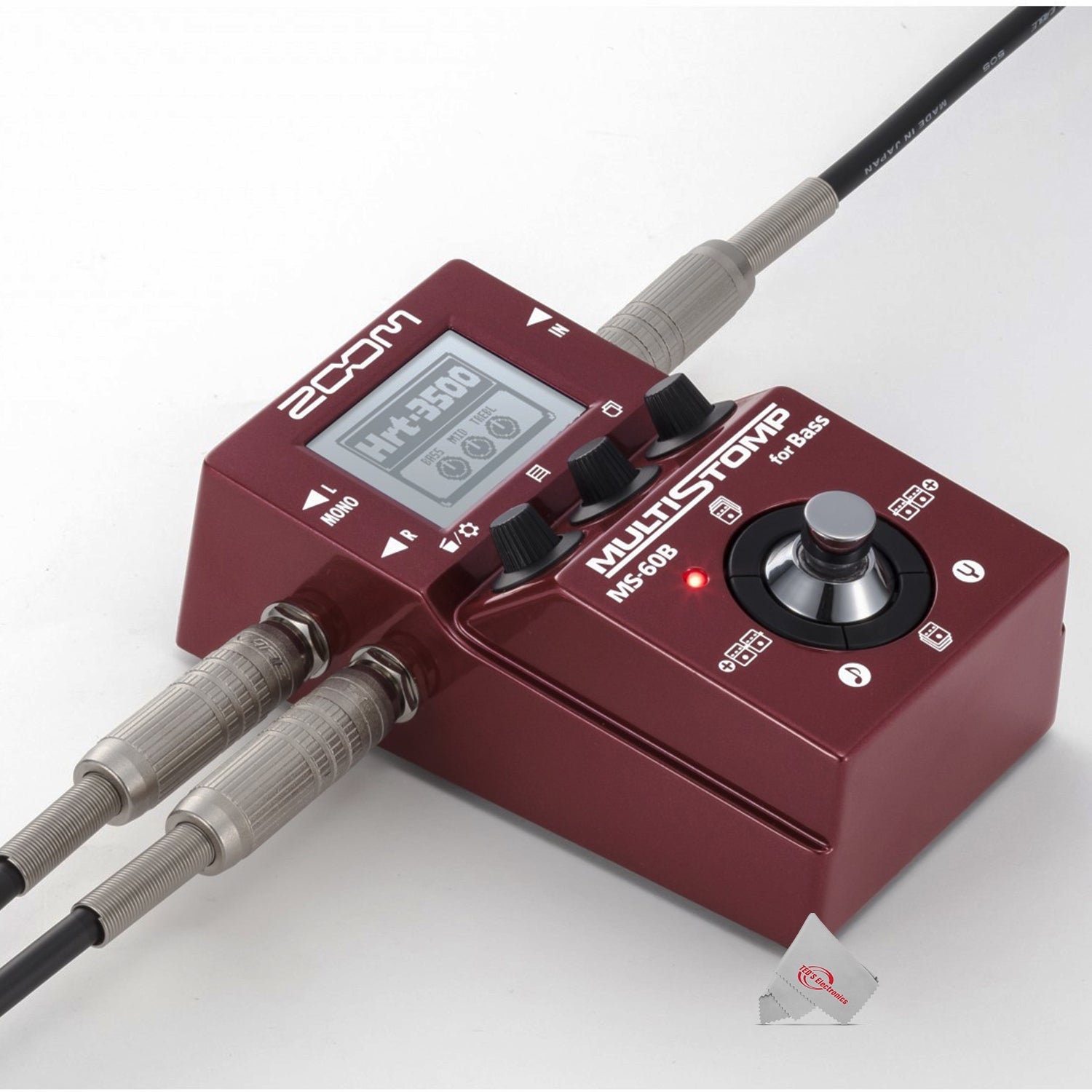

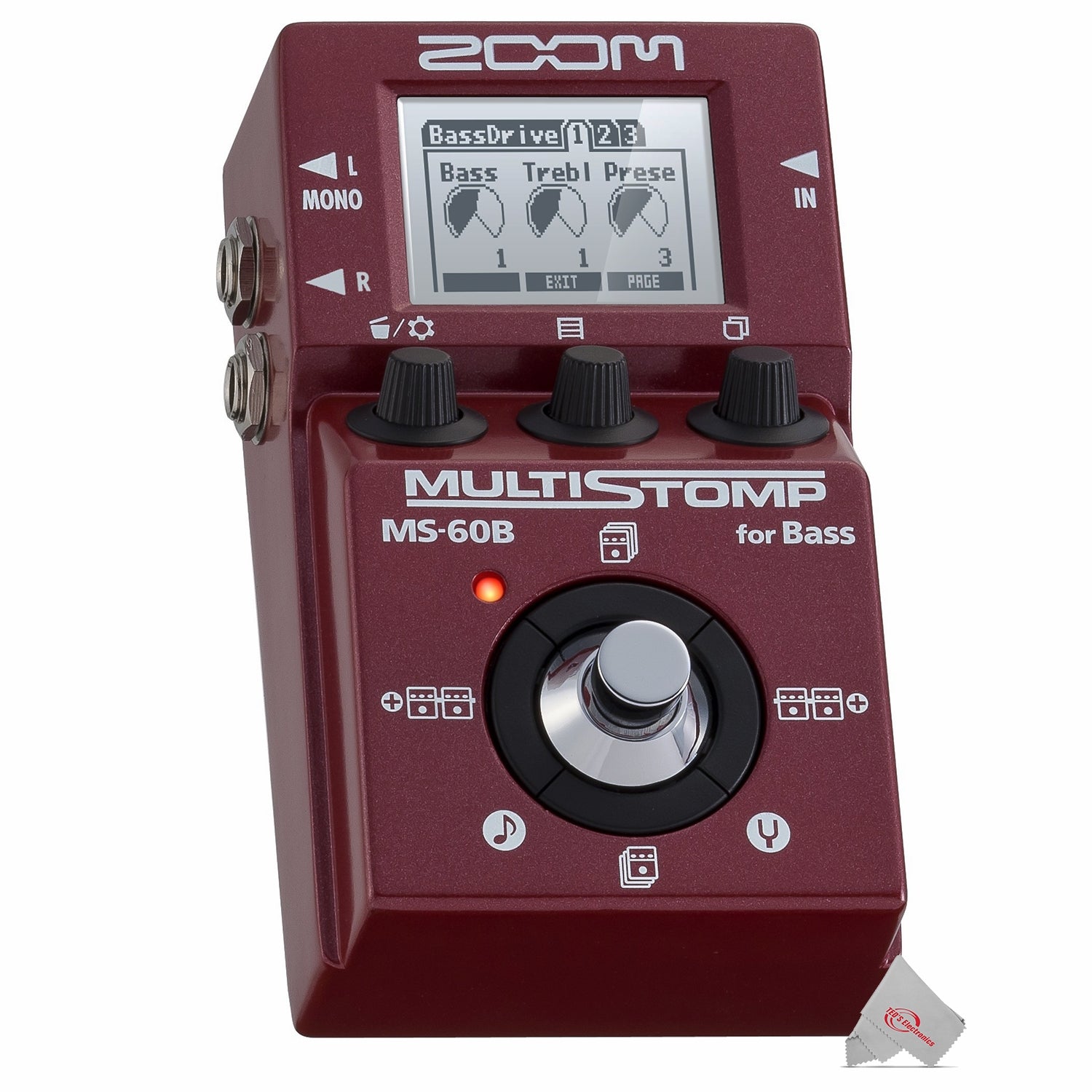

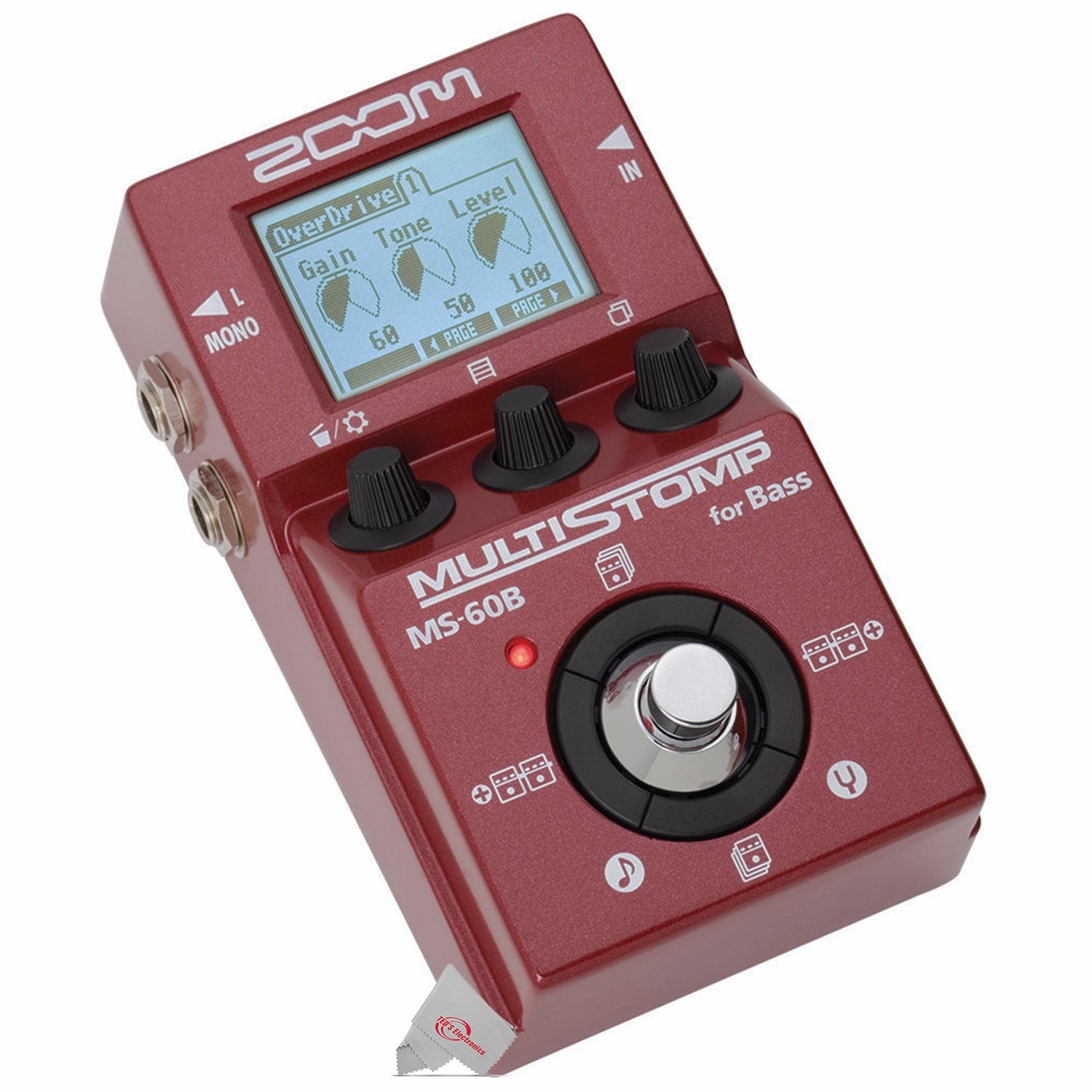

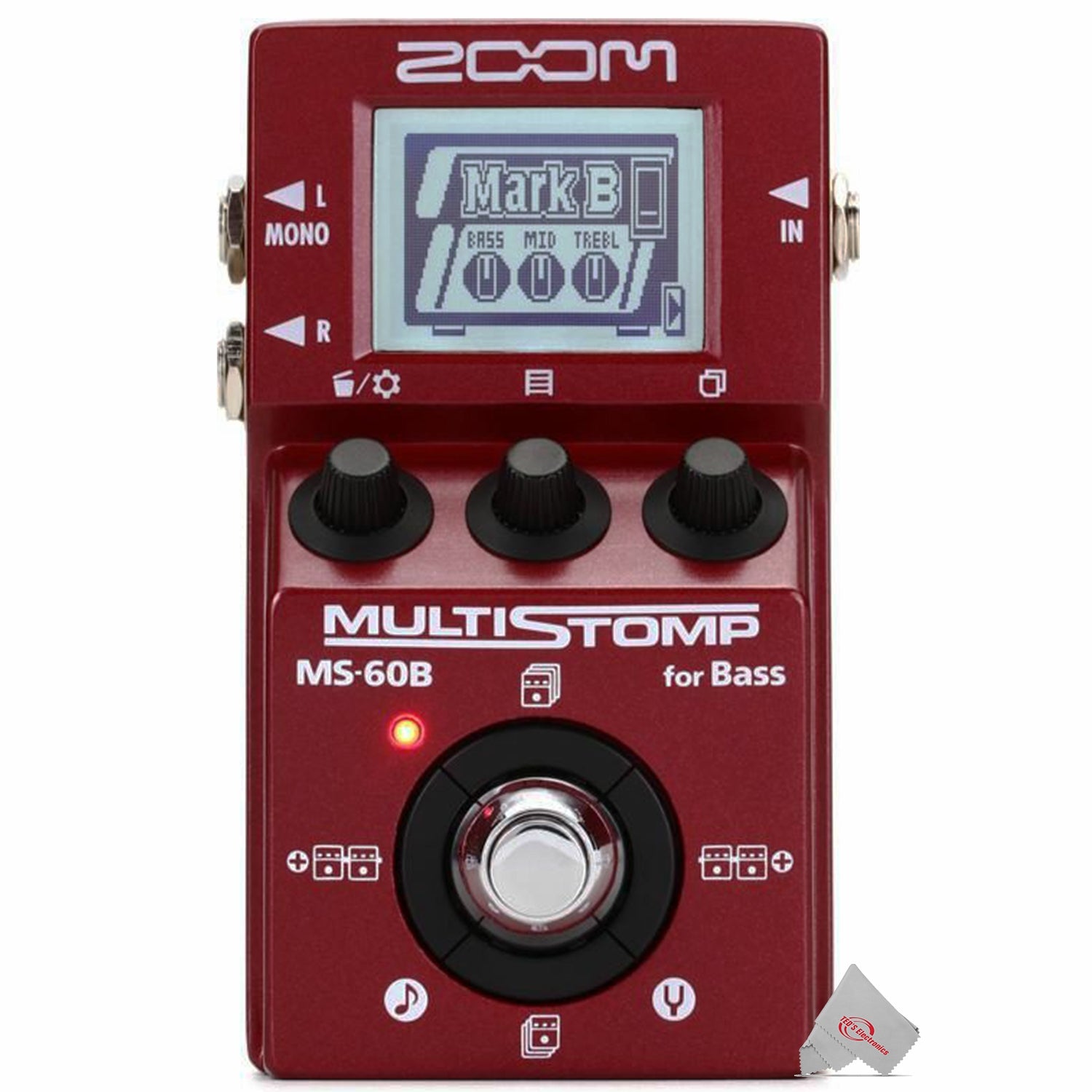

Zoom MS-60B MultiStomp Bass Pedal
Designed to provide creative bass players with a wide palette of rich bass tones, the Zoom MS-60B MultiStomp Bass Pedal is a multi-effect processor with 58 different effects which are housed in a lightweight, standard-size, single pedal, thereby allowing you to efficiently cut down the size of your pedalboard. Effects include amp/preamp/DI modeling, compression, equalization, modulation, delay, reverb, and more. With its intuitive navigation and clear LCD display, the unit allows you to easily program, save, and rearrange your effects in both studio and low-light stage environments.
The MS-60B lets you use up to four effects simultaneously that can be arranged in any order you choose, and individually switched on/off. To get you going right away, it comes with 30 pre-loaded multi-effects which you can edit and store in 50 user-patch memories. For live gigs, you can create a list of up to 26 patches, to cycle through as you step on the pedal's footswitch.
Other features include an onboard chromatic tuner which supports both standard and drop-bass tunings, and a Tap Tempo function for synchronizing delay times or modulation rates to your song's tempo. The Zoom MS-60B is fitted with a 1/4" input jack for active and passive instruments, and two 1/4" output jacks for stereo recording or going to two amplifiers. The pedal is powered via two AA batteries, USB bus, or the Zoom AD-16 AC adapter (available separately).
Key Features
- 58 x bass effects and amp/preamp/DI models, including modulation, equalization, delay, reverb
- Up to four effects can be used simultaneously, in any order – even bring individual effects in and out of the chain as desired
- DSP microchip performs 32-bit floating-point calculations to create sophisticated studio-quality effects
- 50 x memory locations for the storage of user-created patches
- 30 x factory-preset patches
- Patch cycling of up to 26 presets
- Onboard chromatic tuner supports both standard and drop-bass tuning – bypass all effects during tuning or mute the outputs so that you can tune in silence
- Tap Tempo for synchronization of delay times or modulation rates
- Auto Save function for automatic saving of all patch parameters
- 1/4" input jack (both active and passive instruments supported)
- Dual 1/4" output jacks for stereo recording
- Backlit LCD with contrast control for easy viewing in low-light environments
- USB port for power and firmware updates
- Lightweight and small enough to fit in your gig bag
- Easily integrates into any existing pedalboard
- Runs on two AA batteries (included), with alkaline battery life of up to 7 hours
- USB bus-powered or powered via Zoom AD-16 AC adapter (available separately)
- Power Management function automatically turns the pedal off if unused for extended periods

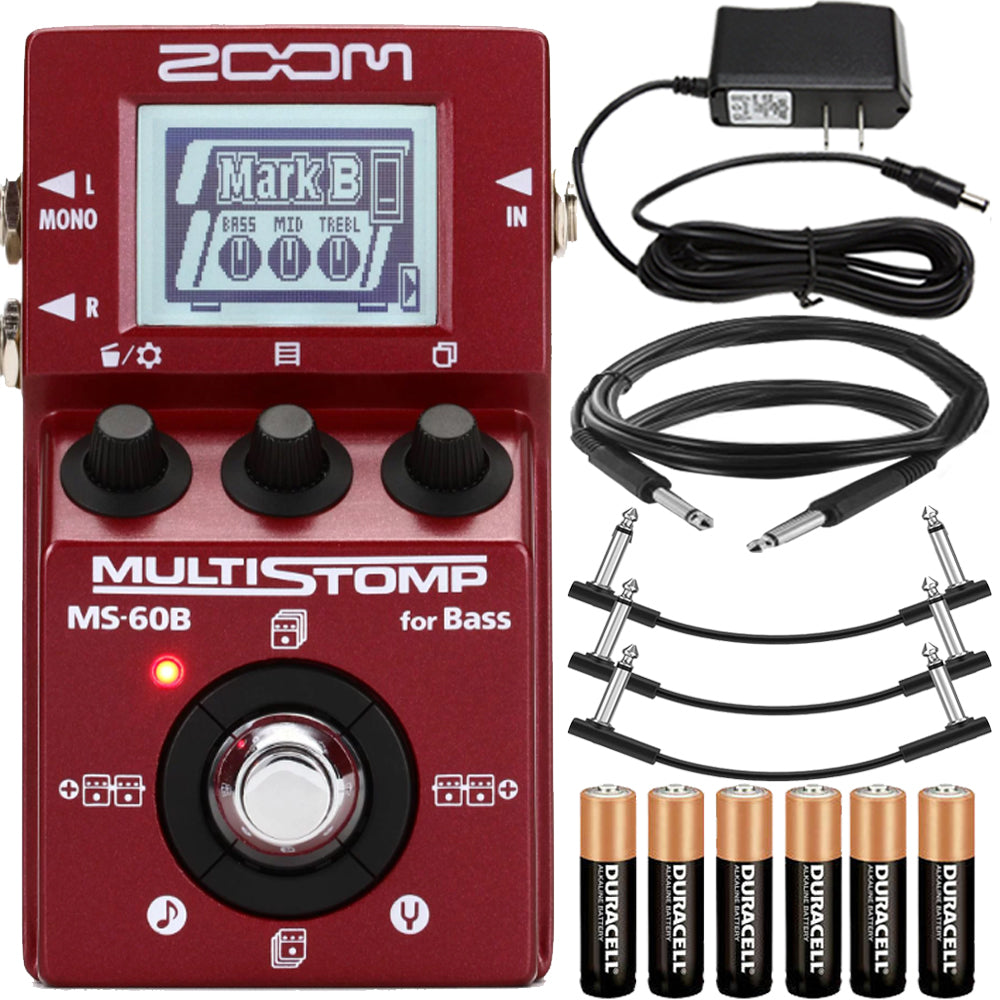

- Zoom MS-60B MultiStomp Bass Pedal

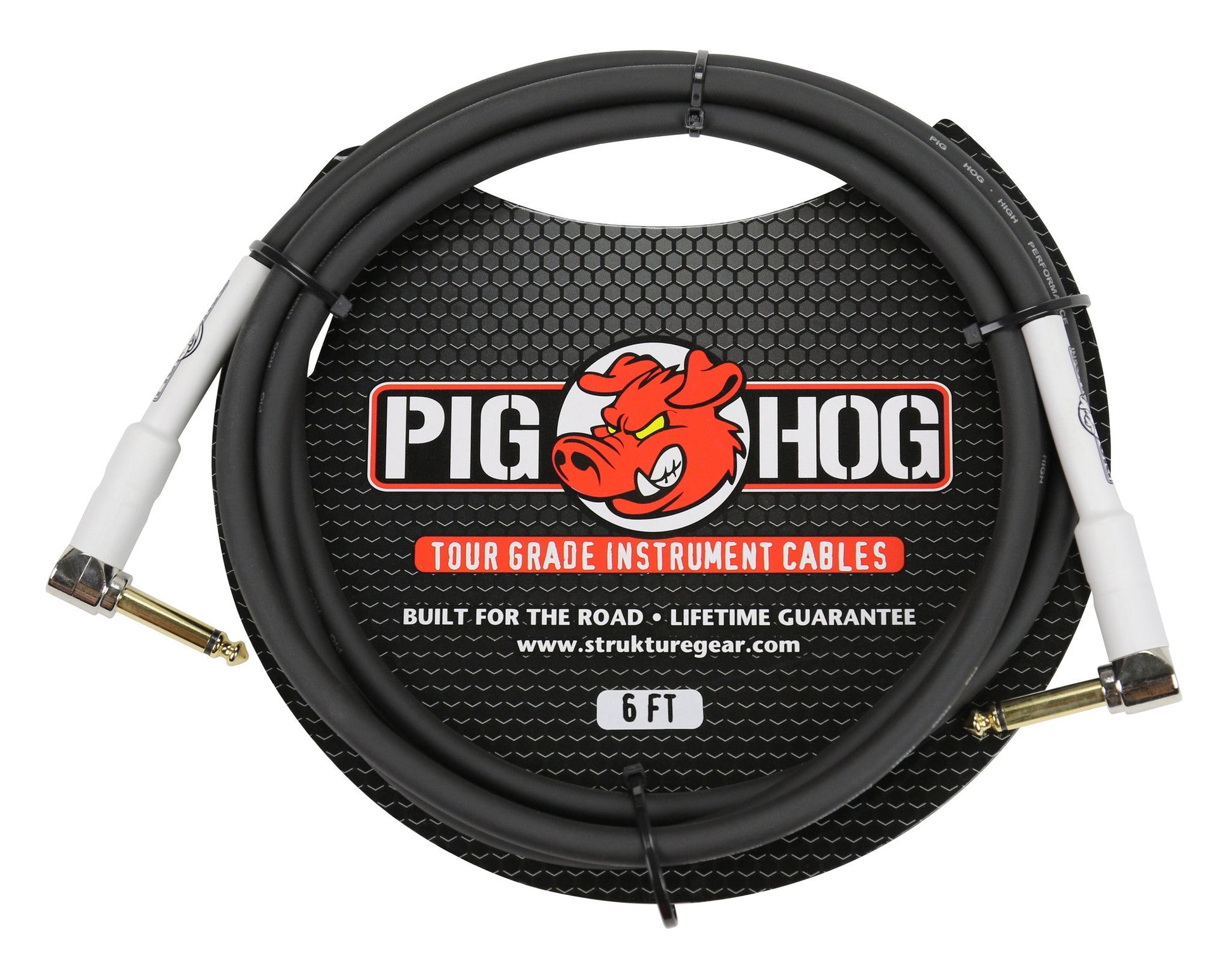

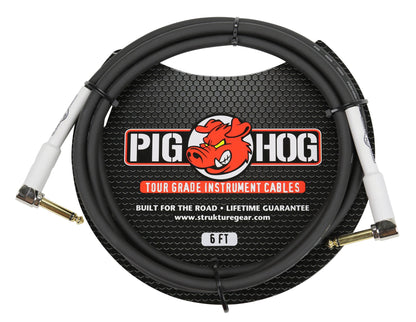

- Pig Hog Tour Grade 6 ft Instrument Cable 1/4 Inch to 1/4 Inch Right Angle Connectors

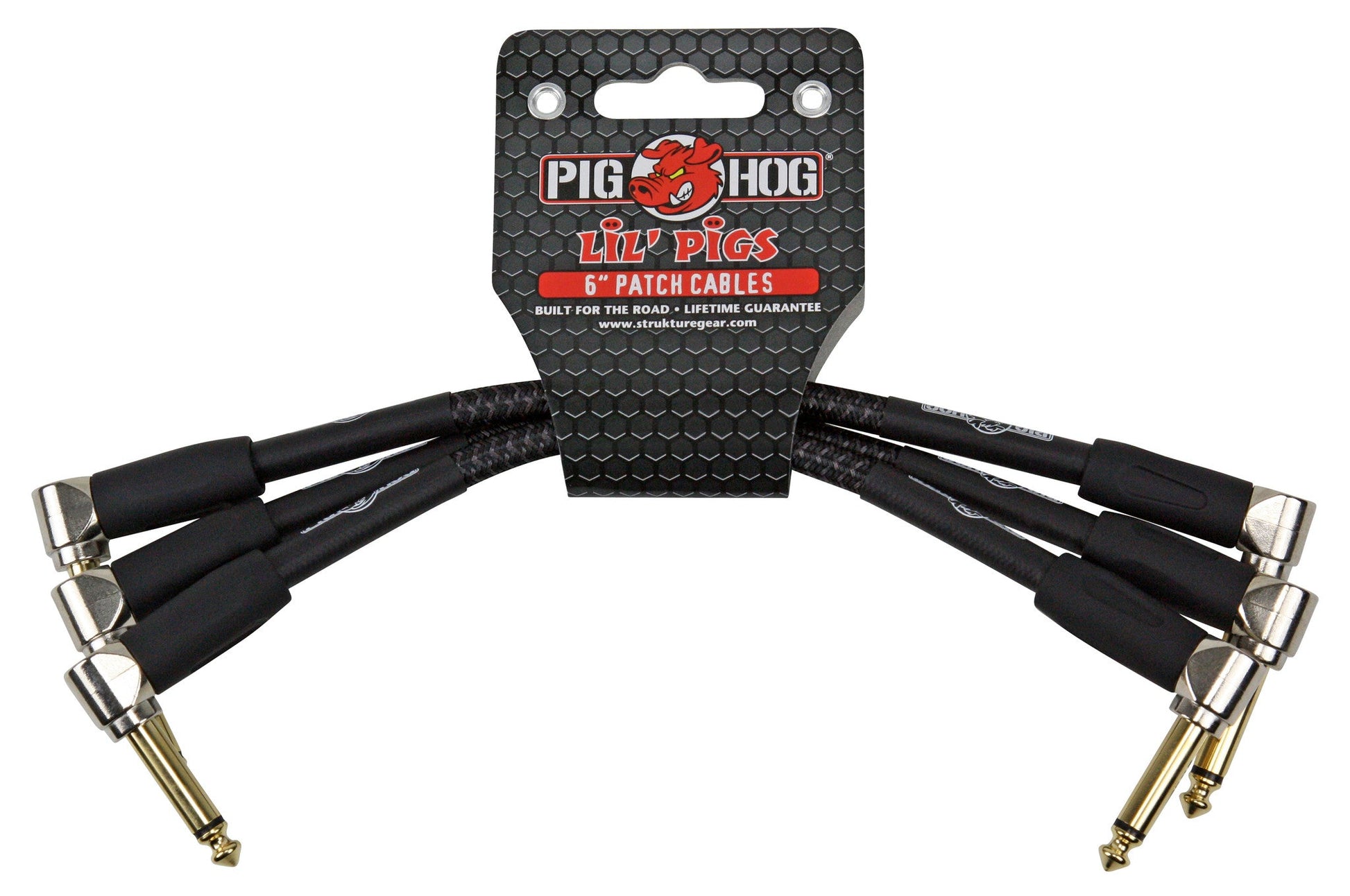

- Pig Hog PHLIL6BK Lil' Pigs Right Angle to Right Angle 1/4" 6" (3 Pack)

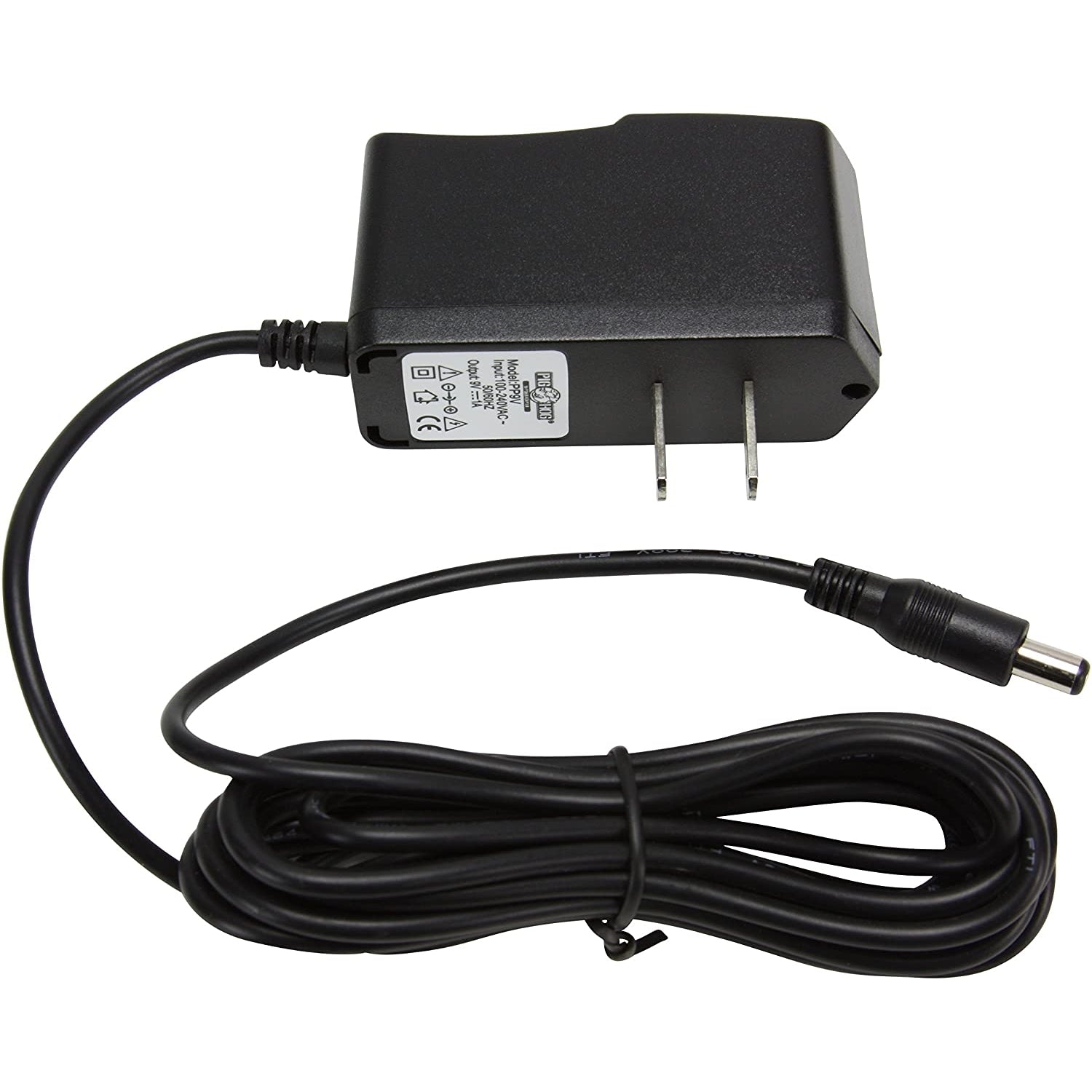

- Pig Hog PP9V Power Supply and AA Batteries
Zoom MS-60B
Specs
NUMBER OF EFFECTS: | 58 |
NUMBER OF SIMULTANEOUS EFFECTS: | 4 |
NUMBER OF PATCH MEMORIES: | 50 |
NUMBER OF PATCH PRESETS: | 30 |
SAMPLING FREQUENCY: | 44.1 kHz |
A/D CONVERSION: | 24-bit, 128 x oversampling |
D/A CONVERSION: | 24-bit, 128 x oversampling |
SIGNAL PROCESSING: | 32-bit floating point and 32-bit fixed point |
FREQUENCY RESPONSE: | 20Hz - 20 kHz +1 dB, -3 dB (into 10k? load) |
DISPLAY: | LCD |
INPUT: | 1 x 1/4" monaural phone jack |
RATED INPUT LEVEL: | -20 dBm* |
INPUT IMPEDANCE: | 1M? |
OUTPUT: | 2 x 1/4" monaural phone jack |
MAXIMUM OUTPUT LEVEL: | +5 dBm (output impedance load of 10 k? or more) |
BATTERY TYPE: | AA size (LR6) battery x 2 |
CONTINUOUS BATTERY OPERATION TIME: | 7 hours when using 2 AA batteries |
AC ADAPTER (OPTIONAL): | DC 9V center-negative, 500 mA (Zoom AD-16) |
USB: | Firmware update, bus power |
DIMENSIONS: | 130.3 (D) x 77.5 (W) x 58.5 (H) mm |
WEIGHT: | 350g (without batteries) |
* Note: 0 dBm = 0.775 Vrms
Other Accessories In This Kit

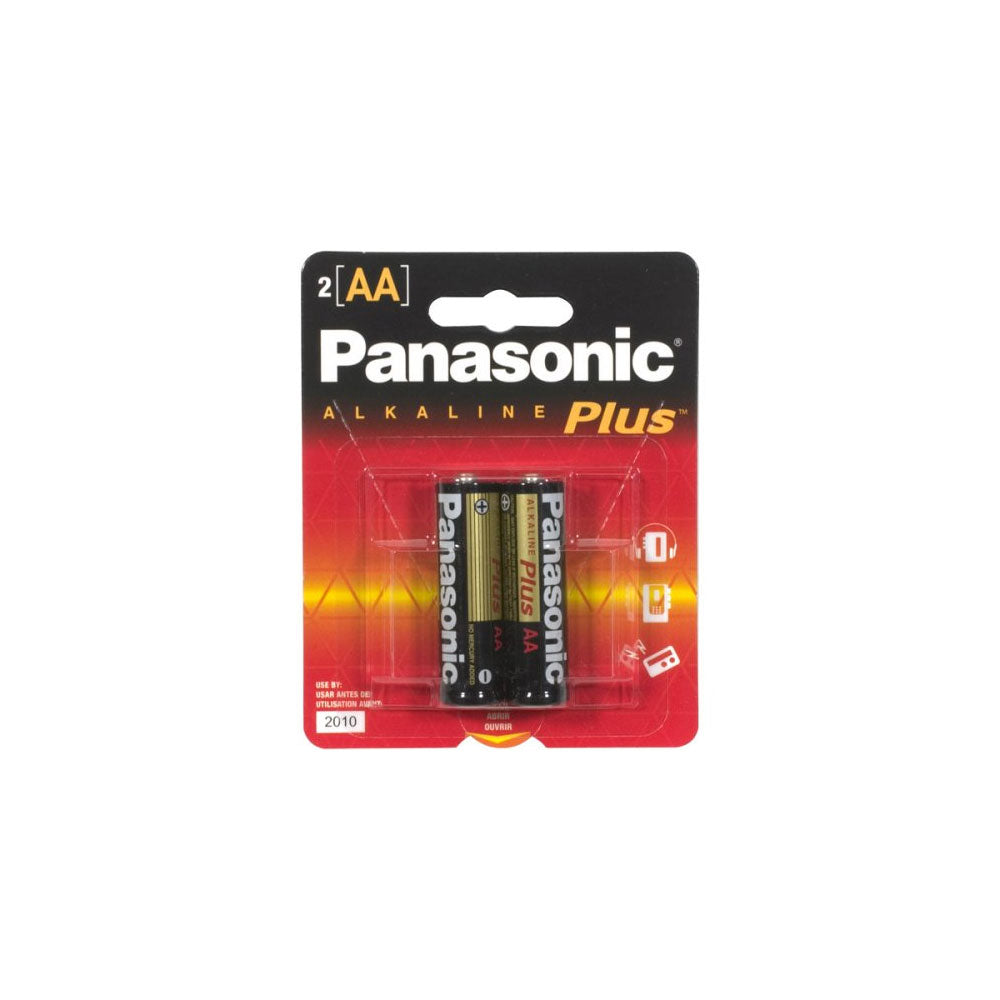

Pig Hog Pig Power 9V DC 1000ma Power Supply Pig Hog Tour Grade 6 ft Instrument Cable 1/4 Inch to 1/4 Inch Right Angle Connectors Pig Hog Right Angle to Right Angle 1/4" Black Woven Instrument Patch Cables, 6" (3 Pack) 2 Panasonic Alkaline "AA" Batteries |
