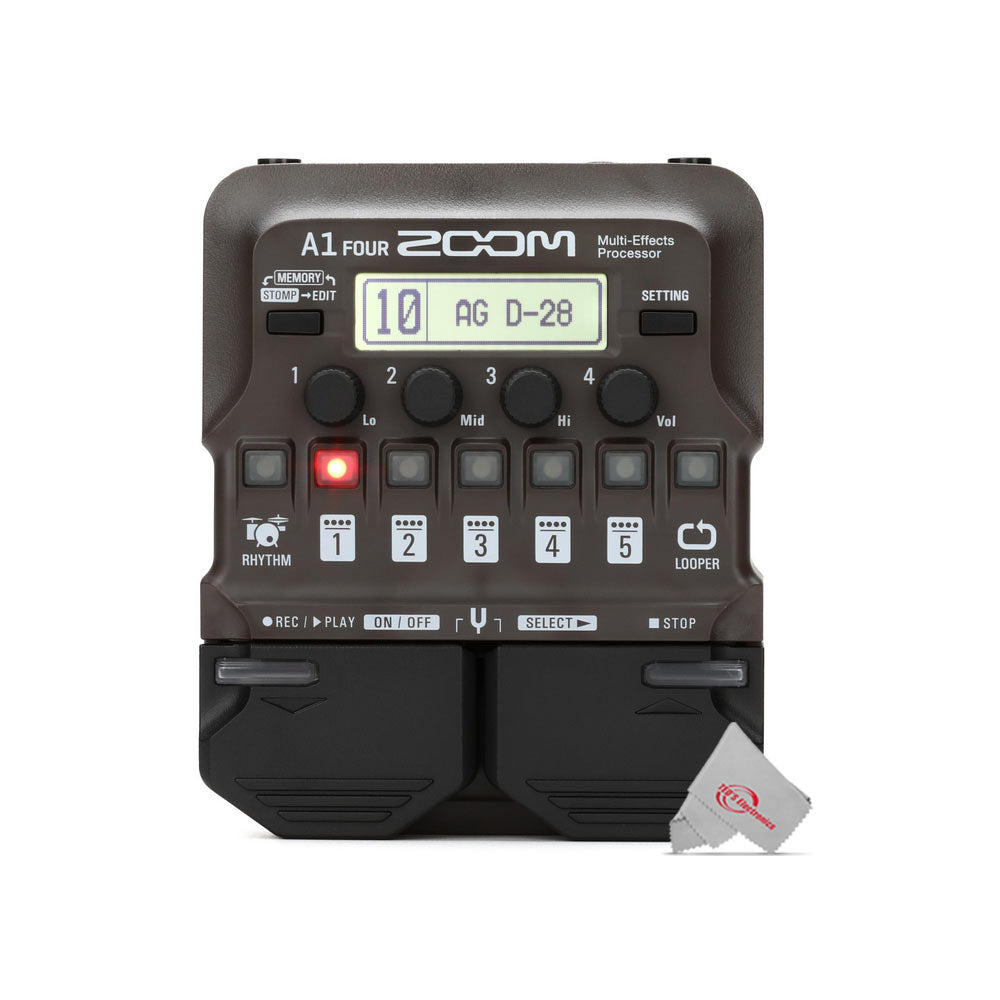

Zoom A1 Four Acoustic Instrument Multi-Effect Processor + Pig Hog Cable Accessory Kit

$176.99 $141.98

Condition: New

Whether you play acoustic guitar, saxophone, trumpet, violin, harmonica, or acoustic bass, the Zoom A1 Four was made with you in mind. This amazing multi-effects processor is jam-packed with more than...

Vendor: Zoom SKU: ZM-A14-PGHG-1
Description
Whether you play acoustic guitar, saxophone, trumpet, violin, harmonica, or acoustic bass, the Zoom A1 Four was made with you in mind. This amazing multi-effects processor is jam-packed with more than 80 effects, including 35 acoustic-optimized effects. You’ve got plenty of processing power on tap, enabling up to five simultaneous effects, chained together in any order. The A1 Four contains 50 memory locations for storing user-created patches, and Zoom’s Guitar Lab software makes building patches a breeze. This unit yields great-sounding, pro-level sound quality during live use, thanks to two performance modes, hassle-free microphone connection, and an anti-feedback filter. You also get a drum machine, a 30-second looper, and a super-handy chromatic tuner. If you’re a live acoustic performer, then the Zoom A1 Four is the multi-effects unit you’ve been waiting for.
  • A1 FOUR offers over 60 built-in effects
  • Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
  • Up to 5 effects can be used simultaneously, chained together in any order
  • Anti-Feedback effects for suppressing microphone howling on stage
  • Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
  • Looper can be located at input of effects for easily editing parameters while performing
  • ZOOM Guitar Lab software for creating, editing and managing effects and patches
  • 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
  • 50 memory locations for storing user-created patches
  • Auto Save function for automatic saving of all patch parameters
  • Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
  • Input jack accepts standard mono guitar cable (both active and passive instruments supported)

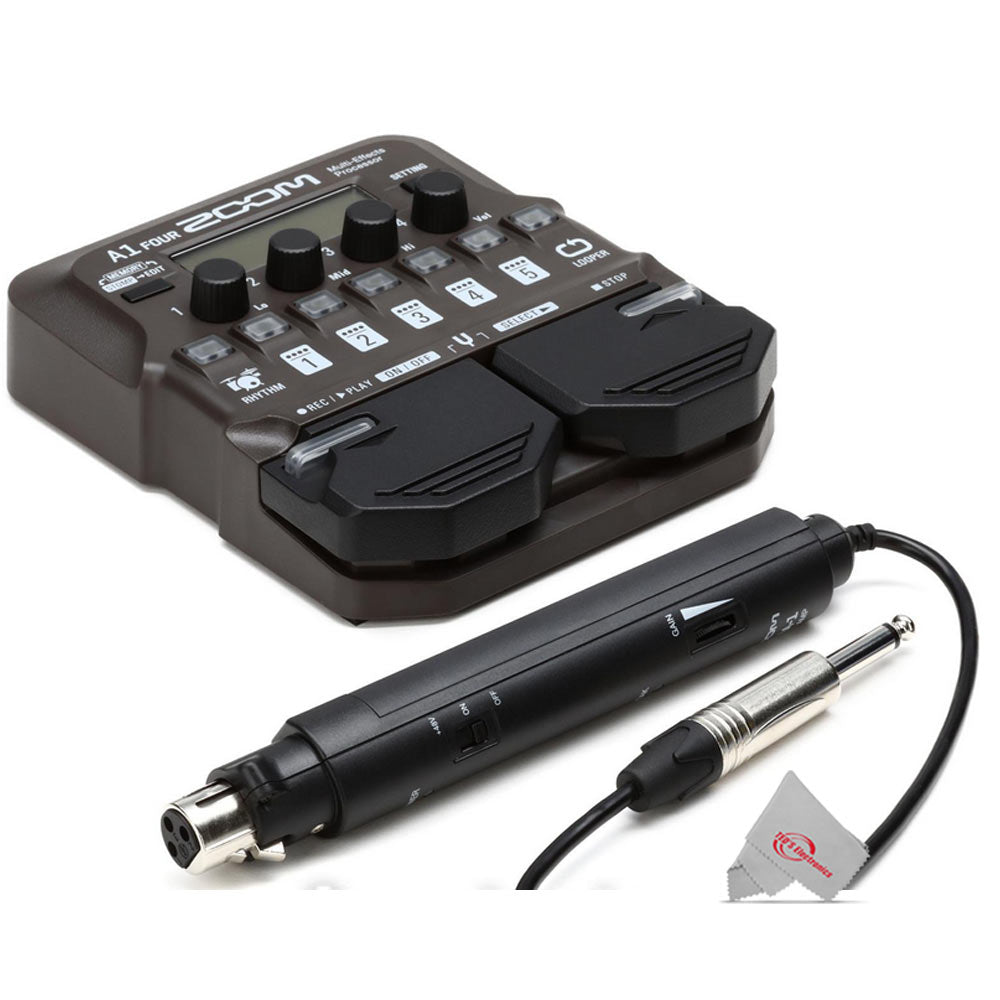

  • Bundled with MAA-1 Mic Adapter for connecting XLR microphones. MAA-1 can supply Phantom power for condenser microphones
  • Auxiliary input jack for connection of personal music players
  • Output jack for connection to amp or headphones
  • Runs on 4 AA batteries, with alkaline battery life of 18 hours
  • USB port for firmware updates, power and connection to ZOOM Guitar Lab

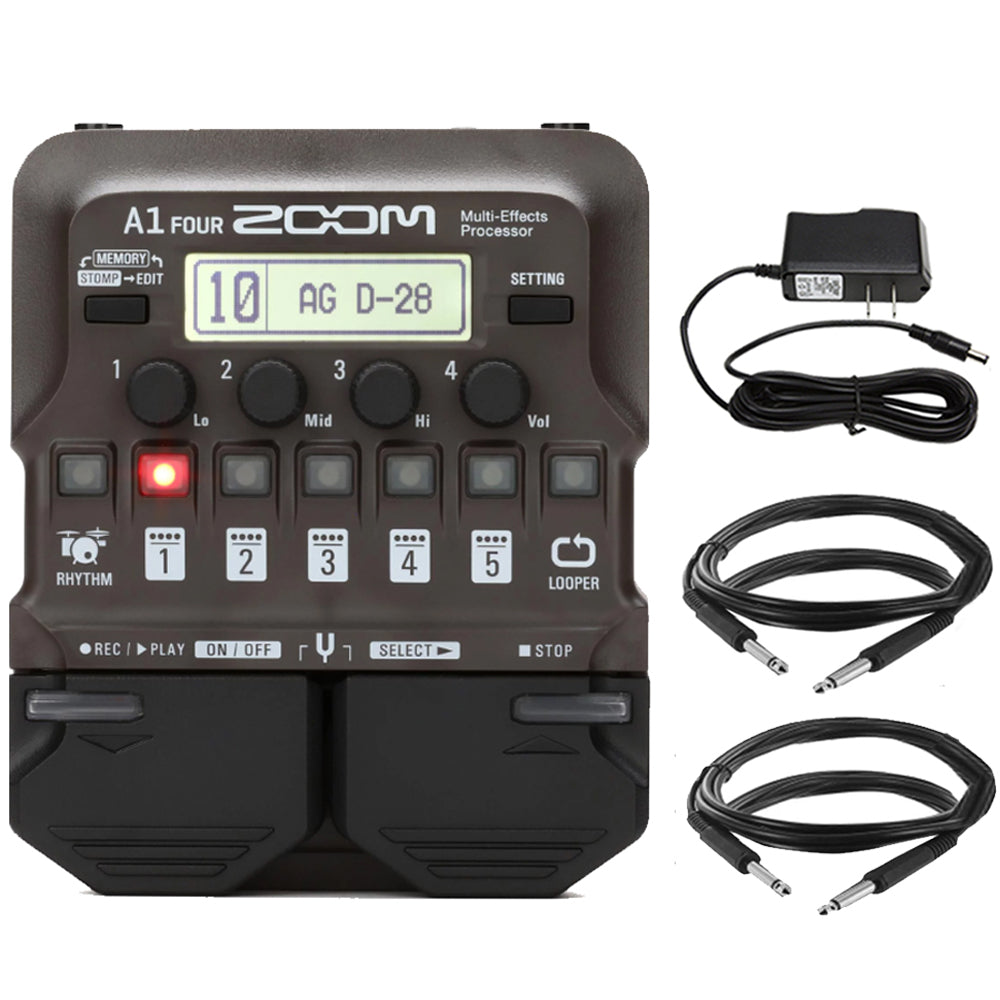

This Kit includes the following:
  • Zoom A1 Four Acoustic Instrument Multi-Effect Processor
  • Pig Hog Tour Grade 6 ft Instrument Cable 1/4 Inch to 1/4 Inch Straight Connectors - PH6R
  • Pig Hog Solutions 3.5mm TRS to 3.5mm TRS Adapter Cable, 6ft
  • Pig Hog PP9V Pig Power 9V DC 1000ma Power Supply
Additional Information

Zoom A1 Four Specs



A1 FOUR

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS5
USER PATCHES50
SAMPLING FREQUENCY44.1 kHz
A/D CONVERSION24-bit, 128� oversampling
D/A CONVERSION24-bit, 128� oversampling
SIGNAL PROCESSING32-bit
DISPLAY128x32 dot matrix LCD

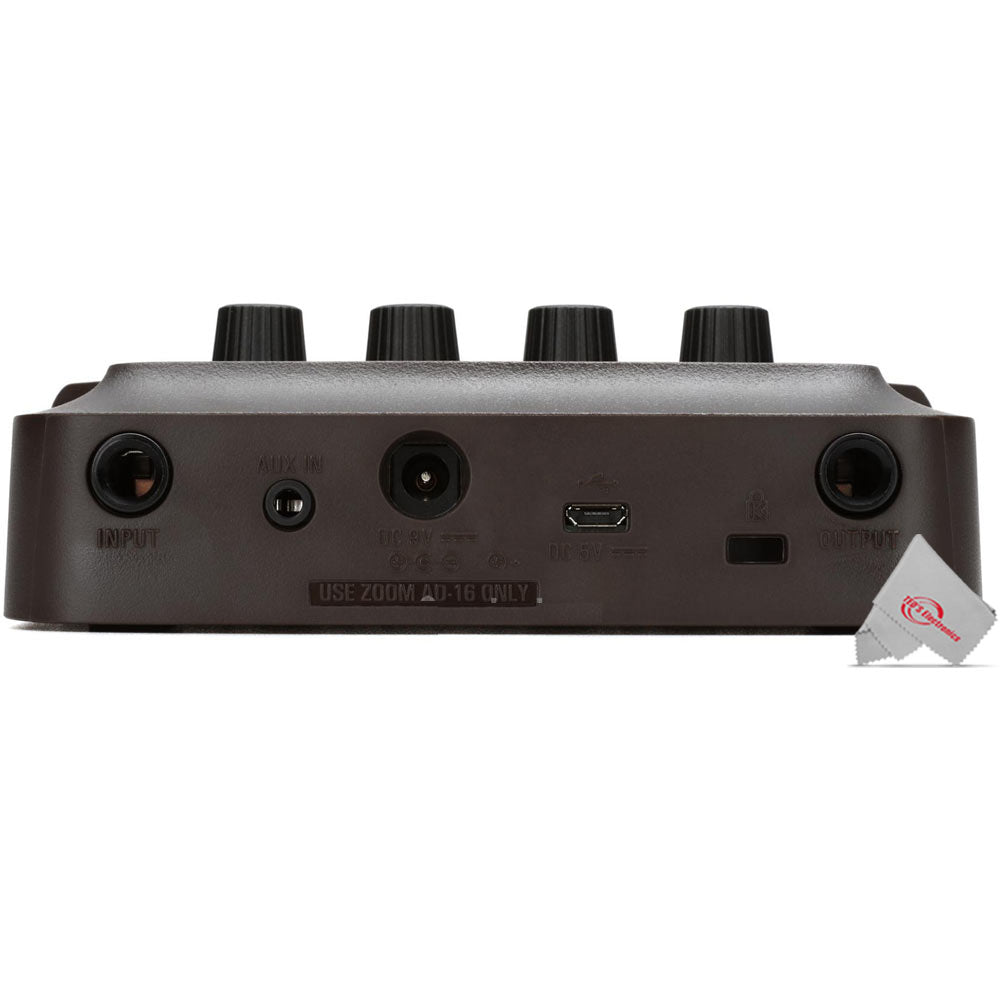

INPUT

INPUTStandard mono phone jack Rated input level: -20 dBuInput impedance (line): 470 k?
AUX INStereo mini jack Rated input level: -10 dBuInput impedance (line): 1k?



OUTPUT

OUTPUTStandard stereo phone jack (combined line/headphone) Maximum output level: Line +2 dBu (10 k? or more output impedance) Headphones 17 mW + 17 mW (32? load)
INPUT S/N120dB
NOISE FLOOR (RESIDUAL NOISE)-97 dBu
POWER AC adapter:9V DC 500mA center negative (ZOOM AD-16) 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USBUSB MIDI, USB Micro-B Power can also be supplied through the USB port.When using a cable designed only for power, other USB functions cannot be used.
EXTERNAL DIMENSIONSHeight: 156 mm (D) � 130 mm (W) � 42 mm (H)Weight: 340 g (excluding batteries)



MAA-1

INPUTSINPUT XLR balanced input (2: hot) Input gain: +3 � +30 dBInput impedance: 10 k?Maximum input level: +4 dBu+48V phantom power
OUTPUTSStandard mono phone jack Nominal output level: ?20 dB Maximum output level: +7 dB Output impedance: 1 k?
POWER 2 AA batteries Continuous operation time (when phantom current is 3 mA) About 15 hours (using alkaline batteries) About 15 hours (using nickel metal hydride batteries)
EXTERNAL DIMENSIONSHeight: 177 mm (D) � 23 mm (W) � 25 mm (H) Weight: 70 g (excluding batteries)





* Note: 0 dBm = 0.775 Vrms





Other Accessories In This Kit

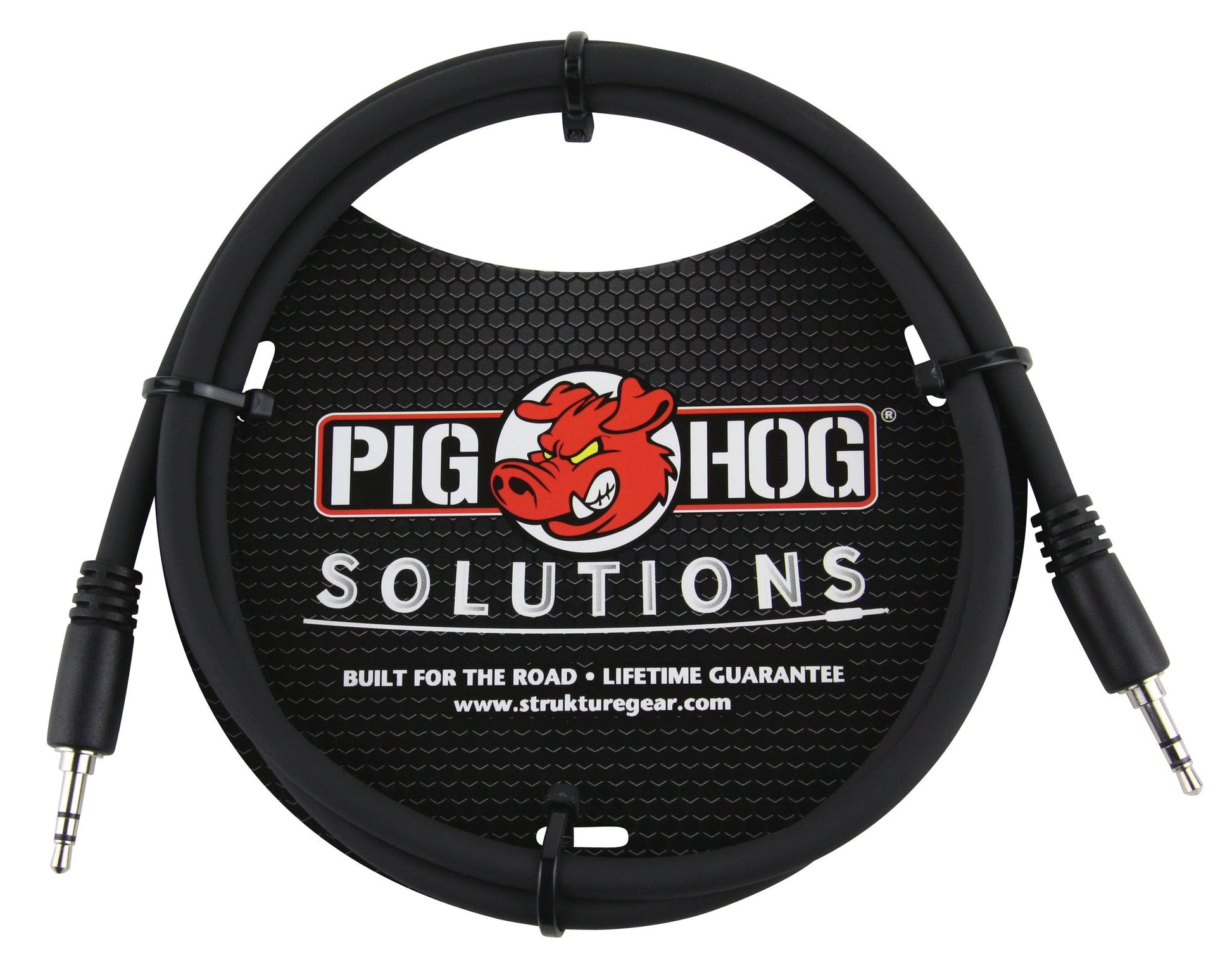

Pig Hog Solutions 3.5mm TRS to 3.5mm TRS Adapter Cable, 6ft

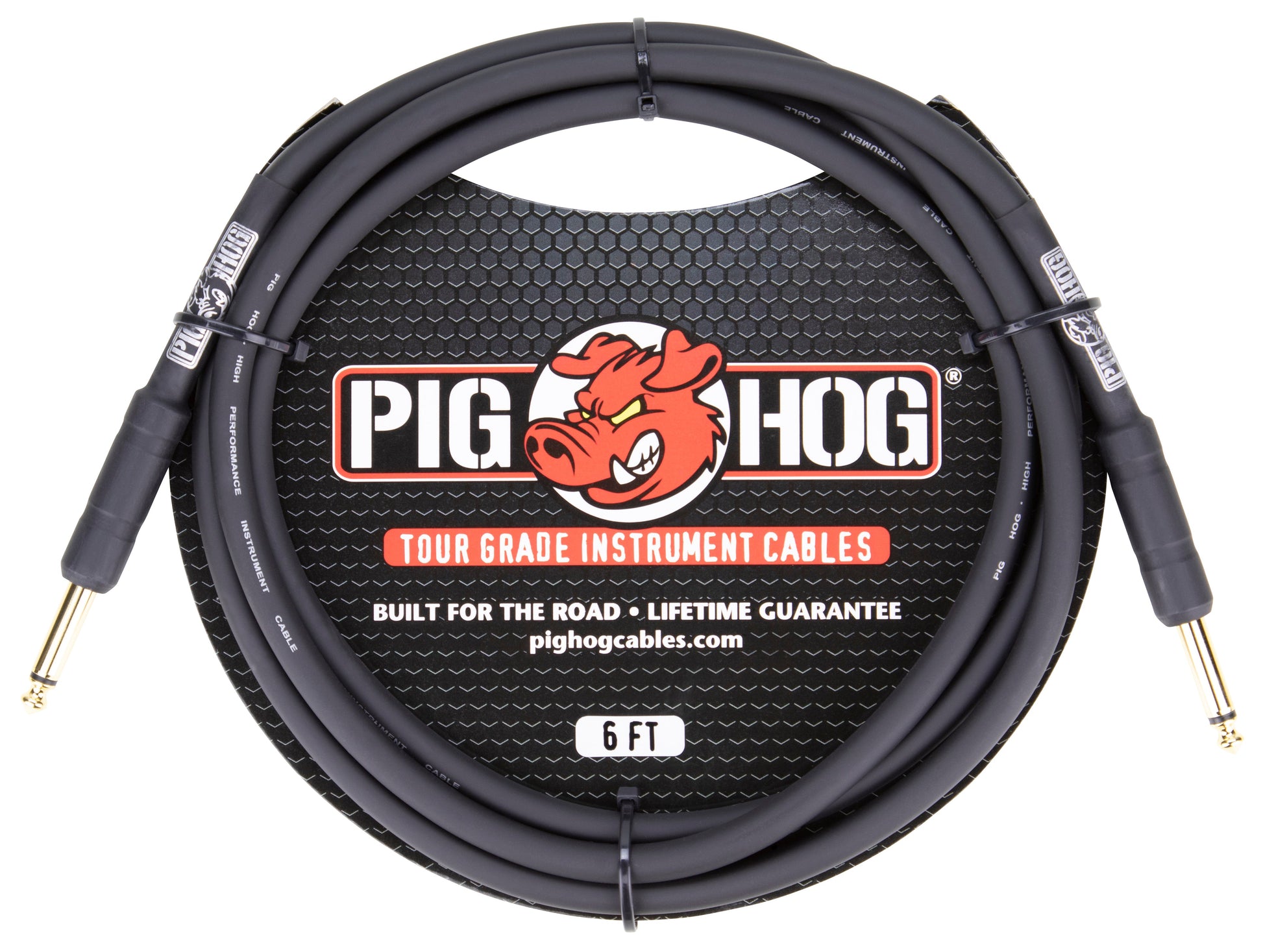

Pig Hog Tour Grade 6 ft Instrument Cable 1/4 Inch to 1/4 Inch Straight Connectors

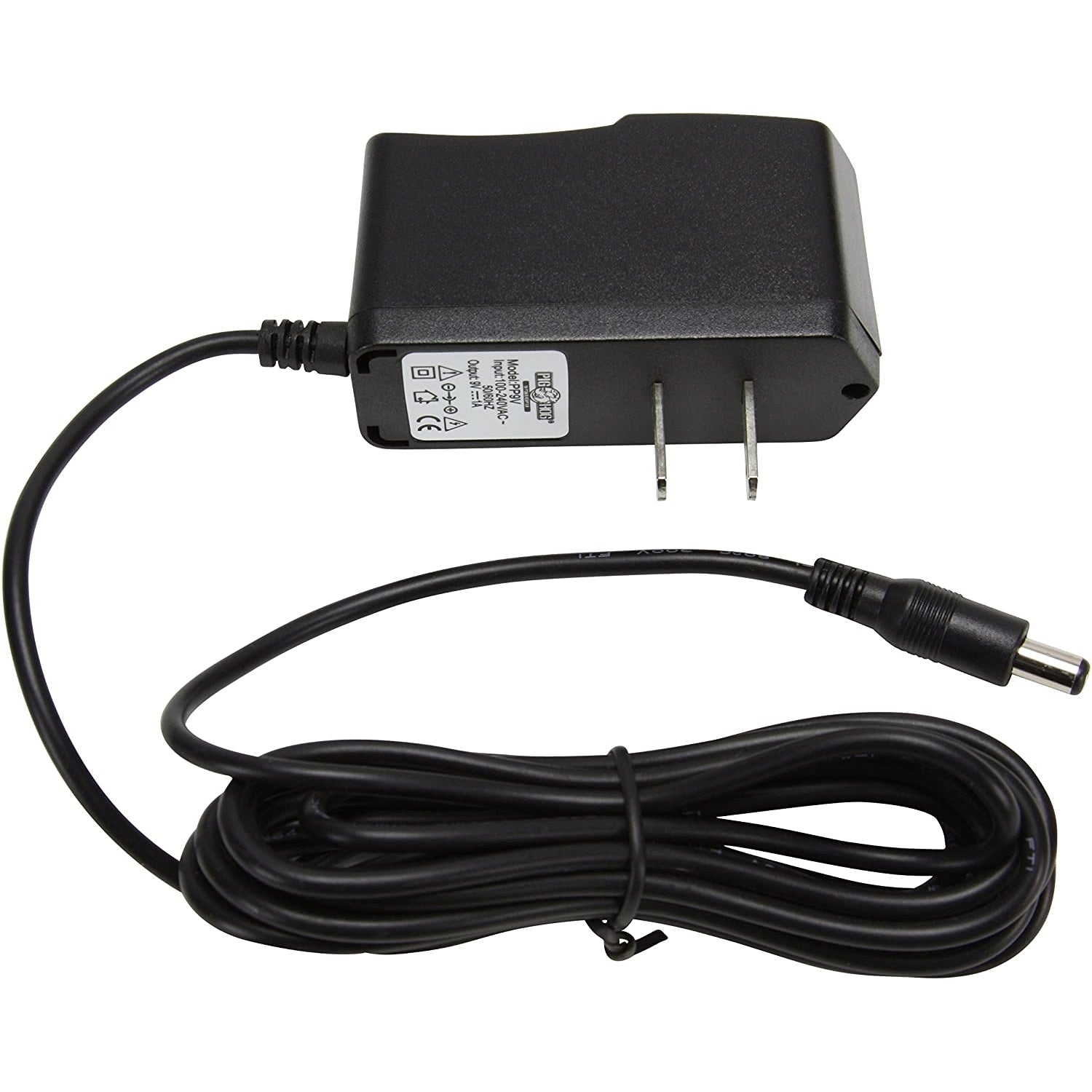

Pig Hog PP9V Pig Power 9V DC 1000ma Power Supply
