Zoom F8n Pro Multitrack Field Recorder + Zoom ZDM-1 Mic Accessory Bundle
Zoom F8n Pro Multitrack Field Recorder + Zoom ZDM-1 Mic Accessory Bundle
BRAND: Zoom
Regular price
$1,099.99
Sale price
$1,099.99
Regular price
$1,474.99
Unit price
per
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
ZM-F8-DM1PMP-A

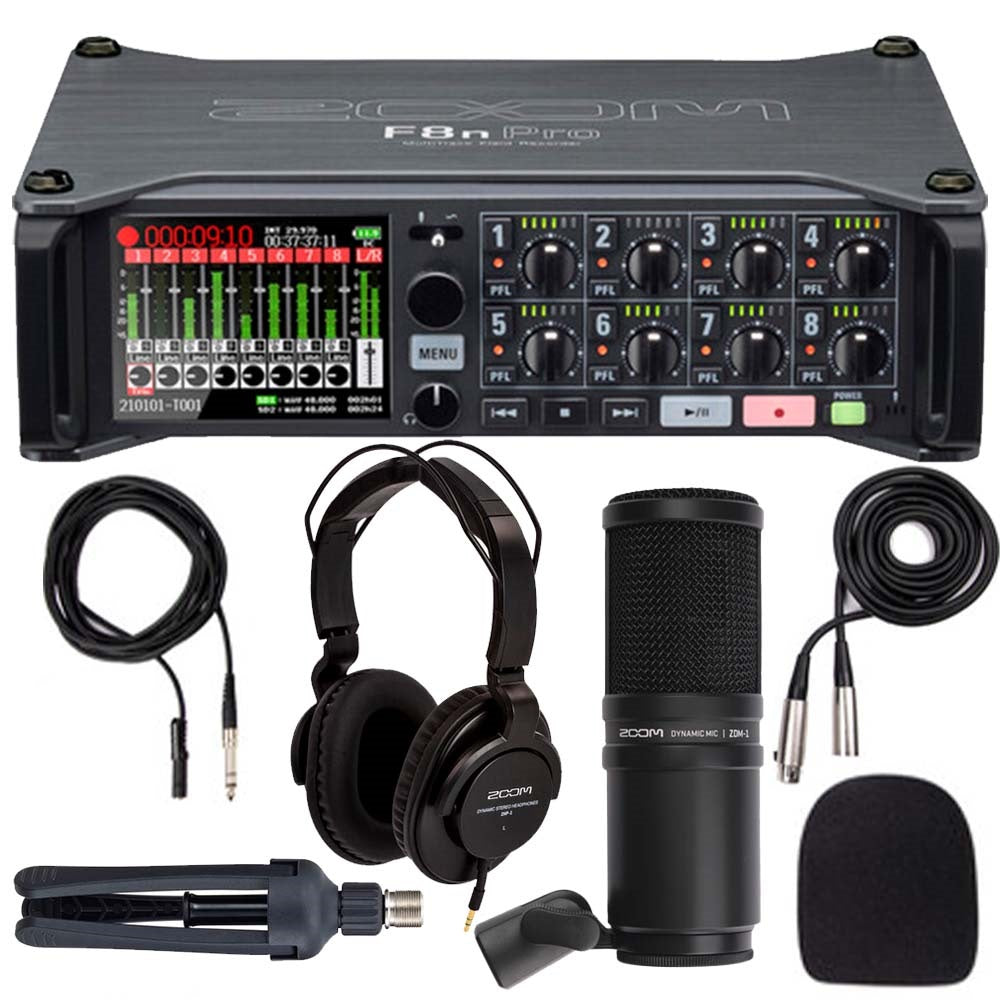

Zoom F8n Pro 8-Input / 10-Track Multitrack Field Recorder + Zoom ZDM-1 Podcast Mic Pack Accessory Bundle With Microphone, Headphones, Tripod, Windscreen & Cable
Capture every location recording quickly and cleanly with the Zoom F8n Pro, a sound bag–friendly multitrack field recorder with 32-bit float technology for immense dynamic range that frees you from clipping and manual gain adjustments. Offering 8-input / 10-track recording, separate converters for quiet and loud sounds, and high-grade preamps with mic/line input switching, the F8n Pro packs quantity and quality into a rugged frame that's more than ready for filmmaking, production/location sound mixing, sound effects recording, and electronic news gathering.

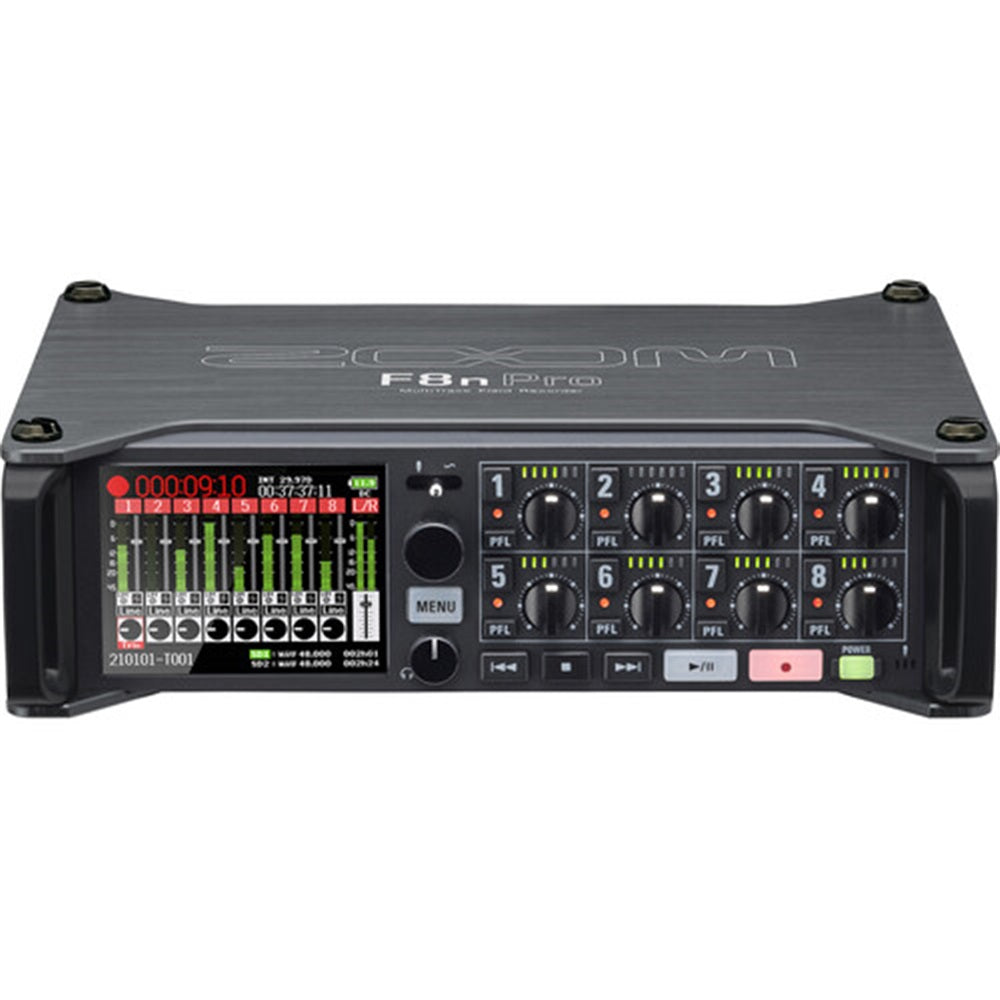

From the large, informative color display and user-friendly controls to the flexible powering methods, remote control options, and precision time code functionality, the F8n Pro is properly equipped to please novices and demanding veterans alike. Whether you need long-duration stereo recording for an interview, redundant capture of multi-mic setups for a video shoot, or Ambisonics sound files for virtual reality and 360-audio projects, the F8n Pro has the modes, resolutions, and media support to handle your crucial audio tasks.
Extending the legacy of the F8n, the F8n Pro adds dual analog-to-digital converters and 32-bit float recording, enabling pristine audio recording without gain adjustment and without clipping.
Separate A/D converters for low and high gain allow the F8n Pro to achieve equally impressive SNR (signal-to-noise ratio) performance for quiet and loud sounds.
The 32-bit float WAV format can maintain the resolution at the time of recording, and even if normalization processing is performed after recording, the original sound is reproduced without deterioration.
It can also be used as an 8-input / 4-output USB audio interface that supports 32-bit float resolution.
The F8n Pro can accommodate all manner of condenser microphones as well as balanced line-level signals via eight locking Neutrik XLR-1/4" combo inputs. Eight studio-quality microphone preamps boasting massive gain (up to 75 dB) and ultra-low noise (-127 dBu EIN) ensure that your sound sources will be amplified with sonic accuracy. Plus, the F8n Pro's advanced look-ahead limiters anticipate clipping before it's recorded.
A Zoom mic capsule input on the F8n Pro accommodates Zoom's line of interchangeable capsules (available separately) in place of input.
A perfect companion for the Zoom F8 podcast recorder - the Zoom ZDM-1 Podcast Mic Pack bundles all the essentials you'll need to complete your home or mobile podcasting studio—a microphone, headphones, a tabletop mic stand, a mic cable, and more.
The Zoom ZDM-1 dynamic mic and its custom windscreen help you record your voice with full, broadcast-quality tone and minimal noise from breaths and room ambience while the ZHP-1 closed-back headphones ensure transparent audio reproduction for critical listening. For simple and convenient setup of the mic, the ZDM-1 Podcast Mic Pack also includes an XLR mic cable and a tabletop tripod stand.

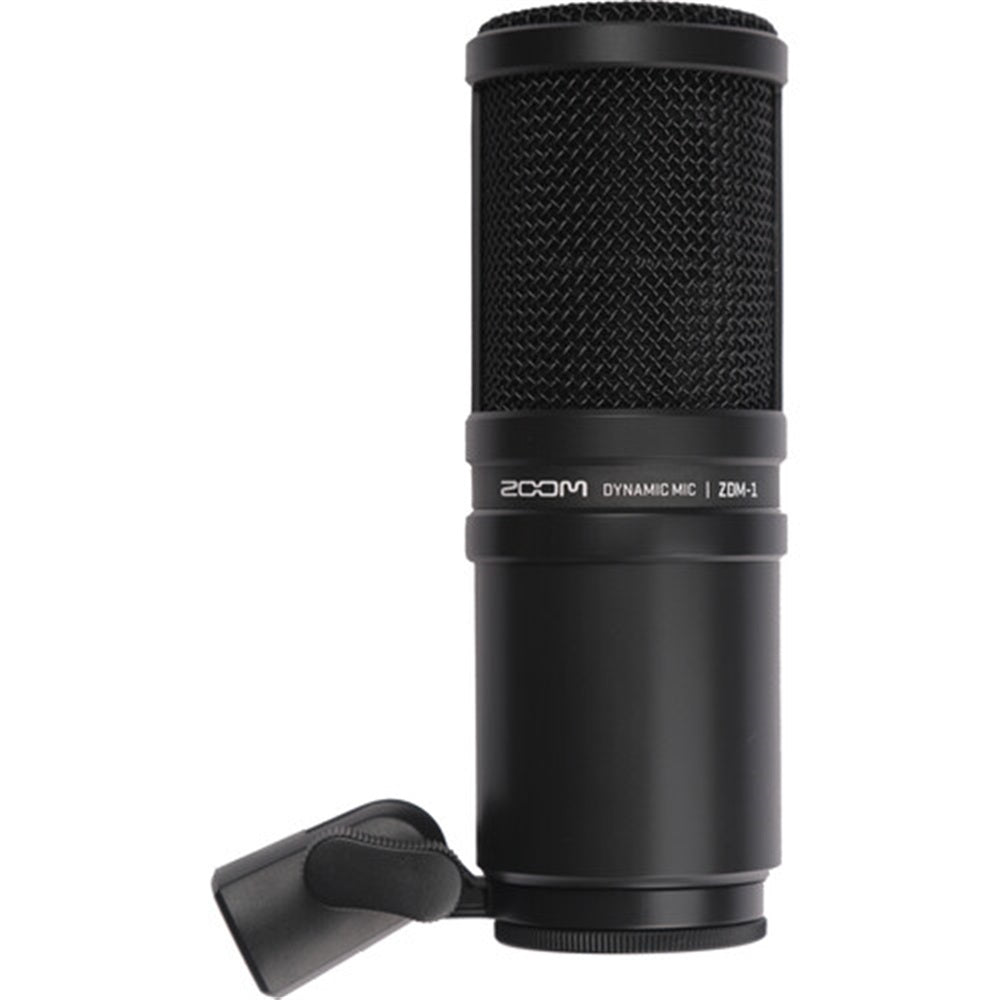

Tuned to deliver a robust vocal tone with smooth highs and tight lows, the Zoom ZDM-1 is an affordable dynamic microphone that's ideal for podcasters, radio show announcers, rappers, and singers. Thanks to its high SPL handling and broad frequency response, this end-address mic makes it easy to capture your voice with mix-ready broadcast quality.

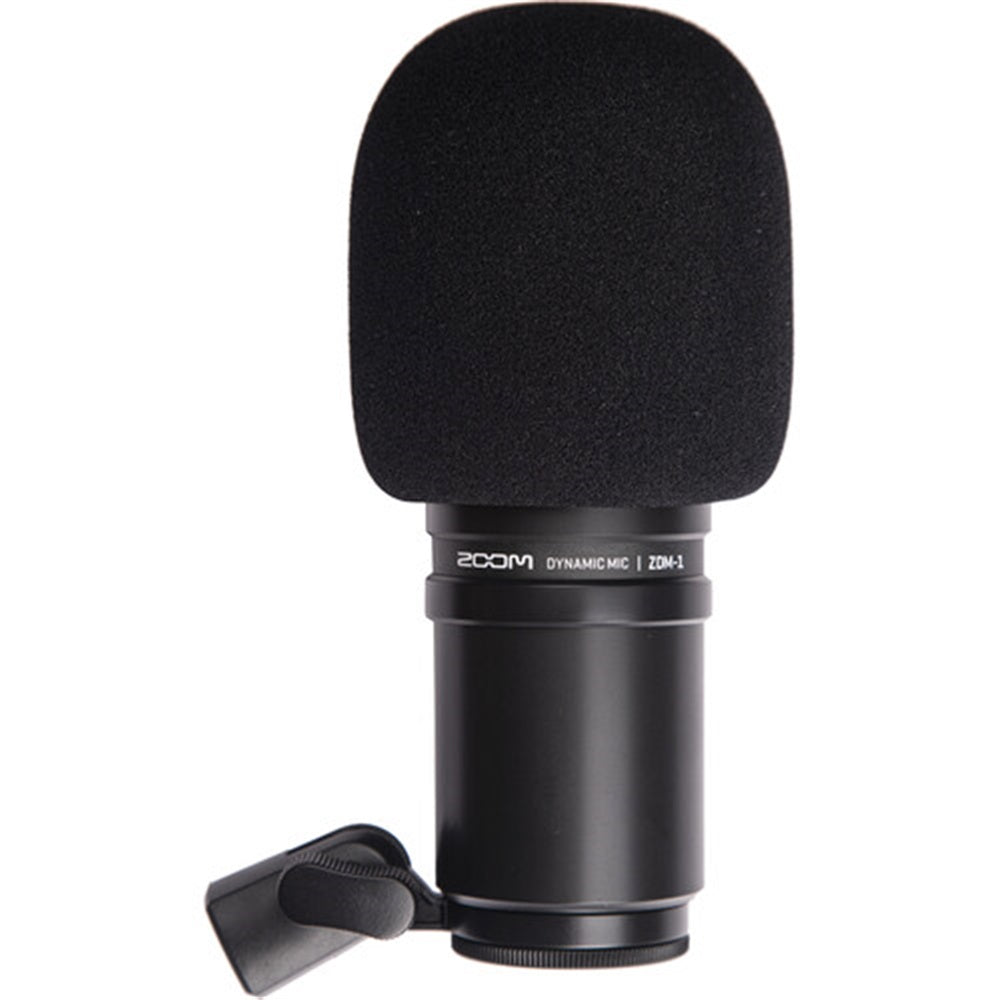

The all-metal body and grille afford ruggedness and durability for reliable use session after session. The ZDM-1 includes a pivoting mic stand mount for easy positioning and a custom windscreen for attenuation of plosives and breath noise
- Zoom ZDM-1 Dynamic Microphone
- Custom ZDM-1 Windscreen
- Pivoting Mic Stand Mount
- Threaded European Mic Stand Adapter

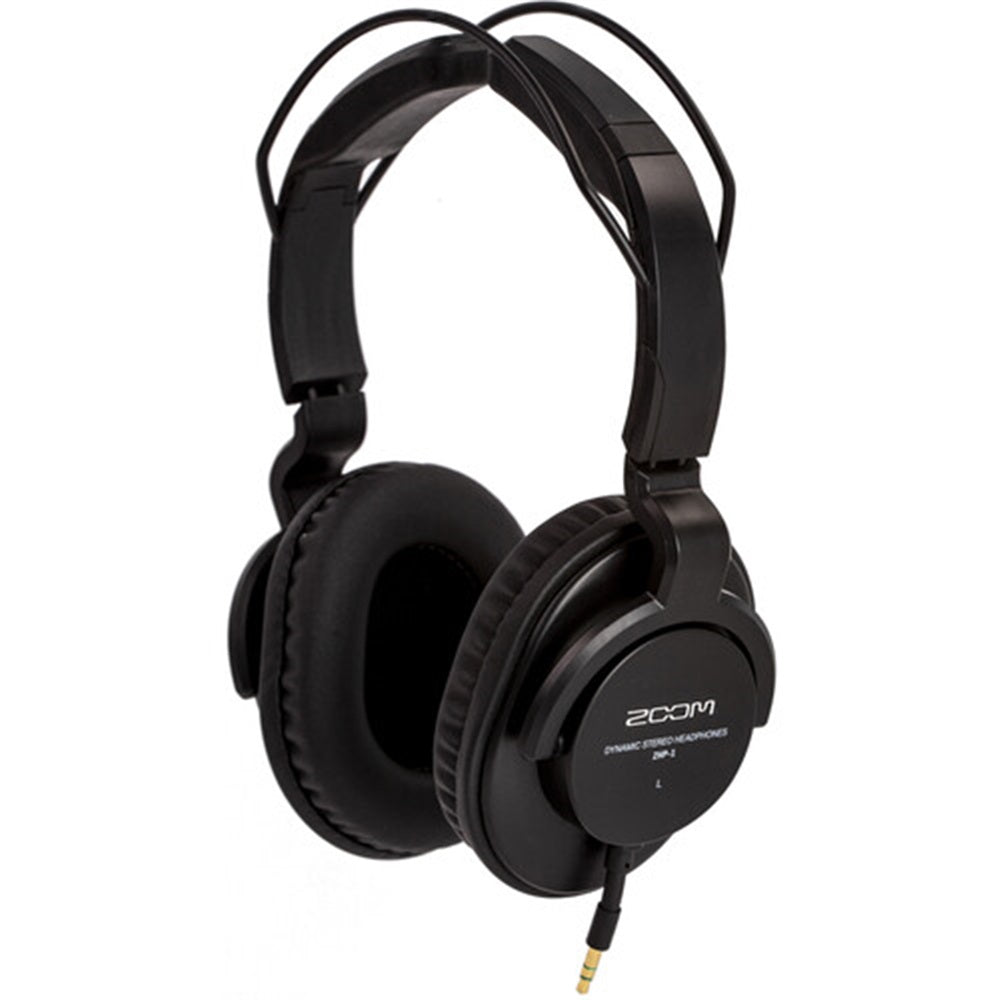

- Zoom ZHP-1 Over-Ear, Closed-Back Headphones
- 3.5mm TRS Headphone Cable (9.8')
- 3.5mm to 1/4" Adapter
- Cable Clasp

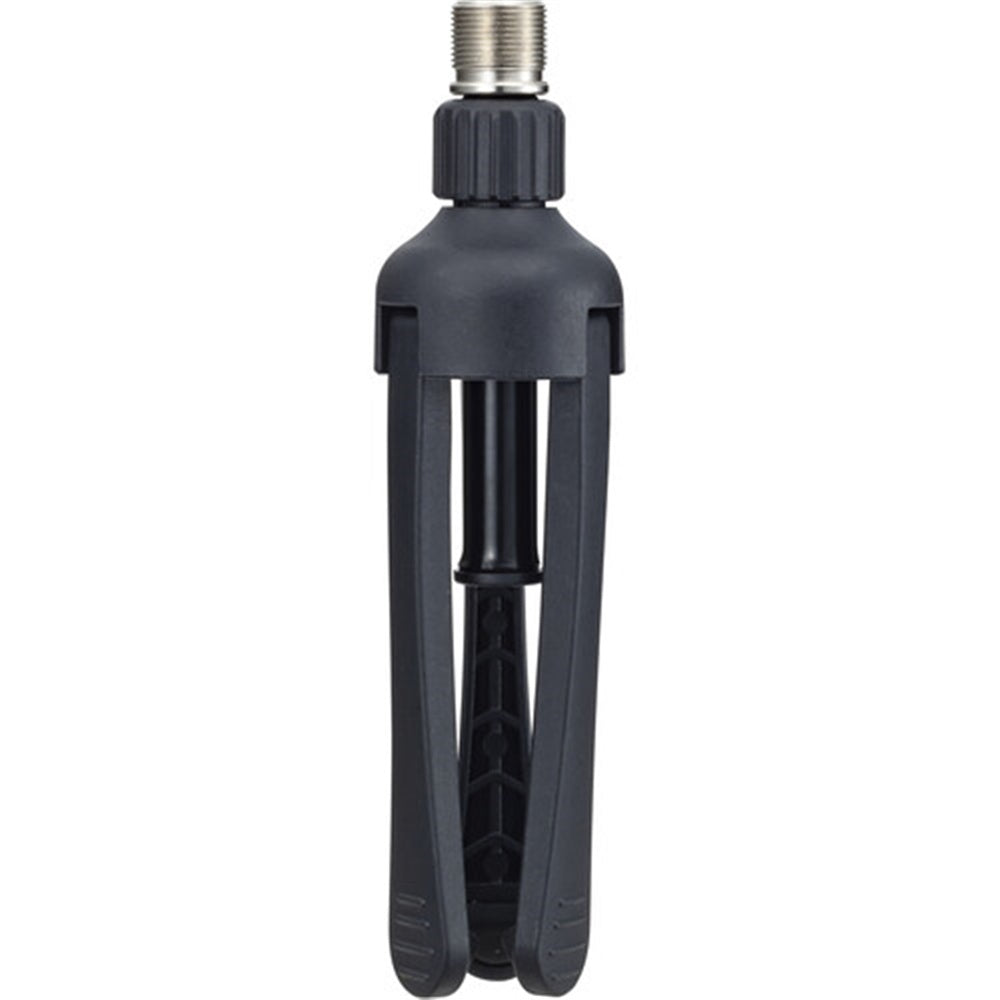

- Zoom TPS-4 Tabletop Tripod Mic Stand
- XLR Microphone Cable (9.9')
In this Bundles:
- Zoom F8n Pro 8-Input / 10-Track Multitrack Field Recorder
- Zoom ZDM-1 Podcast Mic Pack Accessory Bundle With Microphone, Headphones, Tripod, Windscreen & Cable

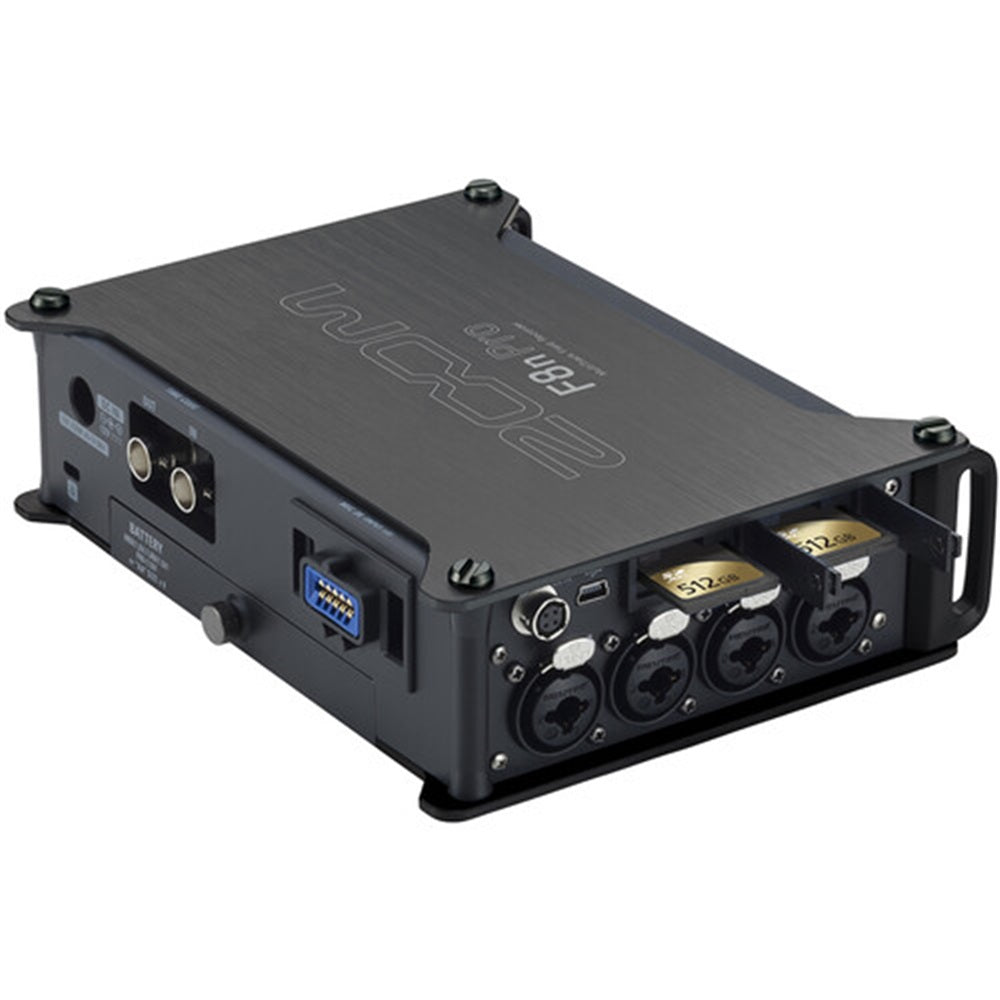

Zoom F8n Pro Multitrack Field Recorder
General
| Form Factor | Field Recorder |
| Primary Use Applications | Audio-for-Video |
| Number of Tracks | WAV: 10 (8 Inputs + Stereo Mix) MP3: 2 |
| Number of Input Channels | 8 |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Microphone | Built-In Slate Mic |
| Number of Microphone Preamps | 8 Preamps |
| Built-In Speaker | No |
| Display | 2.4" / 6.1 cm Color LCD (Backlit) |
| Memory Card Support | SDHC (4 GB to 32 GB) SDXC (64 GB to 1 TB) |
| Internal Storage | None |
| Special Features | Pre-Record Buffer, Remote Control Capable, Slate Function (Remote Available Separately) |
| Dimensions (W X D X H) | 7.0 × 5.5 × 2.1 In / 178.2 × 140.3 × 54.3 Mm (Main Unit) |
| Weight | 2.1 Lb / 960 g (Main Unit) |
Inputs: 1-8
| Connectors: | 1-8 Xlr/Trs Combo Jacks (Xlr: 2 Hot, Trs: Tip Hot) |
| Input Gain: | Xlr (Mic); +10 – +75 Db Trs (Line); −10 – +55 Db |
| Input Impedance: | Xlr (Mic); 3.3 Kω Trs (Line); 28 Kω |
| Maximum Input Level: | Xlr (Mic); +14 Dbu (At 0 Dbfs, Limiter On) Trs (Line); +34 Dbu (At 0 Dbfs, Limiter On) |
| Phantom Power: | Xlr (Mic); +24/+48V 10Ma Maximum For Each Channel |
| Thd (Total Harmonic Distortion): | Xlr (Mic); 0.009% Max (1Khz, 22Hz-22Khz Bw, Input Gain Min, -10Dbu Input) Trs (Line); 0.010% Max (1Khz, 22Hz-22Khz Bw, Input Gain Min +10Dbu Input) |
Inputs: Additional Info
| Equivalent Input Noise: | −127 Dbu Or Less (A-Weighted, +75 Db Input Gain, 150Ω Input) |
| Frequency Characteristics: | 10 Hz – 80 Khz +0.5 Db/−1 Db (192 Khz Sampling Rate) |
| A/D Dynamic Range: | 120 dB Typ (−60 Dbfs Input, A-Weighted) |
| Crosstalk: | −90 dB Or Less (Between Adjacent Channels, 1 KHz) |
| Mic In: | Zoom Mic Capsule Input (Use Disables Inputs 1/2) |
| Slate Mic: | Built-In Mic For Voice Memos Can Freely Be Assigned To Tracks |
Outputs:

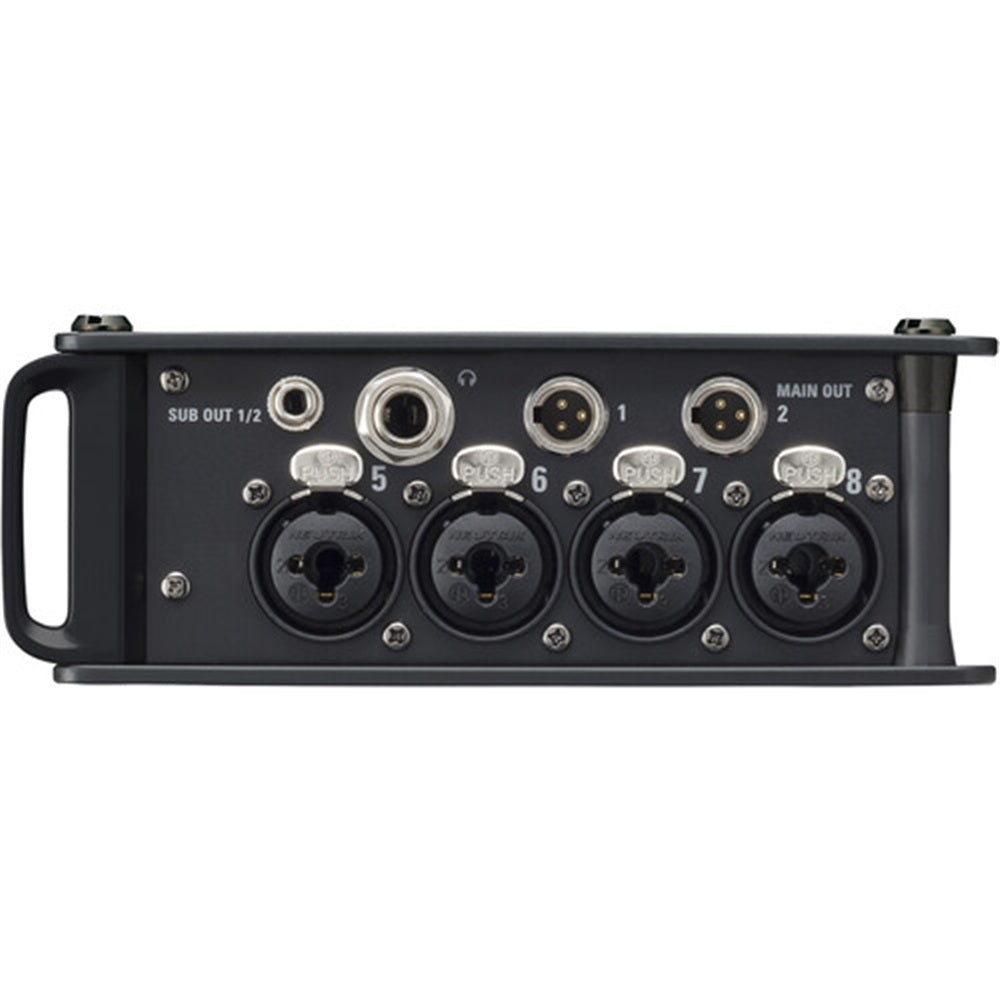

| Connectors: | Main Out 1/2; Ta3 Connectors, Balanced Output (2: Hot) Sub Out 1/2; 3.5 Mm Stereo Mini Unbalanced Output Jack |
| Output Impedance: | Main Out 1/2; 150 Ω Or Less Sub Out 1/2; 100 Ω Or Less |
| Reference Output Level: | Main Out 1/2; −10 Dbv (Normal Output Type), −40 Dbv (Mic Output Type), 1 KHz, 600Ω Load Sub Out 1/2; −10 Dbv (Normal Output Type), −40 Dbv (Mic Output Type), 1 KHz, 10Kω Load |
| Maximum Output Level: | Main Out 1/2; +10 Dbv (Normal Output Type), −20 Dbv (Mic Output Type), 1 KHz, 600Ω Load Sub Out 1/2; +10 Dbv (Normal Output Type), −20 Dbv (Mic Output Type), 1 KHz, 10Kω Load |
Headphone
| Connector: | 1/4" Unbalanced Stereo Output Jack |
| Output Impedance: | 15 Ω Or Less |
| Maximum Output Level: | 100 mW + 100 mW (32Ω Load) |
Recording Formats:
| Supported Formats: (Wav) | 44.1/47.952/48/48.048/88.2/96/192KHz, 16/24-Bit, Mono/Stereo/2-10 Ch Poly, Bwf And Ixml |
| Maximum Simultaneous Recording Tracks: (Wav) | 10 (8 Inputs + Stereo Mix) 8 (With 192 KHz Sampling Rate) |
| Supported Formats: (MP3) | 128/192/320 Kbps, 44.1/48 KHz, Id3V1 Tags |
| Maximum Simultaneous Recording Tracks: (MP3) | 2 |
Recording Time
| Using A 32GB Card: | 30:51:00 (48 KHz/24-Bit Stereo Wav) 7:42:00 (192 KHz/24-Bit Stereo Wav) |
| When Recording 2 Channels At 48KHz/16-Bit Without Headphones | Alkaline Batteries: 8.5 Hours Or More Nimh (2450Mah): 10 Hours Or More Lithium Batteries: 12.5 Hours Or More |
| When Recording 8 Channels At 48KHz/24-Bit With Headphones | Alkaline Batteries: 4.5 Hours Or More Nimh (2450Mah): 6 Hours Or More Lithium Batteries: 8.5 Hours Or More |
| When Recording 8 Channels At 192KHz/24-Bit With Headphones, Phantom Power And Display Backlighting | Alkaline Batteries: 1 Hour Or More Lithium Batteries: 3 Hours Or More |
Time Code
| Connector: | BNC |
| Modes: | Off, Int Free Run, Int Record Run, Int Rtc Run, Ext, Ext Auto Rec (Audio Clock Can Be Synchronized To Timecode) |
| Frame Rates: | 23.976Nd, 24Nd, 25Nd, 29.97Nd, 29.97D, 30Nd, 30D |
| Precision: | ±0.2 ppm |
| Supported Input Levels: | 0.2 – 5.0 Vpp |
| Input Impedance: | 4.6 Kω |
| Output Level: | 3.3 Vpp |
| Output Impedance: | 50 Ω Or Less |
| Dynamic Range | A/D Converters: 113 dBA D/A Converters: 105 dBA |
Power And Storage

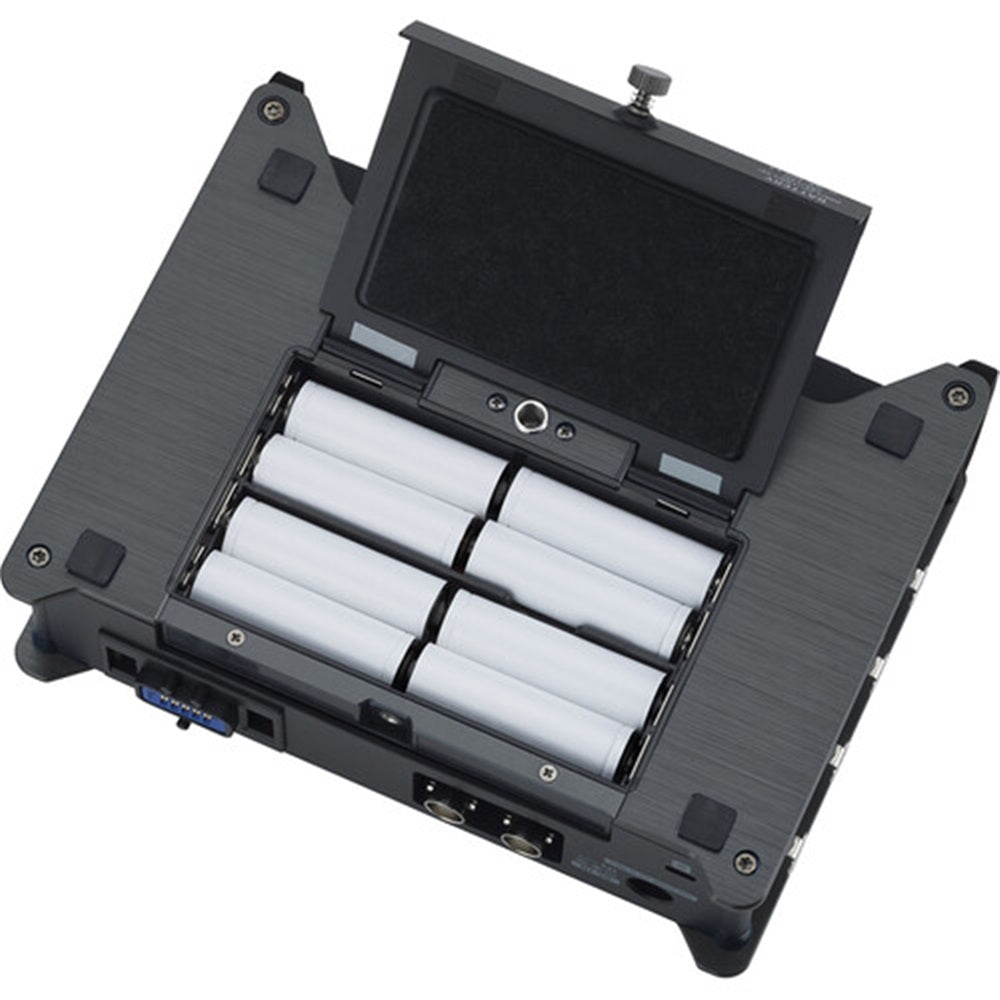

| Batteries: | 8 AA |
| Ac Adapter: | Ad-19 Dc12V 2A (Center Plus) |
| External Dc Power Supply: | Hirose Hr10A-7R-4S 4-Pin Connector (1 Pin: −, 4 Pin: +), 9–16 V |
| Usb Mass Storage Operation Class: | Usb 2.0 High Speed |
| Multitrack Audio Interface Operation Class (Driver Required For Windows, Not Required For Mac) | Usb 2.0 High Speed |
| Multitrack Audio Interface Operation Specifications: | 44.1/48/96 KHz, 16/24-Bit, 8-In/4-Out *Operation Is Not Guaranteed With Cpus From Atom, Celeron Or Pentium Series Or Cpus Made By Amd |
| Stereo Mix Audio Interface Operation Class (No Driver Required) | Usb 2.0 Full Speed |
| Stereo Mix Audio Interface Operation Specifications: | 44.1/48 KHz, 16-Bit, 2-In/2-Out Note: iPad Audio Interface Operation Supported (Stereo Mix Mode Only)*Operation Is Not Guaranteed With Cpus From Atom, Celeron Or Pentium Series Or Cpus Made By Amd |
Zoom ZDM-1 Dynamic Microphone Specs
Microphone
| Form Factor | Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | 1 x Dynamic |
| Polar Pattern | Supercardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 50 Hz to 18 kHz |
| Maximum SPL | 135 dB SPL |
| Impedance | 200 Ohms |
| Load Impedance | 200 Ohms (Minimum) |
| Sensitivity | -54 dBV/Pa |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin Male |
| Headphone Connector | None |
Physical
| Color | Black |
| Mounting | 3/8"-16 Female, 5/8"-27 Female (with Included Hardware) |
| Construction Material | Metal |
| Dimensions | �: 2.12 x L: 5.19" / �: 5.38 x L: 13.18 cm |
| Weight | 14.11 oz / 400 g |
