Zoom LiveTrak L-8 Portable Podcast 8-Track Digital Mixer + Microphone Accessory Kit

Zoom LiveTrak L-8 Portable Podcast 8-Track Digital Mixer + Microphone Accessory Kit

ZM-L8-B1

$625.99
$625.99 $689.99
Sorry, it's out of stock.

But we can let you know when it's back in.

Interested in bulk orders?

We offer special pricing for bulk purchases. Just click the button below and fill out the request form — our team will get back to you with a custom quote

Bulk Order Request Form
The Zoom LiveTrak L-8 digital mixer and recorder puts the flexibility of Zoom's popular LiveTrak L-Series range in a compact and portable format that's optimized for podcasting and music production on the go. The LiveTrak L-8 provides tactile controls and intuitive functionality, so you can start a podcasting or music recording session in minutes.

With six mic preamps, four independent headphone outputs, a phone tap for call-in interviews, and six sound pads, the LiveTrak L-8 can easily handle roundtable podcasts or tracking multiple musicians. Since it can be operated on AA batteries or a USB power supply, it can join you no matter where you go to record.

Whether you record to an SD card, stream via USB to a computer or iOS mobile device, or do both at the same time, the LiveTrak L-8 gives you up to 12 channels of simultaneous multitrack recording. Just add microphones (dynamic or condenser), hook up headphones, and get ready to produce quality content in no time.

Panel Podcasts are No Problem
  • Thanks to its six transparent, low-noise mic preamps with selectable phantom power, the LiveTrak L-8 can accommodate dynamic or condenser microphones for you and multiple guests.
  • Just insert an SDHC or SDXC card to start recording right away. Keep in mind that you can multitrack record via USB to a computer or iOS mobile device (separately available Apple Camera Connection Kit required) whether or not you track to an SD card.
  • No matter which media you choose, the L-8 records separate tracks to ensure flexibility in post-production processes such as editing and mixing.


Six Sound Pads for Triggering Samples or Music
  • Use sound effects and music clips to add excitement to your podcast. The LiveTrak L-8 features six assignable sound pads that allow you to instantly trigger effects, music, applause, prerecorded interviews, or ads. The LiveTrak L-8 comes with 13 preset sounds for its sound pads, making it ready for out-of-the-box production.


Easy Phone Call Interviews
  • The LiveTrak L-8's phone tap lets you easily interview a guest who is calling in remotely on the phone or via common apps like Skype and FaceTime.
  • Simply connect your mobile device to the 3.5mm TRRS port using the supplied TRRS cable (some iOS devices may require a Lightning to headphone jack adapter), and the L-8 utilizes a mix-minus function to ensure that the caller won't hear their own voice echoing back to them.

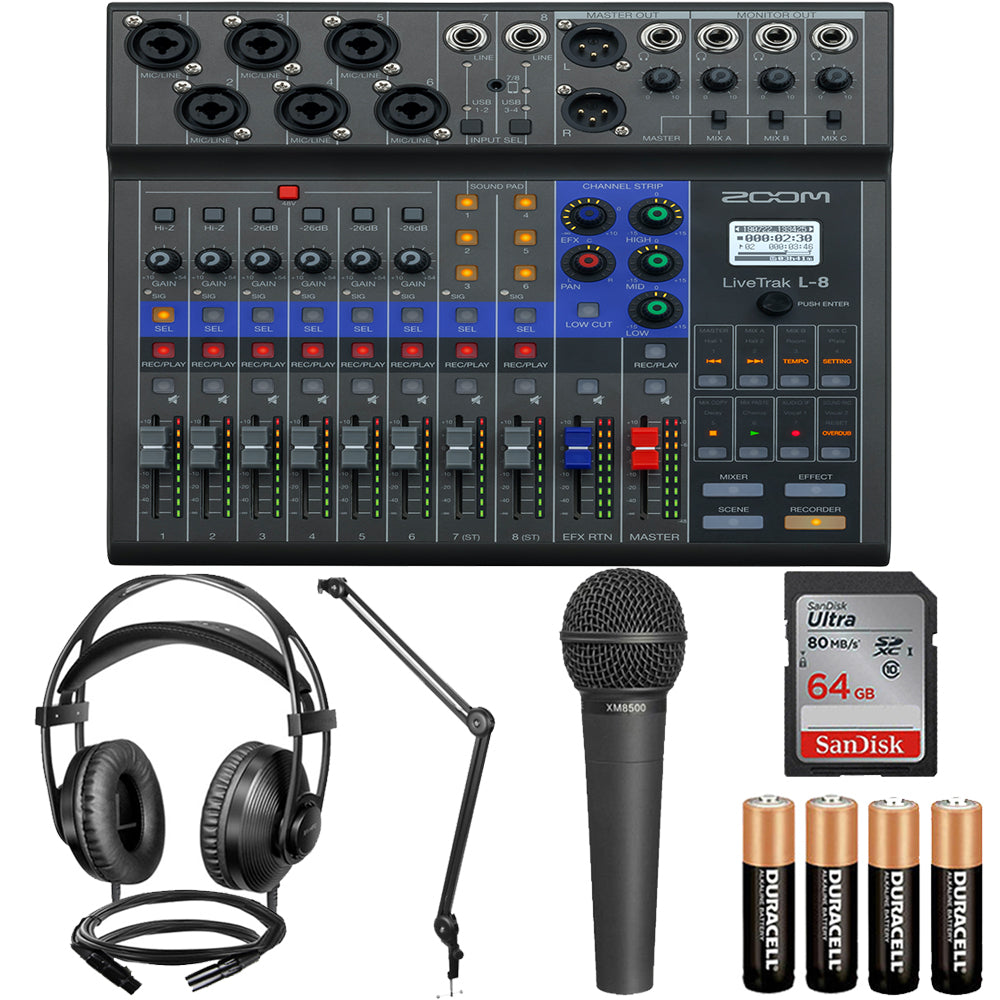

In the Box
  • Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder
  • 3.5mm TRRS Cable
  • USB Cable
  • Zoom AD-17 AC Adapter for Select Zoom Devices
This Kit includes the following:
  • Zoom LiveTrak L-8 Portable Podcast 8-Track Digital Mixer And Multitrack Recorder
  • Behringer XM8500 Microphone
  • Boya BY-BA20 Microphone Stand Bracket
  • Pig Hog 8mm XLR Microphone Cable
  • 64GB Memory Card
  • AA Batteries

Zoom L8 Specs





Inputs2 x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs
4 x XLR-1/4" TRS Combo Balanced Mic/Line Inputs
2 x 1/4" TS Unbalanced Line Inputs
1 x 1/8" / 3.5 mm TRRS Unbalanced Smartphone I/O
Outputs2 x 3-Pin XLR Male Balanced Line Outputs
4 x 1/4" TRS Female Unbalanced Headphone Outputs
Input GainMic/Line Inputs with Hi-Z Off: +10 to +54 dB
Mic/Line Inputs with Hi-Z On: -3 to +41 dB
Input ImpedanceXLR: 3 Kilohms
1/4" TRS Line: 3 Kilohms
1/4" TS Line: 10 Kilohms
1/4" Hi-Z: 1 Megohm
3.5 mm TRRS: 10 Kilohms
Maximum Input LevelMic/Line Inputs (-26 dB Pad Off): -2 dBu at 0 dBFS
Mic/Line Inputs (-26 dB Pad On): +24 dBu at 0 dBFS
1/4" TS Line Inputs: +3 dBu
3.5 mm TRRS: +3 dBu
Phantom Power+48 VDC
Output ImpedanceXLR: 100 Ohms
1/4" TRS: 10 Ohms
Maximum Output LevelXLR: +14.5 dBu
1/4" TRS: 10 mW per Channel (60-Ohm Load)
BusesMaster: 1
Monitor: 3
Send EFX: 1
Channel ControlLow-Cut Filter: 75 Hz at 12 dB/Octave
High EQ (Shelving): 15 dB at 10 kHz
Mid EQ (Peaking): 15 dB at 2.5 kHz
Low EQ (Shelving): 15 dB at 100 Hz
Level Meters12 x 9-Segment LEDs
Effects8 Types
RecorderMaximum Simultaneous Recording Tracks: 12
Maximum Simultaneous Playback Tracks: 10
Format: WAV
Bit Depth: 16-Bit or 24-Bit
Sample Rate: 44.1, 48, or 96 kHz
Supported Media Card TypesSDHC: 4 to 32 GB (Class 10 or Higher)
SDXC: 64 to 512 GB (Class 10 or Higher)
Audio InterfaceRecording: 12 Channels
Playback: 4 Channels
Bit Depth: 24-Bit
Sample Rate: 44.1 or 48 kHz
Interface: USB 2.0
System RequirementsmacOS 10.12 or Later
Intel Core i3 or Faster CPU
USB 3.0 / 2.0 (Operation Is Not Guaranteed When Used with USB Hubs or Expansion Cards)

Windows 7 SP1 or Later (32-/64-Bit)
Intel Core i3 or Faster CPU (Operation Is Not Guaranteed with CPUs from Atom, Celeron, or Pentium Series or CPUs Made by AMD)
USB 3.0 / 2.0 (Only USB Host Controllers with Intel Chipsets are Supported; Operation Is Not Guaranteed When Used with USB Hubs or Expansion Cards)

iOS 10 or Later
Apple Lightning-to-USB Camera Adapter Required
Card ReaderClass: Mass Storage USB 2.0 High Speed
Frequency Response20 Hz to 20 kHz -1 dB at 44.1 kHz
20 Hz to 40 kHz -3 dB at 96 kHz (Gain at 3 O'Clock)
Equivalent Input Noise?121 dBu EIN (IHF-A) at +54 dB, 150-Ohm Input
Display96 x 64 Backlit LCD
Power RequirementsBattery: 4 x AA Batteries (Alkaline, NiMH, or Lithium)
AC: Zoom AD-17 AC Adapter
DC: 5 V, 1 A
USB Bus Power
Battery LifeAlkaline: Up to 2 Hours
NiMH (1900 mAh): Up to 3.5 Hours
Lithium: Up to 6.5 Hours

Testing Conditions: 4-Channel Recording at 16-Bit / 44.1 kHz to SD Card with Phantom Power Off, LCD Backlight at 15 Seconds, Battery Save On, and 62-Ohm Headphone Impedance
Power Consumption5 W
Dimensions (W x D x H)10.6 x 11.1 x 2.9" / 26.8 x 28.2 x 7.4 cm
Weight3.4 lb / 1.6 kg





Other Accessories In This Kit

  • Pig Hog 8mm XLR Microphone Cable Male to Female 20 Ft Fully Balanced Premium Mic Cable
  • Transcend 64GB SDXC Class 10 UHS-1 Flash Memory Card Up to 45MB/s (TS64GSDU1E)
  • Behringer XM8500 Ultravoice Dynamic Cardioid Vocal Microphone
  • Boya BY-BA20 Aluminum Alloy Desk Holder Microphone Stand Bracket for Video Recording
  • Boya BY-HP2 Professional Over-Ear Hi-Fi Monitor Headphones
  • 2 Panasonic Alkaline 2 "AA" Batteries
