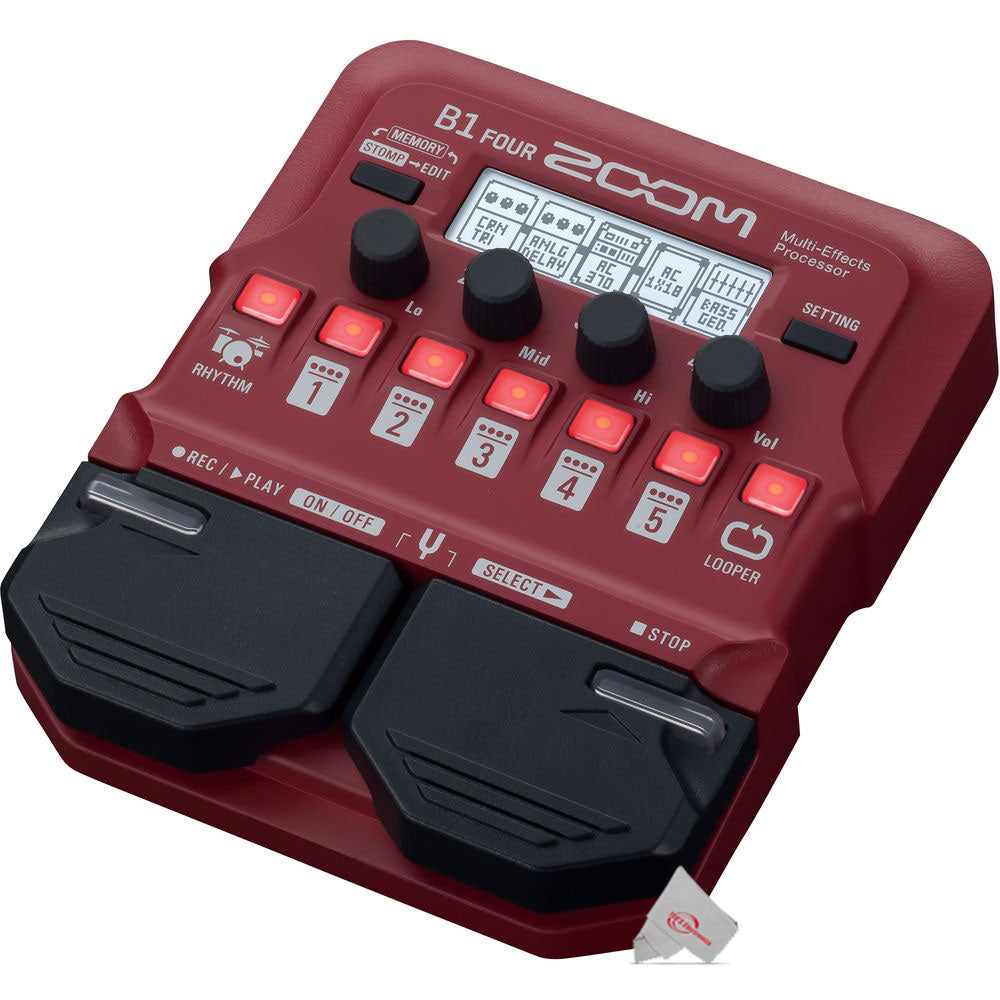

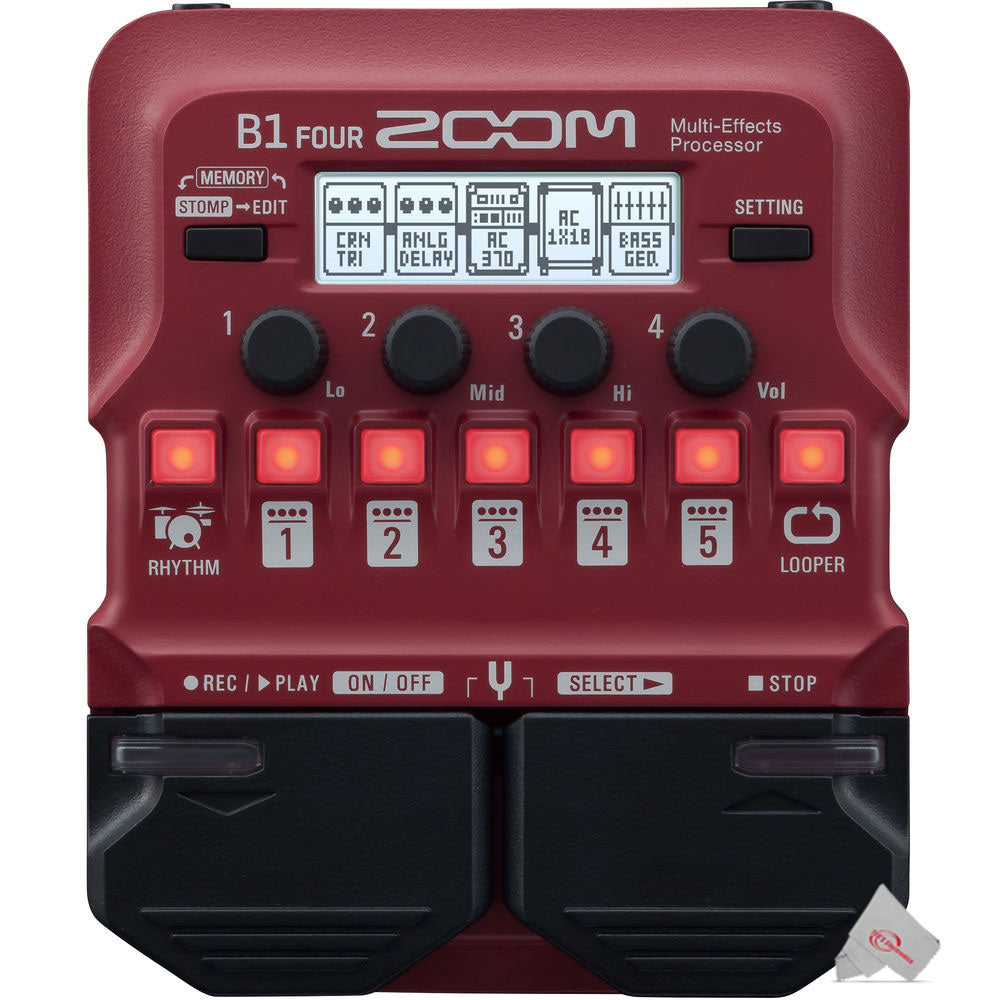

Zoom B1 Four Electric Bass Effects Processor
ZM-ZB1FOUR-US
Regular price
$99.99
Sale price
$99.99
Regular price
$178.99
Unit price
per
Sorry, it's out of stock.
But we can let you know when it's back in.
The Zoom B1 Four is a multi-effects processor designed for use with electric basses. Offered in an easy to use stompbox format, the B1 Four sports a wide selection of effects, amp emulations, and other features, such as an onboard 30-second looper and a chromatic tuner. With 68 built-in rhythm patterns, you can add drum loops to the mix, which can be quite helpful during looping.
Distortion, chorus, and more are all on hand, as are 9 bass-amp models that simulate classic combinations. Five effects can be chained at any time and in any order. You can save these effects in one of the 50 user preset patches. Switch among patches (or banks of patches) quickly with the tap of a toe, so you can change your live or studio sound with ease. You can also change global characteristics to retain a sense of unity among patches. A three-knob tone stack and the overall output level knob do not change as you cycle through your sounds.
The pedal sports 60 different effects, and you can edit or add more effects from your computer too. Simply hook the pedal up to your Mac or Windows machine over a USB cable and add effects from Zoom's Guitar Lab software.

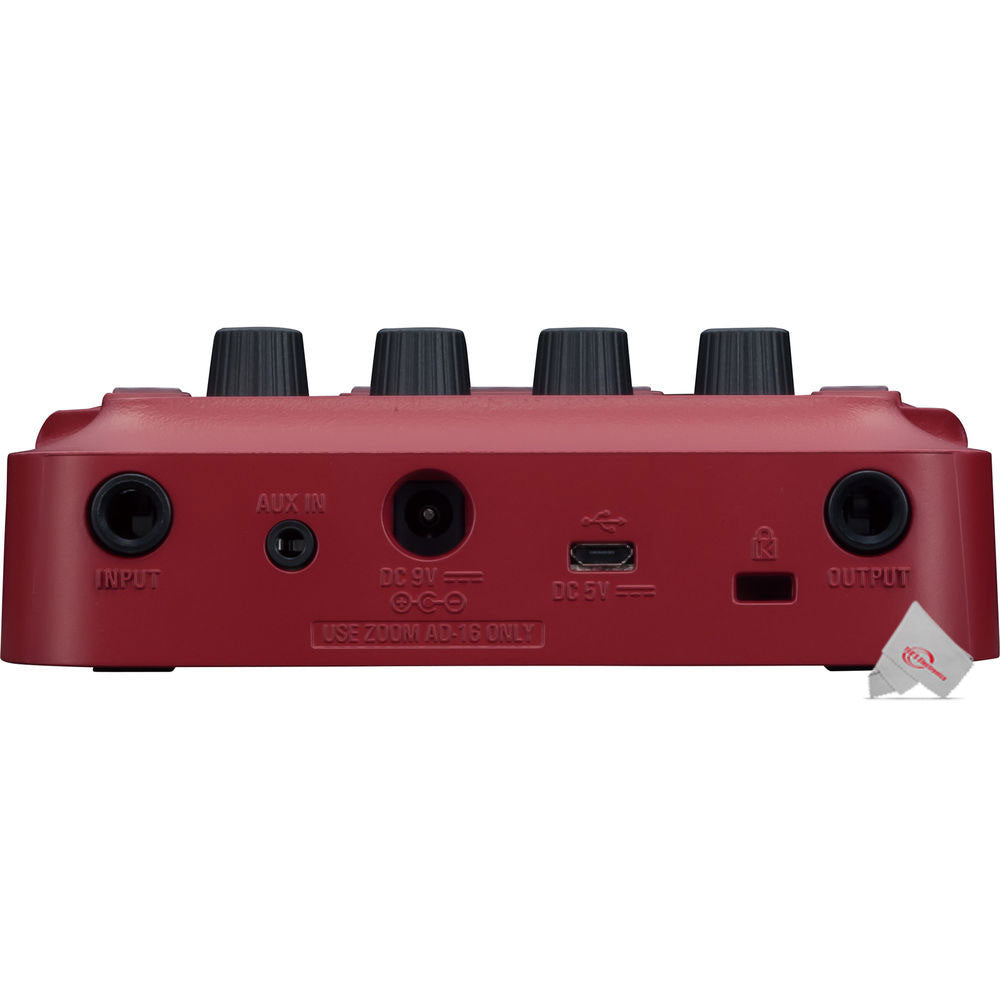

The B1 Four provides one 1/4" instrument input, one 3.5mm input for mobile devices and media players, and a combined amp/headphone output. The unit runs on four AA batteries, giving you up to 18 hours of run time. You can also power the unit with a dedicated ZOOM AD-16 AC adapter or over USB.
Key Features at a Glance
Distortion, chorus, and more are all on hand, as are 9 bass-amp models that simulate classic combinations. Five effects can be chained at any time and in any order. You can save these effects in one of the 50 user preset patches. Switch among patches (or banks of patches) quickly with the tap of a toe, so you can change your live or studio sound with ease. You can also change global characteristics to retain a sense of unity among patches. A three-knob tone stack and the overall output level knob do not change as you cycle through your sounds.
The pedal sports 60 different effects, and you can edit or add more effects from your computer too. Simply hook the pedal up to your Mac or Windows machine over a USB cable and add effects from Zoom's Guitar Lab software.
The B1 Four provides one 1/4" instrument input, one 3.5mm input for mobile devices and media players, and a combined amp/headphone output. The unit runs on four AA batteries, giving you up to 18 hours of run time. You can also power the unit with a dedicated ZOOM AD-16 AC adapter or over USB.
Key Features at a Glance
- Over 60 built-in effects
- 9 amp models for simulating classic rigs
- Up to 5 effects can be used simultaneously or chained together in any order
- Looper records up to 30 seconds (64 beats of CD-quality audio with seamless start and end times)
- ZOOM Guitar Lab software for creating, editing, and managing effects and patches
- 68 built-in rhythm patterns, which can be used in conjunction with the Looper
- 50 memory locations for storing user-created patches
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner supports all standard guitar tunings including open and drop tunings
- Input jack accepts standard mono guitar cable
- Both active and passive instruments are supported
- Auxiliary input jack for connection of personal music players
- Output jack for connection to amp or headphones
- Runs on 4 AA batteries
- Alkaline battery life of 18 hours
- USB port for firmware updates, power, and connection to ZOOM Guitar Lab
- Zoom B1 Four Electric Bass Effects Processor
- 4 x AA Batteries
SPECS
General Specifications
| MAXIMUM NUMBER OF SIMULTANEOUS EFFECT | 5 |
| USER PATCHES | 50 |
| SAMPLING FREQUENCY | 44.1 kHz |
| A/D CONVERSION | 24-bit, 128× oversampling |
| D/A CONVERSION | 24-bit, 128× oversampling |
| SIGNAL PROCESSING | 32-bit |
| DISPLAY | 128x32 dot matrix LCD |
INPUT
| INPUT | Standard mono phone jack | Rated input level: -20 dB | Input impedance (line): 470 kΩ |
| AUX IN | Stereo mini jack | Rated input level: -10 dBu | Input impedance (line): 1kΩ |
OUTPUT
| Standard stereo phone jack (combined line/headphone) | |
| Maximum output level: Line +2 dBu (10 kΩ or more output impedance) | |
| Headphones 17 mW + 17 mW (32Ω load) |
Additional Specifications
| INPUT S/N | 120 dB |
| NOISE FLOOR (RESIDUAL NOISE) | -97 dBu* |
| POWER | AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off) |
| USB | Connector: USB2.0 Micro-B |
| Guitar Lab | Standard: USB 1.1 Full Speed | |
| Supported cable: USB2.0 Micro-B cable | Use cables for data transfer. | Power can also be supplied through the USB port. | When using a cable designed only for power, other USB functions cannot be used. | |
| EXTERNAL DIMENSIONS | B1 FOUR | Height: 156 mm (D) × 130 mm (W) × 42 mm (H) | Weight: 340 g (excluding batteries) |
*Note: 0 dBu = 0.775 V
