Zoom F6 6-Input / 14-Track Multi-Track Field Recorder
ZM-ZF6-US
Sorry, it's out of stock.
But we can let you know when it's back in.
Interested in bulk orders?
We offer special pricing for bulk purchases. Just click the button below and fill out the request form — our team will get back to you with a custom quote
Forget about digital clipping and focus on the shot with the Zoom F6, an ultra-compact, multitrack field recorder with 32-bit float technology for distortion-free dynamic range, and up to 14 tracks of simultaneous recording for professional and enthusiast applications on set and in the field. Slide it in a sound bag, sling it over your shoulder, or mount it to a camera; the F6 packs quantity and quality into a rugged frame that's more than ready for filmmaking, production/location sound mixing, sound effects recording, and electronic news gathering (ENG).
Versatile Multitrack Modes
Maximize portability by recording directly to an SD/SDHC/SDXC card (available separately) for up to 512GB of storage space. Select MP3 format if you're only recording the stereo mix and really need extended time and minimal file size. Using the BWF-compliant WAV format for uncompressed audio quality and industry-standard file compatibility, you can run the F6 in 6-track mode (six inputs recorded in 24-bit or 32-bit float), or 14-track mode (six inputs recorded in 24-bit and 32-bit float, plus a stereo mix). Or select Ambisonics mode to capture four channels of Ambisonics-compatible audio and have two channels to spare for traditional mics
Versatile Multitrack Modes
Maximize
portability by recording directly to an SD/SDHC/SDXC card (available separately) for up to 512GB of storage space. Select MP3 format if you're only recording the stereo mix and really need extended time and minimal file size. Using the BWF-compliant WAV format for uncompressed audio quality and industry-standard file compatibility, you can run the F6 in 6-track mode (six inputs recorded in 24-bit or 32-bit float), or 14-track mode (six inputs recorded in 24-bit and 32-bit float, plus a stereo mix). Or select Ambisonics mode to capture four channels of Ambisonics-compatible audio and have two channels to spare for traditional mics.
Power for Hours
To keep up with the pace of on-location production, the F6 offers several methods of powering. Operate it via four included AA batteries or a Sony L-Series type battery (available separately), power it through a USB Type-C connection, or plug it into a wall outlet with the Zoom AD-17 AC adapter (available separately). With up to 16.5 hours of battery life (AA lithium batteries, 16-bit / 48 kHz, 2-channel recording to SD card), you can rely on the F6 hour after hour.
Multifunction USB Type-C Port for Power or Audio
A USB Type-C port on the F6 serves several functions. Use it to hook up a power source, or connect a computer for file backup or live audio streaming.
Highly Visible Display
Day or night, view vital information such as audio levels, recording time, battery status, and more on the 1.54" full-color backlit LCD, which also offers a monochromatic mode. Transport controls and navigation buttons are presented nearby for sound bag-friendly, hassle-free operations.
Zoom AutoMix Software Reduces Ambient Noise
Let Zoom's AutoMix function simplify your job. This smart software automatically adjusts the levels of your mix to reduce the amount of ambient sound, so you can focus on capturing a well-balanced mix. Since you turn AutoMix on/off for each channel, you have complete control over where you want AutoMix to work.
Includes Extras
The F6 includes not only four AA batteries, but also a camera-mount adapter, and download codes for Cubase LE and WaveLab LE, ensuring that you can get started right away regardless of your workflow.
In the Box
- Zoom F6 6-Input / 14-Track Multitrack Field Recorder

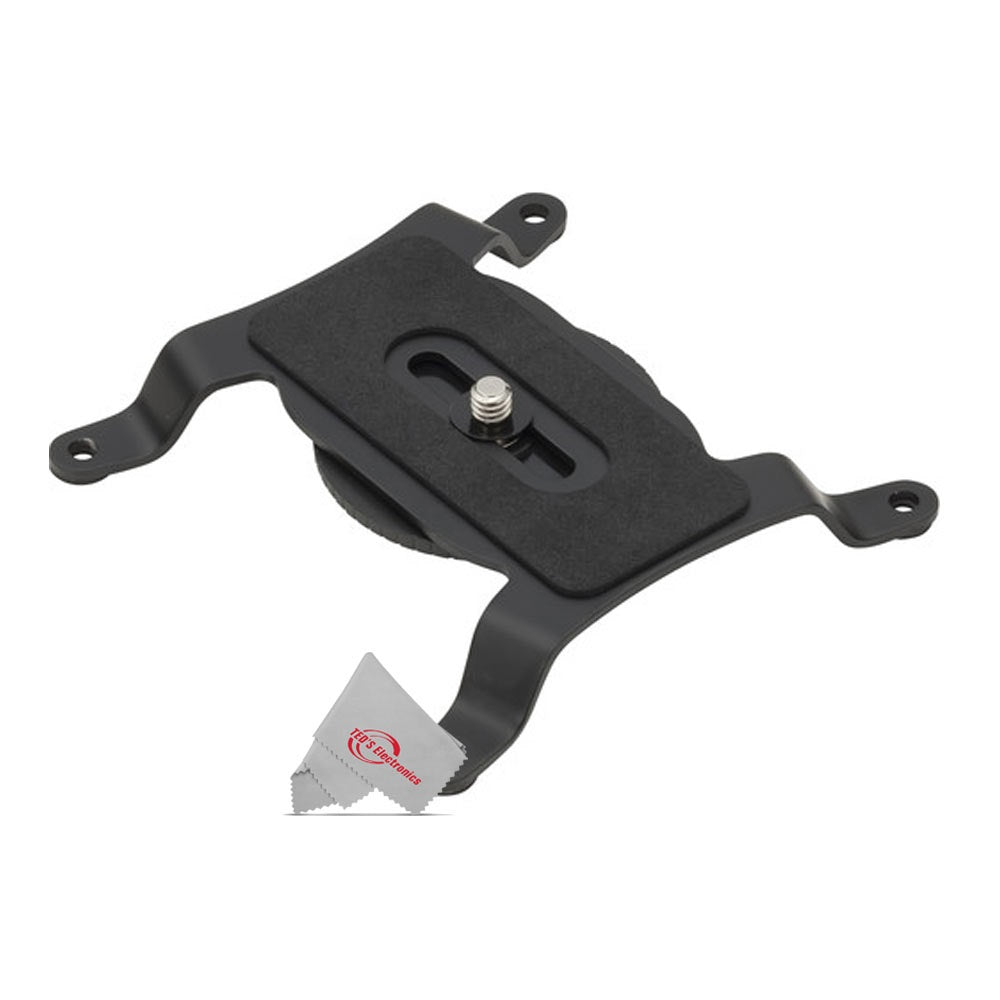

- Camera-Mount Adapter
- 4 x AA Batteries
Zoom F6 Specs
INPUTS
| INPUTS 1–6: | Connectors XLR jack (pin 2 hot) |
| INPUT (MIC): | Input gain +12 dB - +75 dB Input impedance 3 kΩ or more Maximum input level +4 dBu |
| INPUT (LINE): | Input gain −8 dB - +55 dB Input impedance 5 kΩ or more Maximum input level +24 dBu |
| PHANTOM POWER: | +24/+48V 10mA maximum for each channel |
| EQUIVALENT INPUT NOISE: | −127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input) |
OUTPUTS
LINE OUTPUT: | Connectors 3.5 mm stereo mini unbalanced output Output impedance 100 Ω or less Reference output level –10 dBV, 1 kHz, 10 kΩ load Maximum output level +10 dBV, 1 kHz, 10 kΩ load D/A dynamic range 95 dB typ (−60dBFS input, A-weighted) |
| HEADPHONE OUTPUT: | Connector 3.5 mm stereo mini unbalanced output Output impedance 15 Ω or less Maximum output level 100 mW + 100 mW (32Ω load) D/A dynamic range 108 dB typ (−60dBFS input, A-weighted) |
RECORDING
| RECORDING FORMATS WHEN WAV SELECTED: | SUPPORTED FORMATS: 44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit/32-bit float, mono/stereo/2-8ch poly, BWF/iXML MAXIMUM SIMULTANEOUS RECORDING TRACKS: 14 (6 inputs x 2 (Linear and Floating) + LR mix) 6 (6 inputs (Linear or Floating) at Float(32bit) Mode, 192 kHz) |
| RECORDING FORMATS WHEN MP3 SELECTED: | SUPPORTED FORMATS: 128/192/320 kbps, 44.1/48 kHz, ID3v1 tags MAXIMUM SIMULTANEOUS RECORDING TRACKS: 2 |
| RECORDING TIME USING A 32 GB CARD: | 30:46:00 (48 kHz/24-bit stereo WAV) 7:41:00 (192 kHz/24-bit stereo WAV) |
TIMECODE
| CONNECTORS: | 3.5 mm stereo mini (Tip: IN, Ring: OUT) |
| MODES: | Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode) |
| FRAME RATES: | 23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D |
| PRECISION: | ±0.2 ppm |
| ALLOWED INPUT LEVEL: | 0.2 – 5.0 Vpp |
| ALLOWED INPUT IMPEDANCE: | 4.6 kΩ |
| OUTPUT LEVEL: | 3.3 Vpp |
| OUTPUT IMPEDANCE: | 50 Ω or less |
POWER
| OPTIONS: | AC adapter: DC 5V (supports USB bus power) | |
| Sony® L-Series battery | ||
| 4 AA batteries (alkaline, lithium or rechargeable NiMH batteries) | ||
| CONTINUOUS RECORDING TIME: | 48 KHZ/16-BIT 2CH RECORDING TO SD CARD (LINE OUT OFF, TIMECODE OFF, LED/LCD BRIGHTNESS 5, HEADPHONES INTO 32Ω LOAD, PHANTOM OFF): | Alkaline batteries: 7.5 hours or more |
| NiMH batteries (2500 mAh): 10.5 hours or more | ||
| Lithium batteries: 16.5 hours or more | ||
| 48 KHZ/24-BIT 6CH RECORDING TO SD CARD (LINE OUT OFF, TIMECODE OFF, LED/LCD BRIGHTNESS 5, HEADPHONES INTO 32Ω LOAD, PHANTOM OFF): | NiMH batteries (2500 mAh): 10.5 hours or more | |
| Alkaline batteries: 4.5 hours or more | ||
| Lithium batteries: 16.5 hours or more | ||
| 192 KHZ/24-BIT 6CH RECORDING TO SD CARD (LINE OUT ON, TIME CODE SET TO INT FREE RUN, LED/LCD BRIGHTNESS 60, HEADPHONES INTO 32Ω LOAD, PHANTOM AT 48 V): | Alkaline batteries: About 0.5 hours | |
| NiMH batteries (2500 mAh): 1 hour or more | ||
| Lithium batteries: 3 hours or more | ||
GENERAL SPECS
| DISPLAY | 1.54" full-color LCD (240 × 240) |
| RECORDING MEDIA | SD CARDS, SDHC CARDS, SDXC CARDS (THAT CONFORM TO STANDARDS) |
| MASS STORAGE OPERATION: | Class USB 2.0 High Speed |
| MULTITRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NO DRIVER REQUIRED FOR MACOS): | Class USB 2.0 High Speed Specifications Sampling rate 44.1/48/88.2/96 kHz Bit Rate 16/24-bit Channels 6 in/4 out |
| STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED): | Class USB 2.0 Full Speed Specifications Sampling rate 44.1/48 kHz Bit Rate 16-bit Channels 2 in/2 out Note: iOS device audio interface operation supported (stereo mode only) |
| AIF WITH REC OPERATION (DRIVER REQUIRED FOR WINDOWS, NO DRIVER REQUIRED FOR MACOS): | Class USB 2.0 High Speed Specifications Sampling rate 44.1/48 kHz Bit Rate 16/24-bit Channels 8 in/4 out |
| POWER CONSUMPTION: | 10 W |
| EXTERNAL DIMENSIONS: | 100 mm (W) x 119.8 mm (D) x 62.9 mm (H) |
| WEIGHT: | 520 g/ 1.14 lbs |
