Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder Pro Audio Package

ZOOM LIVETRAK L-12 - 12-CHANNEL DIGITAL MIXER & MULTITRACK RECORDER PRO AUDIO PACKAGE

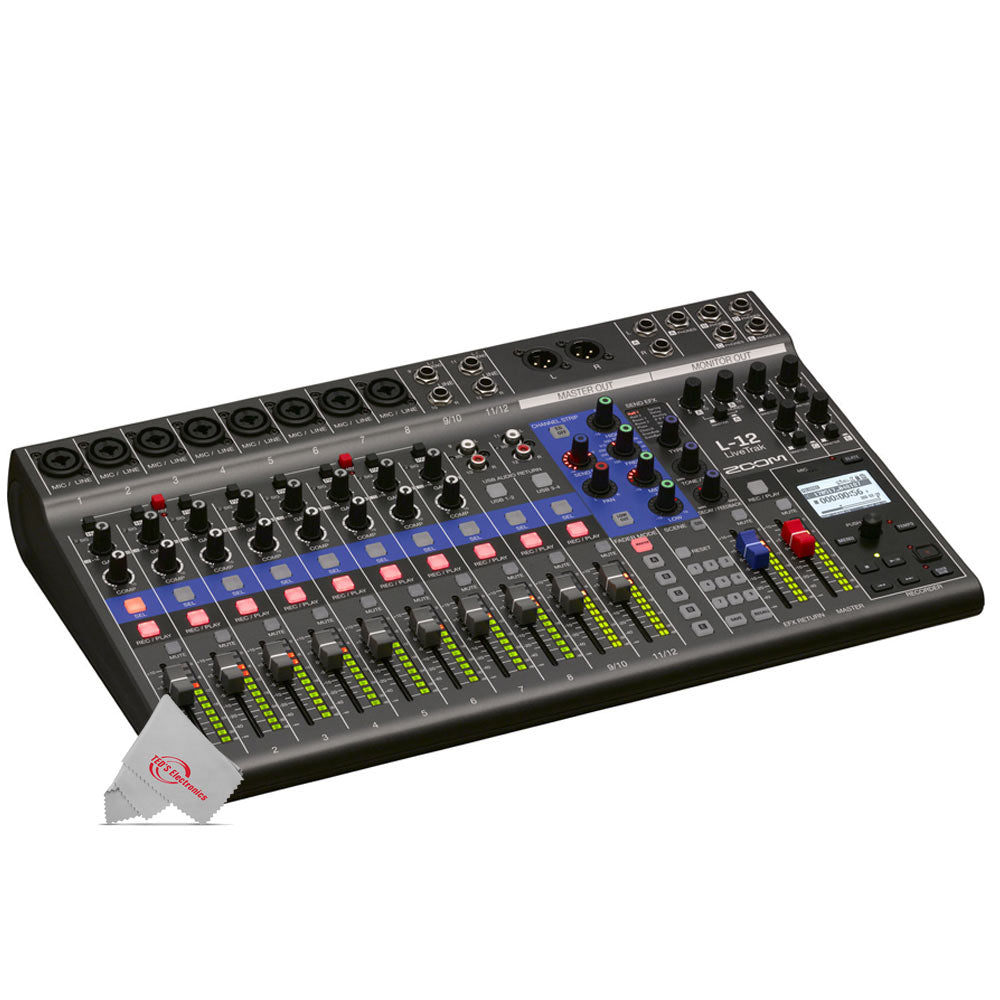

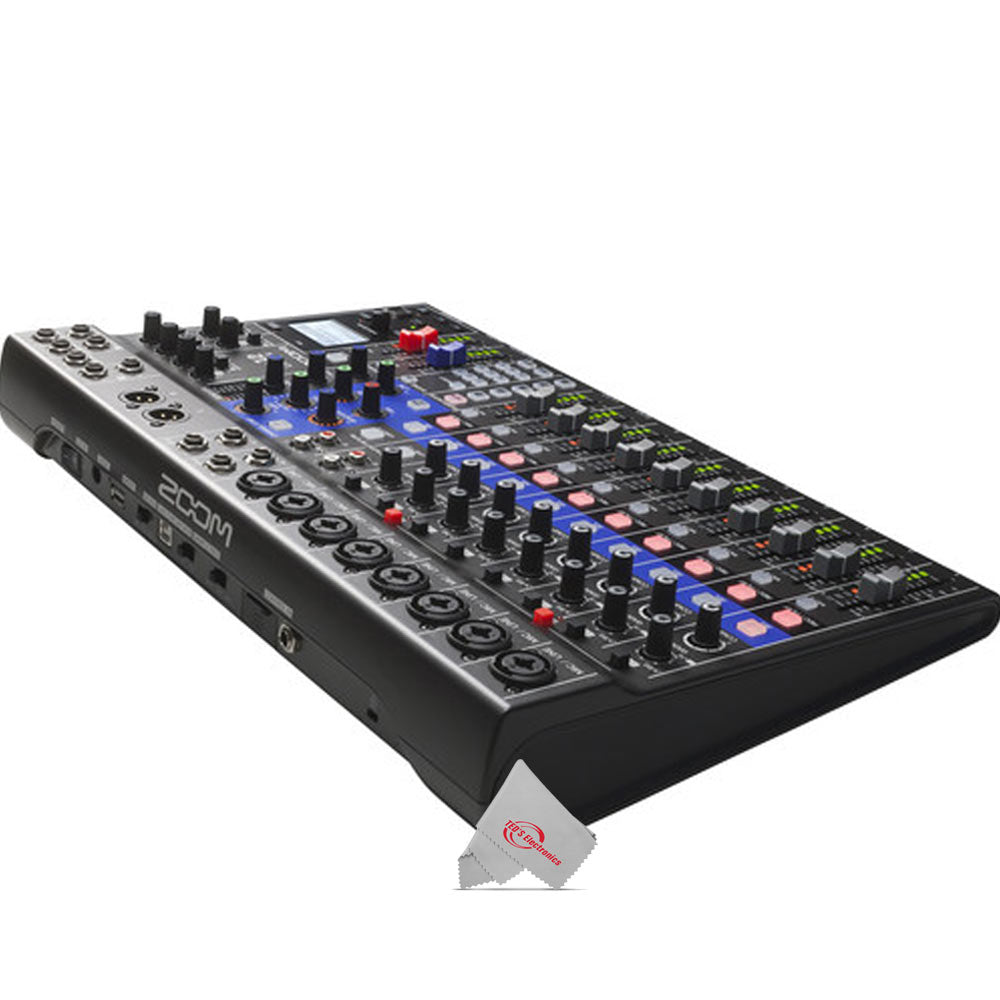

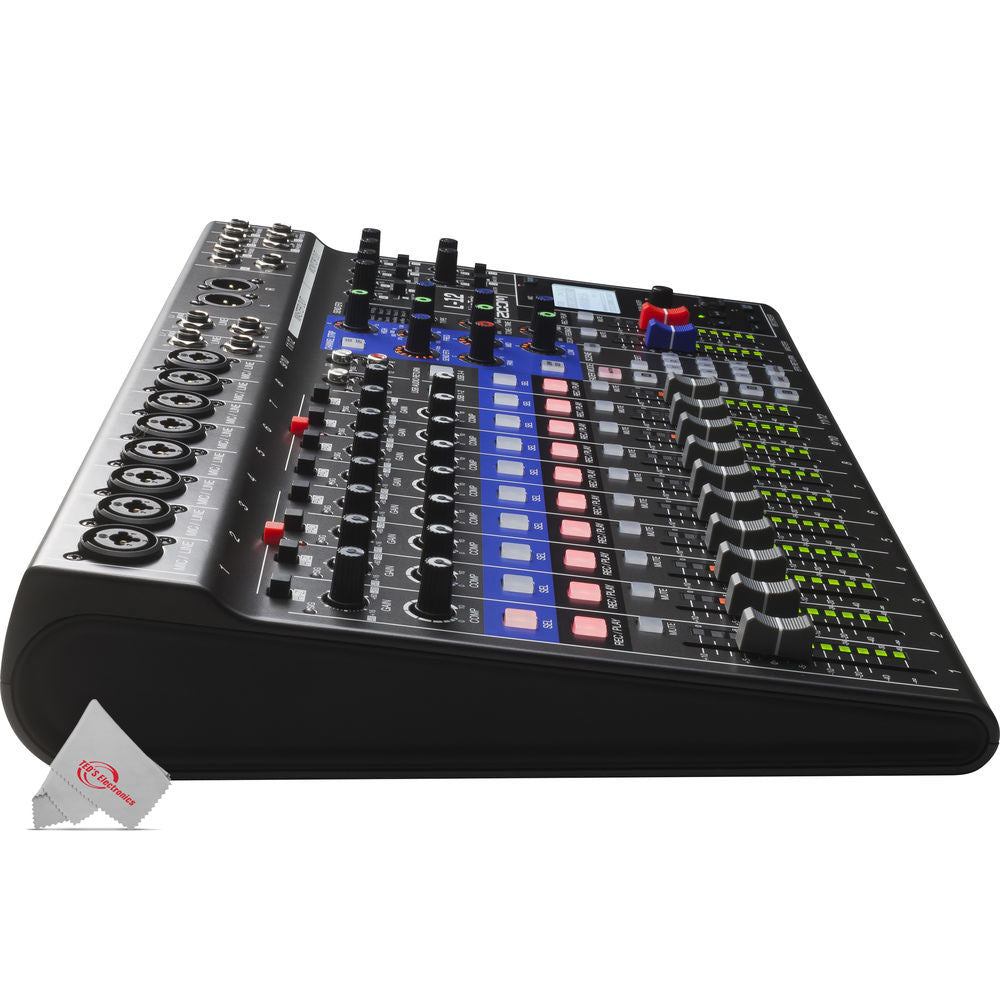

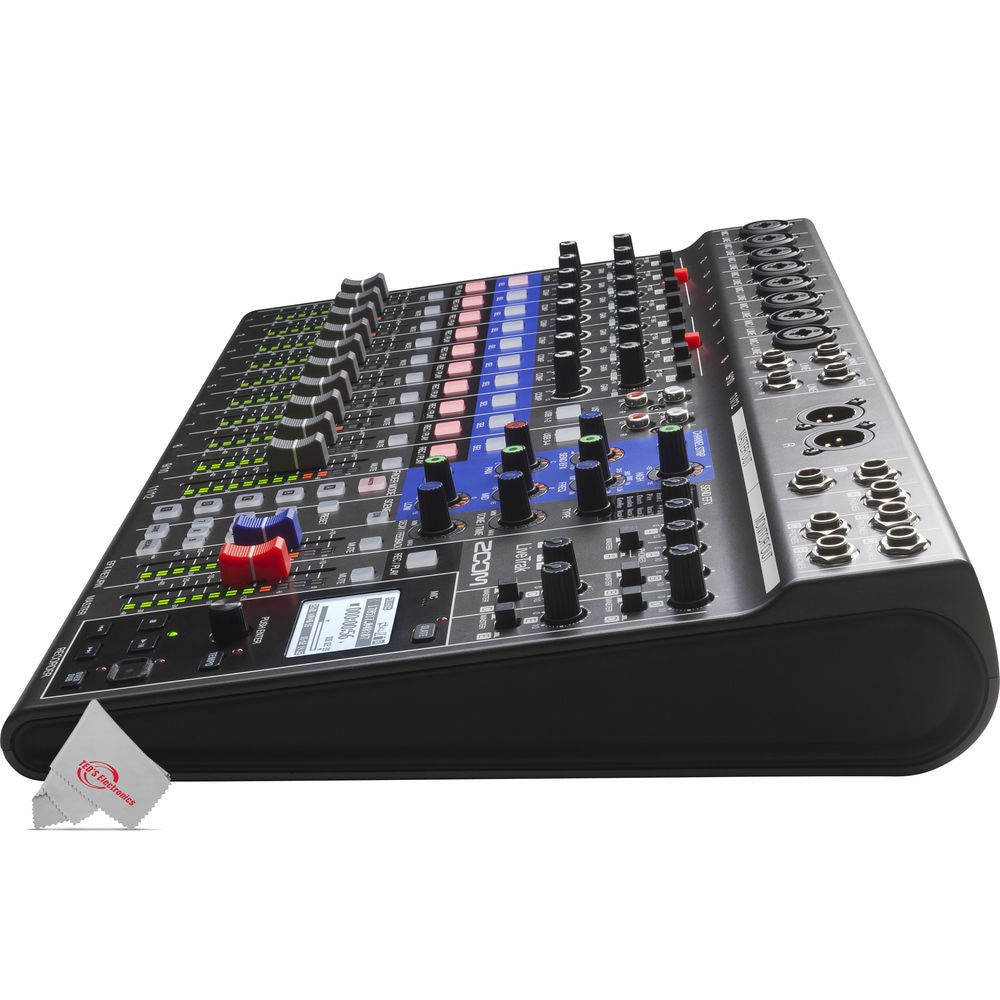

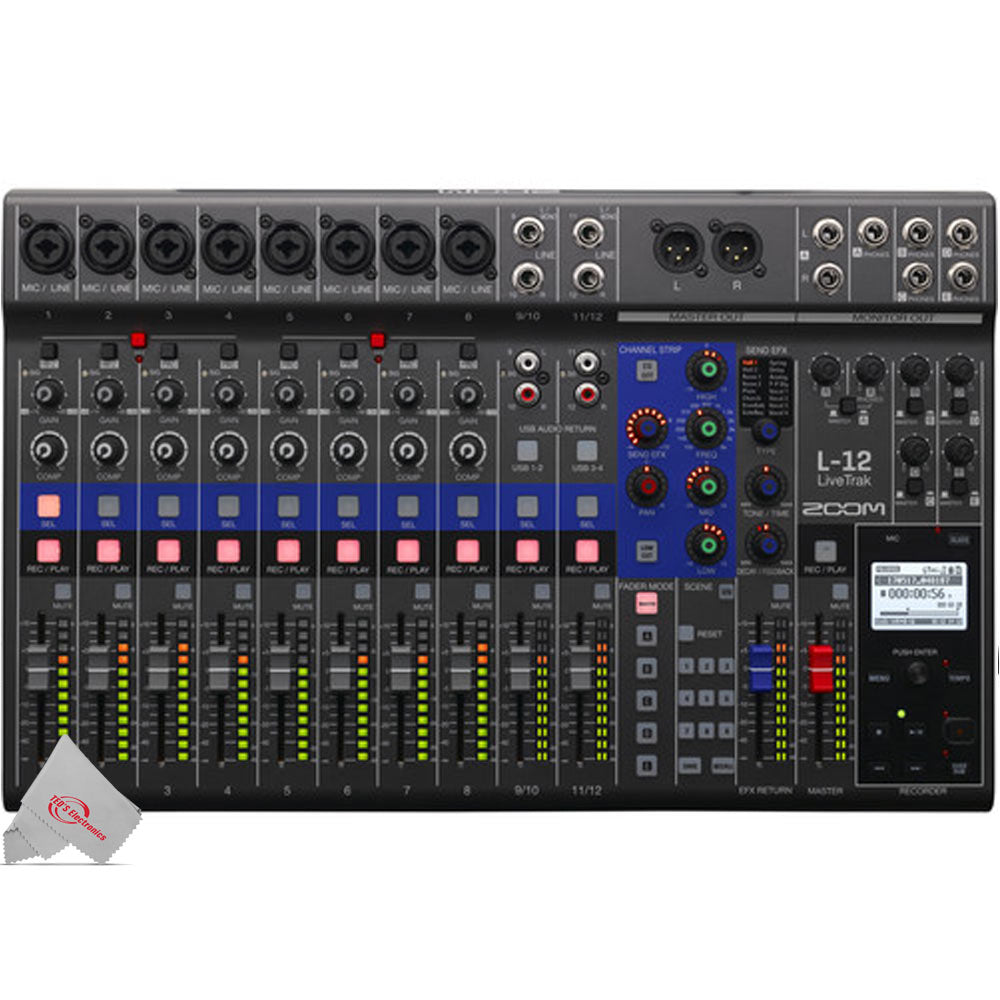

Zoom LiveTrak L-12 Digital Mixer and MultiTrack Recorder
The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multitrack recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.

The main output utilizes balanced XLR outputs, while a stereo monitor send is available via two 1/4" outputs. Additionally, the Zoom LiveTrack L-12 offers five headphone outputs, each with the ability to set up customized mixes. Simply connect your headphones and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.

The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 14 tracks at resolutions up to 24-bit / 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-12 can also function as a 14-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrack L-12 ships with a power cord and a USB cable.

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4" connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and savable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TRS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (channels 1-8)
• 12-Segment Digital Level Meters: -48 to 0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and monitor outputs (A-E)
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome Automatic recording starting/stopping capability
• Project protection Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion Compatible functions for optional Zoom FS01 footswitch

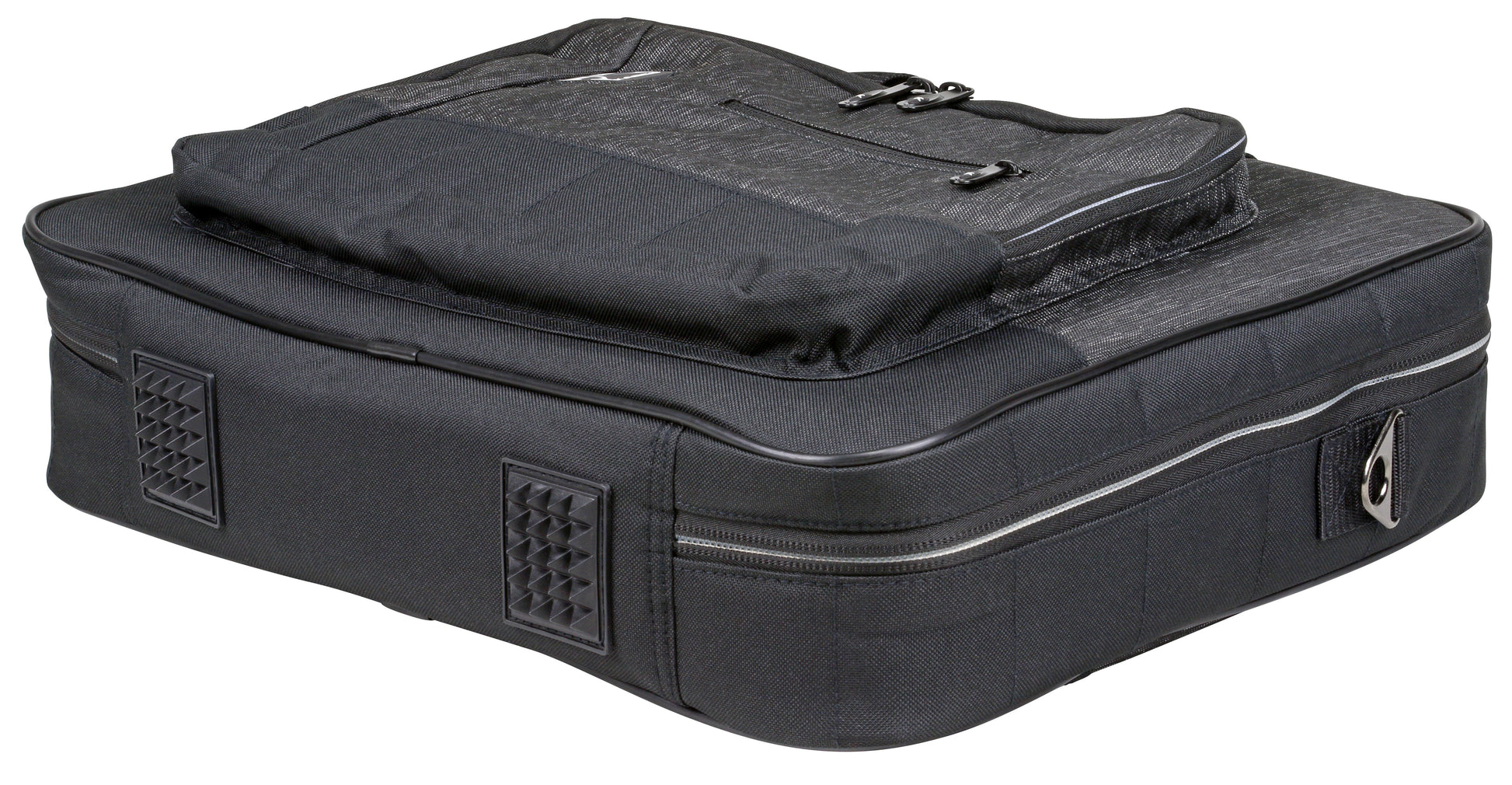

Luxe Kaces Gear Bag

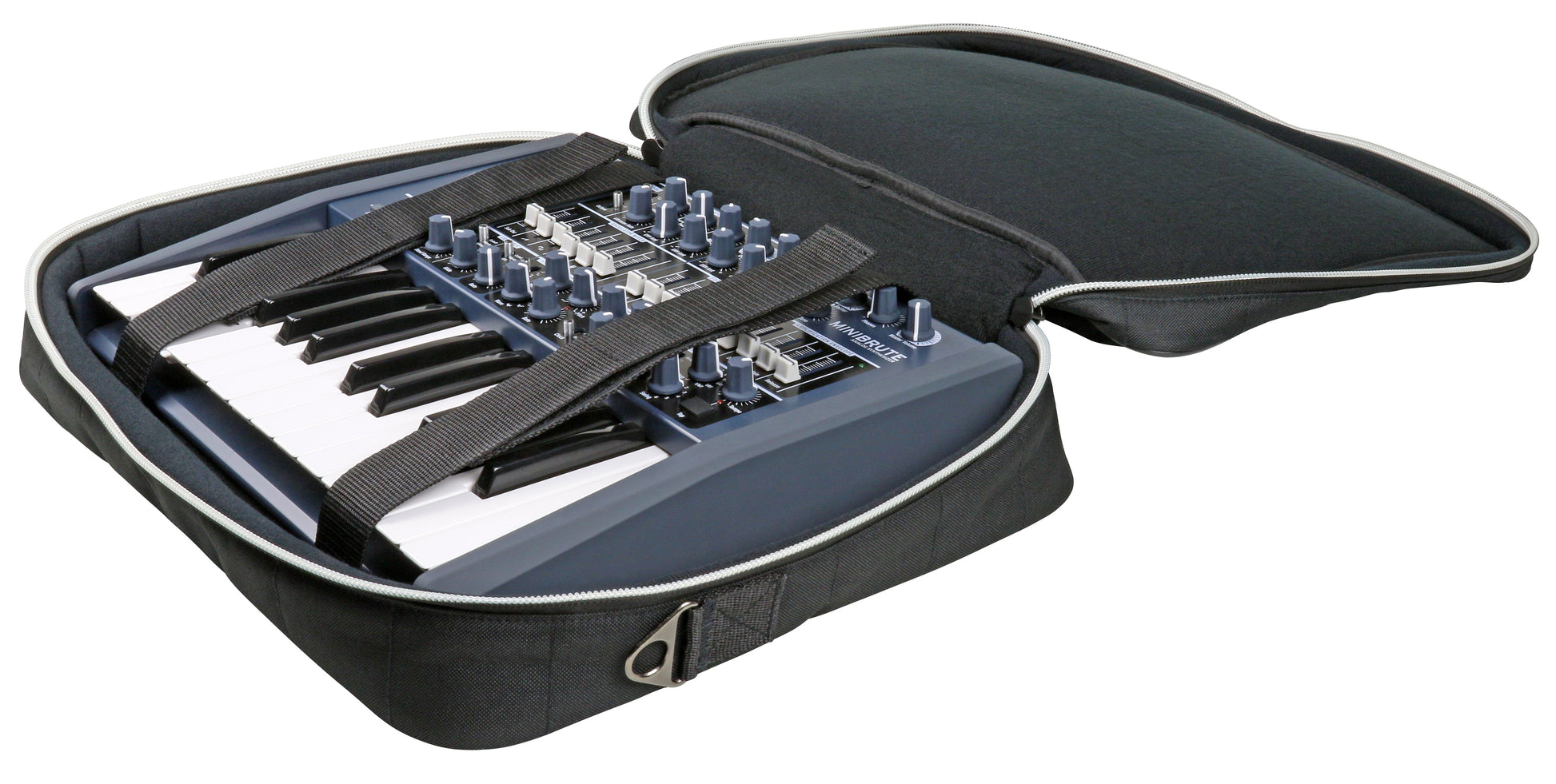

The Kaces Luxe series gig bags are designed to protect and transport your favorite keyboards, synthesizers, and sound gear in style. The KB1714 is designed to fit medium 25 note keyboards with a maximum interior size of 17.5 x 14 x 4.

• Fits medium 25 note keyboards.
• Maximum interior size of 17.5 x 14 x 4.
• Durable, water resistant 600D polyester.
• 20mm overstuffed foam padding for protection.
• 2 adjustable interior security straps.
• Riveted carry handles with quilted overwrap.
• Large expandable front pocket measures 14" x 10.25" x 1.
• Interior pouches and cable loop.
• Exterior zippered slash pocket.
• Luggage-grade #10 zippers for reliability and longevity.

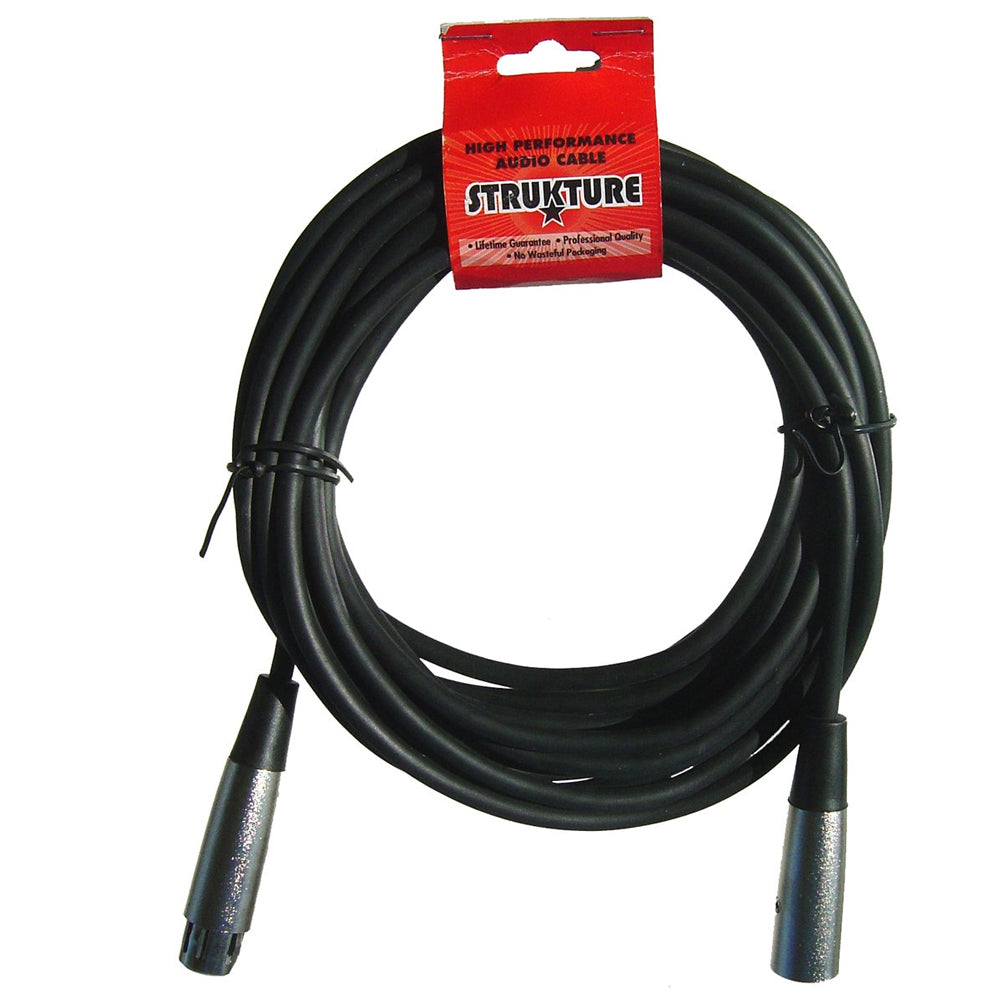

3x Strukture XLR Mic Cables (Male to Female, 6 Ft) – Durable, high-quality cables designed to deliver clear, reliable audio from microphones to your mixer.

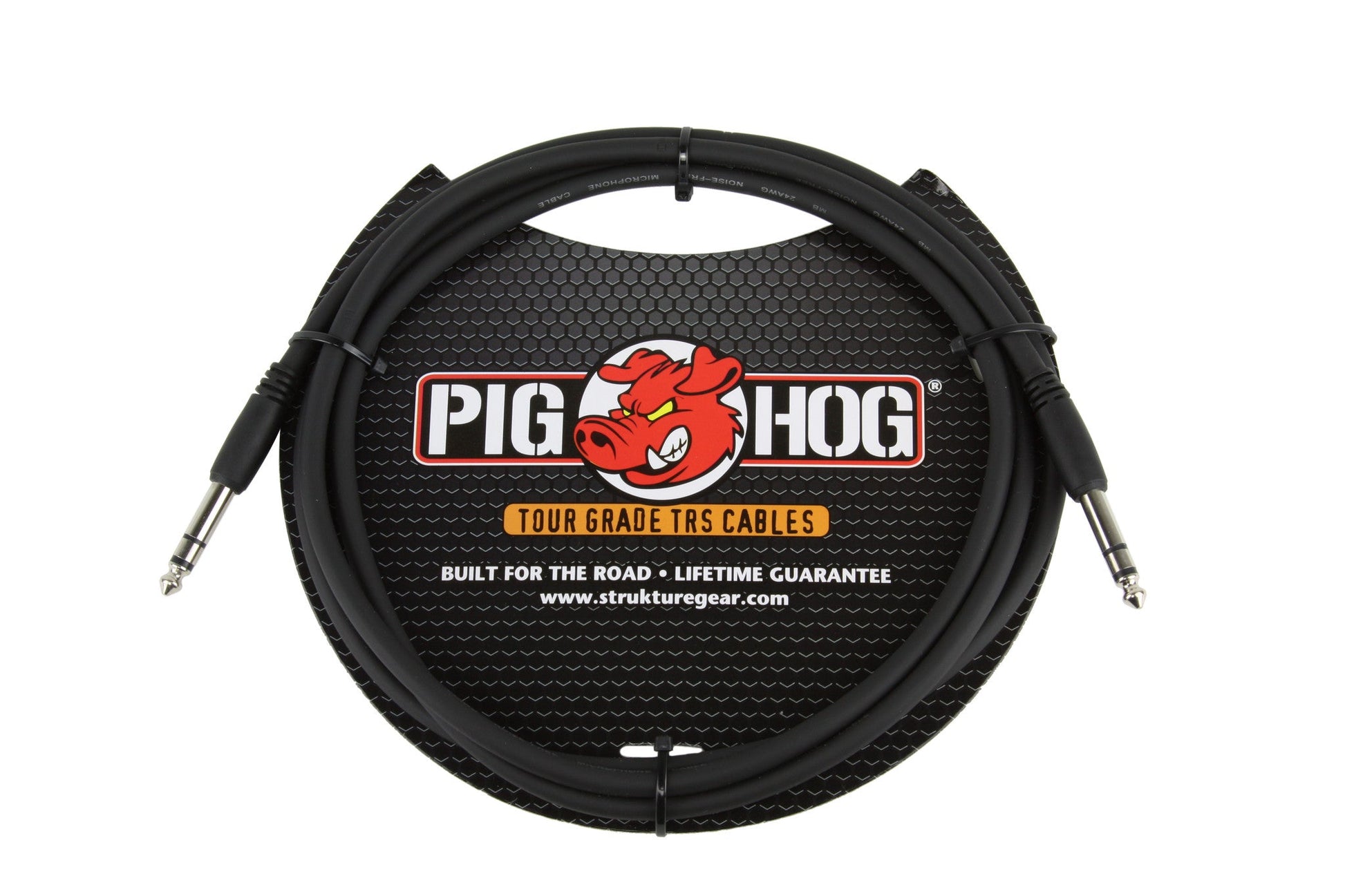

3x Pig Hog PTRS06 1/4" TRS Instrument Cables (6 Ft) – Perfect for connecting instruments to your mixer with minimal signal loss, ensuring professional-quality sound.

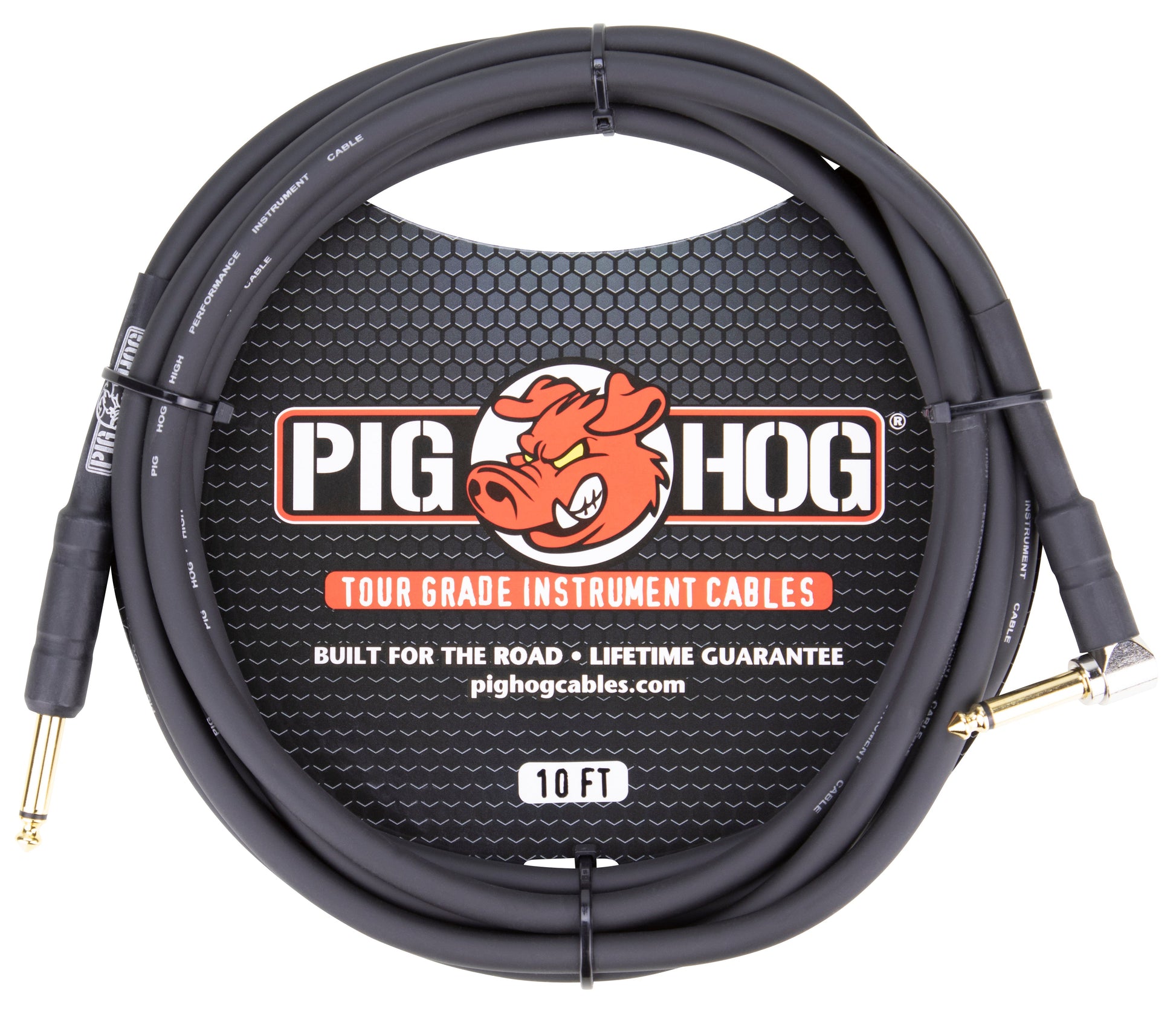

Pig Hog Tour Grade 10ft 1/4" Right Angle to Straight Connectors – Flexible connectors for tight spaces and easy routing, ideal for stage or studio setups.

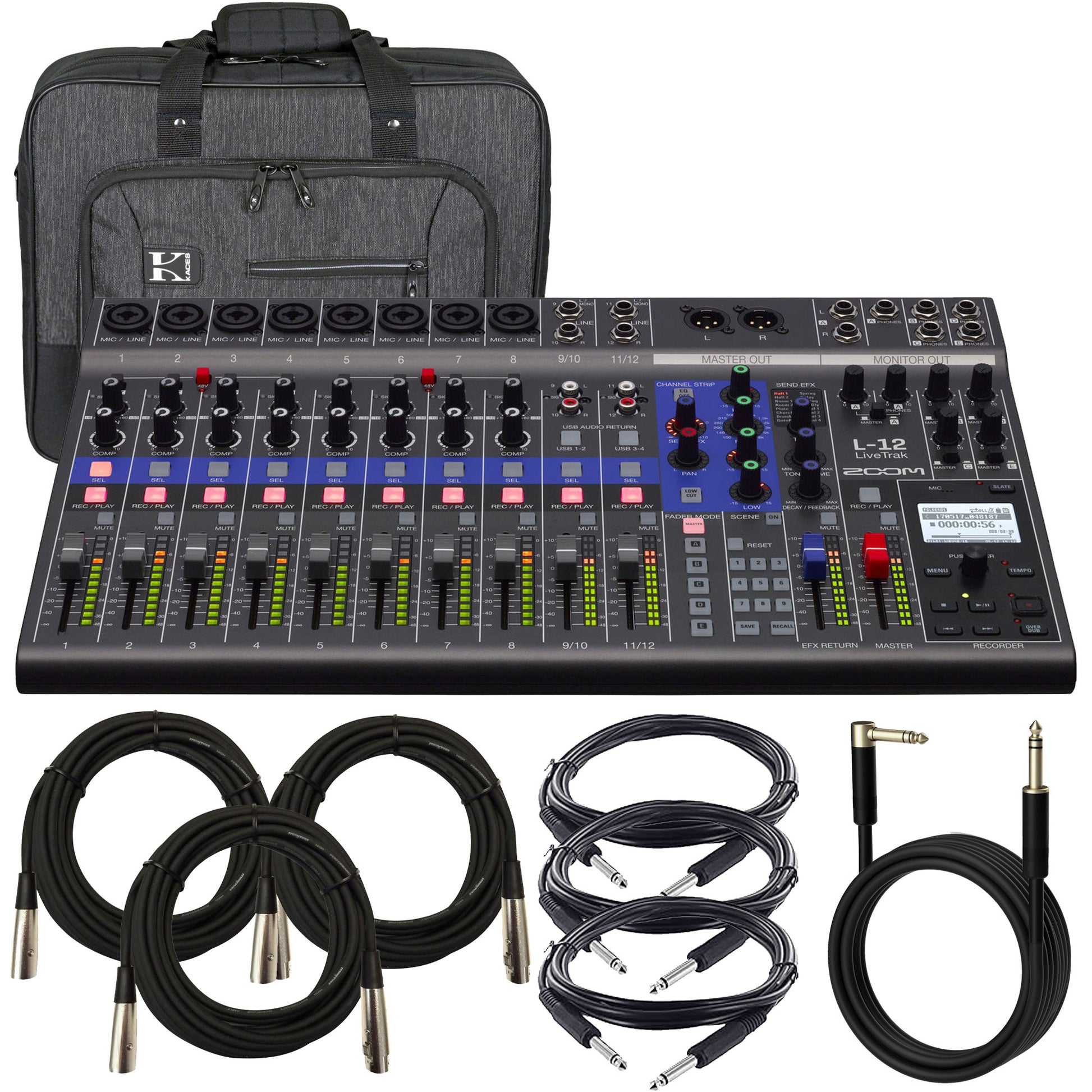

This Bundle from Teds Electronics includes:

• Zoom LiveTrak L-12 - 12-Channel Digital Mixer & Multitrack Recorder
• Luxe Keyboard & Gear Bag 17.5" x 14" x 4"
• 3x Strukture XLR Mic Cable Male to Female 6 Ft
• 3x Pig Hog PTRS06 1/4" TRS Instrument Cable, 6 Ft
• Pig Hog Tour Grade 10ft 1/4 Inch to 1/4 Inch Right Angle to Straight Connectors

MPN:ZL12-2K
UPC:672485350248
