Zoom AMS-22 2x2 USB Audio Interface for Music and Streaming 2 Inputs / 2 Outputs

$98.99 $79.99

Condition: New

Vendor: Zoom SKU: ZOOM-ZAMS22-US
Description
Zoom AMS-22 2x2 USB Audio Interface for Music and Streaming

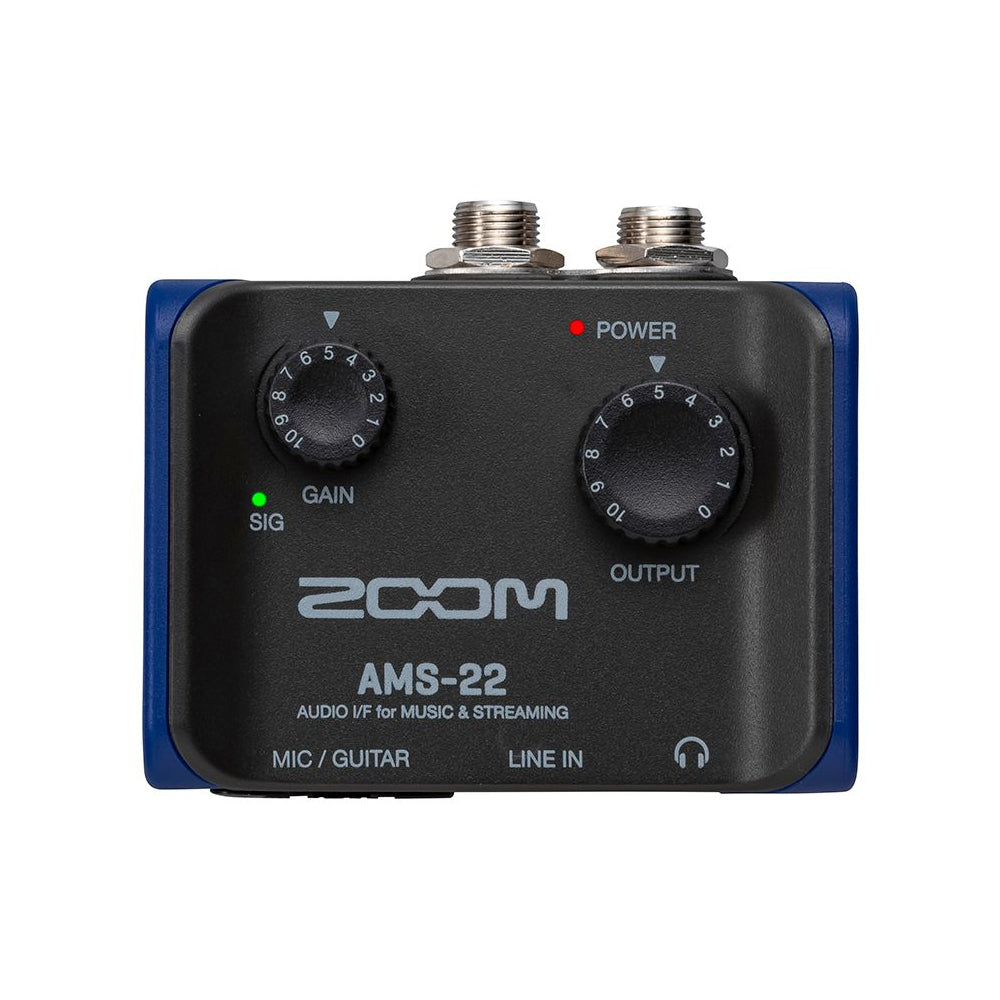

On-the-go solo musicians looking for a compact audio interface will appreciate the streamlined and easy-to-use feature set on the Zoom AMS-22, an ultraportable solution for recording and streaming with a TRS/XLR input, two TRS outputs, a 3.5mm headphone jack, and a USB Type-C connector.

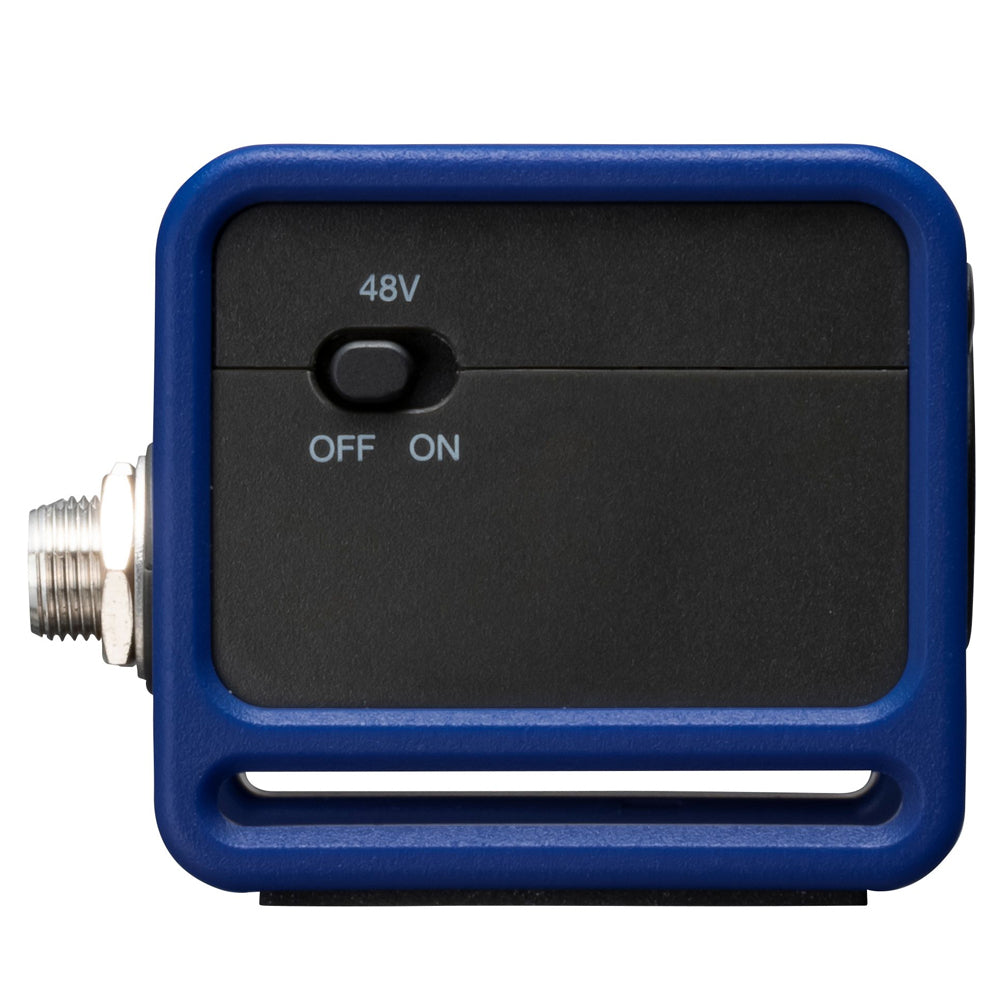

Plug your guitar or microphone into the TRS/XLR input, and power condenser mics by engaging the 48V phantom power switch. Plug stereo music sources into the 3.5mm input jack and monitor via the 3.5mm headphone jack, or connect monitor speakers to the stereo TRS output. The AMS-22 supports 24-bit resolution recordings at a sampling rate up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make overdubbing and adding music to your streams simple and easy.

Two Inputs and Two Outputs

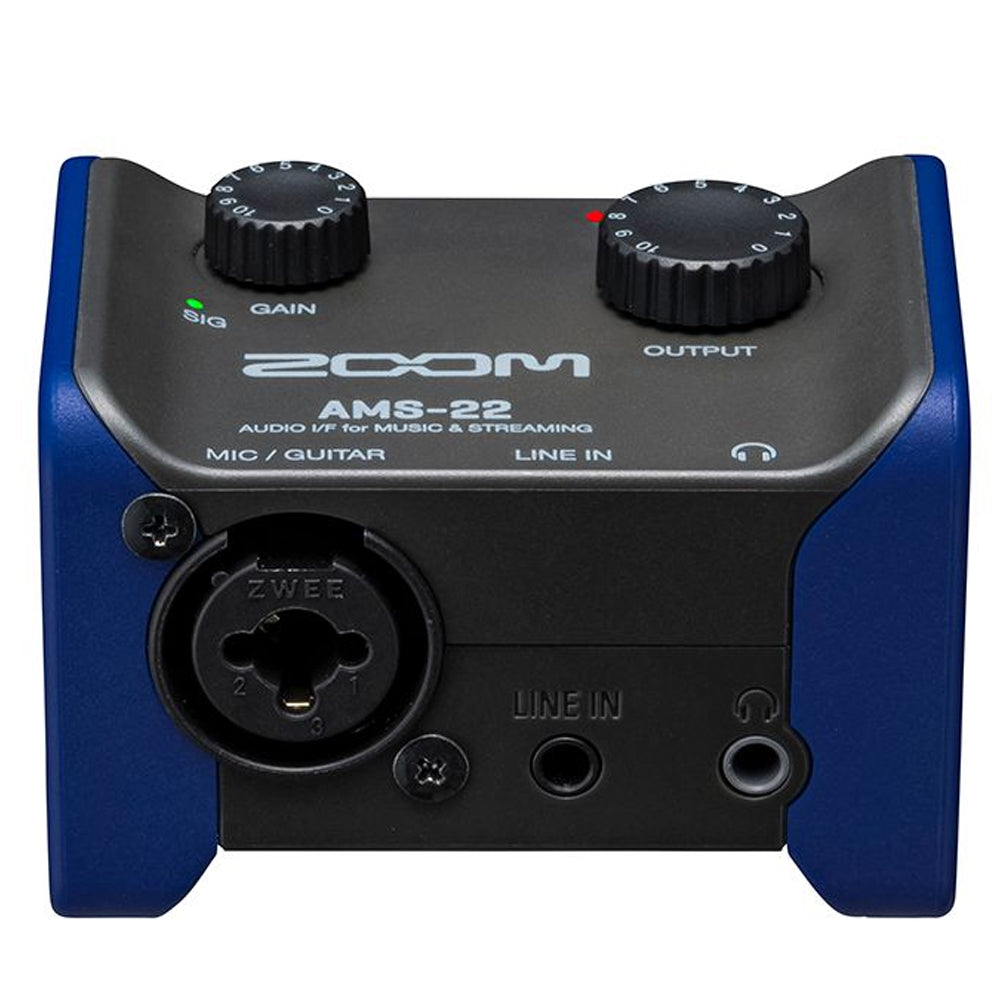

Perfect for mobile recording or streaming, the AMS-22 includes one XLR/TRS combo input, plus a stereo 3.5mm line in. It also includes one 3.5mm headphone output and two TRS outputs for external monitors.

Use for Recording and Streaming

Use the AMS Series on any device thanks to its support for Mac and PC along with iOS and Android devices, and integrate seamlessly with commonly used software, apps, and platforms. In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram, and Patreon. In Music mode, record with software like Adobe Audition, Pro Tools, Cubase, and Garage Band.

Quick Control

With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.

Onboard Monitoring

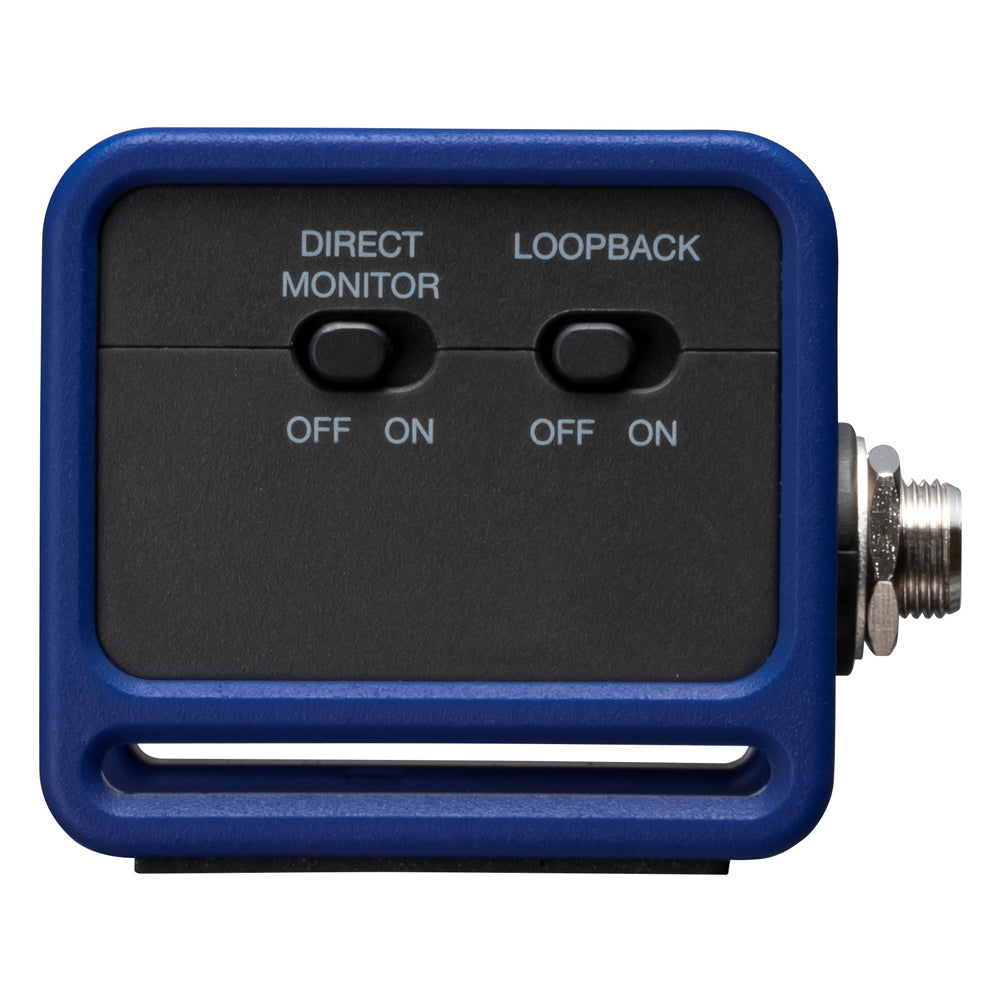

Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loopback

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

MPN: ZAMS22
UPC: 884354025922
Additional Information

Zoom AMS-22 Specs



Input and Output Channels


NUMBER OF INPUT CHANNELS Mono (MIC/GUITAR) 1
Stereo (LINE IN) 1
NUMBER OF OUTPUT CHANNELSStereo (TRS) 1
Stereo (PHONES) 1



Connectors

MIC/GUITAR

Type

XLR/TRS combo jack
(XLR: 2 HOT, TRS: TIP HOT)

Input Gain

+8 - +54 dB (MIC)

+8 - +54 dB (GUITAR)

Input impedance

XLR: 2 kΩ (MIC)
TS: 1 MΩ (GUITAR)

Maximum input level

XLR: +0.6 dBu (MIC)
TS: +11 dBu (GUITAR)

Phantom power

+48 V


OUTPUT (STANDARD PHONE JACKS)


Type

TRS phone jacks (impedance balanced)

Maximum output level

−2 dBu (at 0 dBFS)

Output impedance

100 Ω

OUTPUT (HEADPHONE JACK)

Type

3.5mm stereo mini jack
20 mW + 20 mW (32 Ω load)

Output impedance

10 Ω

USB USB Type-C (audio interface function)
• Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V USB Type-C (for power supply)
LINE IN

Type

3.5mm stereo mini jack


Input impedance

20 kΩ

Maximum input level

+1.5 dBu



Frequency Response

44.1 kHz: +0/−2 dB (20 Hz – 20 kHz)
96 kHz: +0/−3 dB (20 Hz – 40 kHz)



Equivalent Input Noise

–120 dBu or less (IHF-A) at +54dB/150Ω input



Audio Interface

INPUT AND OUTPUT CHANNELS

Recording: 2 channels

Playback: 2 channels

SAMPLING FREQUENCIES96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH24-bit
INTERFACEUSB 2.0
CLASSUSB Audio Class 2.0



Other Specs

PowerAC adapter (ZOOM AD-17): DC 5 V/1A
• USB bus power is supported.
Rated CurrentUSB bus power / DC 5 V power supply: 170 mA
Power Consumption1.8 W maximum
Dimensions68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H)
Weight (unit only)85 g

Note: 0 dBu = 0.775 Vrms





AMS-Series System Requirements

WINDOWS

OS: Windows® 10 / 11 (64bit)
CPU: Intel® Core i3 or faster, or AMD Ryzen 3 or faster with Zen architecture*
USB: USB 3.0 / 2.0**
* Operation is not guaranteed with CPUs from Intel® Atom, Celeron or Pentium series or CPUs from AMD Athlon.

** Only USB host controllers with Intel/AMD Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.



MAC

OS: Mac® OS X 10.14.6 ~ macOS 12
CPU: Intel® Core i3 or faster, or Apple M1
USB: USB 3.0 / 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.

IPHONE/ IPAD

OS: iOS/iPadOS 13.7 ~ 15
* Apple Lightning-to-USB Camera Adapter required.

ANDROID

OS: Android OS 9 ~ 11
* USB cables and adapters that match the connectors are necessary.
* Please refer to the compatible android device list.
