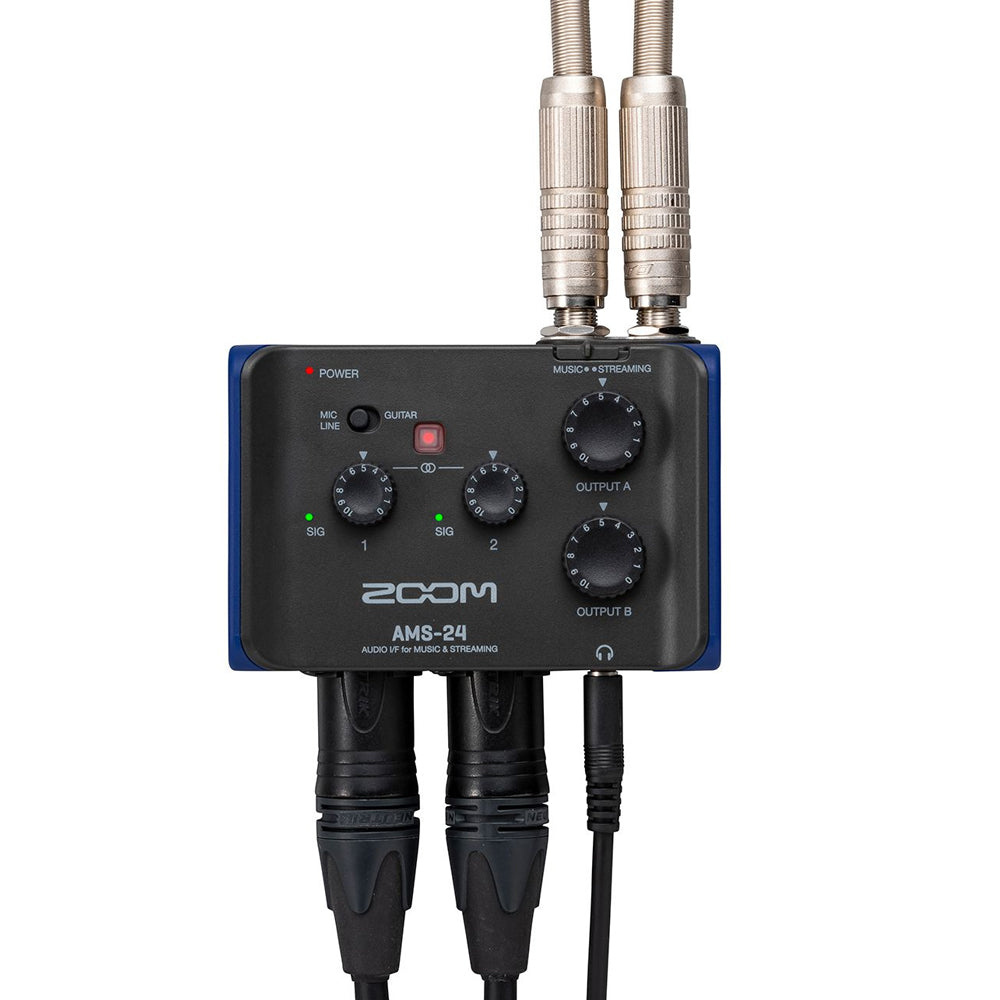

Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming

$137.99 $119.99

Condition: New

Vendor: Zoom SKU: ZOOM-ZAMS24-US
Description
Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming

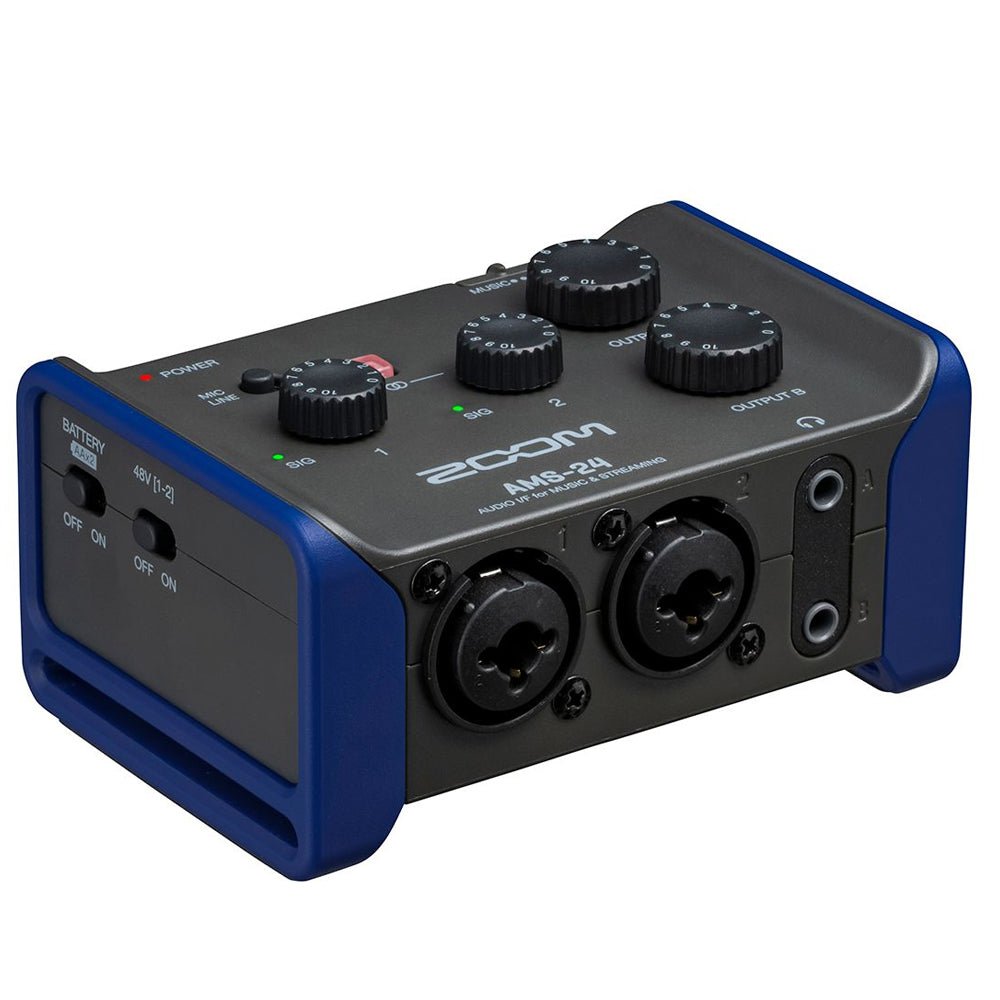

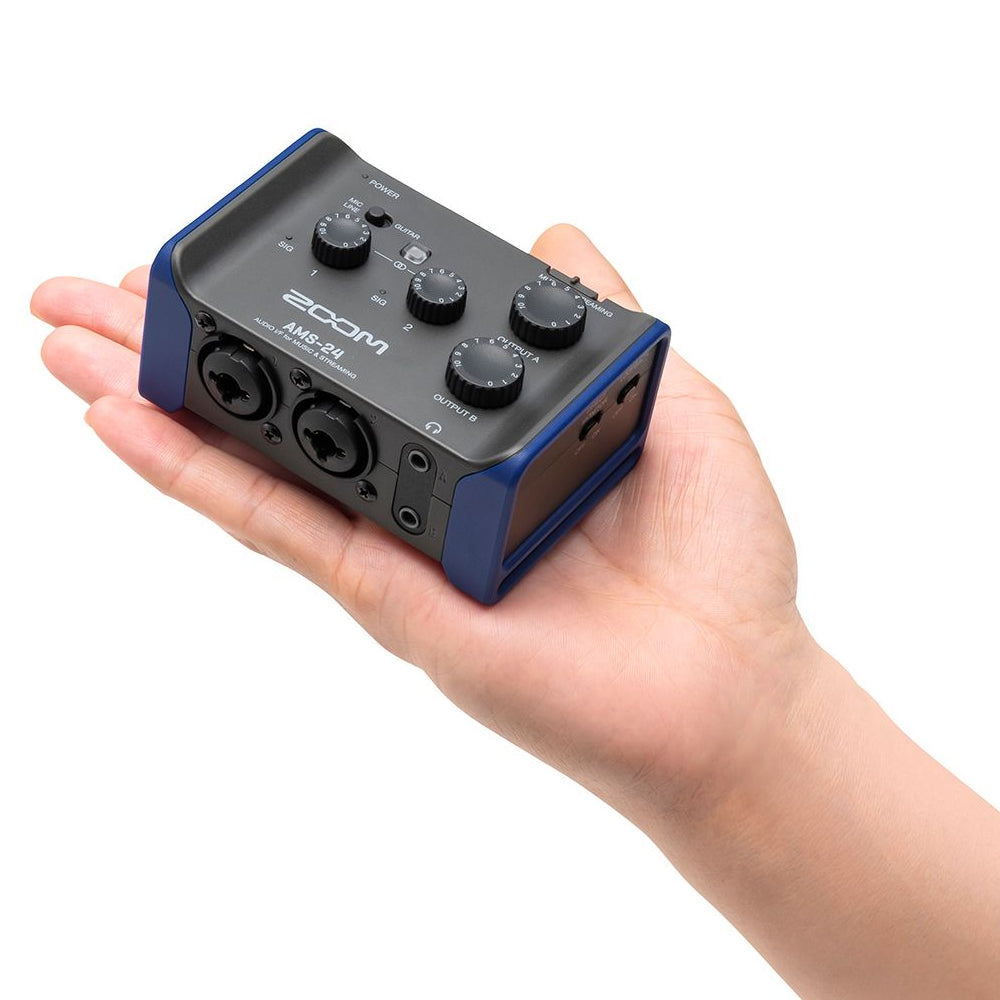

On-the-go musicians looking for a compact and versatile audio interface will appreciate the streamlined and easy-to-use feature set on the Zoom AMS-24, an ultraportable solution with two TRS/XLR inputs, two TRS outputs, two headphone jacks, a USB Type-C connector, and modes for both streaming and recording applications.

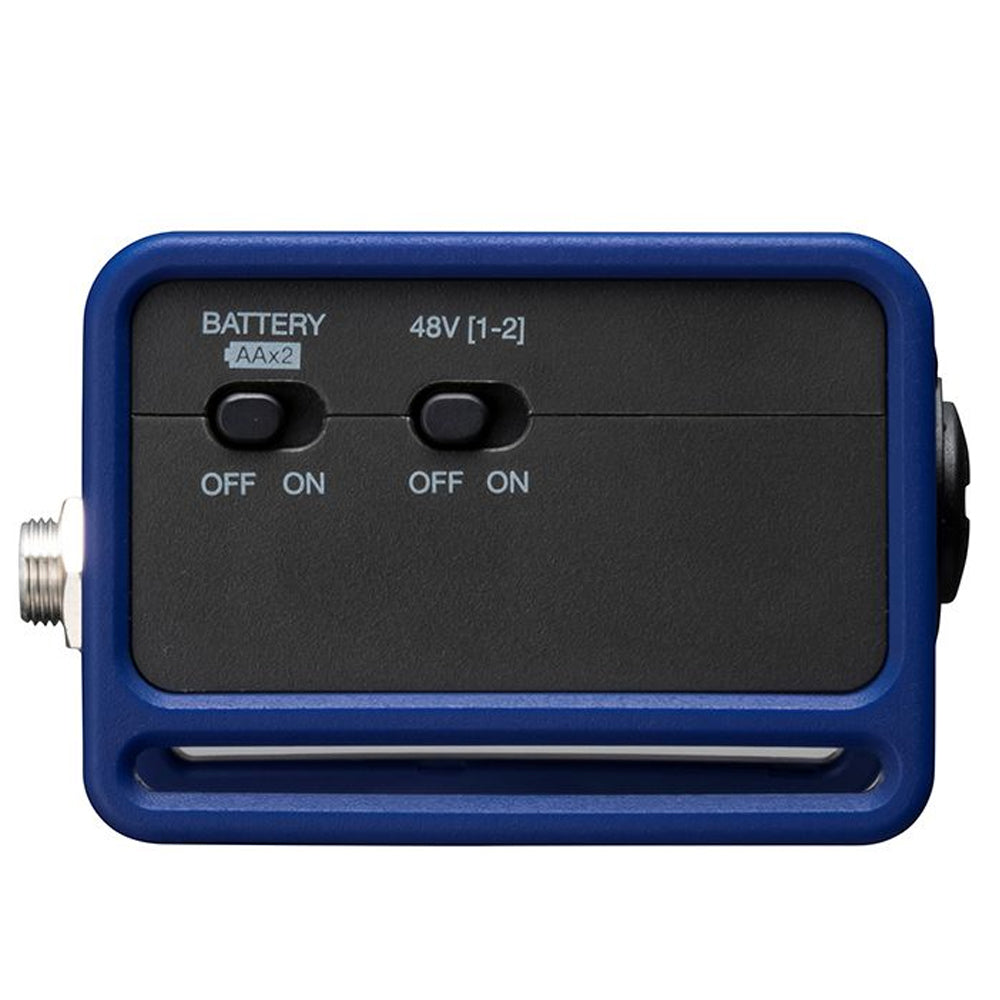

Plug your instruments or microphones into the two TRS/XLR inputs, and power condenser mics by engaging the 48V phantom-power switch. Input 1 features a Hi-Z switch for guitar players. Monitor via the two 3.5mm headphone jacks, or connect monitor speakers to the stereo TRS output. The AMS-24 supports 24-bit resolution recordings at sampling rates up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by two AA batteries or an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make recording overdubs and adding music to your streams simple and easy.

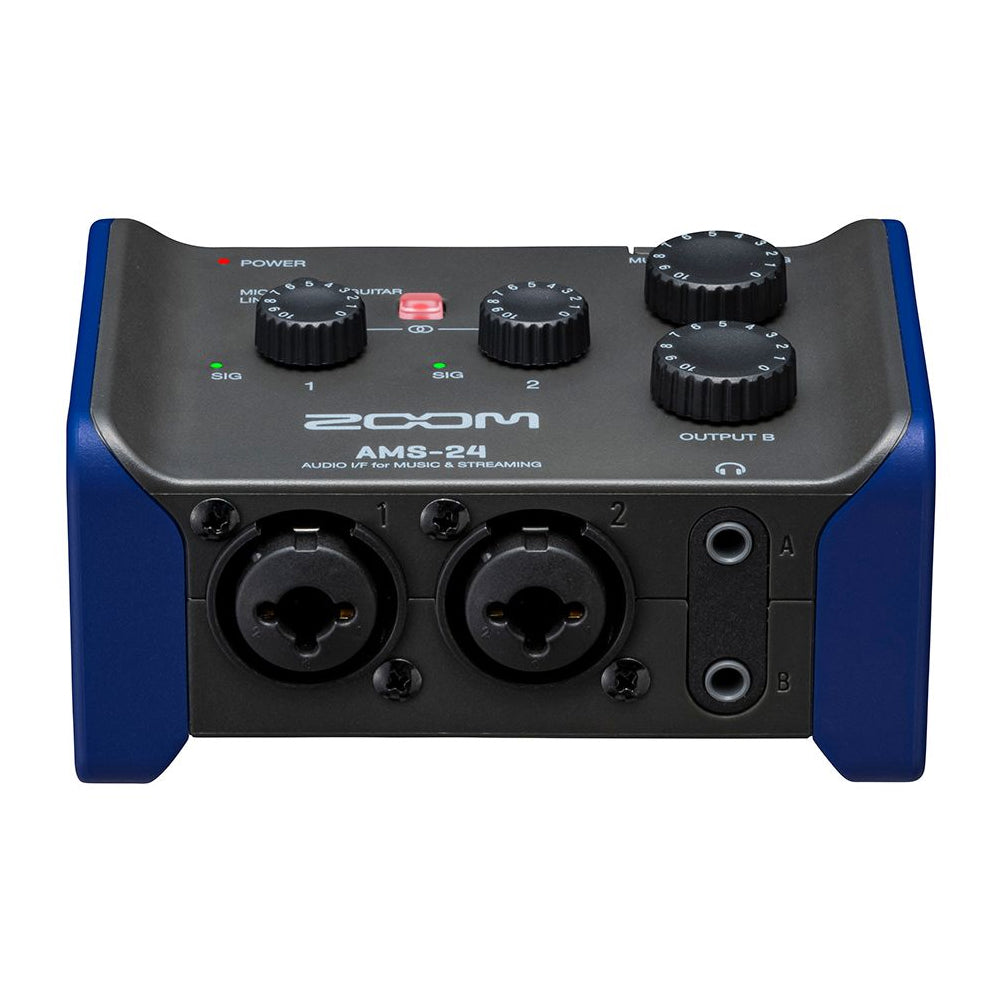

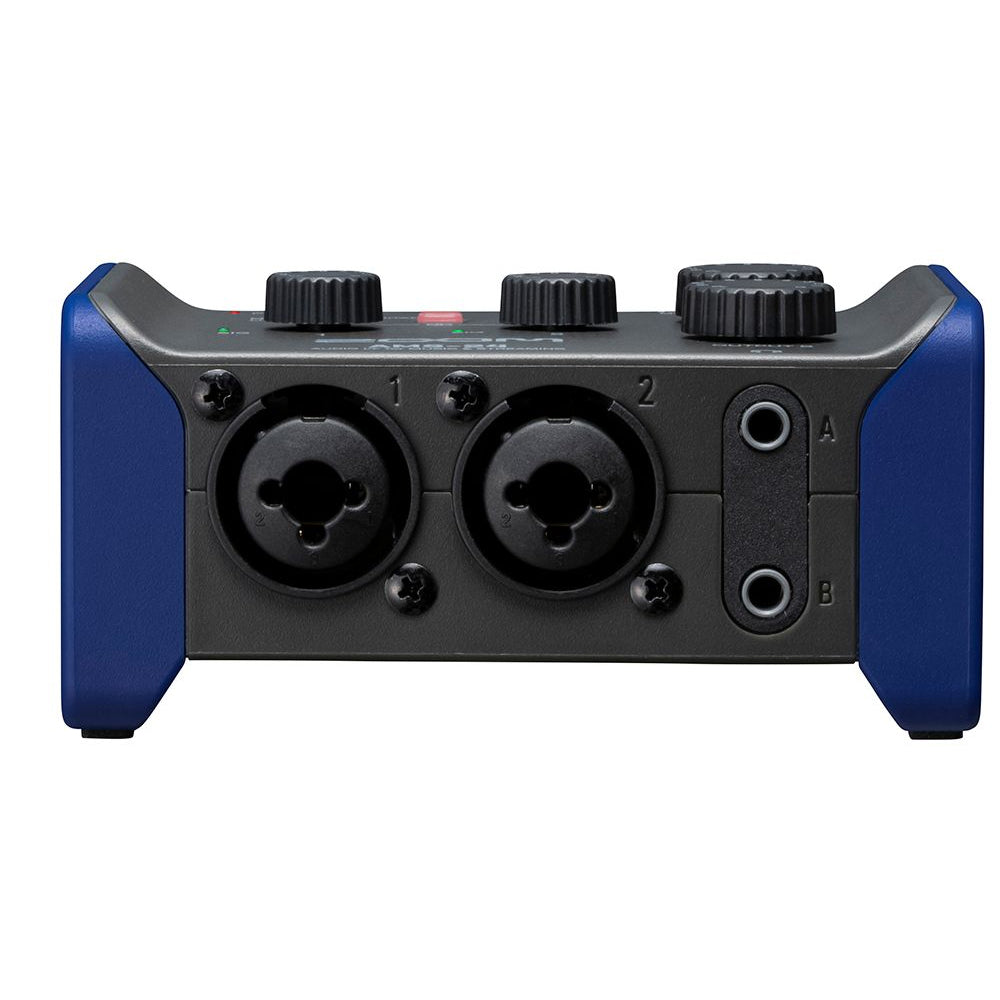

2 TRS/XLR Inputs, 2 TRS Outputs, and 2 Headphone Jacks

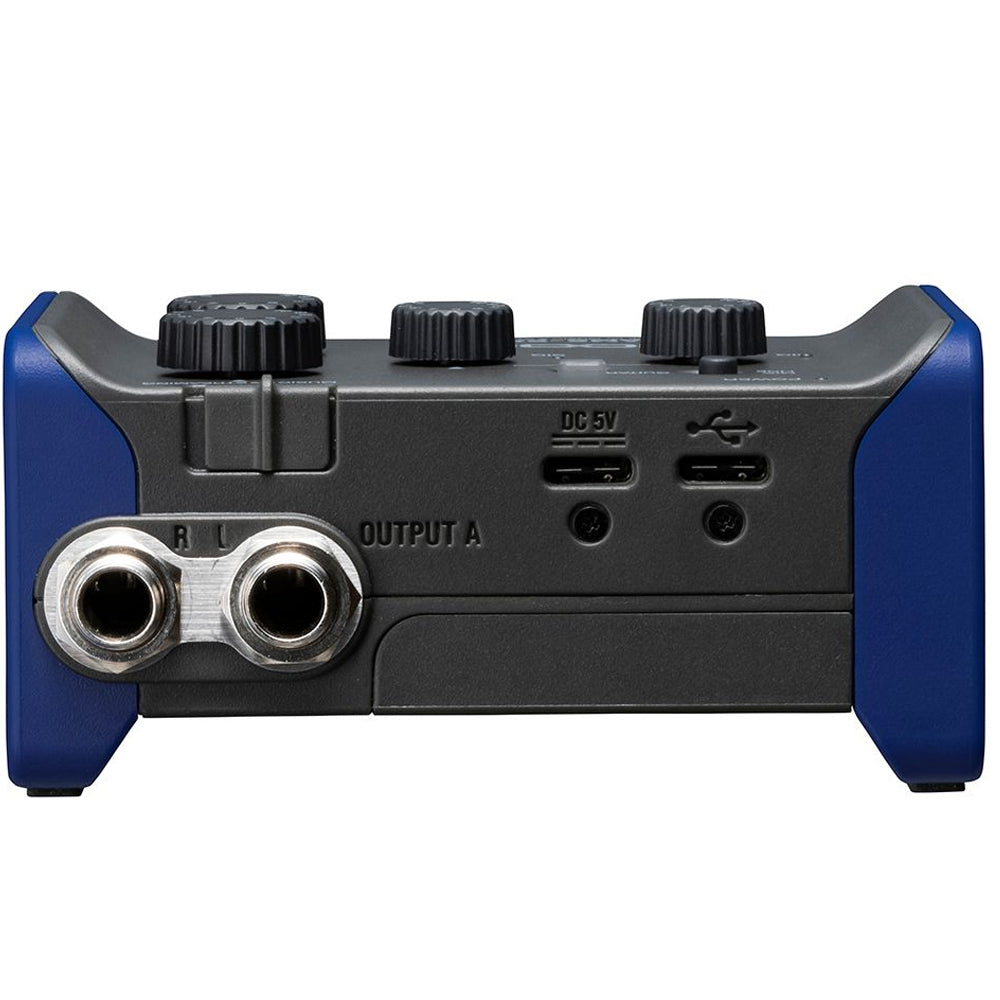

Perfect for mobile recording or streaming, the AMS-24 includes two XLR/TRS combo inputs. It also includes two 3.5mm headphone outputs and two TRS outputs for external monitors.

Switch Between Music and Streaming Modes
Use the AMS series with any device, and integrate seamlessly with commonly used software, apps, and platforms thanks to its support for Mac and PC computers along with iOS and Android devices. In Streaming mode, all inputs are combined into a single signal, so you can easily stream without needing additional complicated software. In Music mode, you can record into your DAW with expanded input and output routing options.

Quick Control

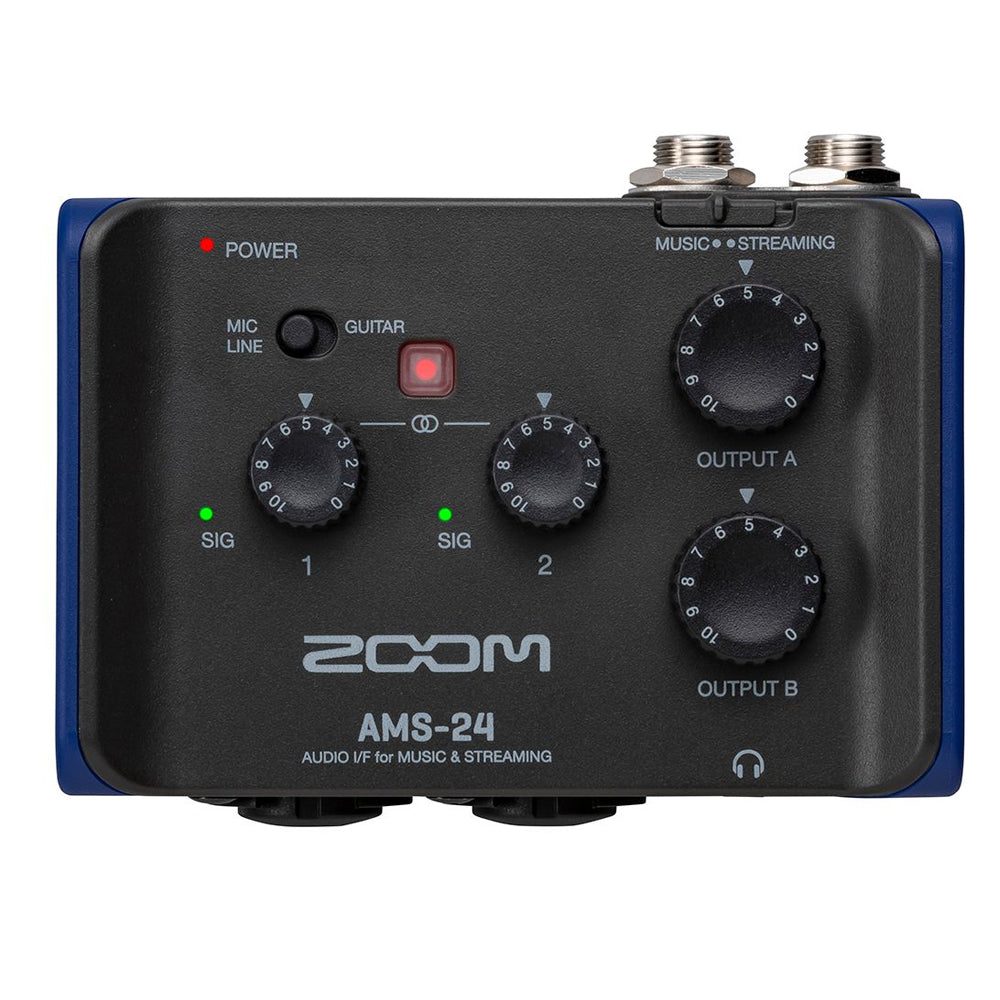

With onboard hardware switches, the AMS-24 is designed to simplify common streaming challenges without the need for additional software. Intuitive knobs allow you to control input gain and monitoring levels. Group the two inputs together using the Stereo switch.

Onboard Monitoring

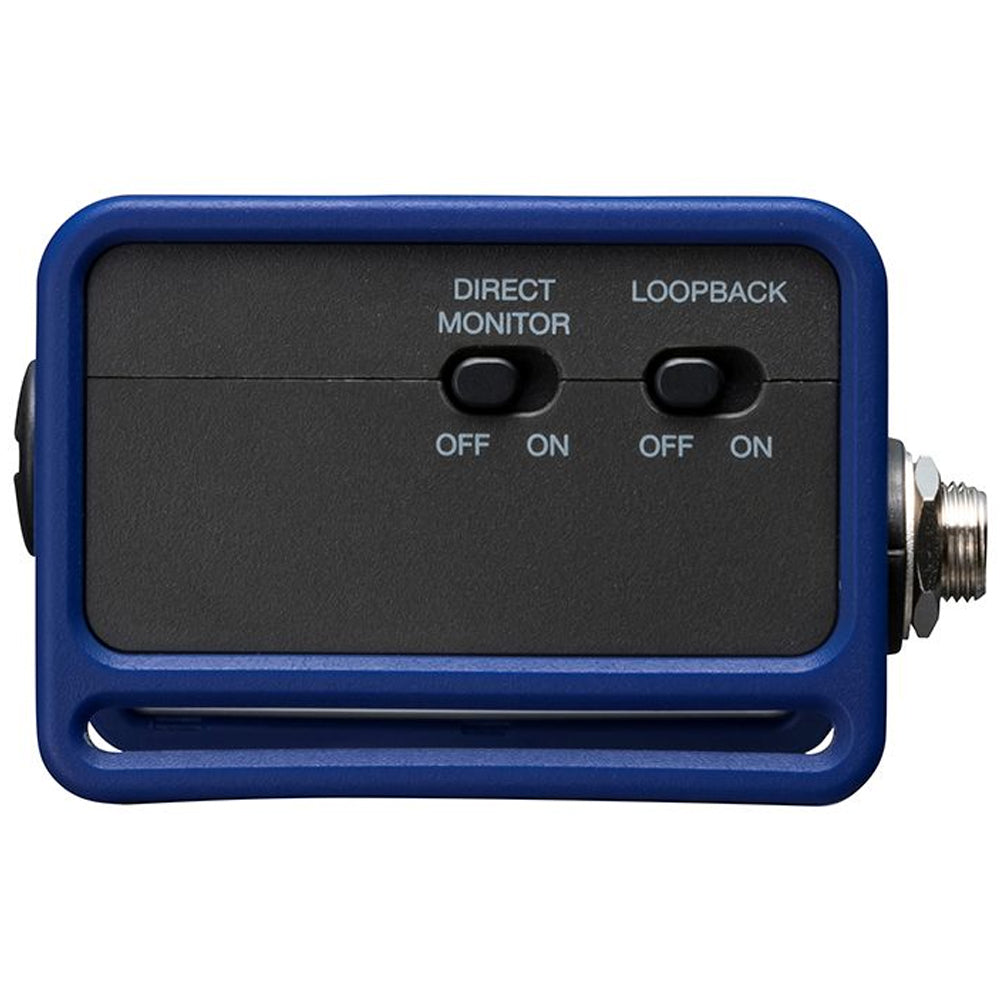

Use the Direct Monitor switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loopback
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

UPC: 884354025953
MFR #: ZAMS24

In the Box
  • Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming
  • USB Type-C Cable
Additional Information

Zoom AMS-24 Specs



Input and Output Channels

NUMBER OF INPUT CHANNELSMono (MIC/LINE) 2
NUMBER OF OUTPUT CHANNELS Stereo (TRS) 1
Stereo (PHONES) 2





Connectors

INPUT 1–2

Type

XLR/TRS combo jack
(XLR: 2 HOT, TRS: TIP HOT)

Input Gain

 −∞ – +58 dB / −∞ – +50 dB (when set to GUITAR)

Input impedance

XLR: 2.7 kΩ
TRS: 18 kΩ / 330 kΩ (when set to GUITAR)

Maximum input level

 XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)

Phantom power

+48 V


OUTPUT (STANDARD PHONE JACKS)


Type

TRS phone jacks (impedance balanced)

Maximum output level

+10 dBu (at 0 dBFS)

Output impedance

100 Ω

OUTPUT (HEADPHONE JACK)

Type

3.5mm stereo mini jack
30 mW + 30 mW (32 Ω load)

Output impedance

10 Ω

USB USB Type-C (audio interface function)
• Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V USB Type-C (for power supply)



Frequency Response

44.1 kHz: ±1 dB (20 Hz – 20 kHz)
96 kHz: ±1.5 dB (20 Hz – 40 kHz)



Equivalent Input Noise

–120 dBu or less (IHF-A) at +58dB/150Ω input



Audio Interface

INPUT AND OUTPUT CHANNELS

Recording: 2 channels

Playback: 4 channels

SAMPLING FREQUENCIES96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH24-bit
INTERFACEUSB 2.0
CLASSUSB Audio Class 2.0



Other Specs

Estimated continuous operation time using batteriesAlkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 5.5 hours
Lithium batteries: about 11 hours
• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power

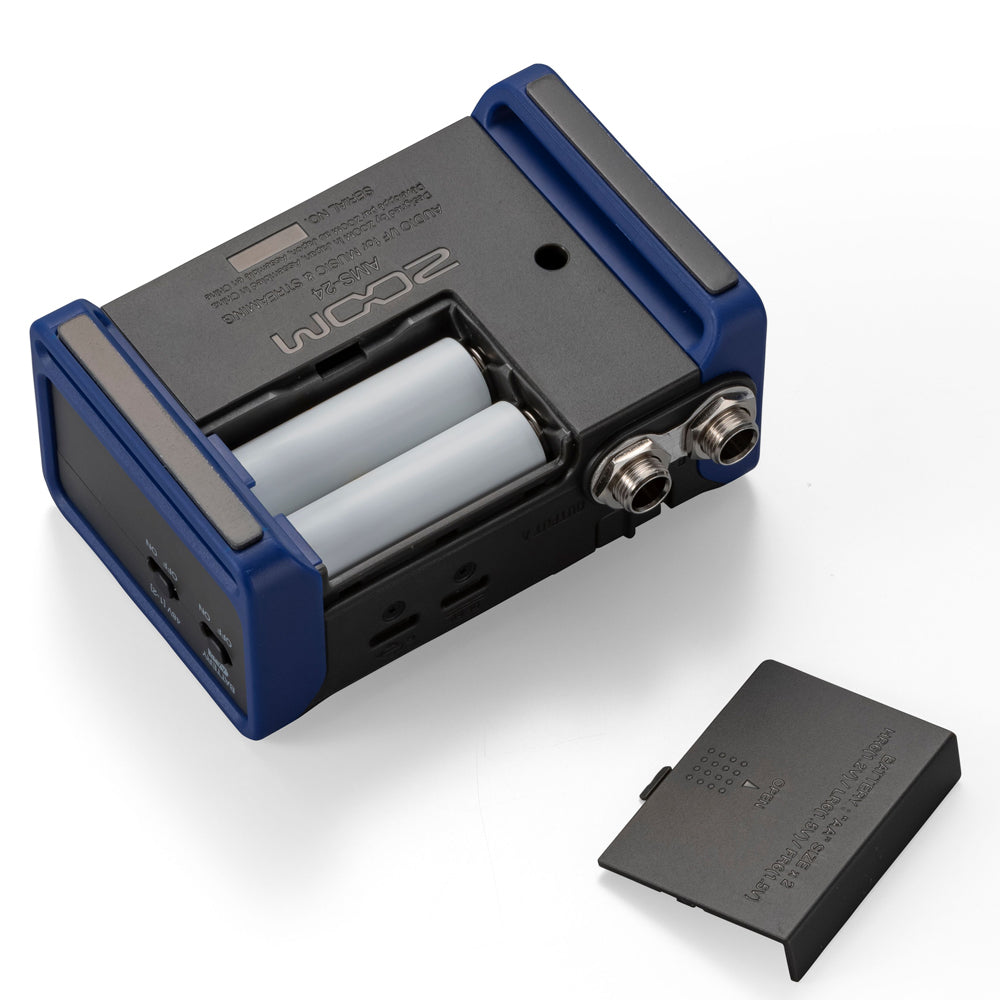

2 AA batteries (alkaline, lithium, or rechargeable NiMH)

AC adapter (ZOOM AD-17): DC 5 V/1A
• USB bus power is supported.

Rated Current

USB/AC adapter (5 V): 380 mA

Batteries (2.4 V): 470 mA

Power Consumption5 W maximum
Dimensions 94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only)134 g
Weight (including batteries)180 g

Note: 0 dBu = 0.775 Vrms





AMS-Series System Requirements

WINDOWS

OS: Windows® 10 / 11 (64bit)
CPU: Intel® Core i3 or faster, or AMD Ryzen 3 or faster with Zen architecture*
USB: USB 3.0 / 2.0**
* Operation is not guaranteed with CPUs from Intel® Atom, Celeron or Pentium series or CPUs from AMD Athlon.

** Only USB host controllers with Intel/AMD Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.



MAC

OS: Mac® OS X 10.14.6 ~ macOS 12
CPU: Intel® Core i3 or faster, or Apple M1
USB: USB 3.0 / 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
IPHONE/ IPADOS: iOS/iPadOS 13.7 ~ 15
* Apple Lightning-to-USB Camera Adapter required.
ANDROID OS: Android OS 9 ~ 11
* USB cables and adapters that match the connectors are necessary.
* Please refer to the compatible android device list.
