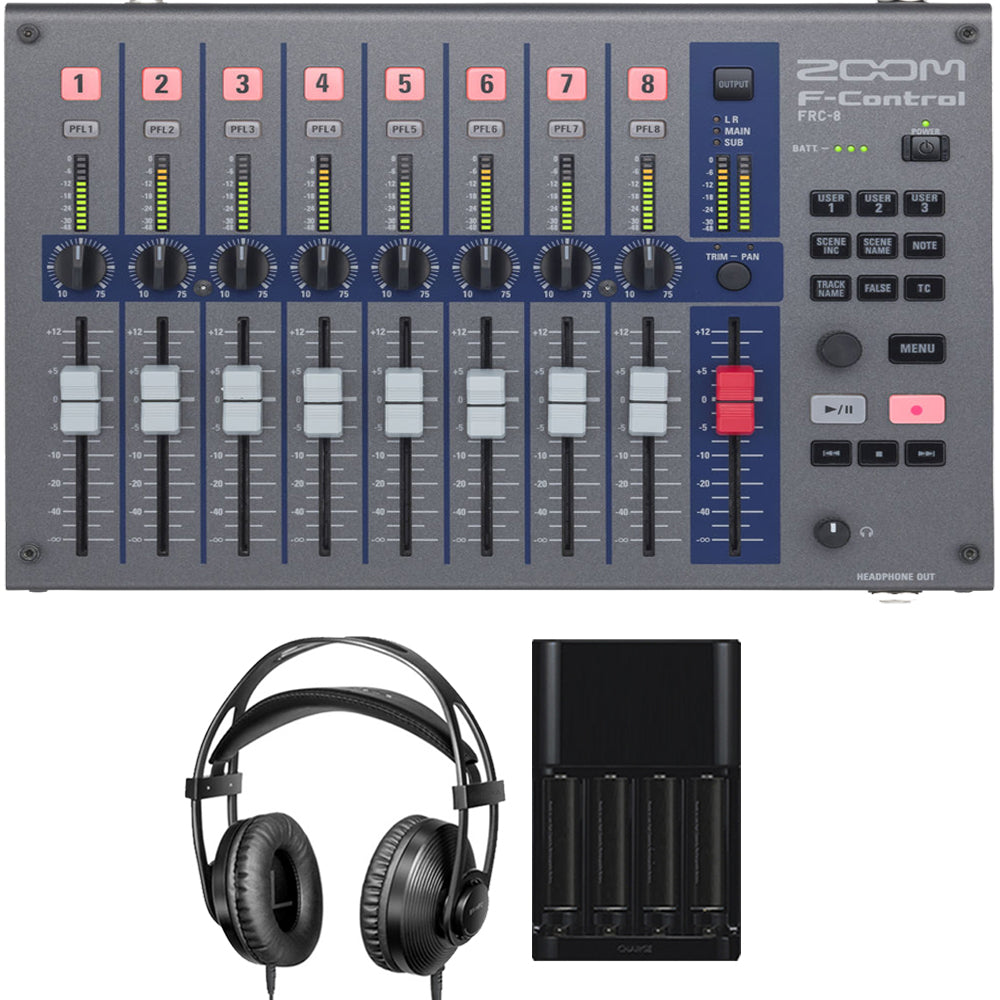

Zoom F-Control for F8n F8 F6 F4 Multitrack Field Recorder + Boya BY-HP2 Headphone
ZOOM-ZFRC8-KIT-1
Sorry, it's out of stock.
But we can let you know when it's back in.
Interested in bulk orders?
We offer special pricing for bulk purchases. Just click the button below and fill out the request form — our team will get back to you with a custom quote
Designed for the location sound recordist, the F-Control from Zoom is a mixing control surface designed for the F8n, F8, F6, and F4 multitrack field recorders. It creates a complete and professional audio rig that offers a broad spectrum of creative possibilities with complete control over sound design and mixing.
The interface provides nine 60mm faders (eight + Master) and hands-on input/output control for trim, pan, and track arming. Monitoring channel and output levels is simple with 12-segment LED meters, three user-programmable buttons, and a dedicated timecode button.
Additional controls include Track Scene Edit buttons which provide shortcut commands to Track Name, Scene Increment, Scene Name, Notes, and False Take. The unit connects to the F8/F4 recorder via USB for a seamless and uncluttered setup, while an additional USB port lets you connect an external keyboard to quickly enter metadata while out in the field. An included 1/4" stereo cable connects the F8/F4 phone out to F-Control's phone in, so you can monitor audio via F-Control's headphone jack.
The durable metal chassis is robust enough to go anywhere, and yet small and light enough to fit into gear bags and backpacks. The F-Control can be powered by an optional DC power supply or via the included four AA batteries. Additionally, the unit can be USB-powered when using the F4 (not available with the F8). The F-Control ships with a stereo audio cable and a USB cable.
- Nine faders (eight + Master), each 60mm
- 1/4" headphone jack
- USB port for external keyboard connection
- Hands-on input/output control for trim, pan, and track arming
- 12-segment LED meters for monitoring channel and output levels
- Dedicated timecode buttons
- Track Scene edit buttons: Shortcut commands to Track Name, Scene Increment, Scene Name, Notes, and False Take screens
- Power options: 4 x AA batteries, 4-pin Hirose connector with external battery pack, and USB bus power via the F4 (not available with the F8)
- Durable metal chassis
- Compatible with Zoom F8n, F8, F6, and F4 multitrack field recorders
UPC: 884354017606
This Kit includes the following:
- Zoom F-Control for F8n, F8, F6, and F4 Multitrack Field Recorders
- Boya BY-HP2 Professional Over-Ear Hi-Fi Monitor Headphones
- Rechargeable Battery & Charger
Zoom F-Control for F8n, F8, F6, and F4 Field Recorders
Specs
| POWER REQUIREMENTS: | AA size (LR6) battery x 4 |
| External DC power supply 9�16 V | |
| BATTERY OPERATION TIME: | <When using 8 channels at once, LED Brightness=60, without keyboard> |
| Alkaline batteries: 8.5 hours or more | |
| NiMH (2450mAh): 12 hours or more | |
| Lithium batteries: 16.5 hours or more | |
| CONNECTORS: | TO F Series: USB (Type A) |
| Keyboard: USB (Type A) | |
| From F-Series Headphone: 1/4" unbalanced stereo phone | |
| Headphone: 1/4" unbalanced stereo phone | |
| 9-16V DC IN: HIROSE HR10A-7R-4S 4-pin connector (1 pin: ?, 4 pin: +) | |
| POWER CONSUMPTION: | 2.5 W |
| DIMENSIONS: | 9.6 in (W) x 7.11 in (D) x 1.8 in (H) |
| WEIGHT: | 2.16 lbs (without batteries) |
Other Accessories In This Kit
4 Xtreme Power Series AA/AAA Battery Charger Boya BY-HP2 Professional Over-Ear Hi-Fi Monitor Headphones |
