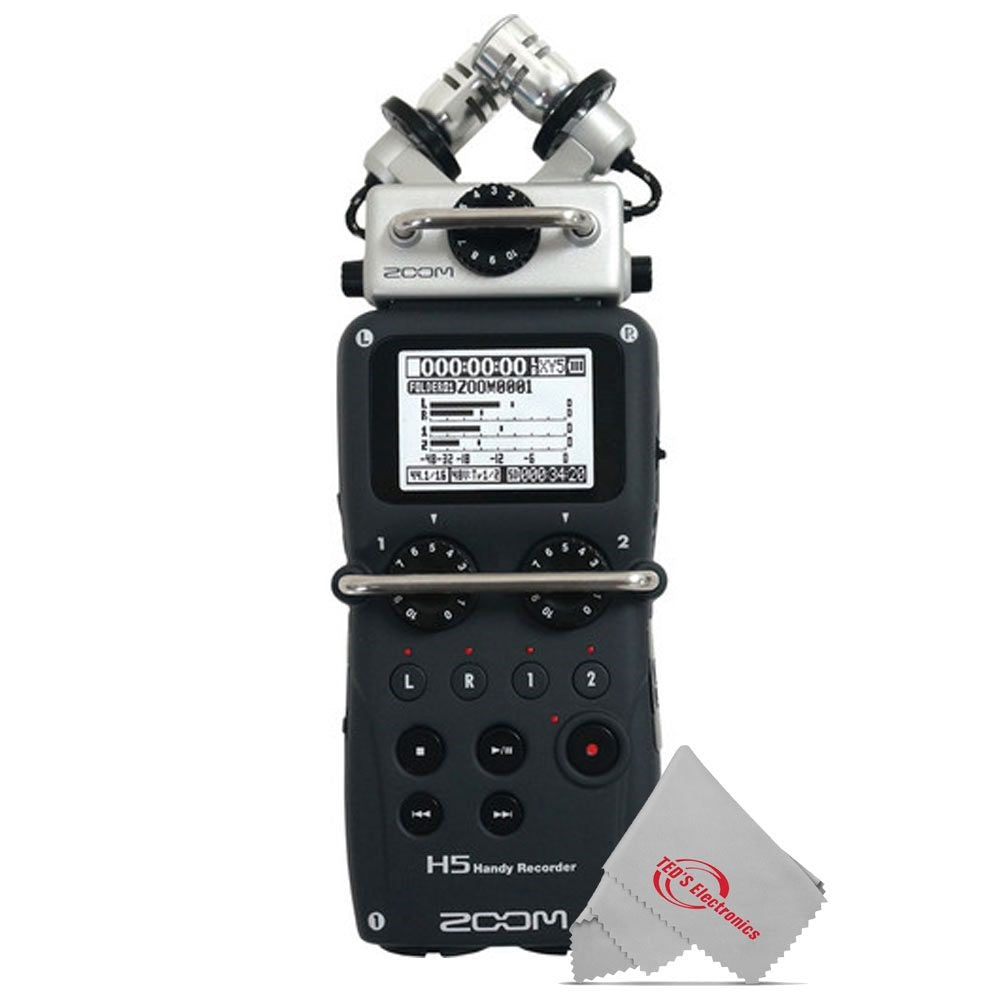

Zoom H5 4-Input / 4-Track Portable Handy Recorder with Interchangeable X/Y Mic Capsule and Accessory Kit

50 reviews
5 Stars
100% (50)
4 Stars
0% (0)
3 Stars
0% (0)
2 Stars
0% (0)
1 Star
0% (0)

see all 50 reviews

$369.99 $299.99

Condition: New

Ideal for documentaries, podcasting, audio for video, and professional sound design, the Zoom H5 portable handheld recorder lets you quickly record up to four input signals regardless of your audio experience....

Vendor: Zoom SKU: ZOOM-ZH5-K-2
Description
Ideal for documentaries, podcasting, audio for video, and professional sound design, the Zoom H5 portable handheld recorder lets you quickly record up to four input signals regardless of your audio experience. With a swappable stereo microphone capsule, versatile 2-channel inputs, and up to 4-track recording, the H5 is both user-friendly and easily expandable.

Like other H-Series Handy recorders such as the H4n Pro and H6, you can hold it in your hand, attach it to a mic stand or tripod, or mount it to a camera (shoe mount available separately); the H5 packs an impressive array of features into a rugged, rubberized body that's more than ready to meet the varied demands of musicians, videographers, sound designers, content creators, and news shooters.

Fast, User-Friendly Operability
The H5's front panel is ergonomically arranged with its most essential and commonly used controls—transport buttons for record, play/pause, stop, back, and forward operations, individual record-arm buttons that double as mute switches during playback, and large gain knobs. For added safety, a hold switch disables all front-panel buttons to prevent accidental operation during recording. Day or night, view vital information such as audio levels, recording time, battery status, and more on the large, monochrome backlit LCD.

Instant Access to Gain Adjustments
Each H5 input has its own dedicated gain control knob, located beneath a protective bar that prevents accidental movement during handling. There's no track selection or button pressing required to optimize your recording levels; just turn the dials (clearly labeled from 0 to 10) anytime you need to adjust the gain. If your XLR-1/4" input source is so loud that you need even less gain than the preamps provide at the "0" setting, use the menu system to activate the -20 dB pad (selectable per input).

Interchangeable Stereo Microphone Capsule
Leave your external mics at home and travel light. The H5 is outfitted with Zoom's XYH-5 interchangeable stereo microphone that provides clear, phase-accurate capture in a classic 90° X/Y configuration for a tight stereo image. The matched unidirectional condensers are housed within a specially designed shockmount that employs rugged external mic wires and rubberized material to minimize vibration and handling noise. With nothing more than the H5, you're set to record speech, practice sessions, concerts, or ambient and environmental sounds, even ear-rattling ones up to 140 dB!

Supports Interchangeable Zoom Mic Capsules
The Zoom mic capsule input on the H5 accommodates Zoom's line of separately available interchangeable capsules, which can be swapped out as easily as the lenses of a camera. With mid-side, X/Y, and shotgun mic capsules to choose from, you can be ready to record music, dialog, or sound effects without carting an external microphone setup. Opt for the EXH-6 combo input capsule to accept two additional mic/line signals via XLR-1/4" jacks.

In the Box
  • Zoom H5 4-Input / 4-Track Portable Handy Recorder with Interchangeable X/Y Mic Capsule
  • Zoom XYH-5 - X/Y Microphone Capsule for Zoom H5 and H6 Field Recorders
  • Protective Case
  • Foam Windscreen
  • USB Cable
  • 2 x AA Batteries
  • Set of Download Codes for Cubase LE and WaveLab LE

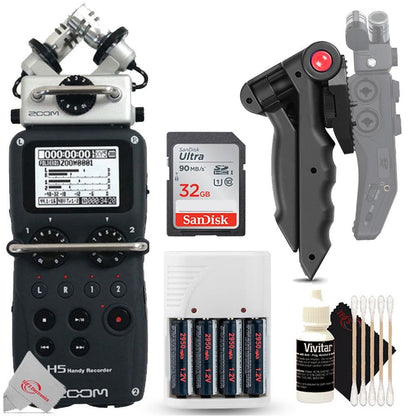

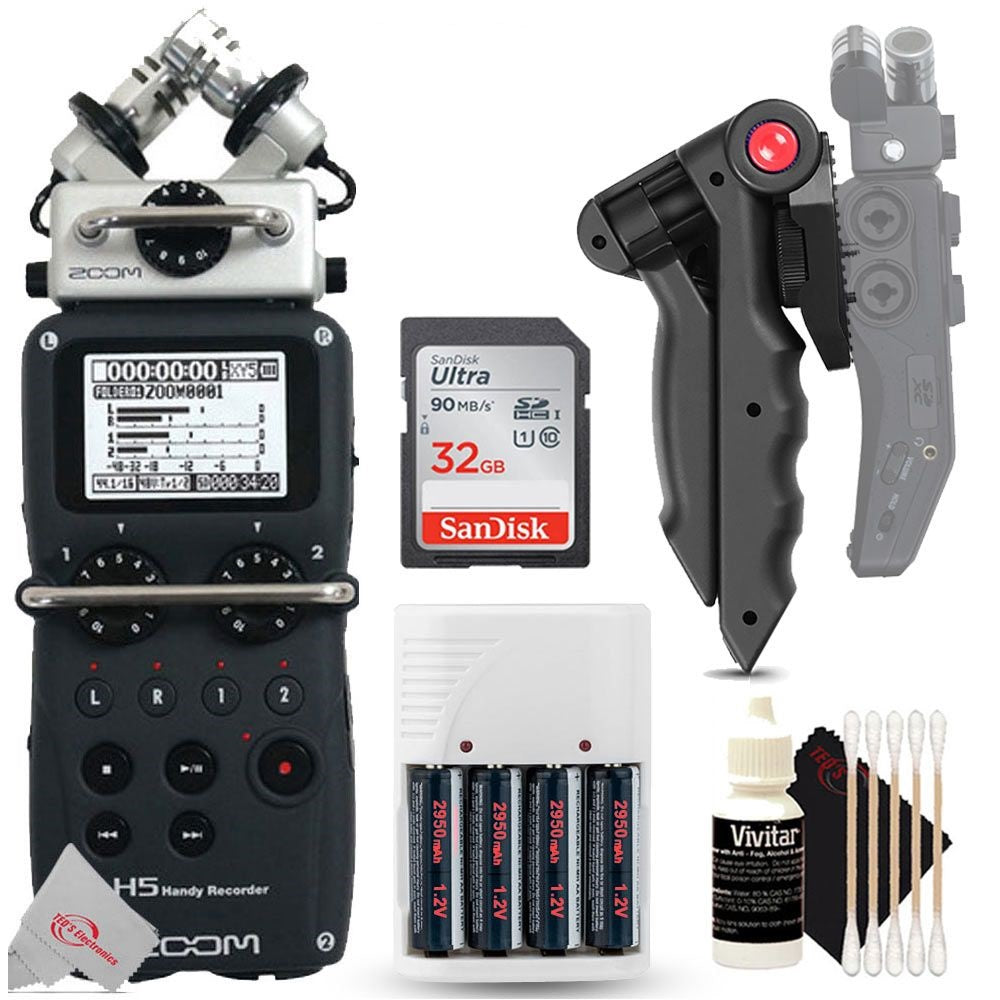

This Kit includes the following:

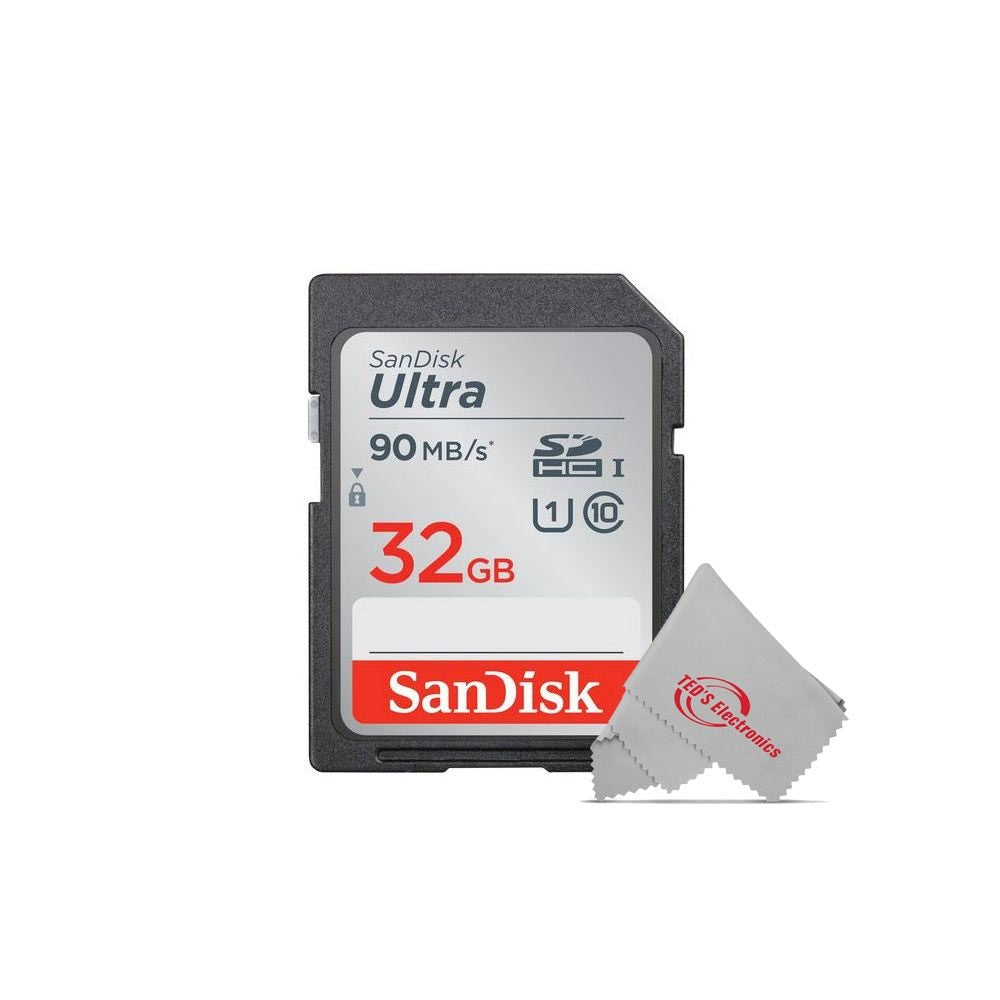

  • 32GB Memory Card
  • AA Battery and Charger

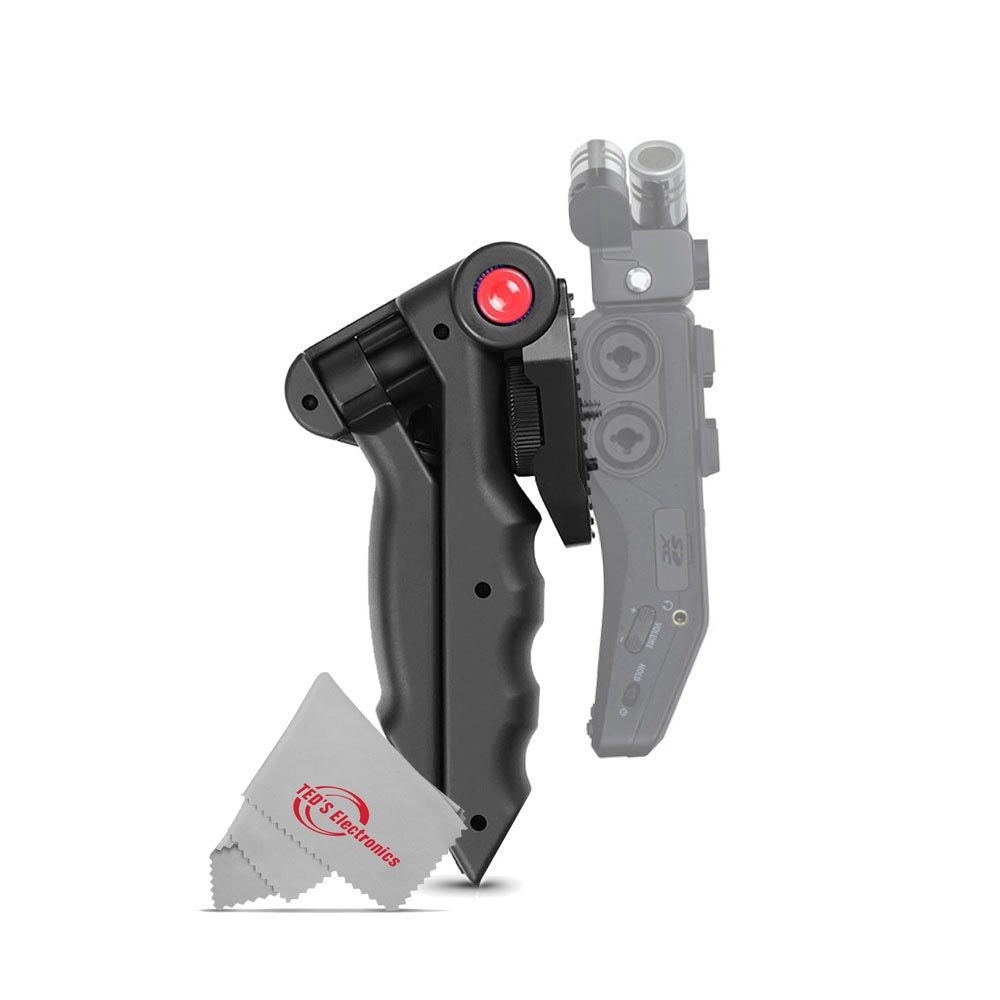

  • Tabletop Tripod

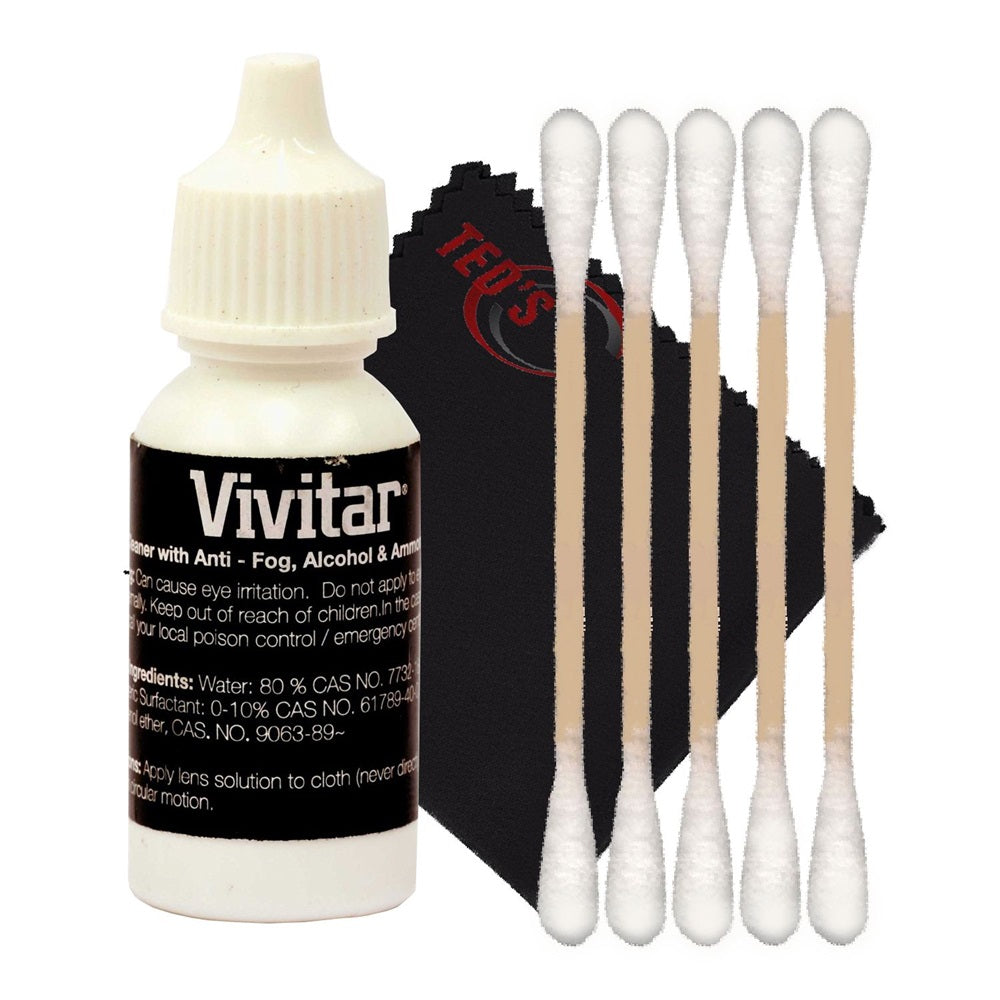

  • 3pc Cleaning Kit
Additional Information

Zoom H5 Specs





Portable Recorder

Number of Tracks4
Max Sample Rate/Resolution96 kHz / 24-Bit
MicrophoneInterchangeable Cardioid Condenser Stereo Pair, X/Y Configuration
Built-In SpeakerYes, 400 mW Mono
DisplayMonochrome LCD (Backlit)
Memory Card SupportSD (16 MB to 2 GB)
SDHC (4 to 32 GB)
Internal StorageNone

Recording

Audio File FormatsBWF, MP3, WAV
Sample RatesWAV:
44.1 / 48 / 96 kHz (Stereo)
MP3:
44.1 kHz
Bit Depth16 / 24-Bit
Bit Rates48 to 320 kb/s
Signal ProcessingCompressor, Limiter, Low-Cut Filter, Pitch Control
TimecodeNo
Recording TimeWAV 44.1 kHz/16-Bit:
1 Hr 30 Min per GB (Stereo)
MP3 320 kb/s:
7 Hrs per GB (Stereo)

Connectivity

Analog I/O2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Digital I/ONone
Phantom Power+12 / 24 / 48 V (Selectable on Individual Inputs)
Plug-In PowerYes, 2.5 V
Host Connection1 x Mini-USB (USB 2.0)

Performance

Gain RangeX/Y Mic Capsule:
Up to +52 dB
1/8" Inputs:
Up to +52 dB
Mic/Line Inputs:
Up to +55 dB
Max Input LevelMic/Line Inputs:
+22 dBu (Pad On)
Headphone Output Power20 mW per Channel into 32 Ohms
Impedance1/8" / 3.5 mm Inputs:
?2 Kilohms
Mic/Line Inputs:
?1.8 Kilohms
Line Outputs:
?10 Kilohms
EIN?-120 dBu
Microphone Sensitivity-45 dB/Pa
Microphone Max SPL140 dB SPL

Power

Power OptionsBatteries, USB Bus Power, AC/DC Power Adapter
Battery Type2 x AA (Included)
Approximate Battery LifeWAV 44.1 kHz/16-Bit:
15 Hours (Alkaline, 2 Channels)
WAV 48 kHz/24-Bit:
7.2 Hours (Alkaline, All Channels)
AC/DC Power Adapter5 VDC at 1 A (Not Included)

Physical

Mounting Options1/4"-20 Female
Dimensions2.6 x 1.7 x 5.3" / 66.8 x 42.1 x 135.2 mm (Recorder)
2.6 x 1.6 x 2.4" / 65.5 x 41 x 62.2 mm (X/Y Mic)
Weight6.2 oz / 176 g (Recorder)
3.3 oz / 94 g (Mic)

Packaging Info

Package Weight1.845 lb
Box Dimensions (LxWxH)9.25 x 6.6 x 3.4"
