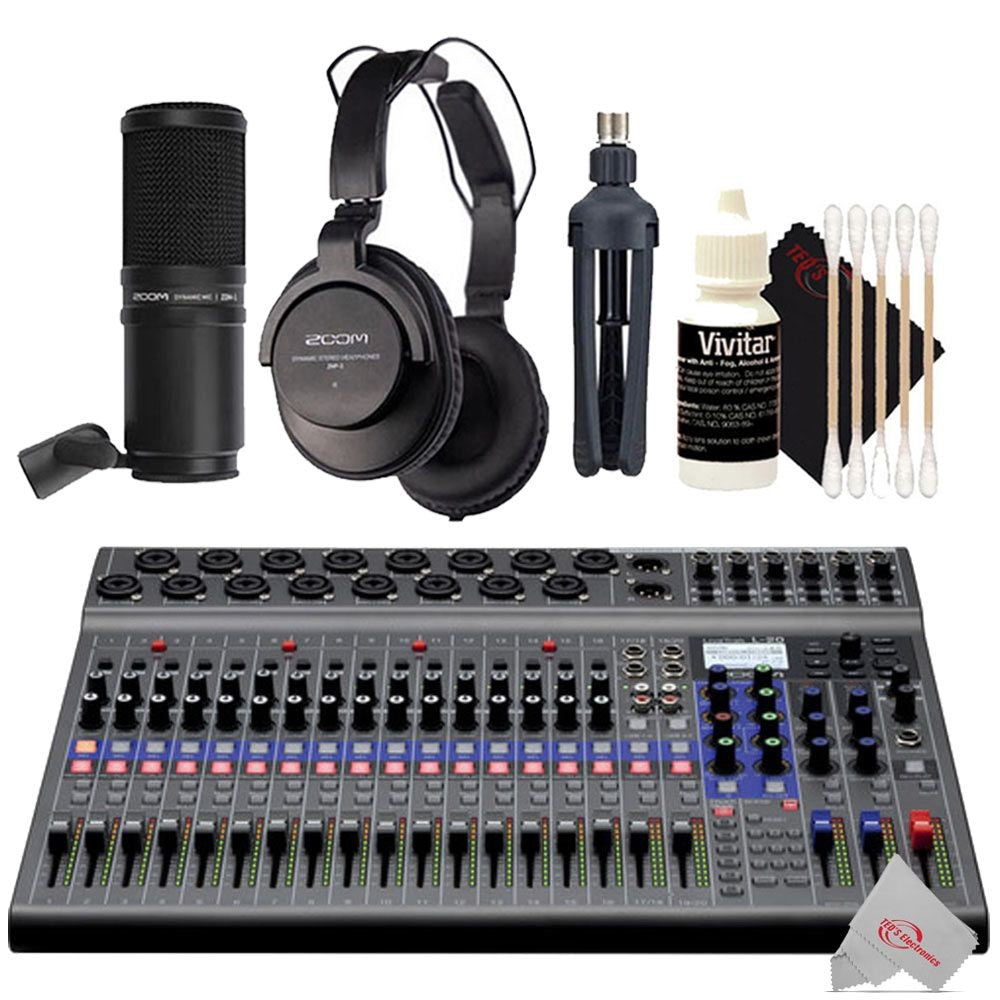

Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder + Zoom ZDM-1 Podcast Mic Pack Accessory Bundle + 3pc Cleaning Kit

16 reviews
5 Stars
100% (16)
4 Stars
0% (0)
3 Stars
0% (0)
2 Stars
0% (0)
1 Star
0% (0)

see all 16 reviews

$1,349.99 $999.00

Condition: New

The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono...

Vendor: Zoom SKU: ZOOM-ZL20-K-1
Description
The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.

The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.

The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.
  • 20 discrete channels (16 mono plus 2 stereo) with XLR or 1/4-inch connectivity
  • 22-track simultaneous recording, 20-track playback
  • 22-in/4-out USB audio interface connectivity
  • Records up to 24-bit/96 kHz audio to SD card
  • 48V phantom power
  • Hi-Z connectivity (channels 1-2)
  • 26 dB pad (channels 3-16)
  • Built-in compression control (channels 1-16)
  • Solo buttons for individual channels
  • Variable frequency low-cut control
  • Main outputs plus six customizable monitor outputs
  • Dedicated headphone output for sound engineer
  • Scene saving function, up to 9 scenes saved at a time
  • 20 built-in chorus, delay and reverb effects with adjustable parameters
  • Two effect busses
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • Compatible with Remote Mixer app for iPad
  • Automatic recording starting/stopping capability
  • Pre-record function
  • Import/export projects with USB 2.0 host port
  • Compatible functions for Zoom FS01 footswitch
  • Automatic power-save function
In the Box
  • Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder/li>
  • Power Adapter/light
  • USB 2.0 Cable/light
This Kit includes the following:
  • Zoom ZDM-1 Podcast Mic Pack Accessory Bundle
  • 3pc Cleaning Kit/li>
Additional Information

Zoom LIVETRAK L-20 Specs



Number of InputsMono (Mic/Line): 16 x Combo XLR-1/4" / 6.35 mm
Stereo (Line): 4 x 1/4" / 6.35 mm TS, 4 x RCA (2 x stereo pairs)
Number of OutputsMaster Out: 2 x XLR
Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS
Headphone: 1 x 1/4" / 6.35 mm
Input GainPad Off: +16 to +60 dB
Pad On: -10 to +34 dB
Hi-Z ON: +6 to +50 dB
Input ImpedanceXLR: 3 kOhms
TRS: 10 kOhms/1 MOhm (when Hi-Z on)
Maximum Input LevelsMono (Mic/Line)
Pad Off: 0 dBu (at 0 dBFS)
Pad On: +26 dBu (at 0 dBFS)
Stereo (Line): +14 dBu
Phantom Power48 V
Maximum Output LevelsMaster Out: +14.5 dBu
Monitor A-F (TRS): +14.5 dBu
Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms
Output Impedances100 Ohms
BusesMaster: 1
Monitor: 6
Send EFX: 2
Channel ControlChannel Strip
Comp: Yes, channels 1 to 16
Low Cut: 40 to 600 Hz, 12 dB/oct
EQ
High: 10 kHz, �15 dB, shelving
Mid: 100 Hz to 8 kHz, �15 dB, peaking
Low: 100 Hz, �15 dB, shelving
Level Meters12-segment
Effects20 types
RecorderMaximum Simultaneous Recording Tracks:
22 at 44.1/48/96 kHz
Maximum Simultaneous Playback Tracks: 20
Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo
Recording Media:
16 MB to 2 GB SD cards
4 to 32 GB SDHC cards
64 to 512 GB SDXC cards
Audio Interface44.1 / 48 kHz Recording: 22 channels
Playback: 4 channels
Bit Depth: 24-bit
Interface: USB 2.0
Card ReaderMass Storage: SD, SDHC, SDXC
USB HostClass-compliant USB 2.0 high-speed
Sample Rate (Audio)44.1, 48, 96 kHz
Frequency Characteristics44.1 kHz: 20 Hz - 20 kHz (-1.0 dB)
96 kHz: 20 Hz - 40 kHz (-3.0 dB)
Equivalent Input NoiseActual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input
DisplayLCD with backlight (128�64 resolution)
Power SupplyAD-19 AC Adapter: 12 VDC / 2 A
Power Consumption24 W maximum
Dimensions (W x D x H)17.5 x 15.3 x 3.3" / 445.0 x 388.4 x 82.6 mm
Weight8.2 lb / 3.7 kg

Packaging Info

Package Weight11.4 lb
Box Dimensions (LxWxH)21.2 x 18 x 5.8"
