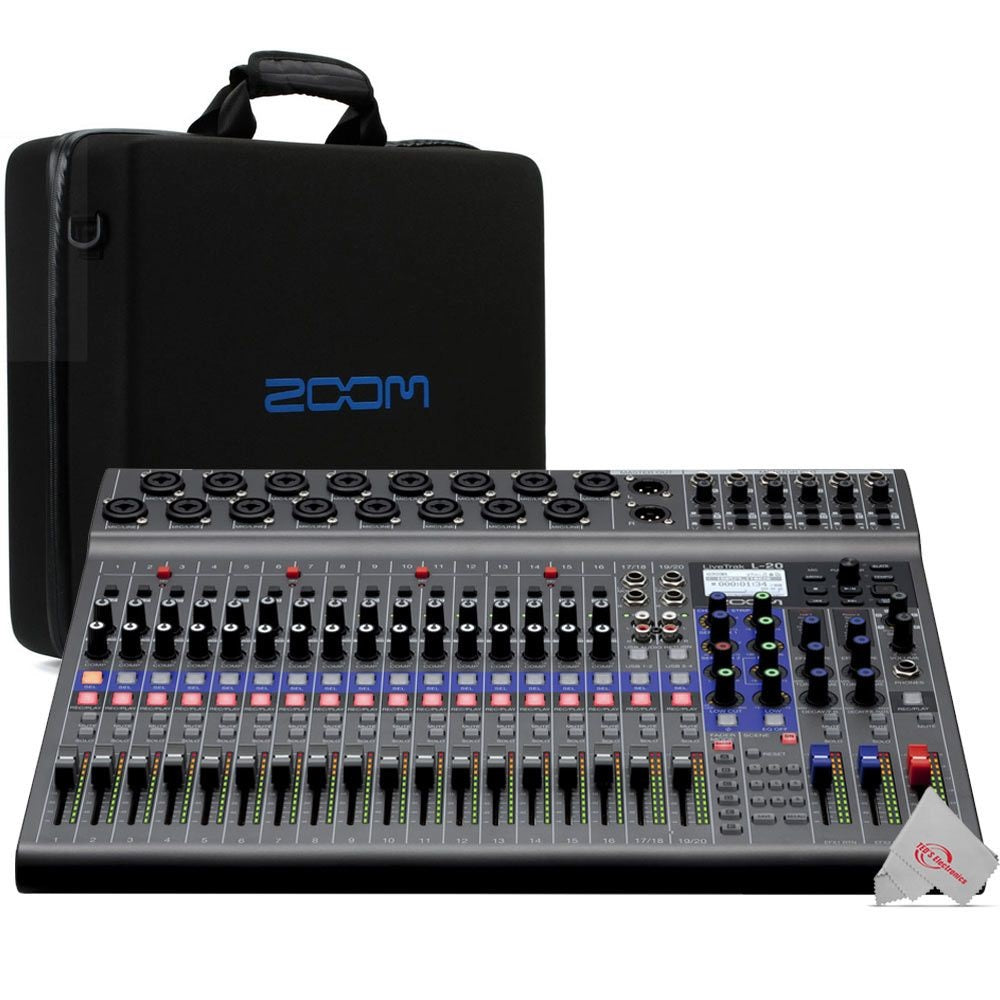

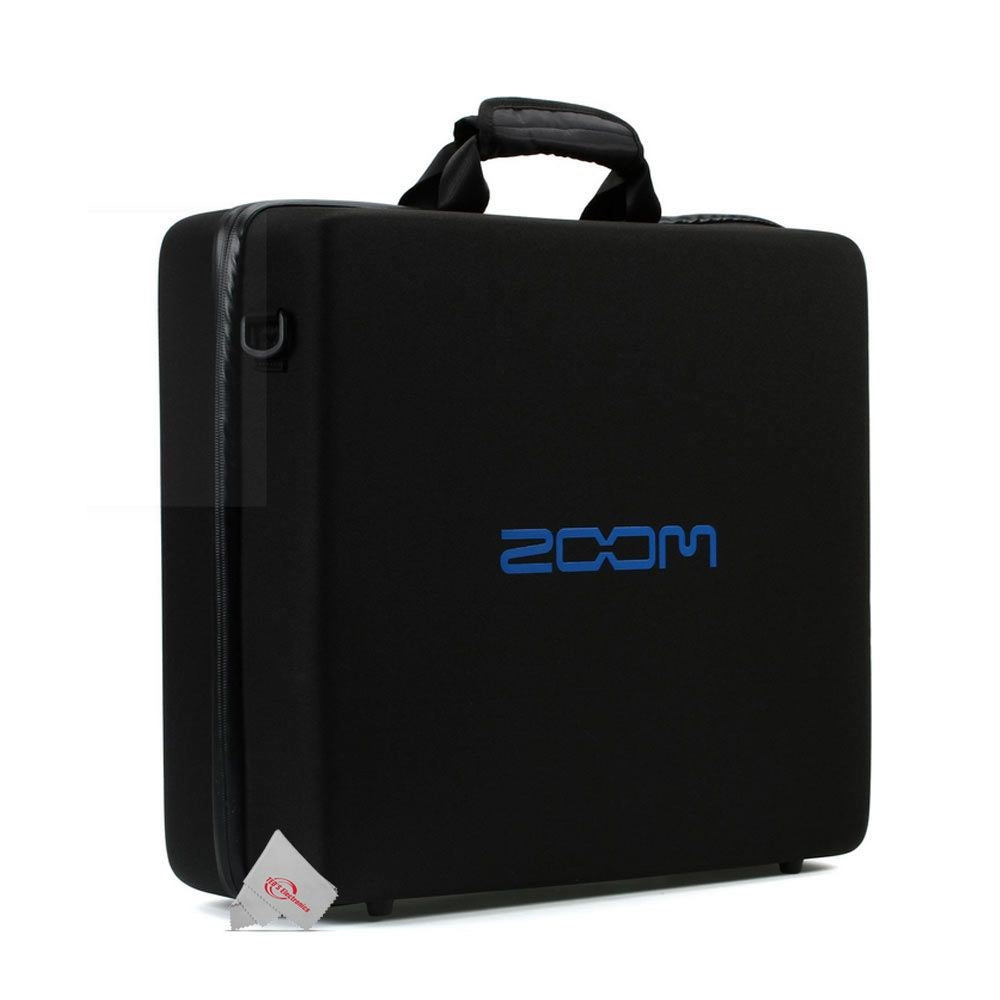

Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder + Zoom CBL-20 Carrying Bag
ZOOM-ZL20-K1
Zoom LiveTrak L-20 is a professional 20-input digital mixer and 22-track recorder designed for live shows, studio recording, podcasts, and multi-source audio production.
Regular price
$1,129.98
Sale price
$1,129.98
Regular price
$1,220.98
Unit price
per
In Stock – Ships within 24 hours
Free Shipping
On all orders
1 Year Warranty
Full coverage
30 Day Returns
Hassle-free
Shop Safely
Secure your shopping experiences with various safe and trusted payment methods.
Payment methods

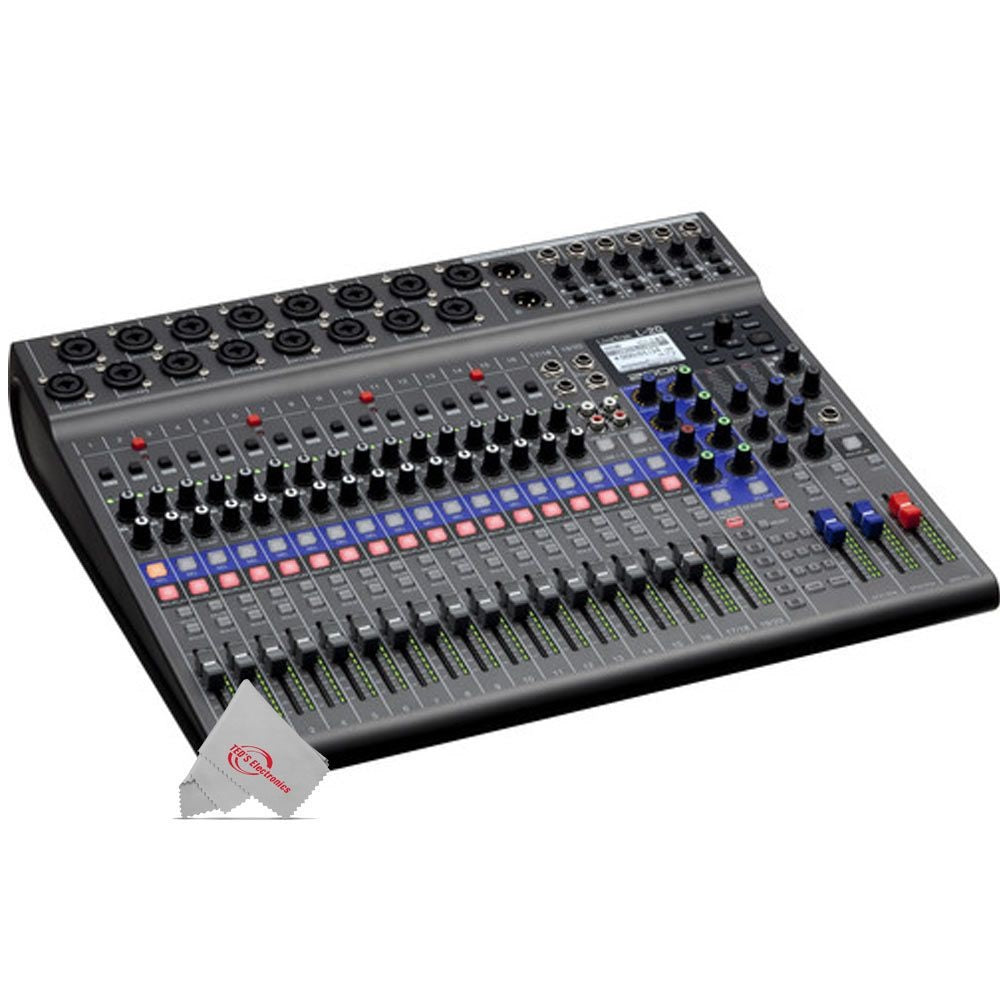

The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.
The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.In the Box
The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.
The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.In the Box
- Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder/li>
- Power Adapter
- USB 2.0 Cable
| Brand | Zoom | Model | LiveTrak L-20 Digital Mixer |
|---|---|---|---|
| Input Channels | 20 (16 Mono + 2 Stereo) | Recording Tracks | Up to 22 Tracks |
| Audio Resolution | 24-bit / 96kHz | Outputs | XLR Main + 6 TRS Monitor Outputs |
| Phantom Power | +48V Support | Effects | 20 Built-in Digital Effects |
| Processing | EQ, Compression, Pan, Low-Cut Filter | Interface Mode | USB 22-in / 4-out |
| Recording Type | SD Card Multitrack Recording | Special Features | Snapshot Recall, Metronome, Slate Mic |
| Included Items | Mixer, Power Adapter, USB Cable, EVA Carrying Case | Use Case | Live Sound, Studio, Podcasting, Rehearsal |
| Build Type | Portable Digital Mixing Console | Protection | Semi-Hard EVA Case Included |
We value your patronage at Teds Electronics and we endeavor to provide you with the highest quality service possible.
All orders are processed and shipped within 1-2 business days of being placed. We use reputable and reliable carriers such as UPS, FEDEX and USPS postal services to ensure that your order is delivered safely and promptly.
As a courtesy to our customers, we offer FREE standard shipping on all orders. The estimated delivery time for standard shipping is 3-7 days from the date of shipment. However, please note that delivery times may vary depending on your location and other factors.
If you require expedited delivery, you can select from our array of expedited shipping options at checkout. These options include priority mail, express mail, and overnight delivery. Please be advised that expedited shipping options are subject to availability and additional fees may apply.
20-Channel Mixing Power
16 mono + 2 stereo inputs with high-gain preamps and phantom power support.
Full Multitrack Recording
Captures up to 22 tracks simultaneously in 24-bit/96kHz quality.
Custom Monitoring Control
6 independent monitor outputs for personalized stage or studio mixes.
Portable Protection Included
Comes with durable semi-hard EVA carrying case for safe transport.
