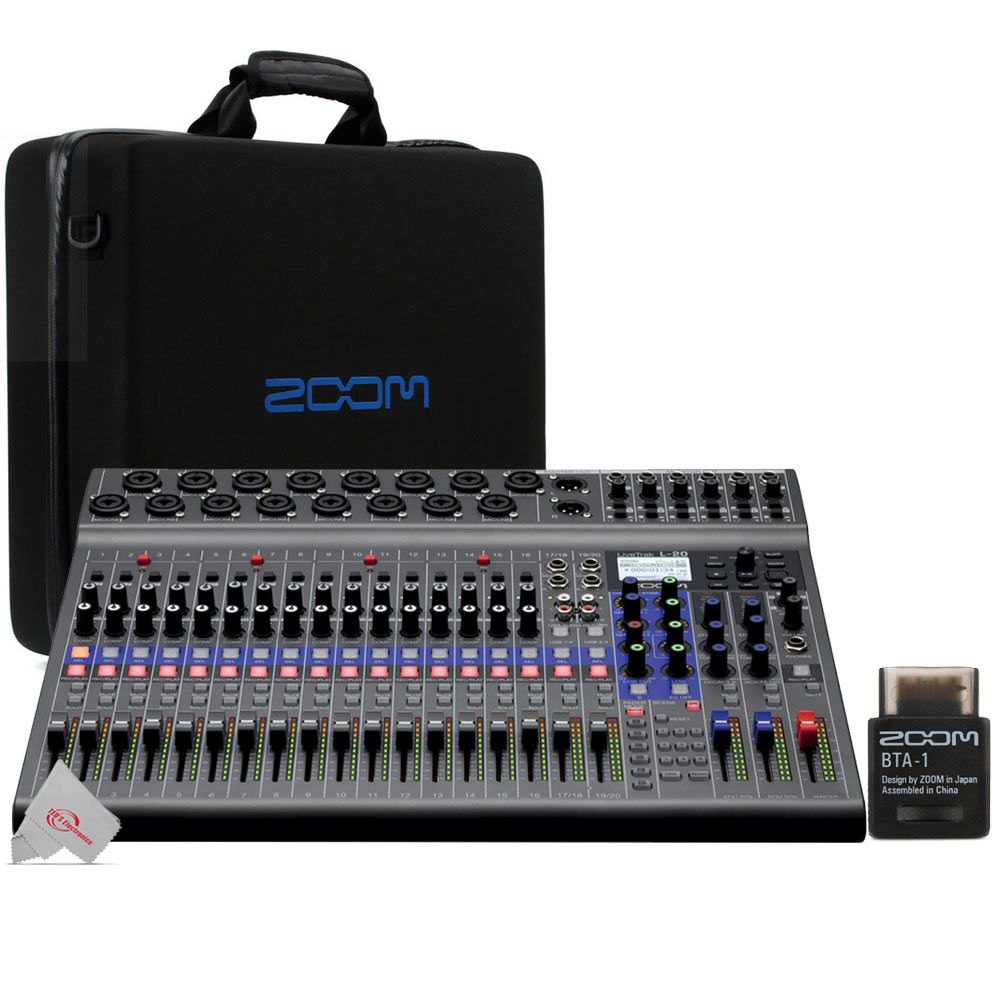

Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder + Zoom CBL-20 Carrying Bag + ZOOM BTA-1 Bluetooth Adaptor For ARQ AR-48, L-20, H3-VR & F6

16 reviews
5 Stars
100% (16)
4 Stars
0% (0)
3 Stars
0% (0)
2 Stars
0% (0)
1 Star
0% (0)

see all 16 reviews

$1,349.99 $999.00

Condition: New

The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono...

Out of stock

Vendor: Zoom SKU: ZOOM-ZL20-K2
Description

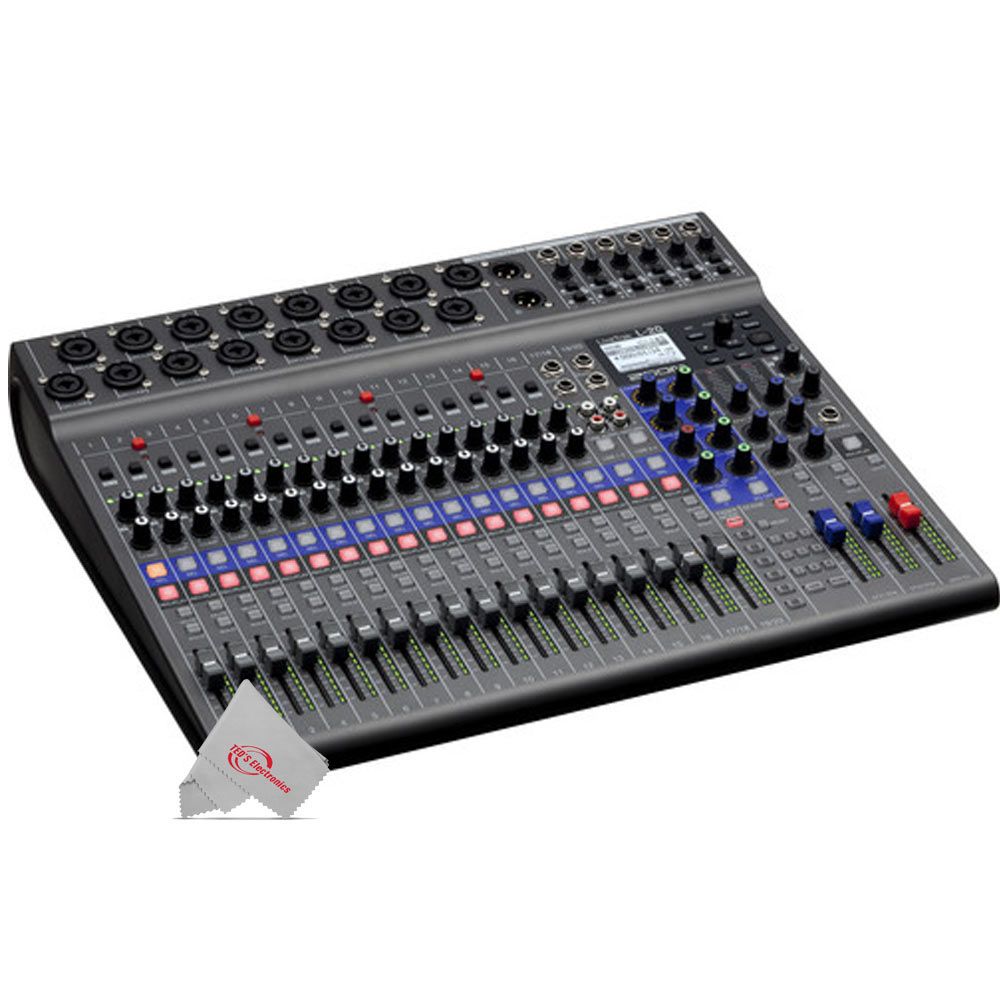

The highly flexible Zoom LiveTrak L-20 is a 20-input digital mixer and multi-track recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The mixer features 16 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and two send FX for sending signals to the 20 built-in high-quality effects processor with two dedicated EFX Return channels.

The LiveTrak L-20 features balanced XLR main outputs, while the six monitor outputs utilize balanced TRS 1/4" connectors, each with the ability to set up customized mixes. Simply connect your headphones or a stage monitor and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.

The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks at resolutions up to 24-bit/ 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-20 can also function as a 22-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrak L-20 ships with a power cord and a USB cable.In the Box
  • Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder/li>
  • Power Adapter/li>
  • USB 2.0 Cable

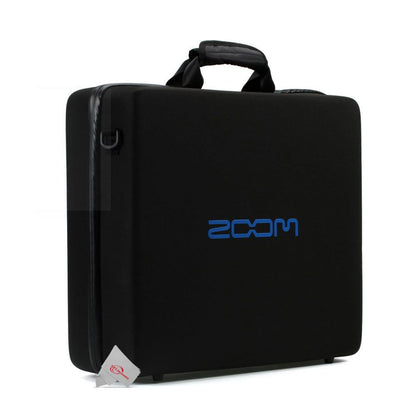

If you need to carry your LiveTrak L-12 or L-20 to a band rehearsal, then the Zoom CBL-20 will meet your needs. This case, which is fashioned out of a semi-hard ethylene-vinyl acetate, has been sized to fit either one L-12 or one L-20 mixer/multitrack recorder. Stretch bands hold your unit in place. The case also features pads that protect your mixer as you go on your way. A spacer is provided to accommodate the smaller L-12.

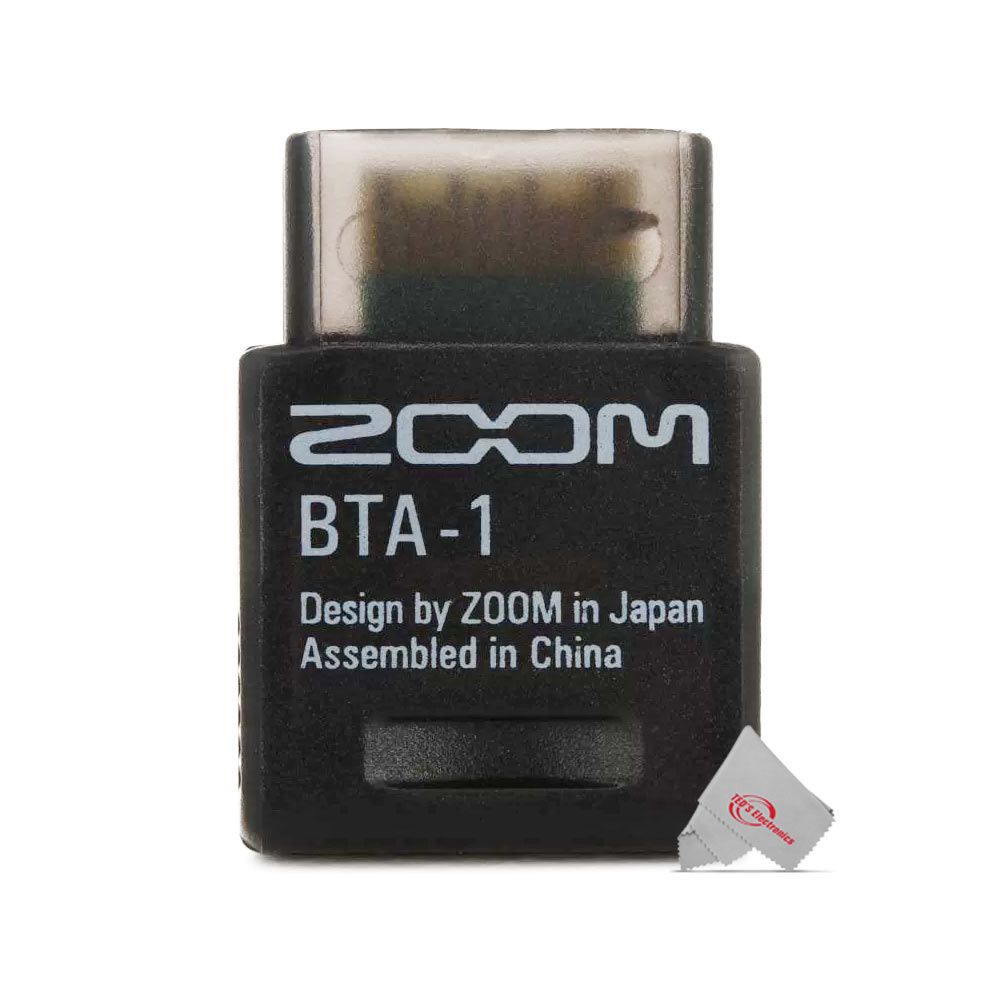

The Zoom BTA-1 is a Bluetooth adapter designed to allow wireless control of your ARQ AR-48, LiveTrak L-20, Zoom F6, or H3-VR for enhanced convenience at the studio, in the field, or on stage. Its compact housing fits neatly in your device without obstructing access to other ports. Once configured, it allows wireless control from a distance of up to 32.8 feet.
Additional Information

Zoom LIVETRAK L-20 Specs



Number of InputsMono (Mic/Line): 16 x Combo XLR-1/4" / 6.35 mm
Stereo (Line): 4 x 1/4" / 6.35 mm TS, 4 x RCA (2 x stereo pairs)
Number of OutputsMaster Out: 2 x XLR
Monitor/Headphone Output (A-F): 6 x 1/4" / 6.35 mm TRS
Headphone: 1 x 1/4" / 6.35 mm
Input GainPad Off: +16 to +60 dB
Pad On: -10 to +34 dB
Hi-Z ON: +6 to +50 dB
Input ImpedanceXLR: 3 kOhms
TRS: 10 kOhms/1 MOhm (when Hi-Z on)
Maximum Input LevelsMono (Mic/Line)
Pad Off: 0 dBu (at 0 dBFS)
Pad On: +26 dBu (at 0 dBFS)
Stereo (Line): +14 dBu
Phantom Power48 V
Maximum Output LevelsMaster Out: +14.5 dBu
Monitor A-F (TRS): +14.5 dBu
Monitor A-F (Headphones): 42 mW + 42 mW at 60 Ohms
Output Impedances100 Ohms
BusesMaster: 1
Monitor: 6
Send EFX: 2
Channel ControlChannel Strip
Comp: Yes, channels 1 to 16
Low Cut: 40 to 600 Hz, 12 dB/oct
EQ
High: 10 kHz, �15 dB, shelving
Mid: 100 Hz to 8 kHz, �15 dB, peaking
Low: 100 Hz, �15 dB, shelving
Level Meters12-segment
Effects20 types
RecorderMaximum Simultaneous Recording Tracks:
22 at 44.1/48/96 kHz
Maximum Simultaneous Playback Tracks: 20
Recording Format: WAV 44.1, 48, 96 kHz, 16/24-bit, mono/stereo
Recording Media:
16 MB to 2 GB SD cards
4 to 32 GB SDHC cards
64 to 512 GB SDXC cards
Audio Interface44.1 / 48 kHz Recording: 22 channels
Playback: 4 channels
Bit Depth: 24-bit
Interface: USB 2.0
Card ReaderMass Storage: SD, SDHC, SDXC
USB HostClass-compliant USB 2.0 high-speed
Sample Rate (Audio)44.1, 48, 96 kHz
Frequency Characteristics44.1 kHz: 20 Hz - 20 kHz (-1.0 dB)
96 kHz: 20 Hz - 40 kHz (-3.0 dB)
Equivalent Input NoiseActual Measurements: 128 dB EIN (IHF-A) with +60 dB/150 Ohms input
DisplayLCD with backlight (128�64 resolution)
Power SupplyAD-19 AC Adapter: 12 VDC / 2 A
Power Consumption24 W maximum
Dimensions (W x D x H)17.5 x 15.3 x 3.3" / 445.0 x 388.4 x 82.6 mm
Weight8.2 lb / 3.7 kg

Packaging Info

Package Weight11.4 lb
Box Dimensions (LxWxH)21.2 x 18 x 5.8"
