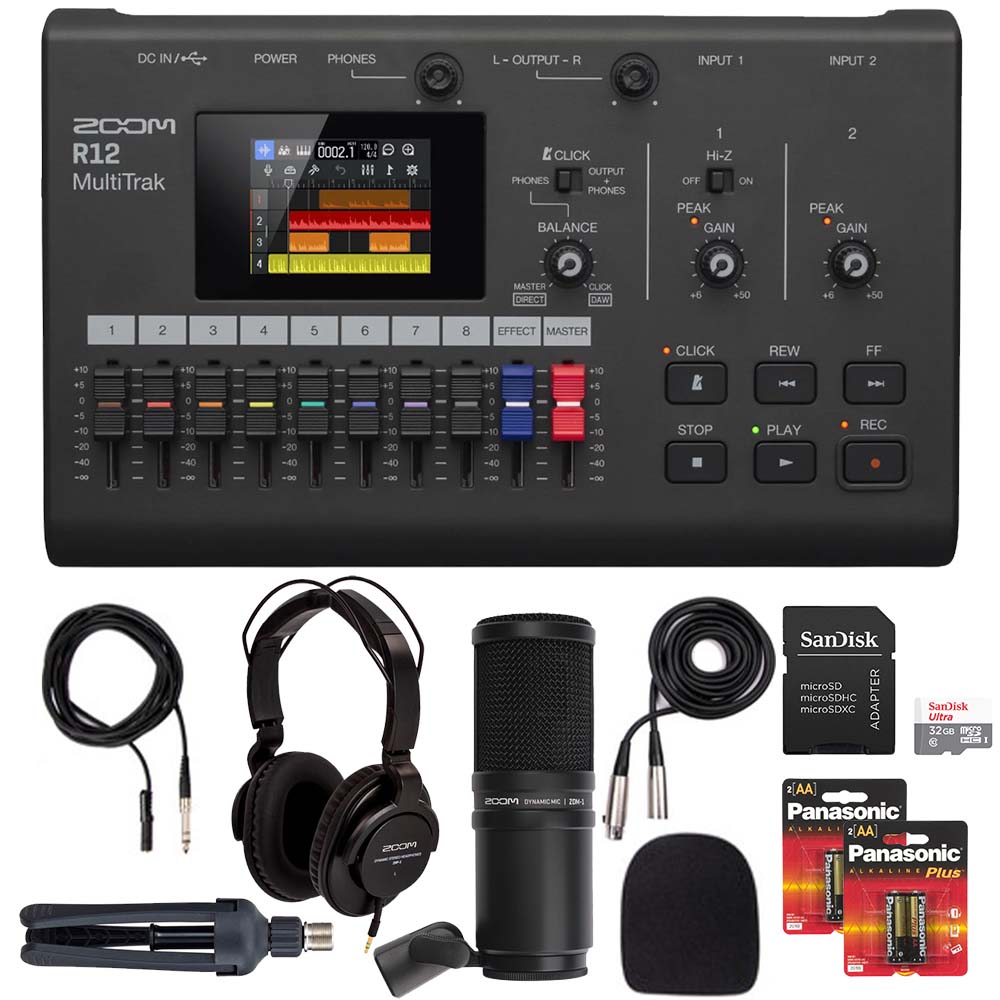

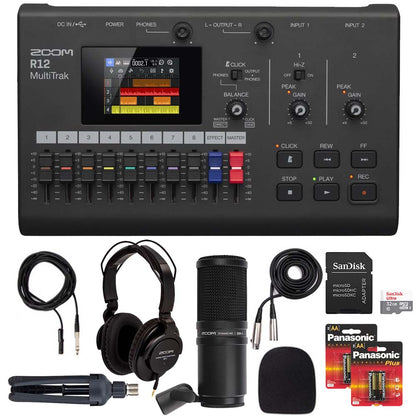

Zoom R12 MultiTrak Recorder + ZDM-1 Podcast Mic Pack Microphone, Headphones, Tripod, Windscreen & Cable Bundle

$474.99 $359.98

Condition: New

Vendor: Zoom SKU: ZOOM-ZR12-K2
Description

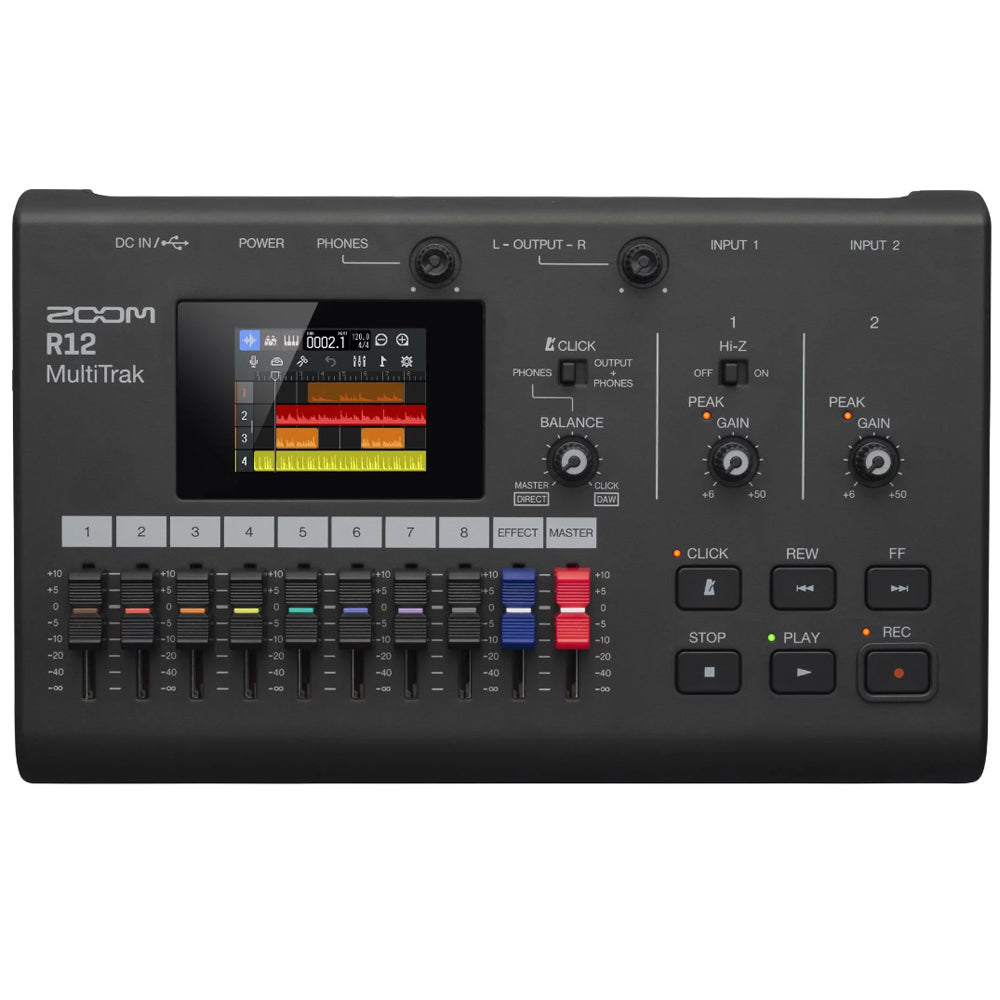

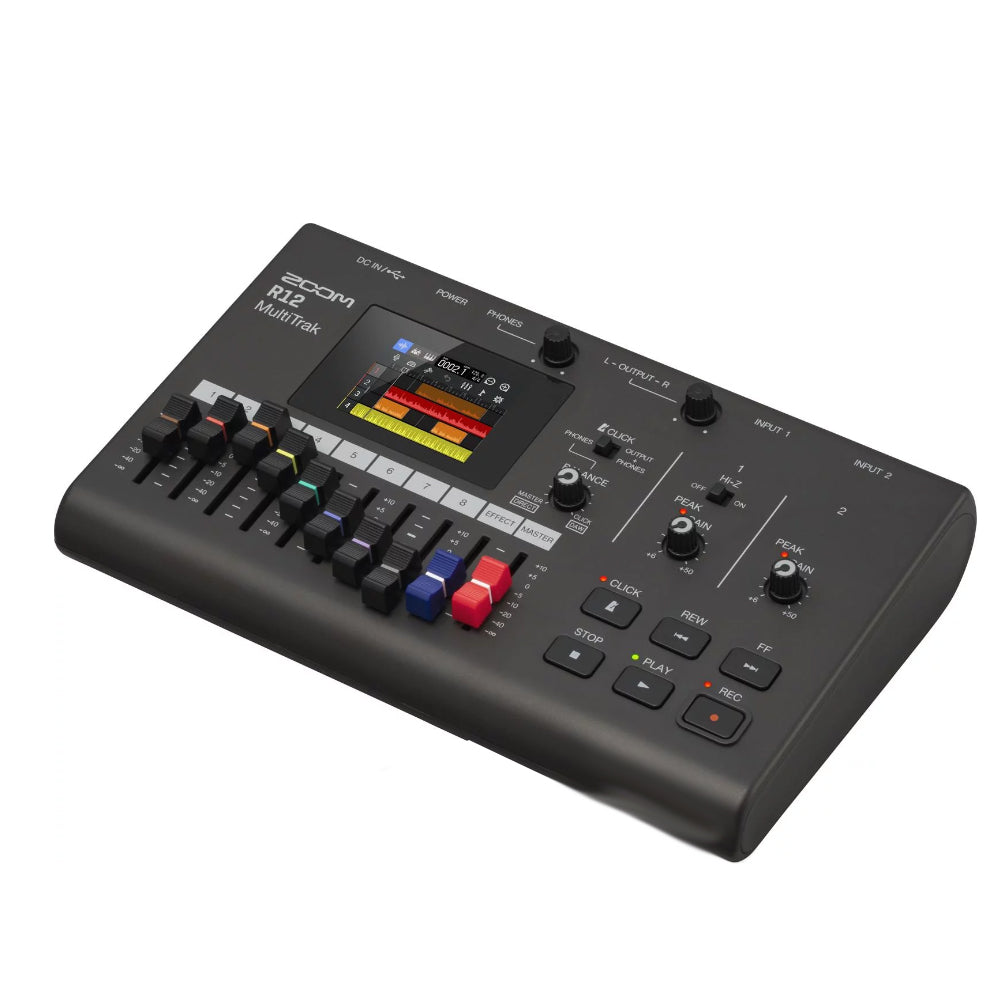

Zoom R12 MultiTrak Recorder

The R12 MultiTrak from Zoom captures the power and immediacy of classic 8-track recorders with the welcome addition of modern updates like touchscreen track editing! The R12 MultiTrak is great for capturing ideas, scraps, and even full songs without the complicated setup of DAWs, computers, and other equipment. It easily connects to microphones, instruments, or line level devices like keyboards and mixers via two TRS/XLR combo jacks, and it can record up to eight tracks per project. Fleshing out song ideas is easy — just use your own instruments or try out the R12's powerful pre-loaded drum machine, onboard effects, and patch options. The R12 even features a built-in synth that can be controlled via touchscreen or an external keyboard! If you love the feel of hardware recording but yearn for optimized workflow and touchscreen control, the Zoom R12 MultiTrak from Sweetwater is the clear solution to add to your cart!

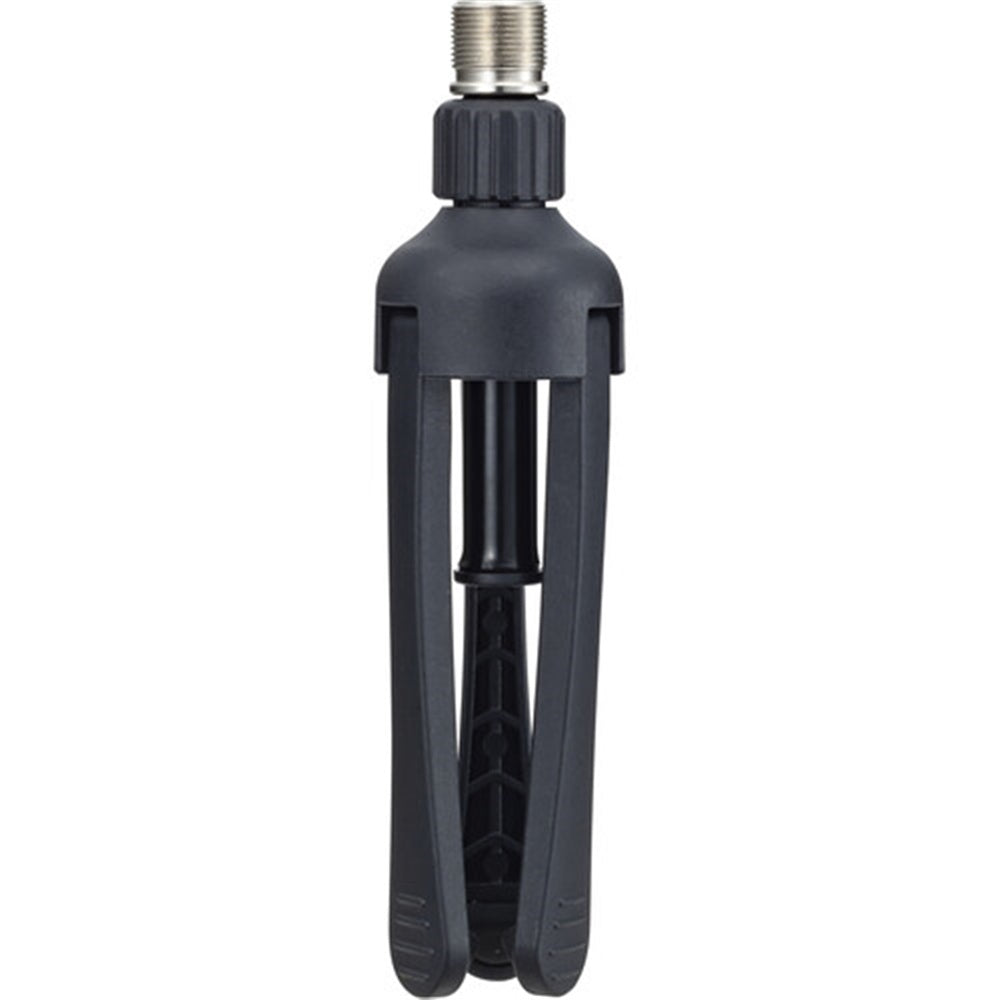

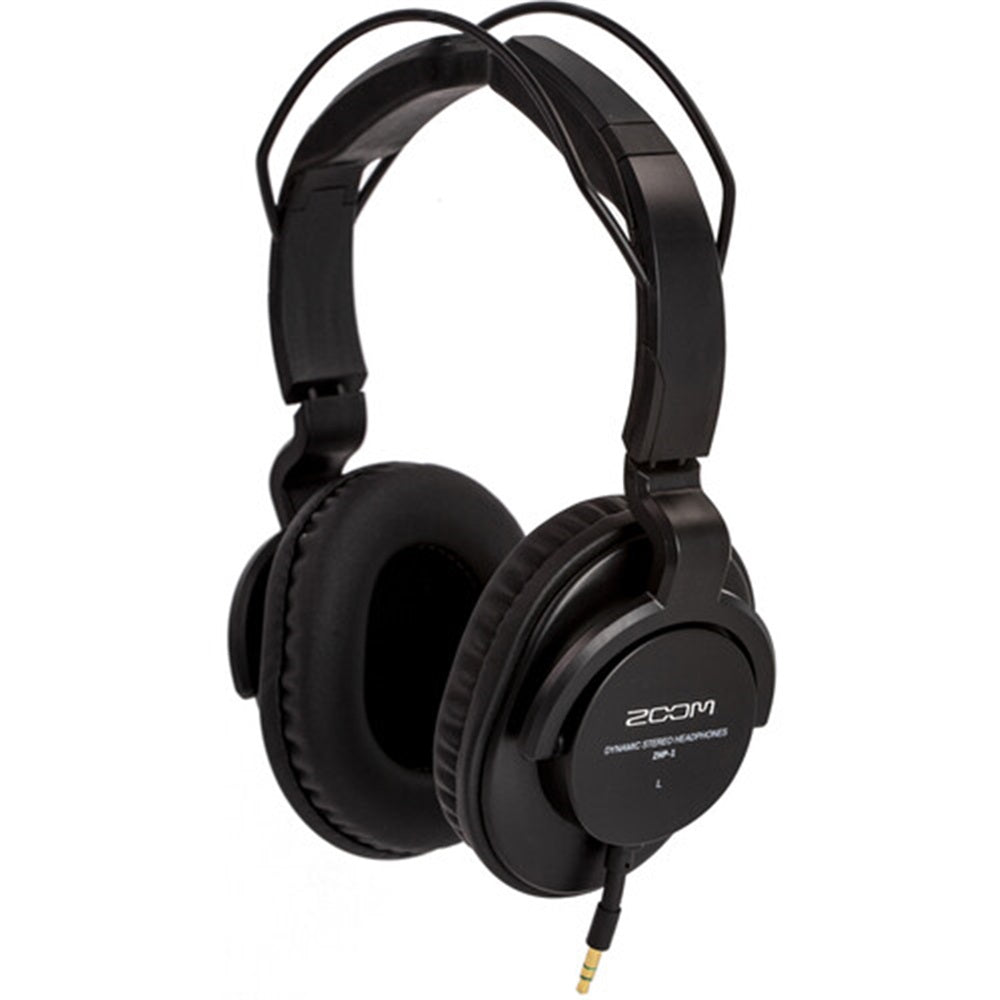

A perfect companion for the PodTrak P4 podcast recorder, the Zoom ZDM-1 Podcast Mic Pack bundles all the essentials you'll need to complete your home or mobile podcasting studio—a microphone, headphones, a tabletop mic stand, a mic cable, and more. The Zoom ZDM-1 dynamic mic and its custom windscreen help you record your voice with full, broadcast-quality tone and minimal noise from breaths and room ambience while the ZHP-1 closed-back headphones ensure transparent audio reproduction for critical listening.

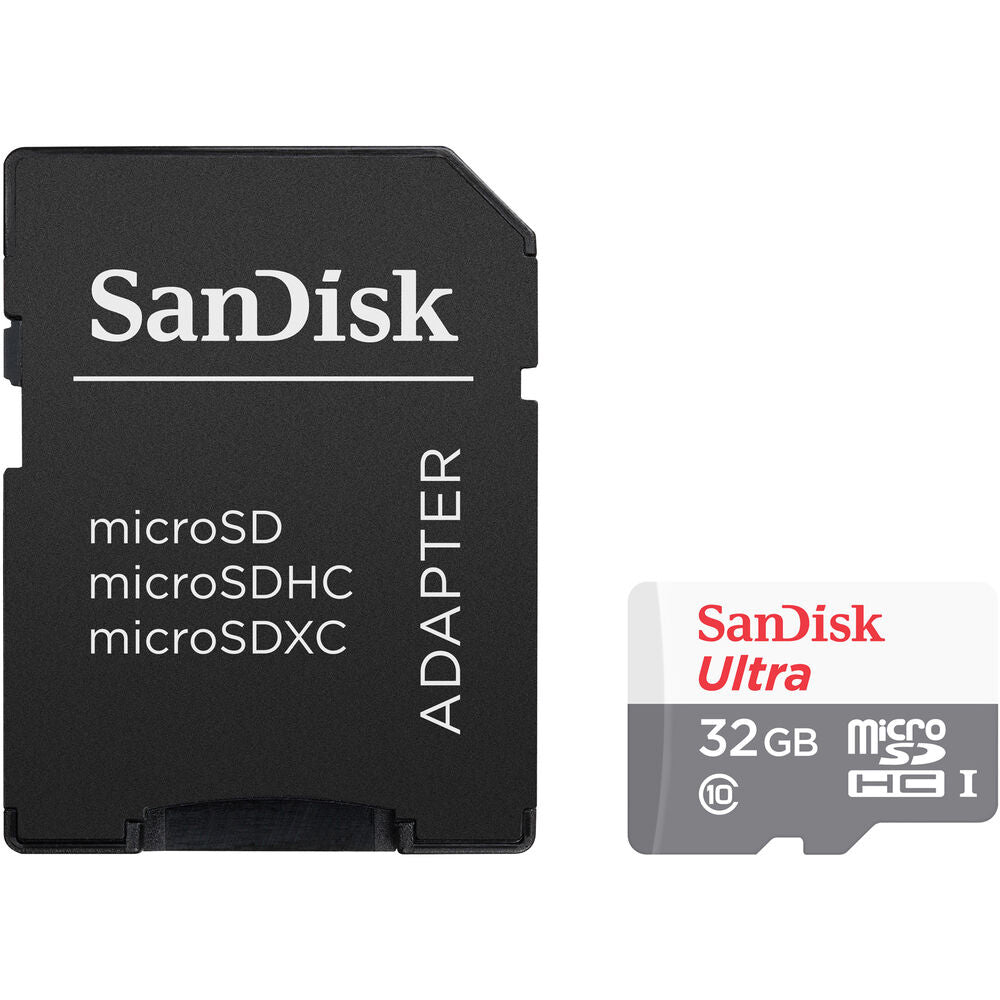

SanDisk 32GB Ultra UHS-I microSDHC Memory Card with SD Adapter

Designed for capturing Full HD video and still photos using Android smartphones and tablets, the 32GB Ultra UHS-I microSDHC Memory Card from SanDisk features a storage capacity of 32GB and takes advantage of the UHS-I bus to support read speeds of up to 100 MB/s. This card also supports the Class 10 standard, which guarantees minimum write speeds will not drop below 10 MB/s. Hi-quality batteries ideal for use in your everyday electronics. Alkaline Plus batteries provide long-lasting performance in everyday devices.

In the Box:

  • Touchscreen track editing and effects
  • Onboard drum machine and synthesizer
  • Zoom ZDM-1 Dynamic Microphone

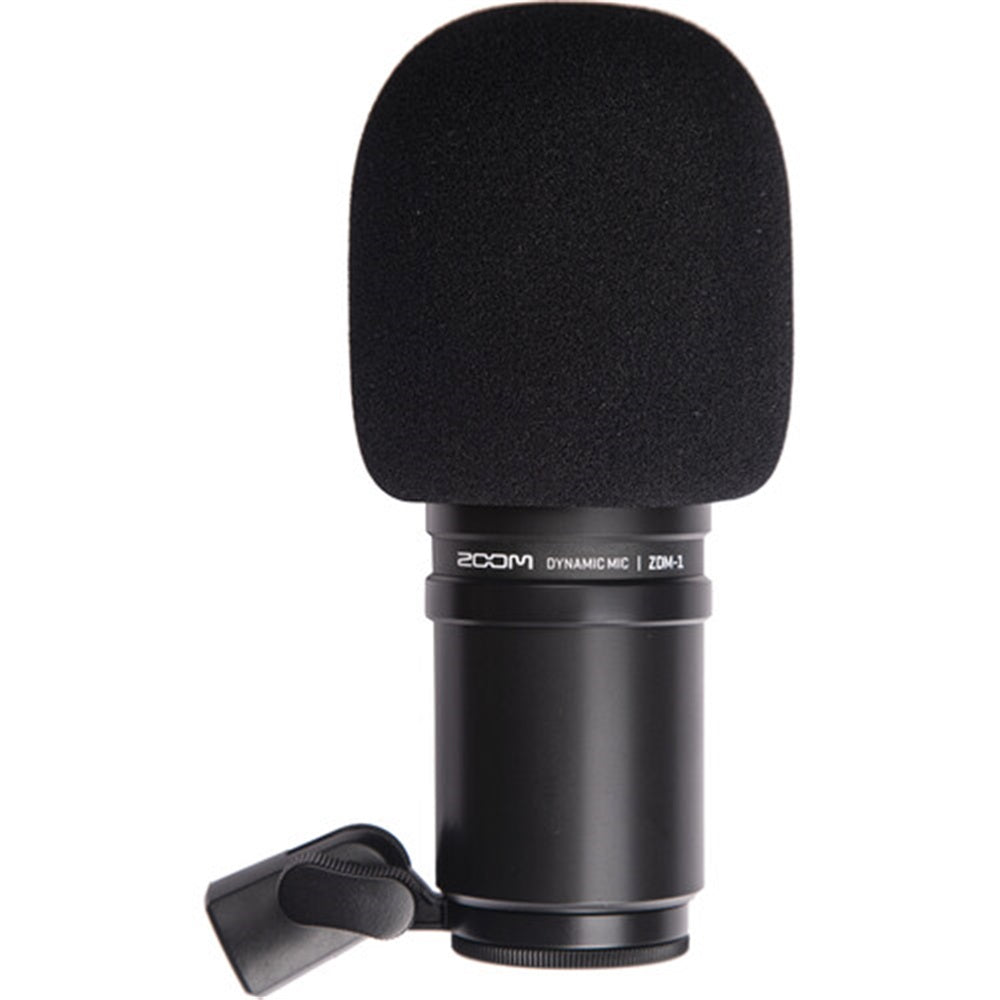

  • Custom ZDM-1 Windscreen
  • SanDisk's free Memory Zone
  • SanDisk's Memory Zone 3.0
  • Alkaline Plus batteries provide long-lasting performance in everyday devices such as portable
Additional Information

Zoom R12 MultiTrak Recorder SPECS

INPUTS / OUTPUTS

INPUTSMIC/LINE (mono)2
OUTPUTSMASTER OUT1
PHONES1





INPUTS

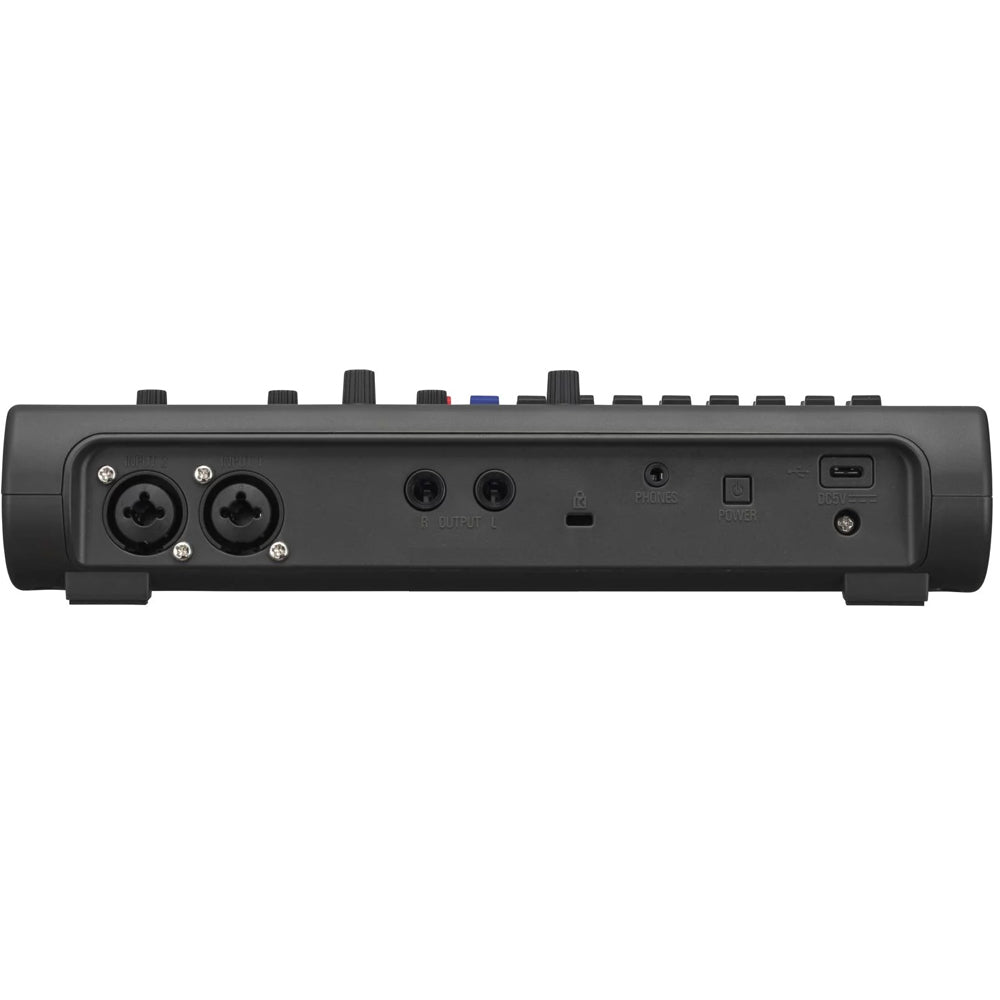

MIC/LINE (MONO)Connectors2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT
Input gain+6 ~ +50 dB
Input impedanceXLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)
Phantom power+48 V (switchable separately for INPUTS 1 and 2)
Equivalent input noise–121 dBu or less (IHF-A) at +50 dB/150 Ω input
Frequency response−1.0/+0.5 dB: 20 Hz – 20 kHz





OUTPUTS

MASTER OUTConnectors2 TRS phone jacks (balanced)
 Maximum output level+14 dBu
 Output impedance200 Ω
PHONESConnectors1 stereo 3.5mm mini jack
 Maximum output level45 mW + 45 mW (into 32 Ω load)
 Output impedance10 Ω





RECORDER

Maximum simultaneous recording tracks2
Maximum simultaneous playback tracks8
Recording format44.1kHz, 16/24-bit, mono/stereo WAV
Cards compatible with microSDHC specifications 4 GB – 32 GB
Recording mediaCards compatible with microSDXC specifications 64 GB – 1 TB





TRACK SETTINGS

EQHigh: 10 kHz, ±12 dB, shelving
Middle: 2.5 kHz, ±12 dB, peaking
Low: 100 Hz, ±12 dB, shelving
PanL100 – R100





EFFECTS

Input DynamicsComp/Limiter/Gate
Patch memory effects3 types can be used simultaneously
50 patch memories
Guitar Lab supported
Can be assigned and used as an insert (input) or send effect
Dedicated send effects10 types of spatial effects





CLICK (METRONOME)

Time signatures3/4, 4/4, 6/8
Tempo range40.0 – 250.0 BPM





RHYTHM LOOPS

Sound source formatPCM
Number of loops150





SYNTH

Sound source formatFM
Polyphony8
Number of sound types18 (and a PCM drum kit)





USB

CONNECTORUSB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
AUDIO INTERFACE FUNCTION2-in/2-out or 2-in/2-out (iPad)USB 2.0 Full Speed
44.1 kHz, 16/24-bit
2-in/4-outUSB 2.0 High Speed
44.1 kHz, 16/24-bit
MASS STORAGE FUNCTIONDeviceUSB 2.0 High Speed (5 V/200 mA power supplied when host)
GUITAR LAB CONNECTION USB 1.1 Full Speed
DAW CONNECTION (CONTROL SURFACE) USB 1.1 Full Speed
MASS STORAGE FUNCTIONHostUSB 2.0 High Speed (5V/200 mA power supplied)
USB MIDI KEYBOARD CONNECTION USB 1.1 Full Speed (5 V/200 mA power supplied)





Other Specs

TUNERChromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
DISPLAY2.4"  (320×240) full-color touchscreen LCD
POWER

Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)

AC adapter: ZOOM AD-17 (5V/1.0A)

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (During playback with +48V off and 32Ω headphone load)



Alkaline batteries: about 5 hours

NiMH batteries (1900 mAh): about 5 hours

Lithium batteries: about 11 hours

• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

POWER CONSUMPTION5 W maximum
DIMENSIONS256 mm (W) × 158 mm (D) × 61 mm (H)
WEIGHT (including batteries)827 g



* NOTE: 0 DBU = 0.775 VRMS

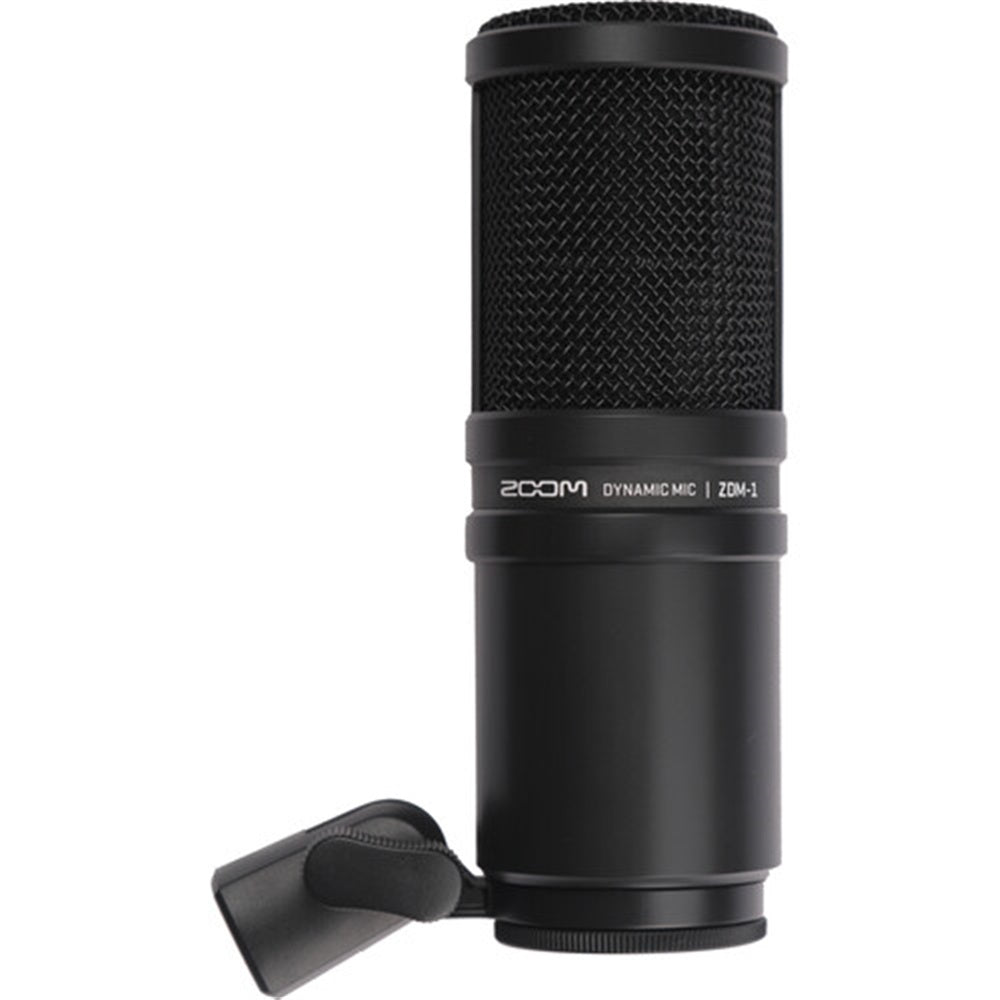

Zoom ZDM-1 Dynamic Microphone Specs





Microphone

Form FactorStand/Boom Mount
Sound FieldMono
Operating PrinciplePressure Gradient
Capsule1 x Dynamic
Polar PatternSupercardioid
OrientationEnd Address
CircuitrySolid-State
PadNone
High-Pass FilterNone
Tone AdjustmentNone
IndicatorsNone
On-Board ControlsNone
WindscreenFoam (Included)





Performance

Frequency Range50 Hz to 18 kHz
Maximum SPL135 dB SPL
Impedance200 Ohms
Load Impedance200 Ohms (Minimum)
Sensitivity-54 dBV/Pa





Connectivity

Output Connectors (Analog)1 x XLR 3-Pin Male
Headphone ConnectorNone





Physical

ColorBlack
Mounting3/8"-16 Female, 5/8"-27 Female (with Included Hardware)
Construction MaterialMetal
Dimensions�: 2.12 x L: 5.19" / �: 5.38 x L: 13.18 cm
Weight14.11 oz / 400 g



Other Accessories Included

SanDisk 32GB Ultra UHS-I microSDHC Memory Card with SD Adapter

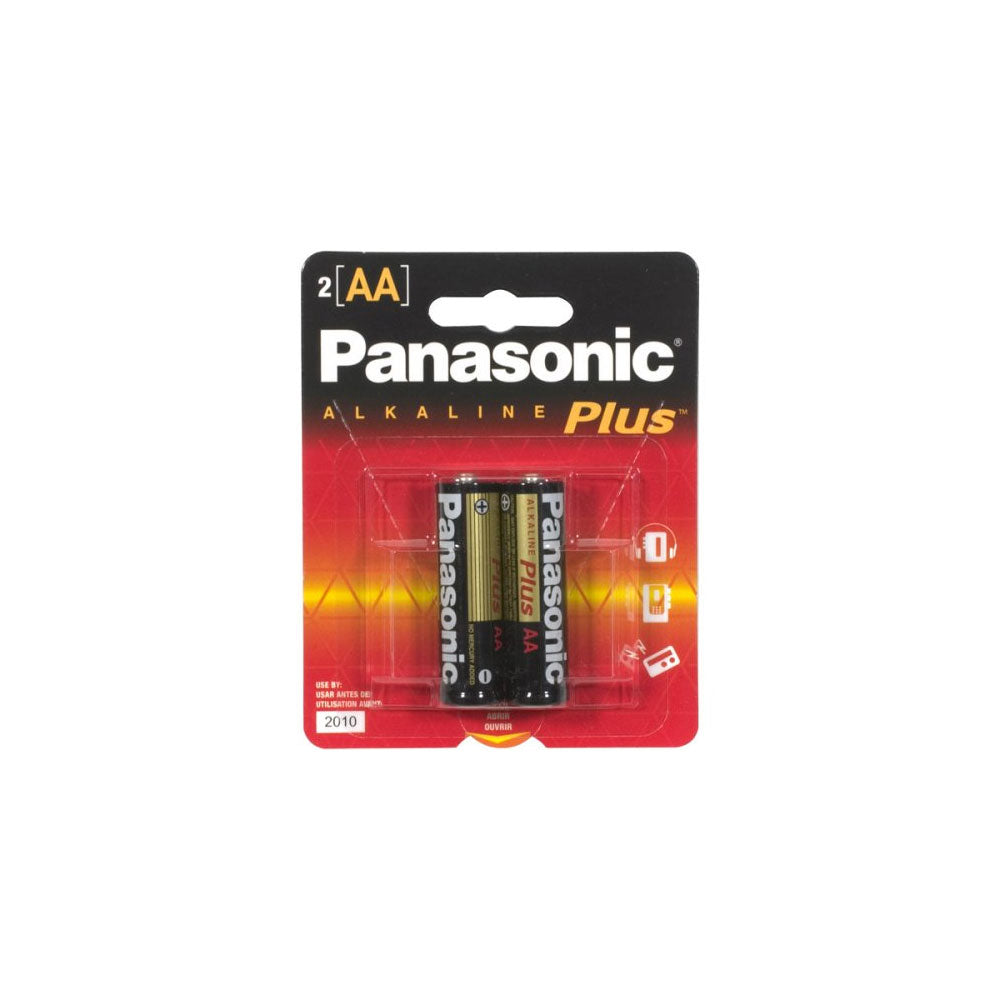

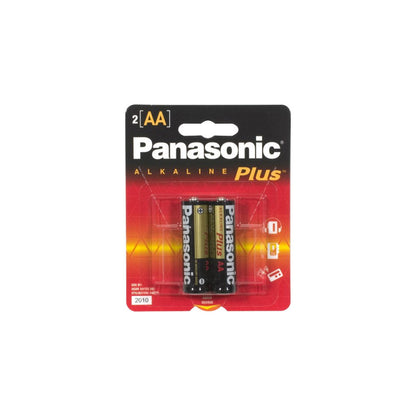

4 Panasonic Alkaline "AA" Batteries
